HVAC Technical Data

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

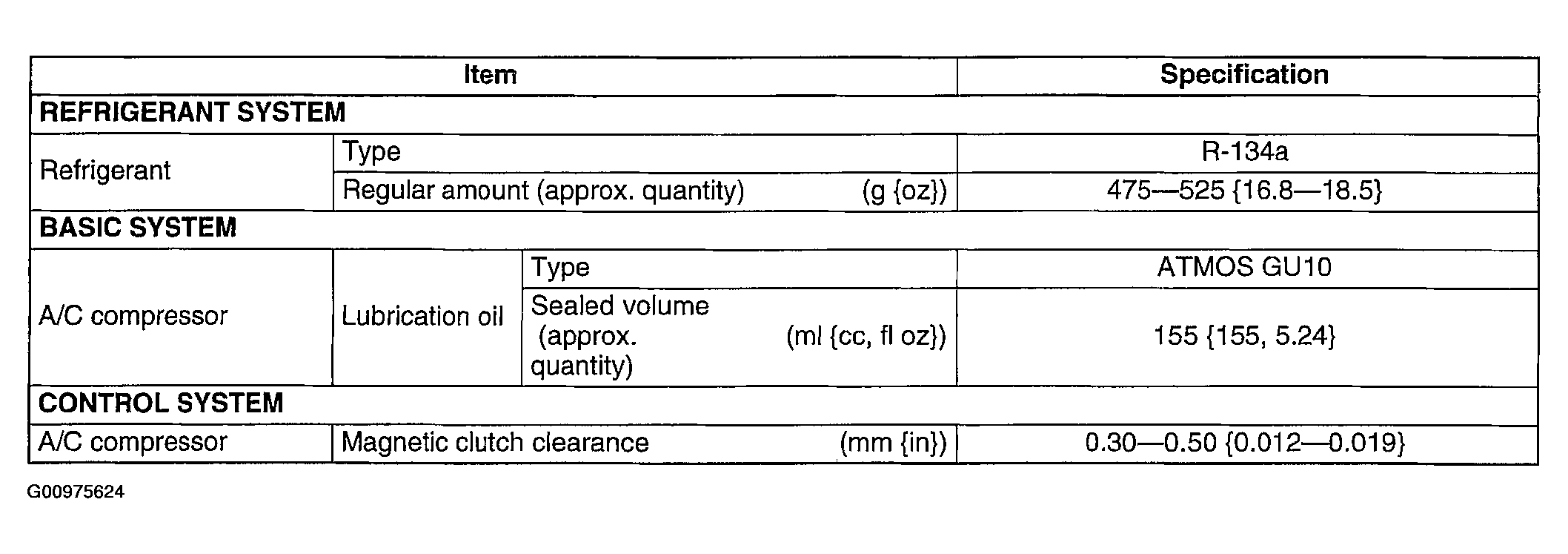

Fig 1: HVAC Technical Data Specifications
G00975624Courtesy of MAZDA MOTORS CORP.
