Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the yaw rate sensor electrical connector (3).
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the yaw rate sensor (2).

    Tighten

    Tighten the 2 yaw rate sensor mounting nuts (1) to 6 N.m (53 in lbs).

  3. Perform the ABS Diagnostic System Check. Refer to DIAGNOSTIC SYSTEM CHECK - ABS

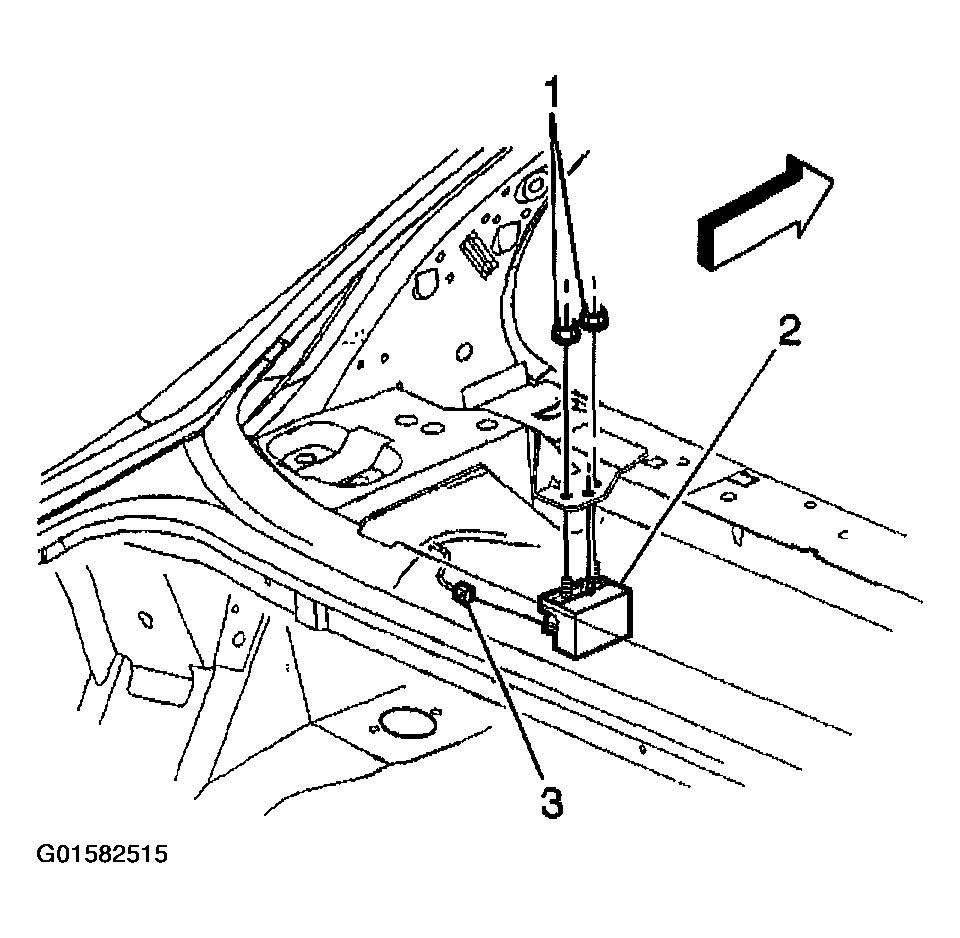

    Fig 1: Installing Yaw Rate Sensor
    G01582515Courtesy of GENERAL MOTORS CORP.
