Connector Identification

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to illustrations to identify SIR connector terminals. See Fig 1, Fig 2, Fig 3, Fig 4, Fig 5, Fig 6, Fig 7, Fig 8, Fig 9 & Fig 10 .

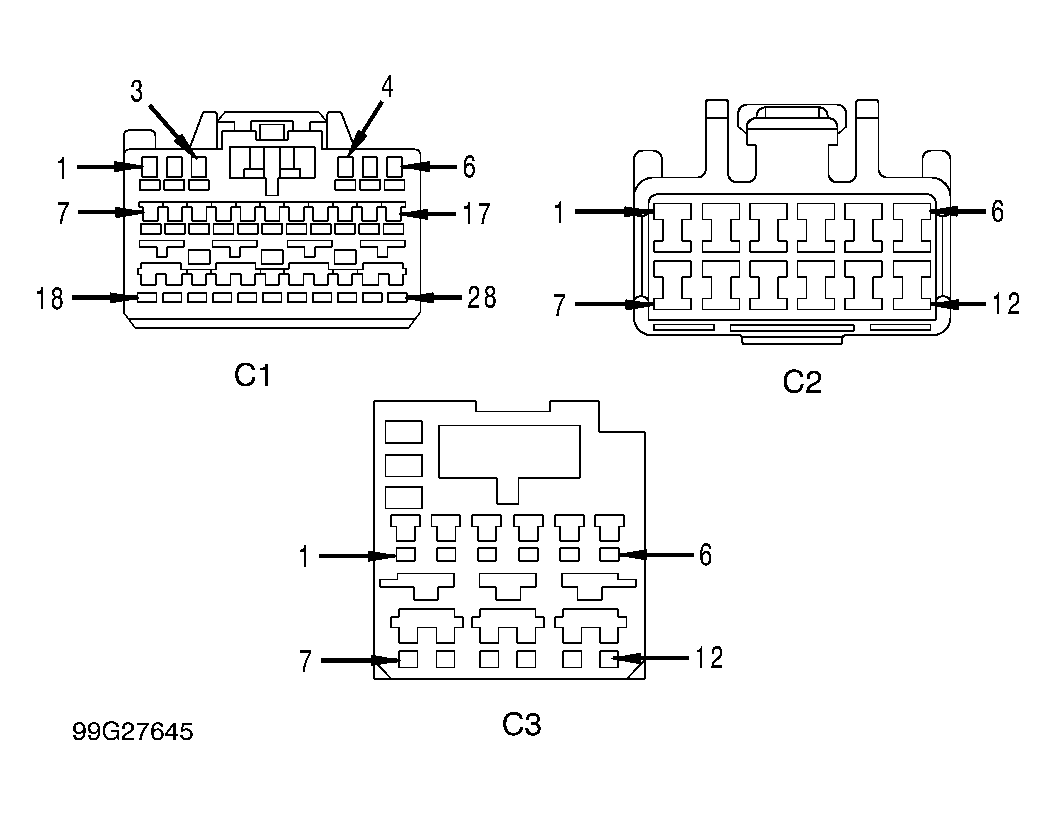

Fig 1: Identifying SDM Connector Terminals

Courtesy of GENERAL MOTORS CORP.

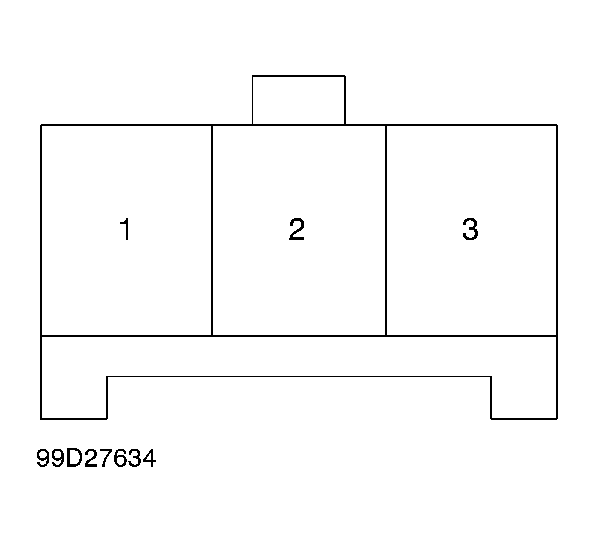

Fig 2: Identifying Driver-side Air Bag Module Connector Terminals

Courtesy of GENERAL MOTORS CORP.

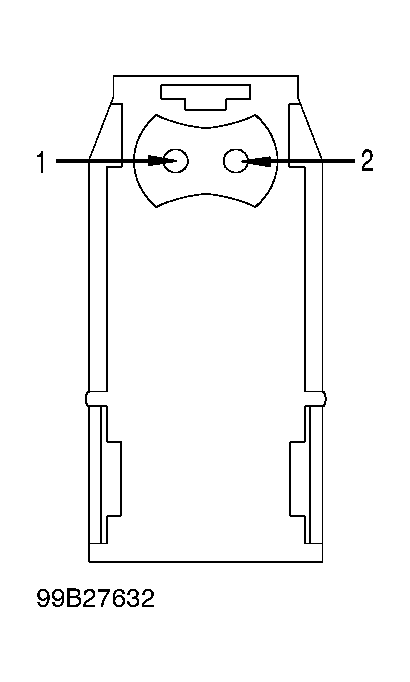

Fig 3: Identifying Driver Side Impact Sensor (SIS) Connector Terminals

Courtesy of GENERAL MOTORS CORP.

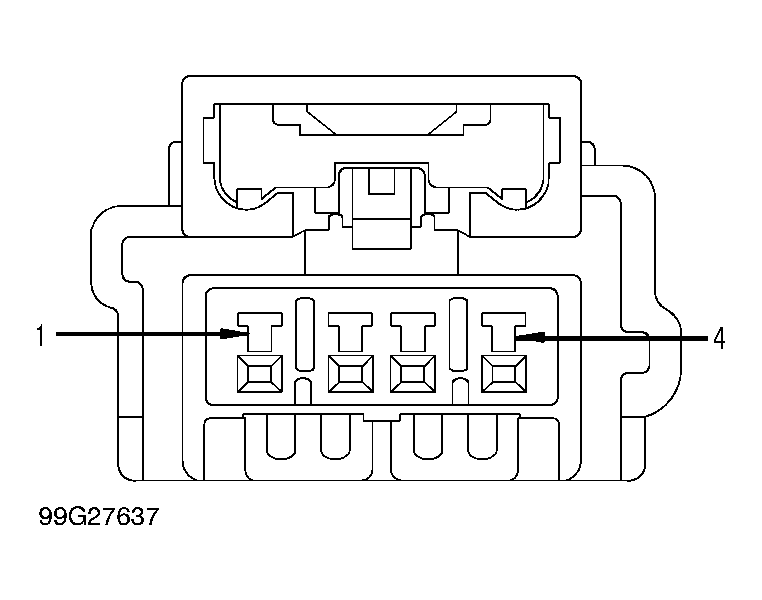

Fig 4: Identifying Passenger Side Impact Sensor (SIS) Connector Terminals

Courtesy of GENERAL MOTORS CORP.

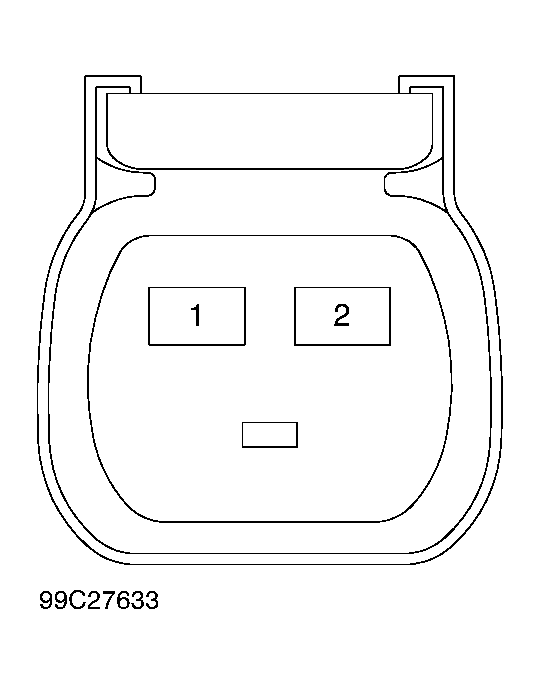

Fig 5: Identifying SIR Coil Connector Terminals

Courtesy of GENERAL MOTORS CORP.

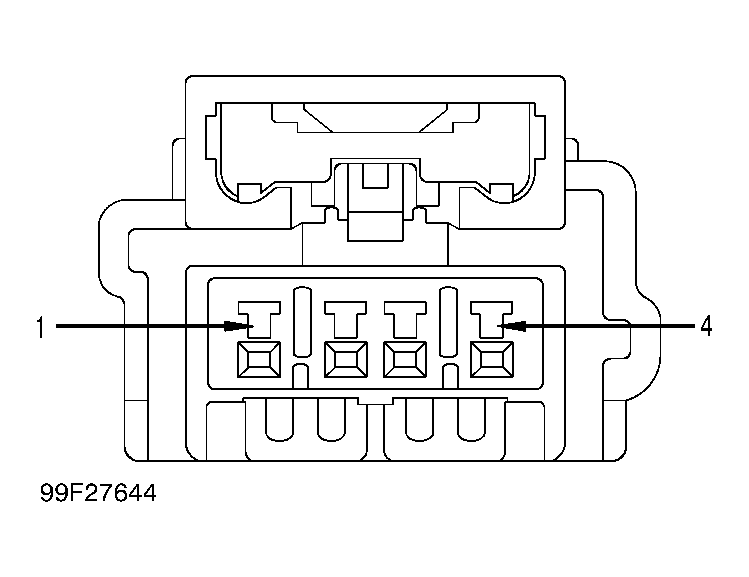

Fig 6: Identifying Seat Belt Pretensioner Connector Terminals

Courtesy of GENERAL MOTORS CORP.

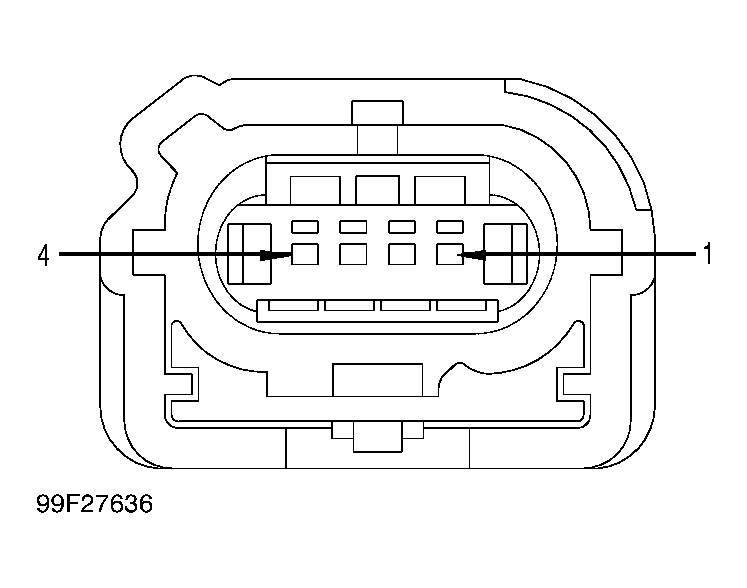

Fig 7: Identifying Front End Discriminating Sensor Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 8: Identifying Driver Seat Belt Switch Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 9: Identifying Driver Seat Belt Warning Light Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 10: Identifying, Side Impact Air Bag Module, Seat Position Sensor, Passenger Seat Belt Switch & Passenger Seat Occupant Detection Sensor Connector Terminals

Courtesy of GENERAL MOTORS CORP.
