Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the memory seat switch to the lock and door lock and side window switch (1).
  2. Connect the electrical connector (2) to the memory seat switch.

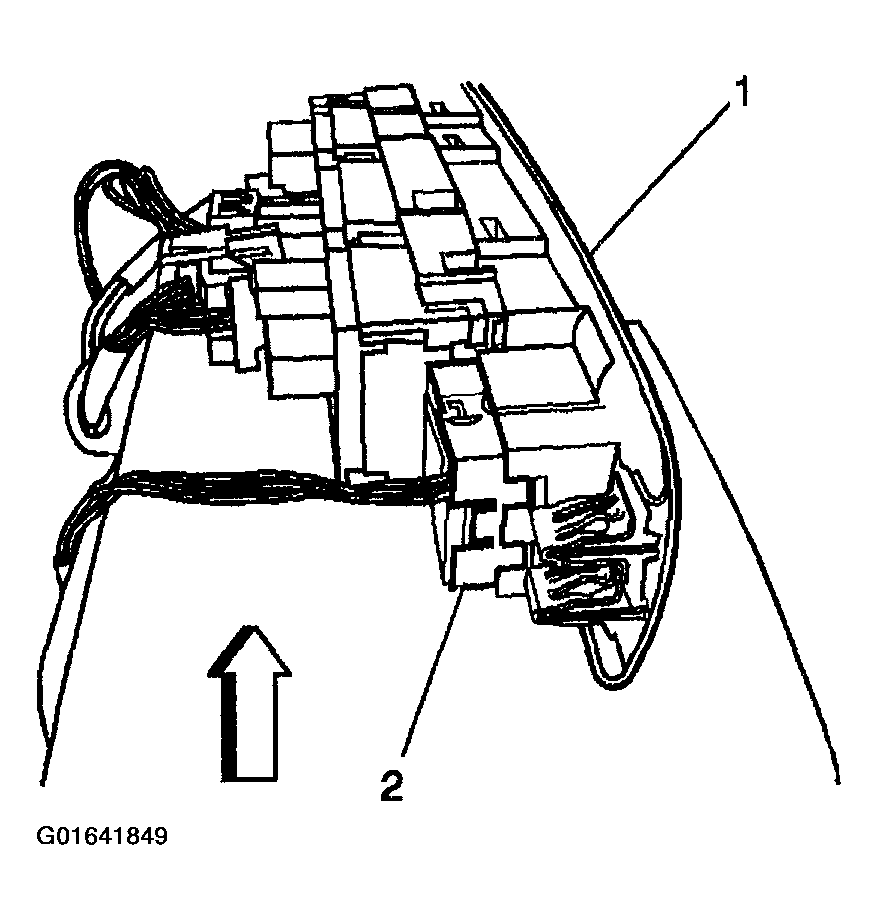

    3. Fig 1: Connecting Electrical Connector To Memory Seat Switch
    G01641849Courtesy of GENERAL MOTORS CORP.
  3. Install the door lock and side window switch (1). Verify that the front retaining clips and the rear retaining clips are fully seated.

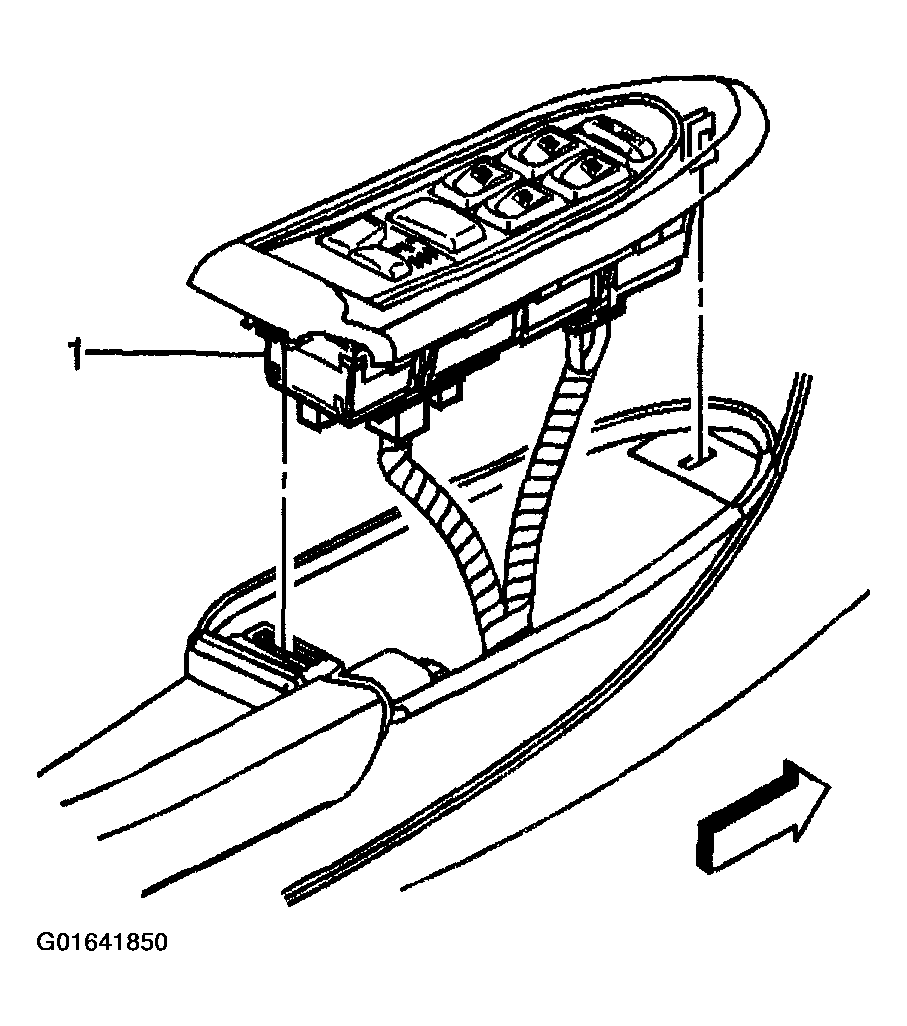

    4. Fig 2: Door Lock And Side Window Switch
    G01641850Courtesy of GENERAL MOTORS CORP.
