Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Carefully install the bracket to the vehicle through the headliner opening, ensuring the locating tabs (1) are fully seated to the roof bow.
    Fig 1: Installing Bracket To Vehicle Through Headliner Opening
    G01642853Courtesy of GENERAL MOTORS CORP.
  2. Partially install the front bracket retaining bolts.

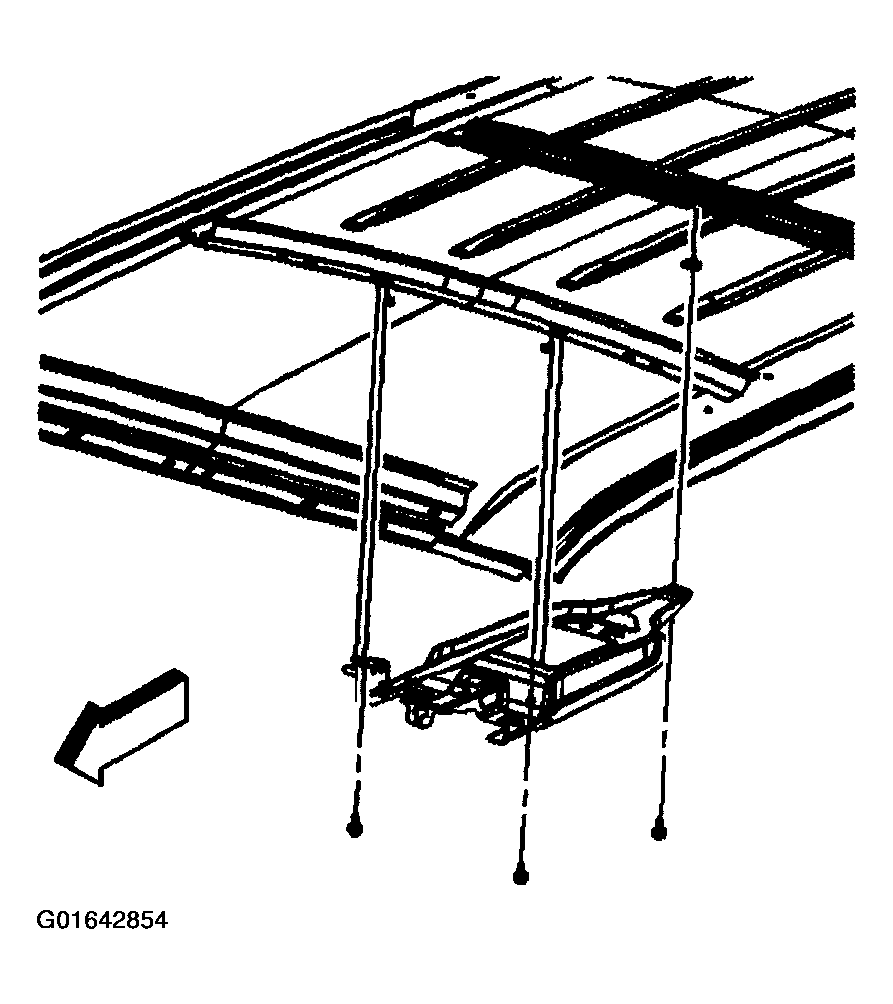

    Fig 2: Installing Front Bracket Retaining Bolts
    G01642854Courtesy of GENERAL MOTORS CORP.
  3. Carefully pull down on the rearward edge of the headliner in order to expose the rear bolt installation area.
  4. Partially install the rear bracket retaining bolt.
    NOTE: Refer to Fastener Notice   in Cautions and Notices.
  5. Fully seat the retaining bolts.

    Tighten

    Tighten the bolts to 10 N.m (88 lb in).

    Fig 3: Installing Rear Bracket Retaining Bolt
    G01642855Courtesy of GENERAL MOTORS CORP.
  6. Install the two rear overhead console carrier screws (1).

    Tighten

    Tighten the screws to 1.2 N.m (10 lb in).

  7. Install the video display assembly. Refer to VIDEO DISPLAY REPLACEMENT   .
  8. Verify the video display for proper operation.
  9. Close the video display screen.
  10. Install the bolt cover bezel.

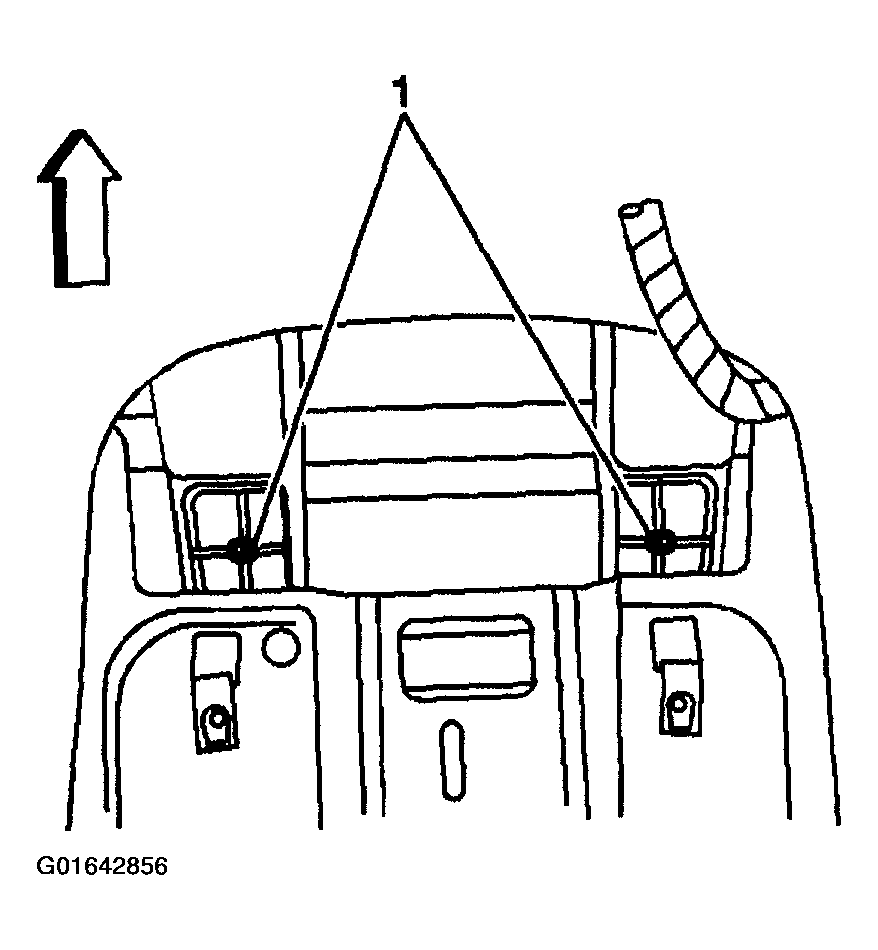

    Fig 4: Installing Two Rear Overhead Console Carrier Screws
    G01642856Courtesy of GENERAL MOTORS CORP.
