Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the overhead console. Refer to OVERHEAD CONSOLE REPLACEMENT - FRONT  in Interior Trim.
  2. Disconnect the electrical connector from the personal message recorder (1).
  3. Remove the personal message recorder retaining screws.
  4. Remove the personal message recorder from the overhead console.
  5. Remove the button assembly from the overhead console.

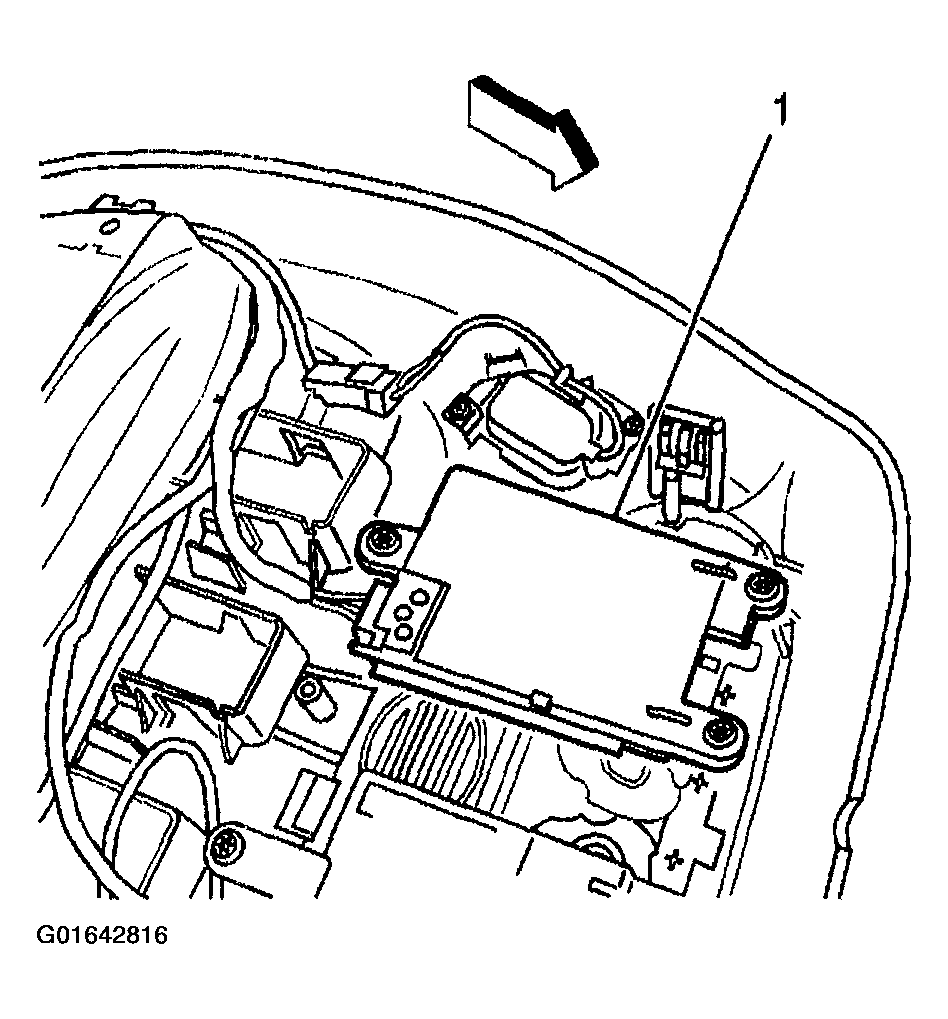

    Fig 1: Disconnecting Electrical Connector From Personal Message Recorder
    G01642816Courtesy of GENERAL MOTORS CORP.
