Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the electrical connector to the stop lamp switch (1).
  2. Position the stop lamp switch (1) on the pushrod (2) and install the assembly on the brake pedal pin.
  3. Install the pushrod retainer (3) to the brake pedal pin (4). The retainer will snap into place.

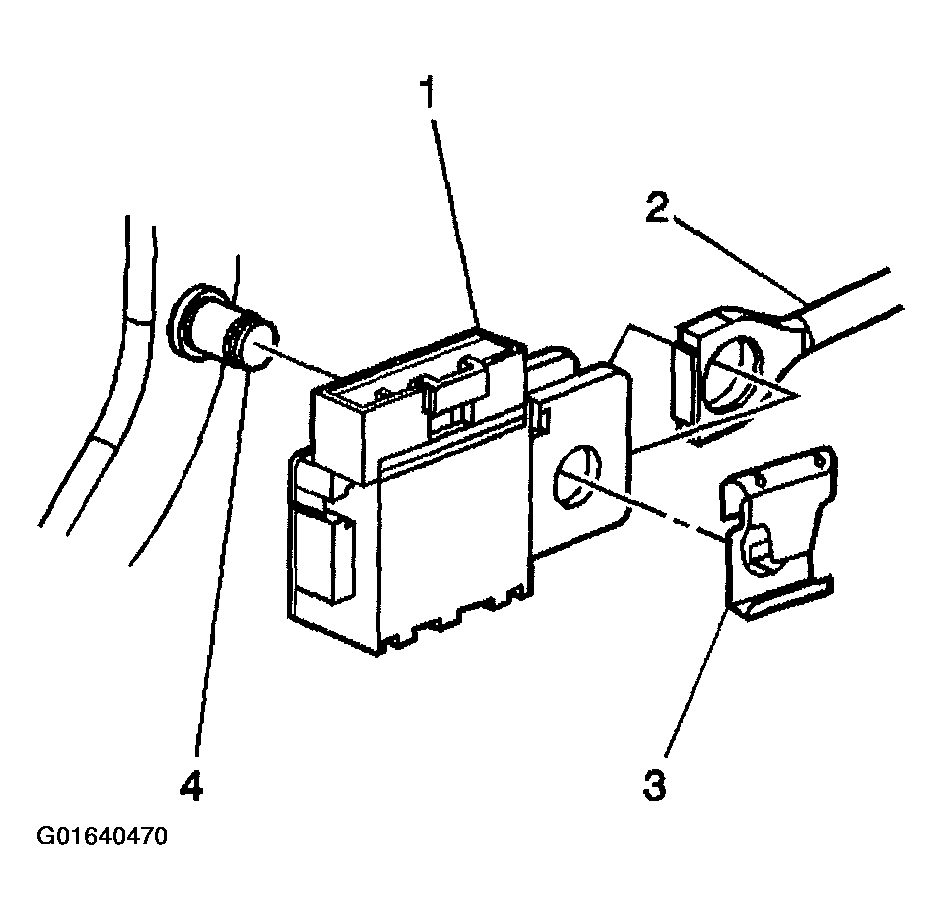

    Fig 1: Installing Electrical Connector To Stop Lamp Switch
    G01640470Courtesy of GENERAL MOTORS CORP.
