Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the headlamp switch near the access hole.
  2. Connect the electrical connectors to the headlamp switch.

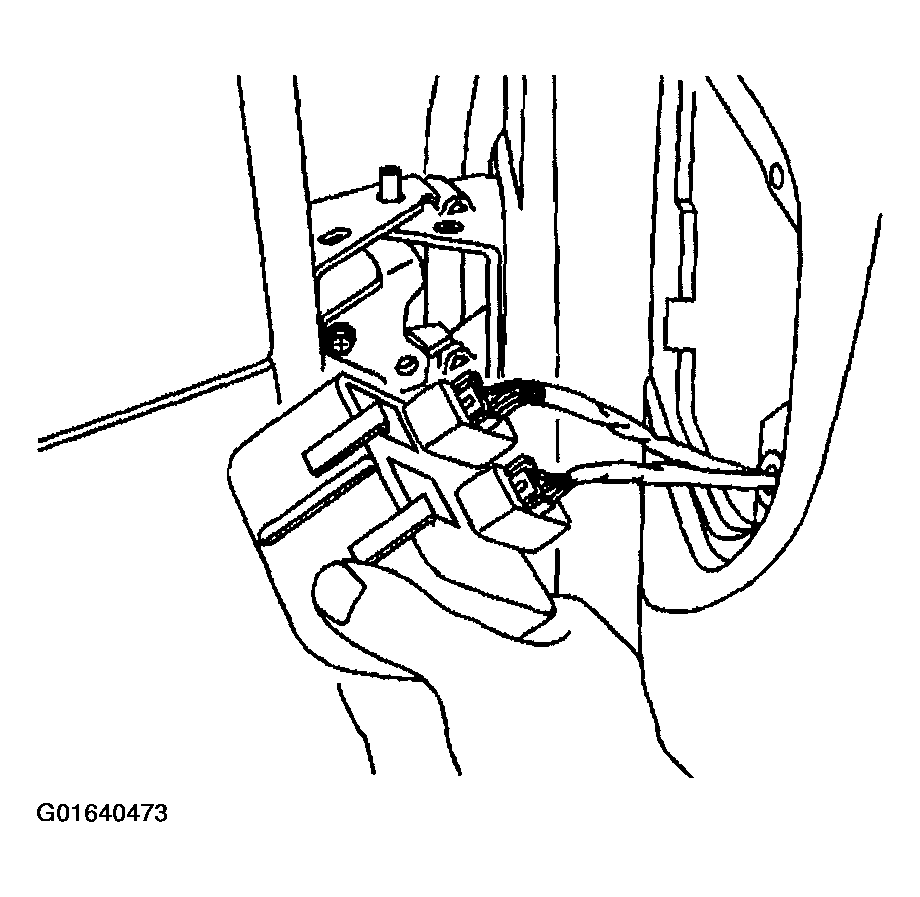

    Fig 1: Connecting Electrical Connectors To Headlamp Switch
    G01640473Courtesy of GENERAL MOTORS CORP.
  3. Install the headlamp switch to the IP. Ensure that the retaining tabs are fully seated.
  4. Install the left IP access cover.

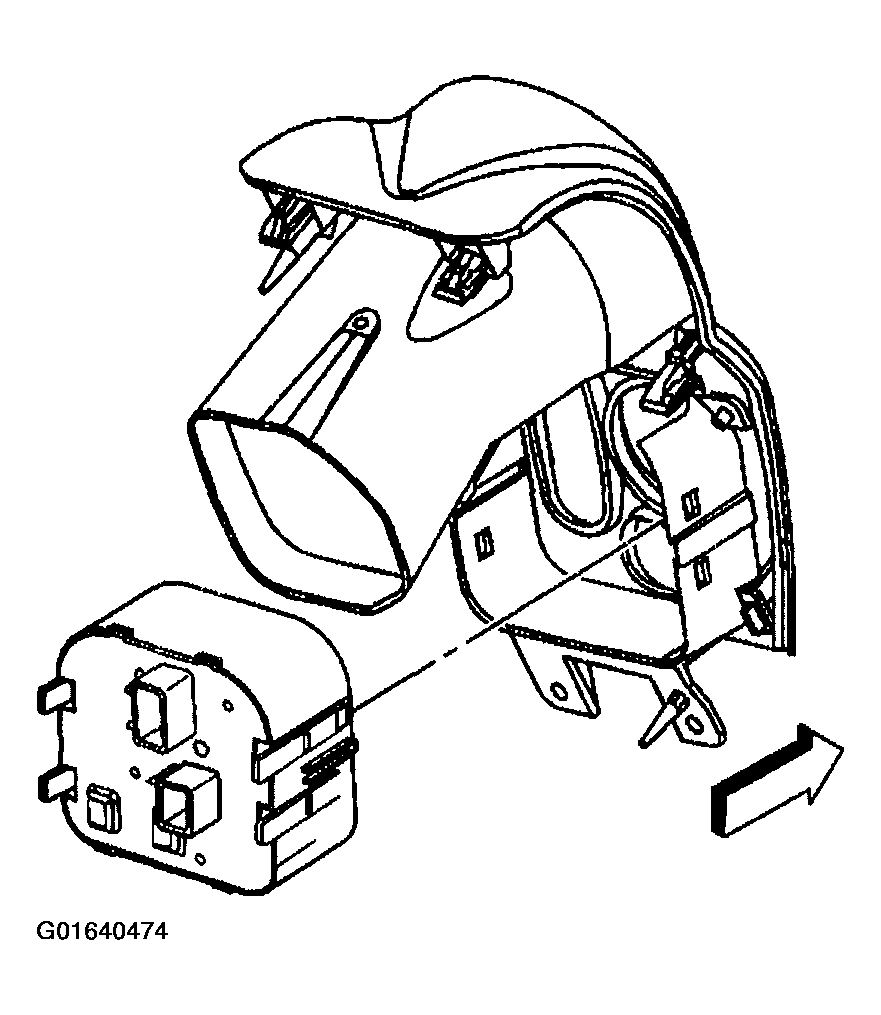

    Fig 2: Installing Headlamp Switch To IP
    G01640474Courtesy of GENERAL MOTORS CORP.
