Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the windshield garnish moldings. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILLAR  in Interior Trim.
  2. Remove the trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER  in Instrument Panel Gages and Console.
    IMPORTANT: Cover the windshield defrost vents with clean shop rags.
  3. Disconnect the electrical connector from the sensor.

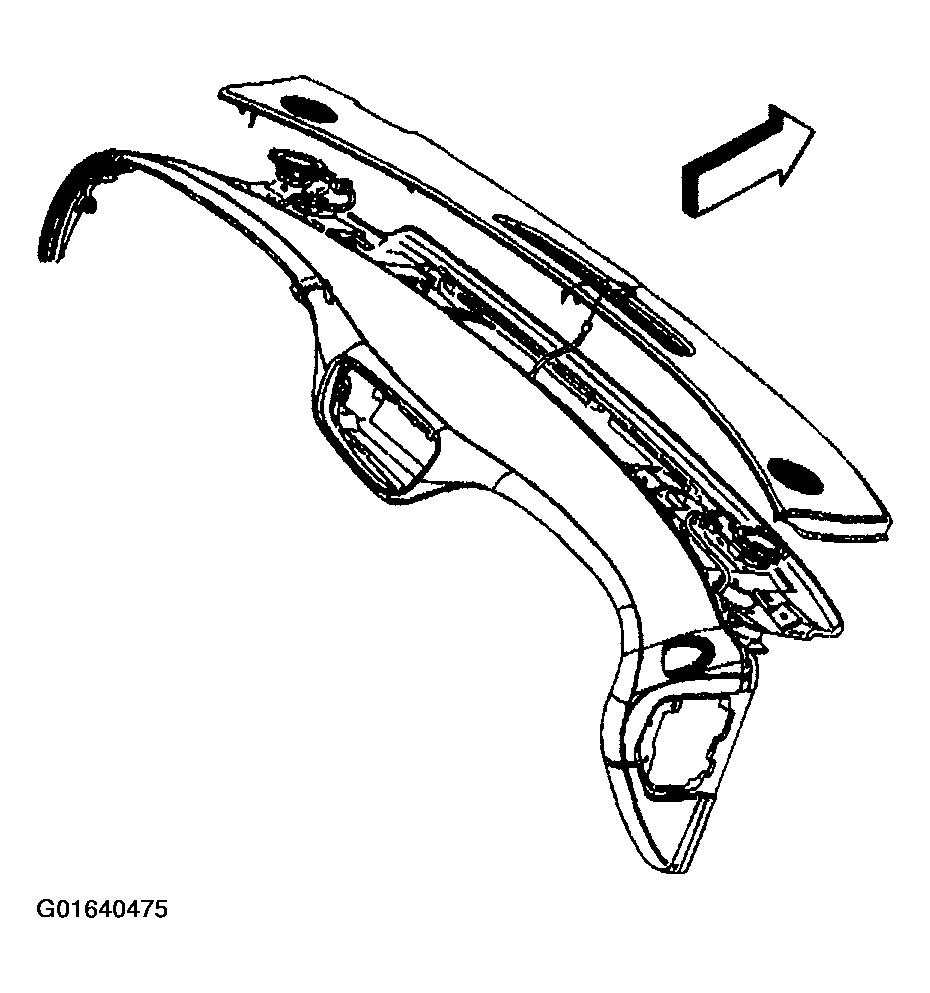

    Fig 1: Disconnecting Electrical Connector From Sensor
    G01640475Courtesy of GENERAL MOTORS CORP.
  4. In order to remove the sensor from the trim pad, rotate the sensor counter- clockwise 1/4 turn.
  5. Remove the sensor from the trim pad.

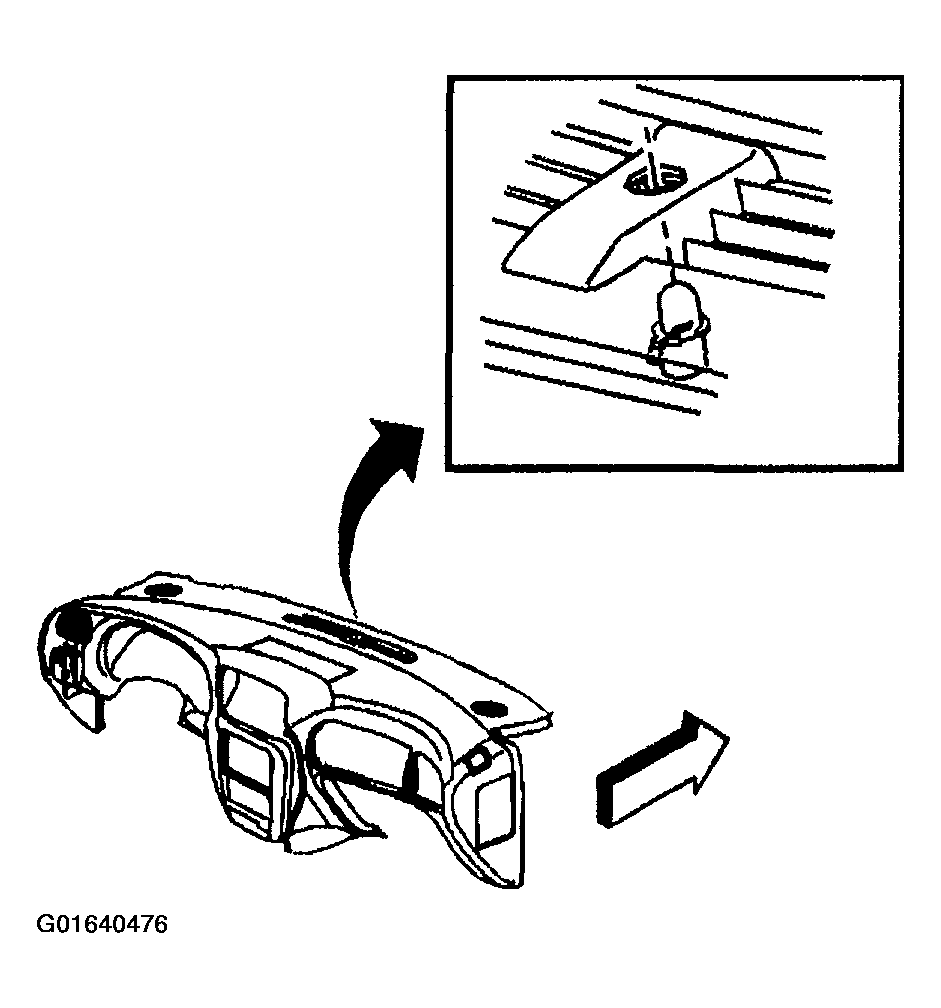

    Fig 2: Removing Sensor From Trim Pad
    G01640476Courtesy of GENERAL MOTORS CORP.
