Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 4 screws that retain the rear console to the roof panel.
  2. Lower the rear console from the headliner.
  3. Remove the rear console from the vehicle.

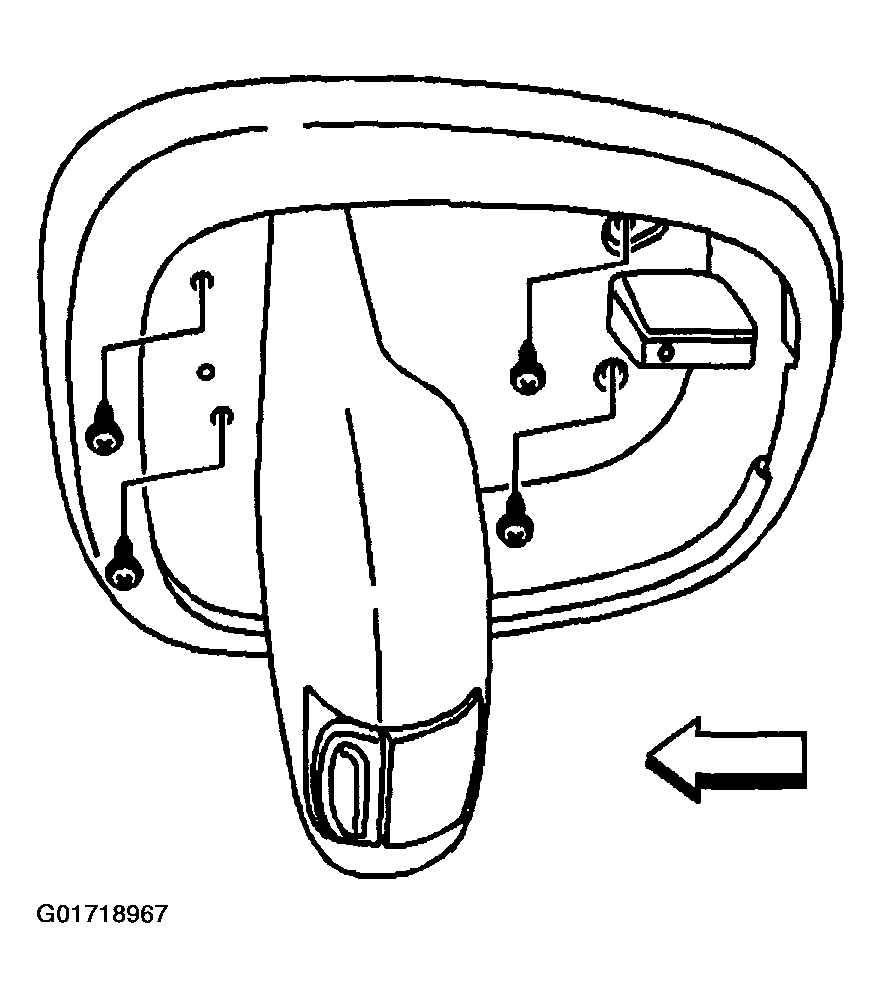

    Fig 1: Removing Rear Console Retaining Screws
    G01718967Courtesy of GENERAL MOTORS CORP.
