Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear console to the roof panel ensuring the screw holes are indexed properly.
  2. Partially install the 4 screws that retain the rear console to the roof panel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the 4 screws retaining the rear console to the roof panel.

    Tighten

    Tighten the screws to 1.2 N.m (10 lb in).

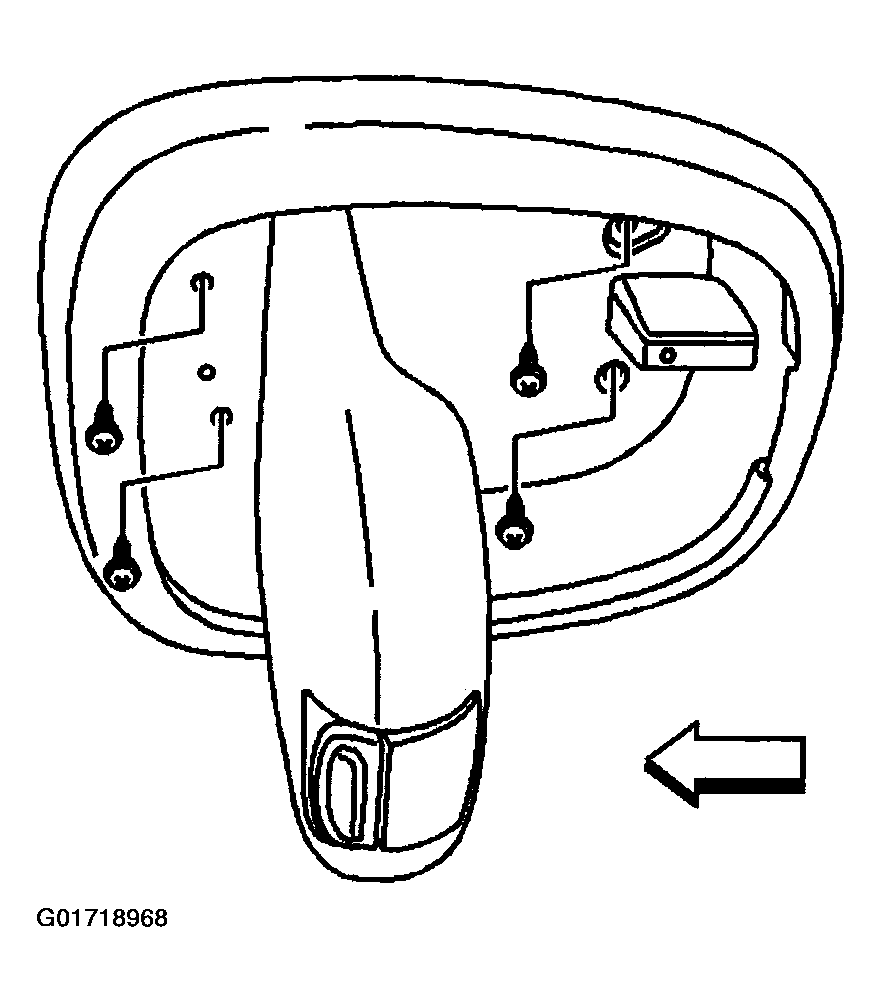

    Fig 1: Installing Rear Console & Retaining Screws
    G01718968Courtesy of GENERAL MOTORS CORP.
