Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. If replacing the console, install the radio volume compensator interior microphone if equipped. Refer to MICROPHONE REPLACEMENT - RADIO VOLUME COMPENSATOR INTERIOR in Roof.
  2. If replacing the console, install the power sunroof switch if equipped. Refer to POWER SUNROOF SWITCH REPLACEMENT in Roof.
  3. If replacing the console, install the personal message player/recorder if equipped. Refer to PERSONAL MESSAGE PLAYER/RECORDER REPLACEMENT in Entertainment.
  4. If replacing the console, install the OnStar® microphone if equipped. Refer to ONSTAR (R) MICROPHONE REPLACEMENT in Cellular Communication.
  5. If replacing the console, install the garage door opener if equipped. Refer to GARAGE DOOR OPENER REPLACEMENT in Garage Door Opener.
  6. Position the console to the roof panel.
  7. Connect the electrical connectors as needed.
  8. Seat the front retaining tabs.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  9. Install the 2 screws retaining the console to the roof panel.

    Tighten

    Tighten the screws to 1.2 N.m (10 lb in).

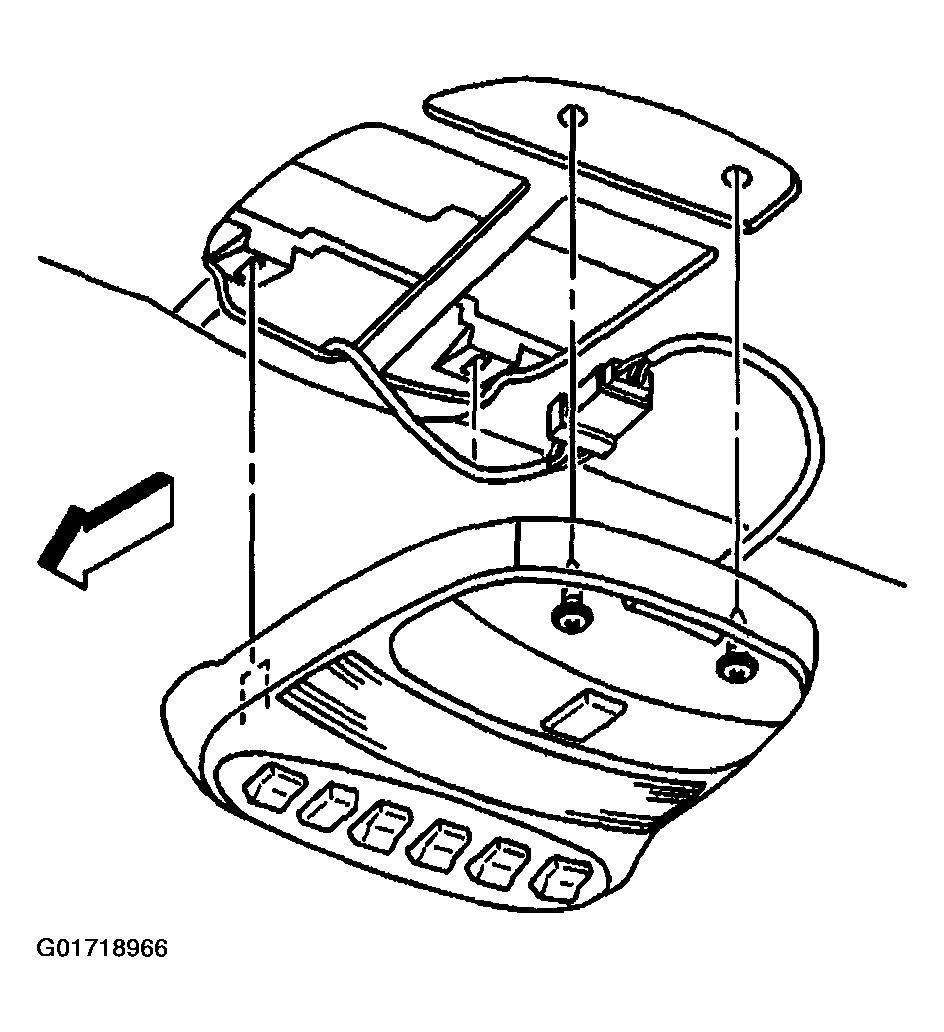

    Fig 1: Installing Overhead Console & Retaining Screws
    G01718966Courtesy of GENERAL MOTORS CORP.
