Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the garnish molding to the liftgate.
  2. Install wire harness (1) into the slot located on the garnish molding.
  3. Index the locating tabs to the corresponding holes in the liftgate.
  4. Index the retaining clips to the liftgate.
  5. Push the garnish molding into the liftgate in order to fully seat the retaining clips.
  6. Close the liftgate.

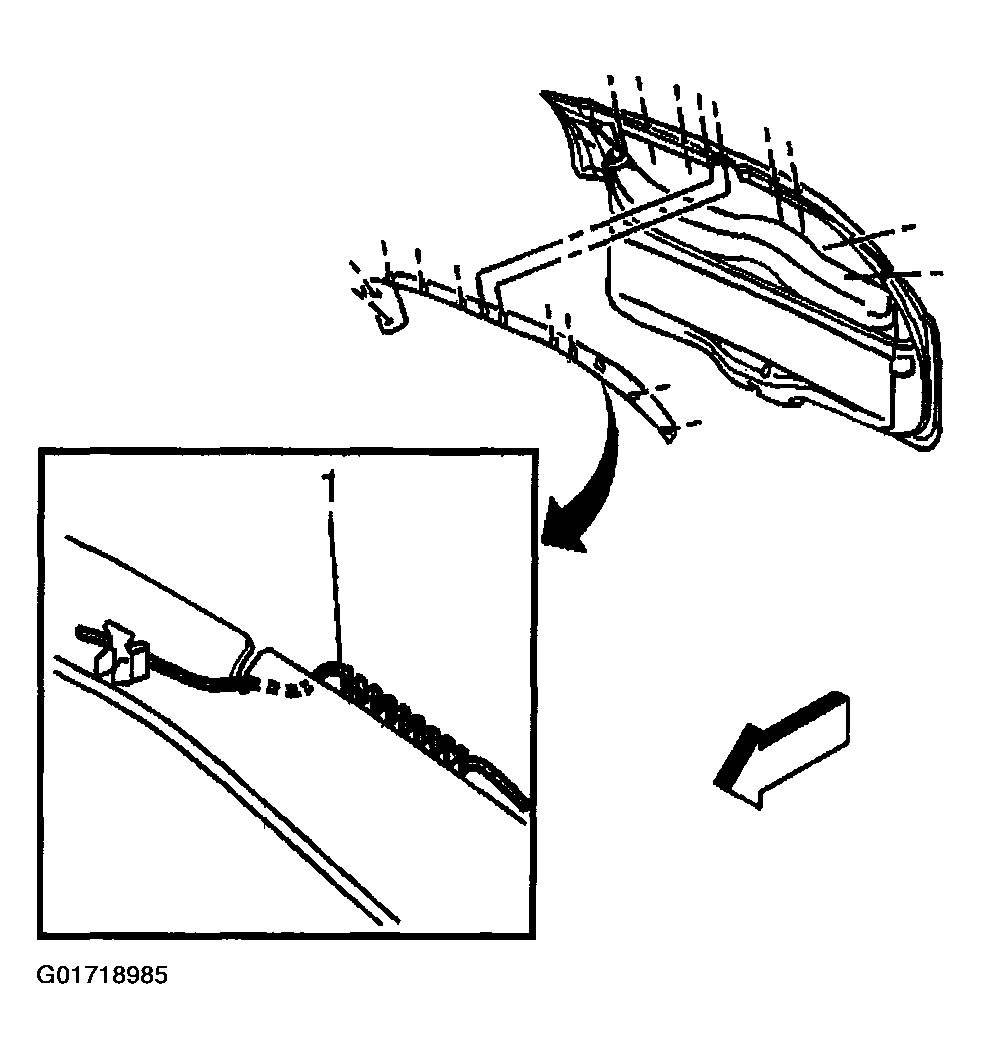

    Fig 1: Installing Rear Window Wire Harness In Molding
    G01718985Courtesy of GENERAL MOTORS CORP.
