Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove any dirt, grease, or other impurities from the mounting surface.

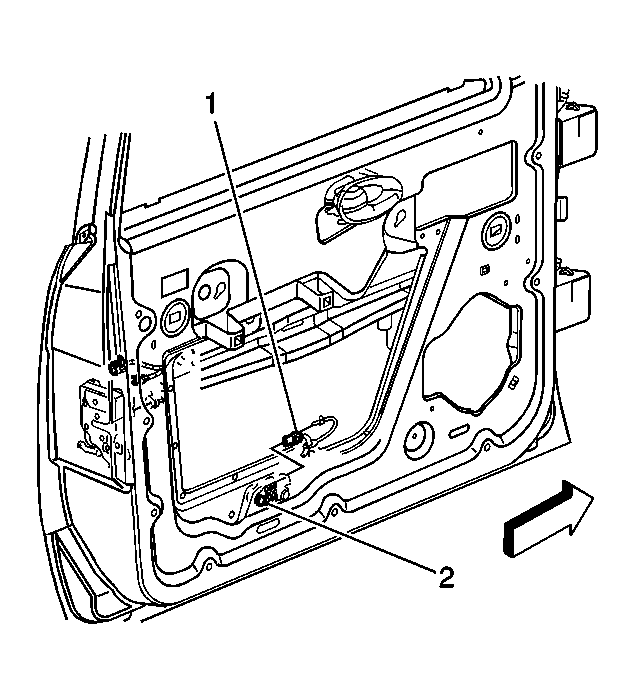

    2. Fig 1: Locating Side Impact Sensor
    GM742146Courtesy of GENERAL MOTORS CORP.
  2. Position the side impact sensor (2) horizontally to the door.
  3. Connect the electrical connector (1) to the side impact sensor (2).
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the screws which retain the side impact sensor to the door.

    Tighten:  Tighten the screws to 8 N.m (71 lb in).

  5. Fully seat the water deflector to the door.
  6. Install the door trim panel. Refer to Trim Panel Replacement - Side Front Door in Doors.
  7. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 2  and SIR Disabling and Enabling Zone 6 .
