Entertainment Connector End Views
WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
Amplifier Connector End View C1 (w/UZ6)
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| A1 | BK/WH | Sensitivity Control |
| A2 | - | Not Used |
| A3 | BK | Ignition Positive Voltage |
| A4 | BK | Left Rear Audio Input (+) |
| A5 | YE | Left Rear Audio Input (-) |
| A6 | PU | Left Front Audio Input (-) |
| A7 | PK | Left Front Audio Input (+) |
| A8 | WH | Mute Control |
| A9- A12 | - | Not Used |
| B1 | WH | Right Rear Door Speaker Output (-) |
| B2 | RD | Right Rear Door Speaker Output (+) |
| B3 | - | Not Used |
| B4 | WH | Right Rear Audio Input (-) |
| B5 | RD | Right Rear Audio Input (+) |
| B6 | LT GN | Right Front Audio Input (+) |
| B7 | BU | Right Front Audio Input (-) |
| B8 | - | Not Used |
| B9 | RD/WH | Left Front Door Tweeter Output (+) |
| B10 | BU/WH | Left Front Door Tweeter Output (-) |
| B11 | GN/WH | Right Front Door Tweeter Output (+) |
| B12 | BN | Right front Door Tweeter Output (-) |
Amplifier Connector End View C2 (w/UZ6)
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| A | LT GN | Right Front Door Speaker Output (+) |
| B | BU | Right front Door Speaker Output (-) |
| C | PU | Left Front Door Speaker Output (-) |
| D | PK | Left Front Door Speaker Output (+) |
| E | BU/RD | Battery Positive Voltage |
| F | WH/BK | Ground |
| G | BK | Left Rear Door Speaker Output (+) |
| H | YE | Left Rear Door Speaker Output (-) |
Digital Radio Receiver Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | - | Not Used |
| 2 | BN/WH | Remote Radio Left Audio Signal |
| 3 | DK GN/WH | Remote Radio Right Audio Signal |
| 4-8 | - | Not Used |
| 9 | BK/WH | Ground |
| 10 | BK/WH | Audio Common |
| 11 | BARE | Drain Wire |
| 12-14 | - | Not Used |
| 15 | PU | Class 2 Serial Data |
| 16 | OR | Battery Positive Voltage |
Remote CD Changer Connector End View C1 (w/UW5)
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | WH | Left Audio Output |
| 2 | BK | Right Audio Output |
| 3 | RD | Signal Ground |
| 4 | Braided | Drain Wire |
Remote CD Changer Connector End View C2 (w/UW5)
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 5 | BU/WH | CD Changer Supply Voltage |
| 6 | - | Not Used |
| 7 | WH/BK | Ground |
| 8-9 | - | Not Used |
| 10 | BU | Control Signal |
Noise Filter Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | BK/WH | Ignition Positive Voltage |
| 2 | - | Not Used |
Radio Connector End View C1 (w/UW4)
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| A1-A7 | - | Not Used |
| A8 | PK | Left Front Speaker Output (+) |
| A9 | PU | Left Front Speaker Output (-) |
| A10 | WH | Right Rear Speaker Output (-) |
| A11 | RD | Right Rear Speaker Output (+) |
| A12 | BN | Ground G201 |
| B1 | BU/YE | Battery Positive Voltage |
| B2 | GY | Ignition Positive Voltage |
| B3 | BK | Antenna Amplifier Supply Voltage |
| B4 | GN | LCD Backlighting Control |
| B5 | WH/GN | LCD Backlighting Dim ground |
| B6-B7 | - | Not Used |
| B8 | BK | Left Rear Speaker Output (+) |
| B9 | YE | Left Rear Speaker Output (-) |
| B10 | BU | Right Front Speaker Output (-) |
| B11 | LT GN | Right Front Speaker Output (+) |
| B12 | GN | Park Lamps Input |
Radio Connector End View C1 (w/UZ6 - Amplifier)
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| A1-A7 | - | Not Used |
| A8 | PU | Left Front Speaker Output (+) |
| A9 | PU | Left Front Speaker Output (-) |
| A10 | WH | Right Rear Speaker Output (-) |
| A11 | RD | Right Rear Speaker Output (+) |
| A12 | BN | Ground G201 |
| B1 | BU/YE | Battery Positive Voltage |
| B2 | GY | Ignition Positive Voltage |
| B3 | BK | Antenna Amplifier Supply Voltage |
| B4 | GN | LCD Backlighting Control |
| B5 | WH/GN | LCD Backlighting Dim ground |
| B6 | BK/WH | Sensitivity Control |
| B7 | - | Not Used |
| B8 | BK | Left Rear Speaker Output (+) |
| B9 | YE | Left Rear Speaker Output (-) |
| B10 | BU | Right Front Speaker Output (-) |
| B11 | LT GN | Right Front Speaker Output (+) |
| B12 | GN | Park Lamps Input |
Radio Connector End View C1 (w/UW5 - Navigation)
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| A1 | BU | Control Signal |
| A2-A7 | - | Not Used |
| A8 | PK | Left Front Speaker Output (+) |
| A9 | PU | Left Front Speaker Output (-) |
| A10 | WH | Right Rear Speaker Output (-) |
| A11 | RD | right Rear Speaker Output (+) |
| A12 | BN | Ground G201 |
| B1 | BU/WH | Battery Positive Voltage |
| B2 | GY | Ignition Positive Voltage |
| B3 | BK | Antenna Amplifier Supply Voltage |
| B4 | GN | LCD Backlighting Control |
| B5 | WH/BK | LCD Backlighting Dim ground |
| B6-B7 | - | Not Used |
| B8 | BK | Left Rear Speaker Output (+) |
| B9 | YE | Left Rear Speaker Output (-) |
| B10 | BU | Right Front Speaker Output (-) |
| B11 | LT GN | Right Front Speaker Output (+) |
| B12 | GN | Park Lamps Input |
Radio Connector End View C2 (w/UZ6 - Amplifier)
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| A-E | - | Not Used |
| F | WH | Mute Control |
| G-M | - | Not Used |
Radio Connector End View C2 (w/UW5 - Navigation)
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| A | - | Not Used |
| B | RD/BK | Backup/Reverse Signal |
| C | BARE | Drain Wire |
| D | - | Not Used |
| E | PU/WH | Vehicle Speed Signal |
| F-G | - | Not Used |
| H | BK | Right Audio Input |
| J | WH | Left Audio Input |
| K | RD | Signal Ground |
| L-M | - | Not Used |
LF Door Speaker Connector End View (w/UW4, UW5)
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | PK | Positive |
| 2 | PU | Negative |
LF Door Speaker Connector End View (w/UZ6)
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | RD | Positive |
| 2 | WH | Negative |
LF Door Tweeter Connector End View (w/UZ6)
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | PK | Positive |
| 2 | PU | Negative |
RF Door Speaker Connector End View (All)
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | LT GN | Positive |
| 2 | BU | Negative |
RF Door Tweeter Connector End View (w/UZ6)
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | LT GN | Positive |
| 2 | BU | Negative |
LR/RR Door Speaker Connector End View (All)
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | RD | Positive |
| 2 | WH | Negative |

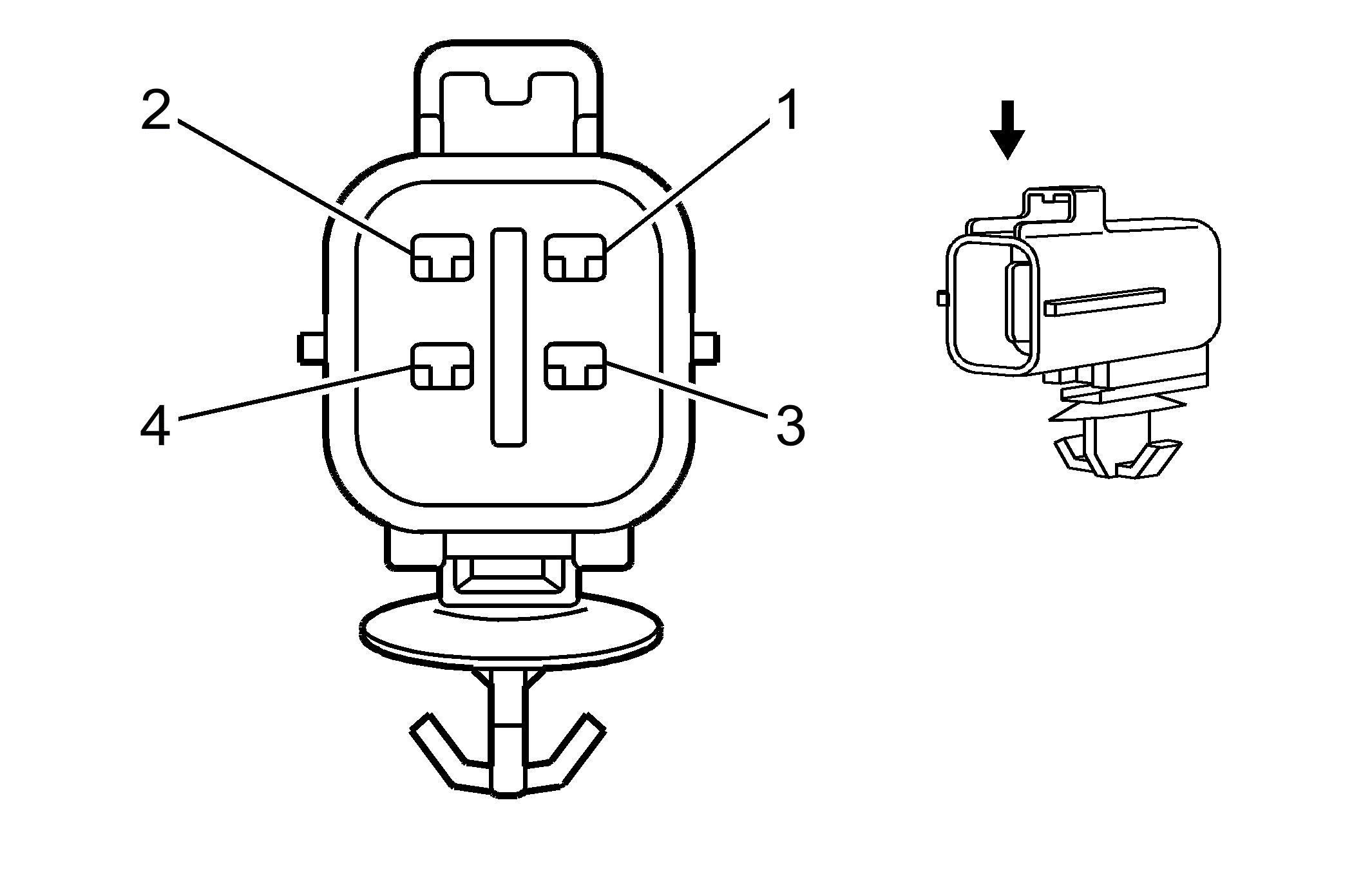

Subwoofer Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | BU | Subwoofer Positive |
| 2 | LT GN | Subwoofer Negative |
| 3 | BK | Subwoofer Positive |
| 4 | YE | Subwoofer Negative |
