Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stoplamp switch (1) to the brake pedal bracket (3). Secure the stoplamp switch (1) using one locknut (2). Do not tighten.
  2. Adjust the stoplamp clearance. Refer to STOP LAMP SWITCH ADJUSTMENT  .
    NOTE: Refer to FASTENER NOTICE .
  3. Tighten the locknut (2) for the stoplamp switch (1).

    Tighten

    Tighten the locknut to 10 N.m (89 lb in).

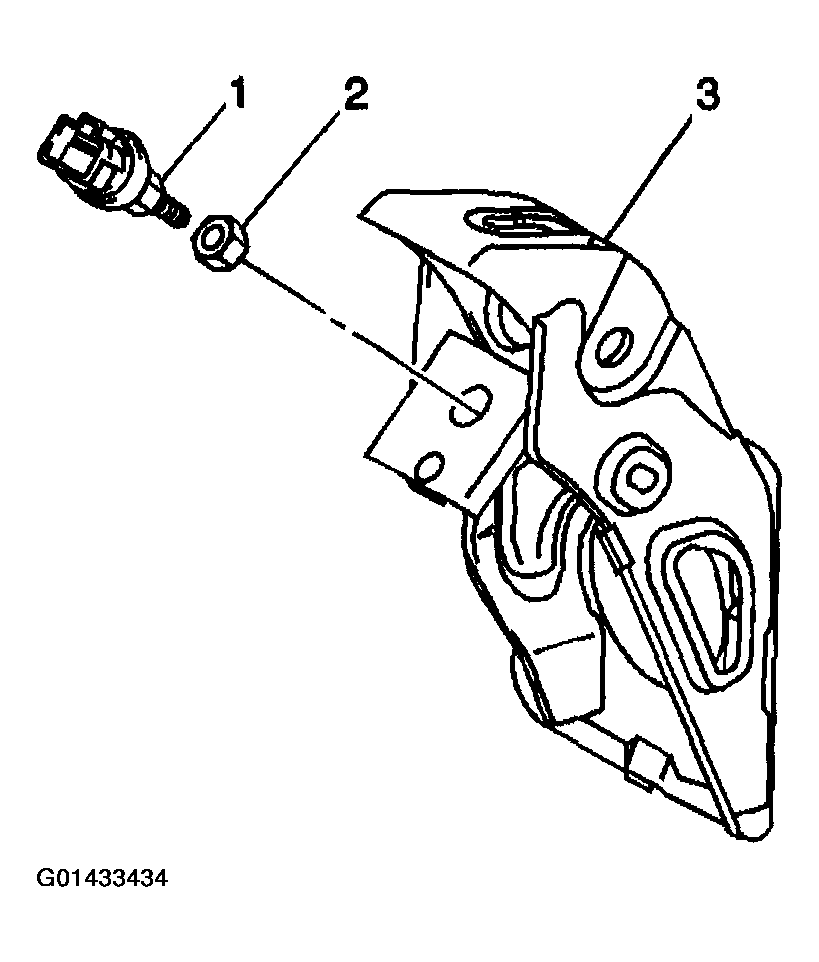

    Fig 1: Installing Stop Lamp Switch
    G01433434Courtesy of GENERAL MOTORS CORP.
  4. Connect the stoplamp switch electrical connector.
  5. Connect the negative battery cable.
