Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the holes in the engine splash shield to the holes in the outboard side engine compartment side rail.
  2. Install the push-in retainers to the engine splash shield.
  3. Lower the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .

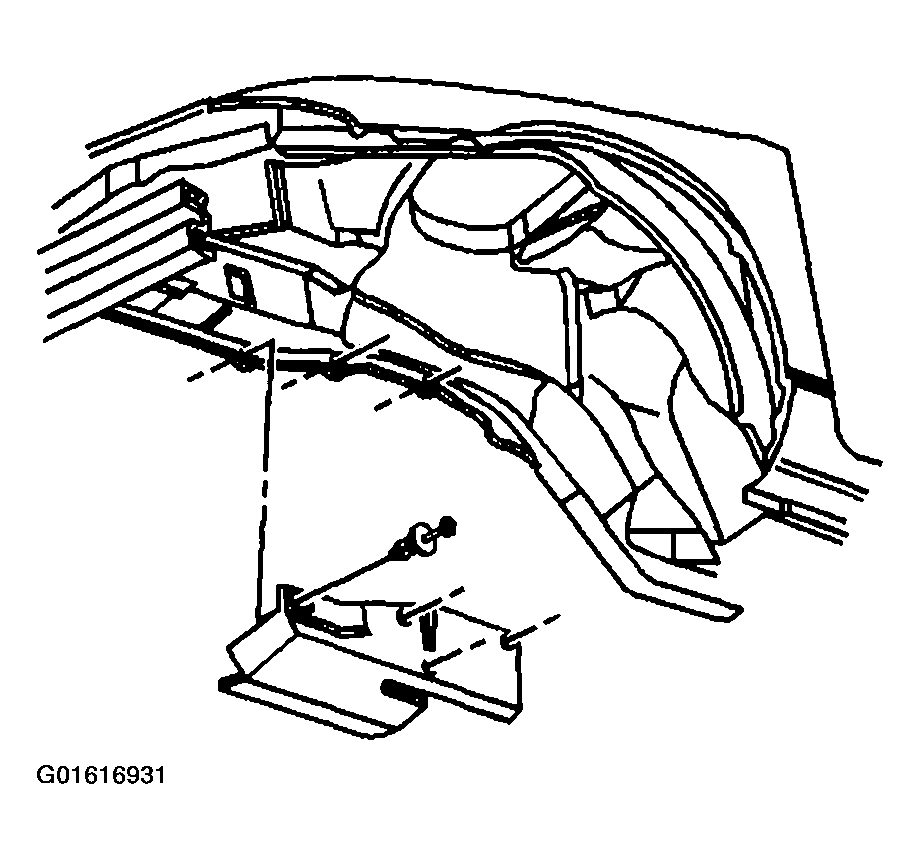

    Fig 1: Engine Splash Shield
    G01616931Courtesy of GENERAL MOTORS CORP.
