Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the insulator to the hood.
  2. Install the push-in fasteners attaching the insulator.

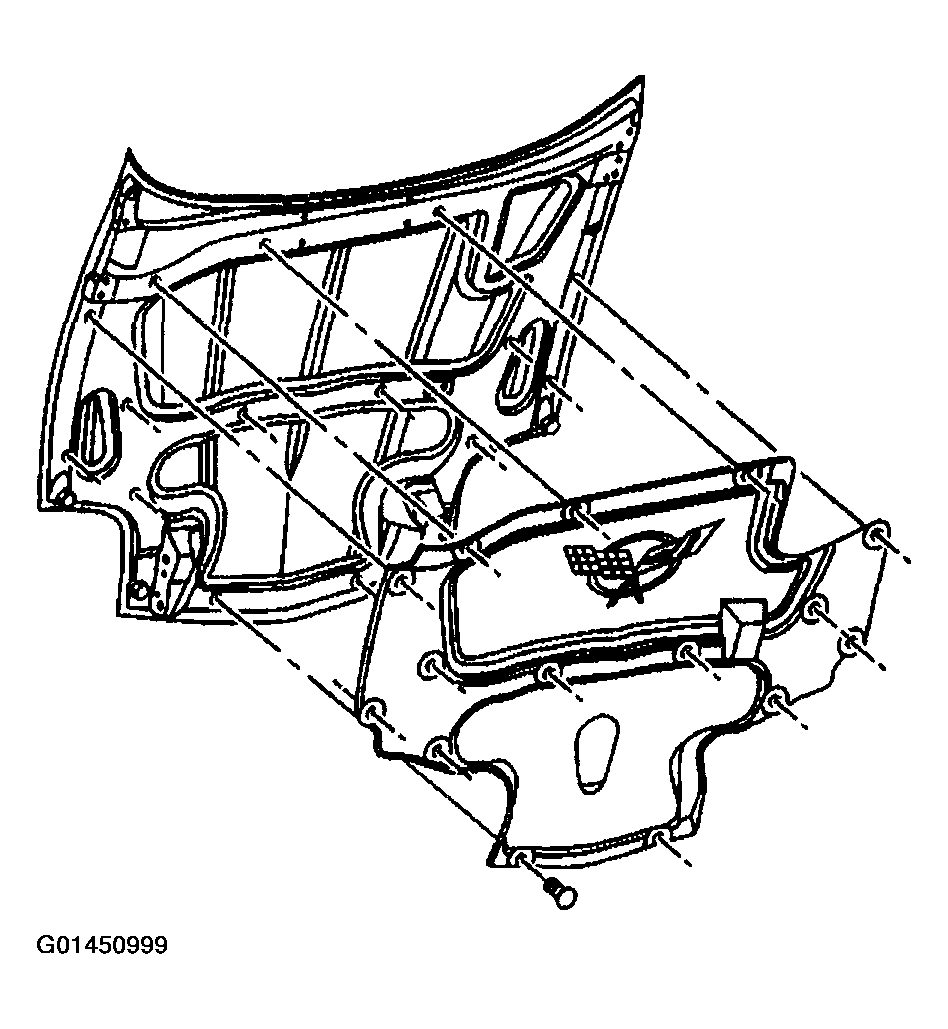

    Fig 1: Insulator
    G01450999Courtesy of GENERAL MOTORS CORP.
