Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch to the OFF position.
  2. Remove the passenger seat. Refer to SEAT REPLACEMENT (POWER) or SEAT REPLACEMENT (MANUAL) in Seats.
  3. Disconnect the lateral accelerometer connector.
  4. Remove the two lateral accelerometer nuts (1).
  5. Remove the lateral accelerometer (2).

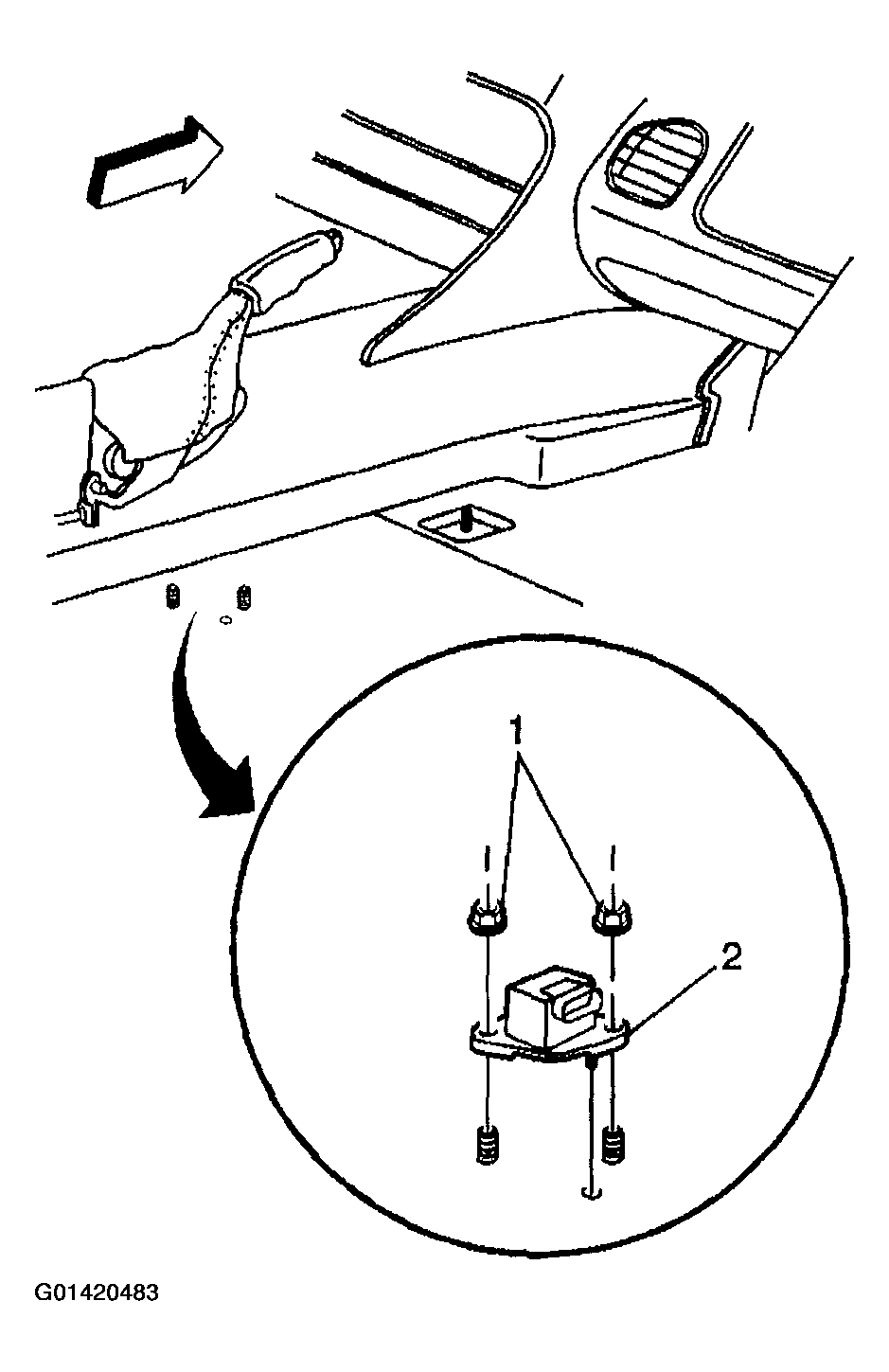

Fig 1: Removing Lateral Accelerometer
G01420483Courtesy of GENERAL MOTORS CORP.
