A/C High Pressure Recirculation Switch Connector End View - L18

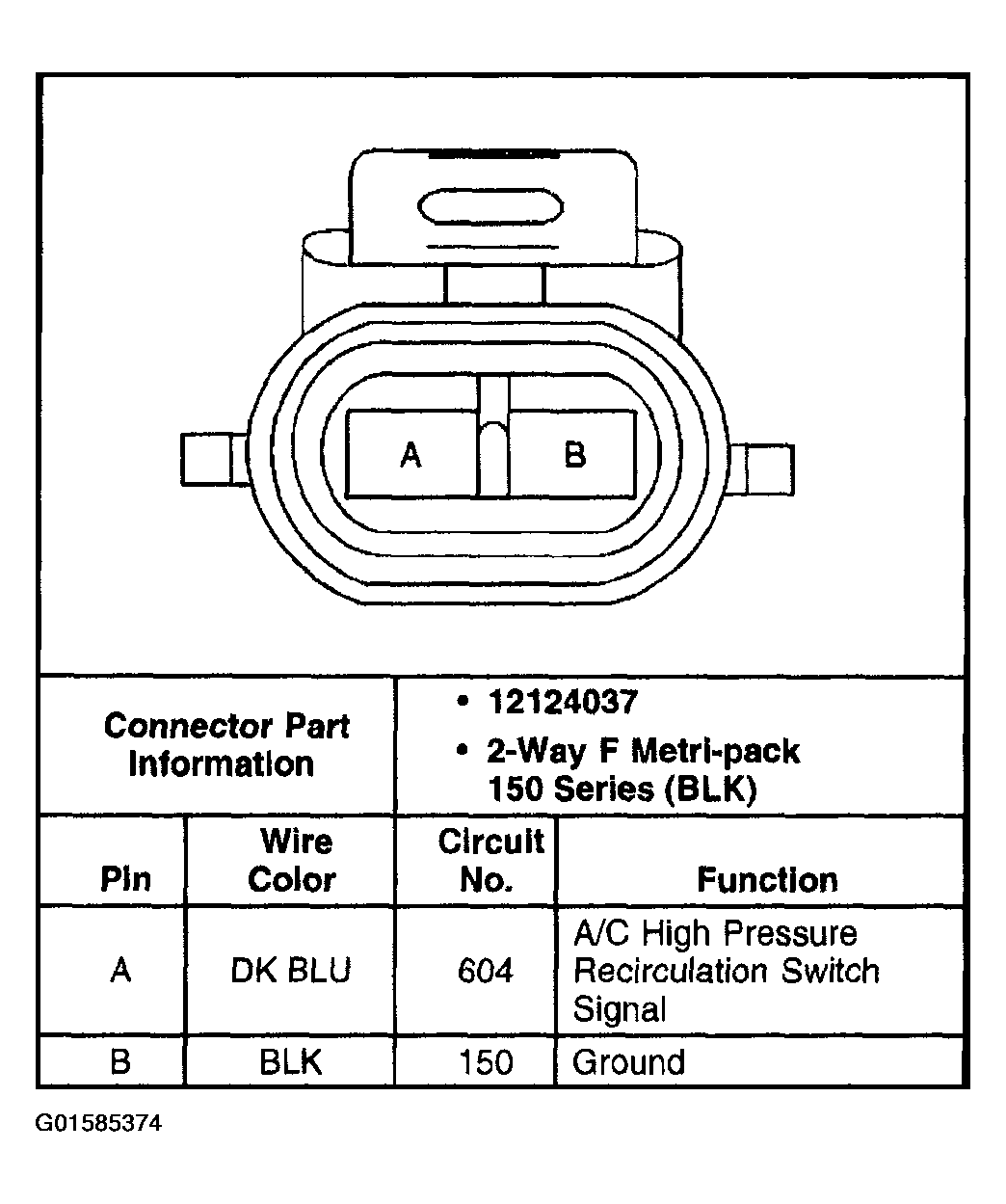

Fig 1: A/C High Pressure Recirculation Switch Connector End View - L18

G01585374

Courtesy of GENERAL MOTORS CORP.
