Home >> GMC >> 2002 >> C3500 HD 8.1 G, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - 8.1L >> Diagnostic Information and Procedures >> Poor Fuel Fill Quality

Poor Fuel Fill Quality

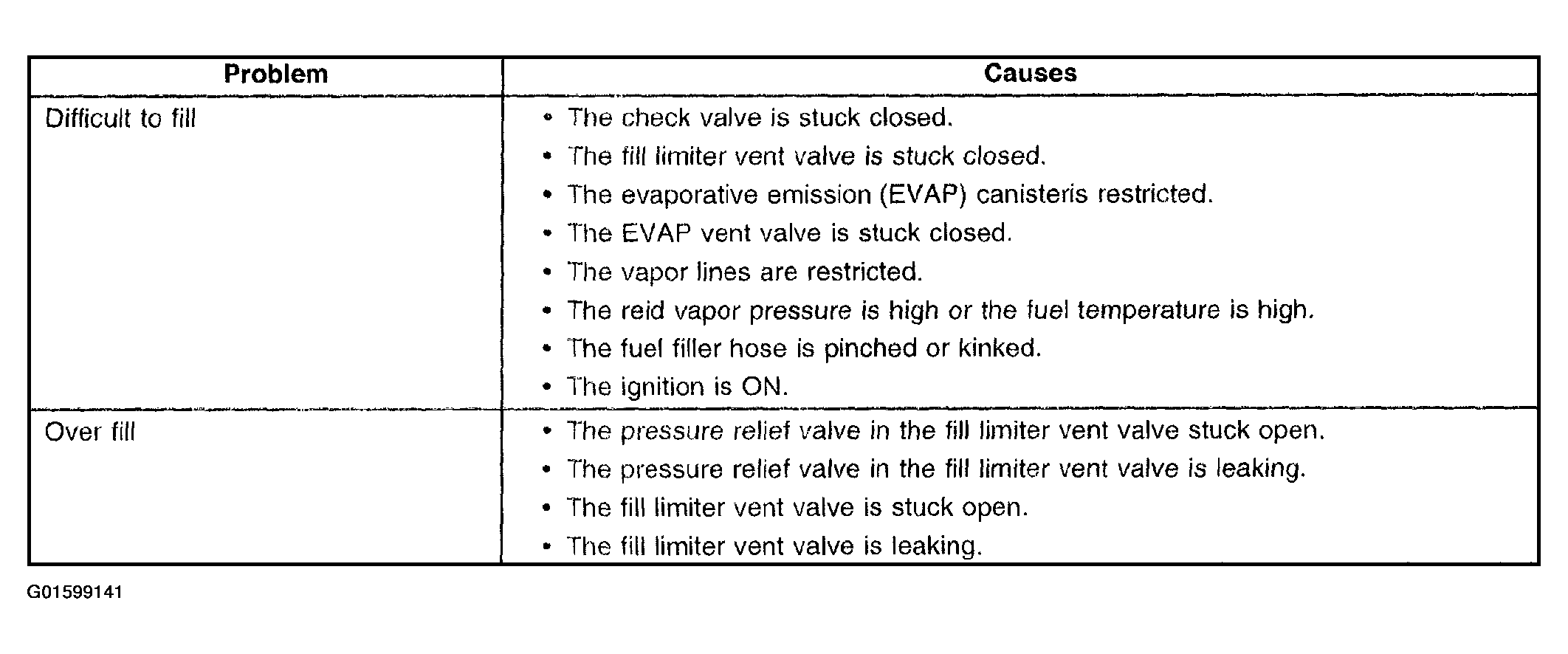

Fig 1: Poor Fuel Fill Quality (1 Of 2)

G01599141

Courtesy of GENERAL MOTORS CORP.

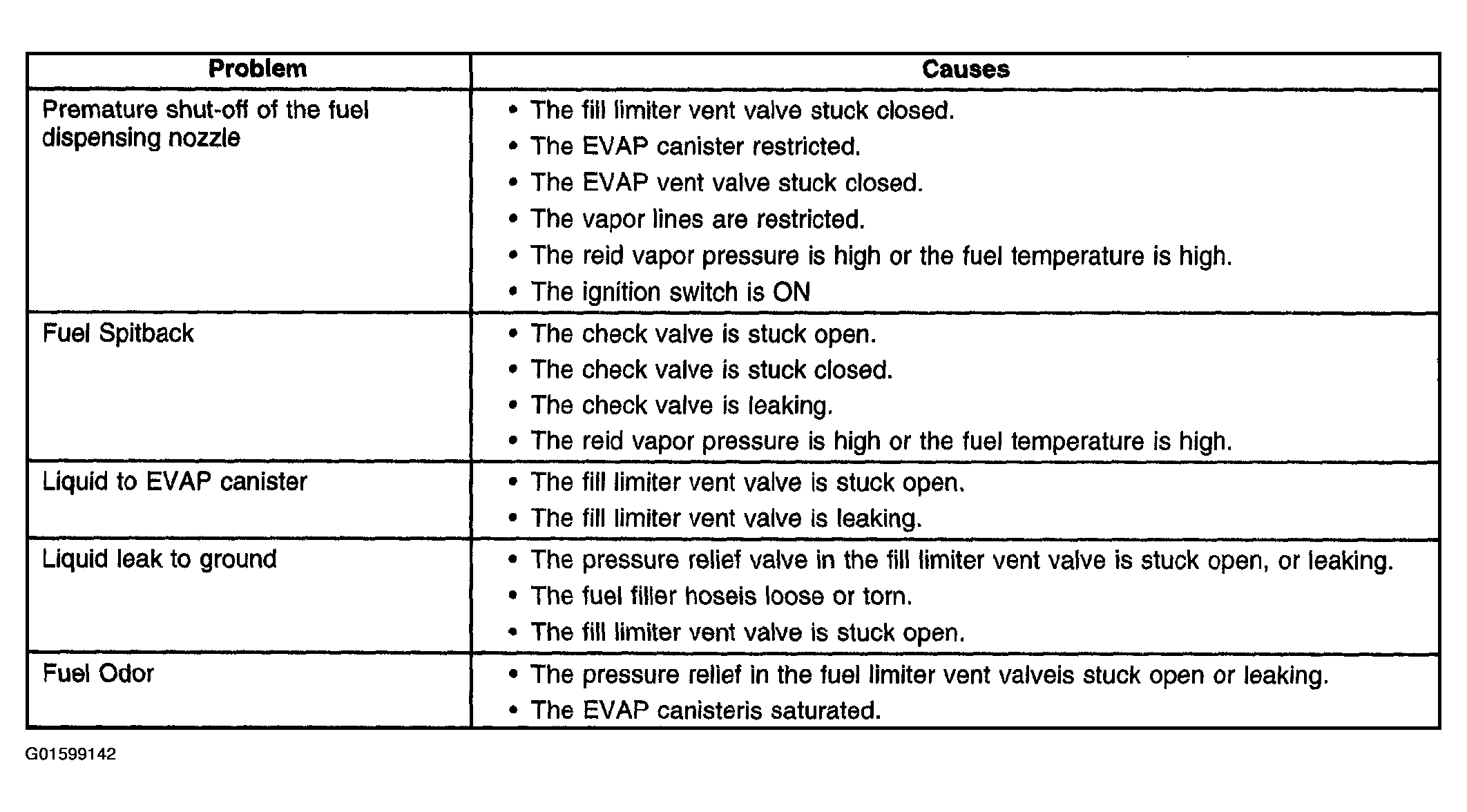

Fig 2: Poor Fuel Fill Quality (2 Of 2)

G01599142

Courtesy of GENERAL MOTORS CORP.
