Test Description

The number below refers to the step number on the diagnostic table.

1. 2. This step verifies that the malfunction is present.

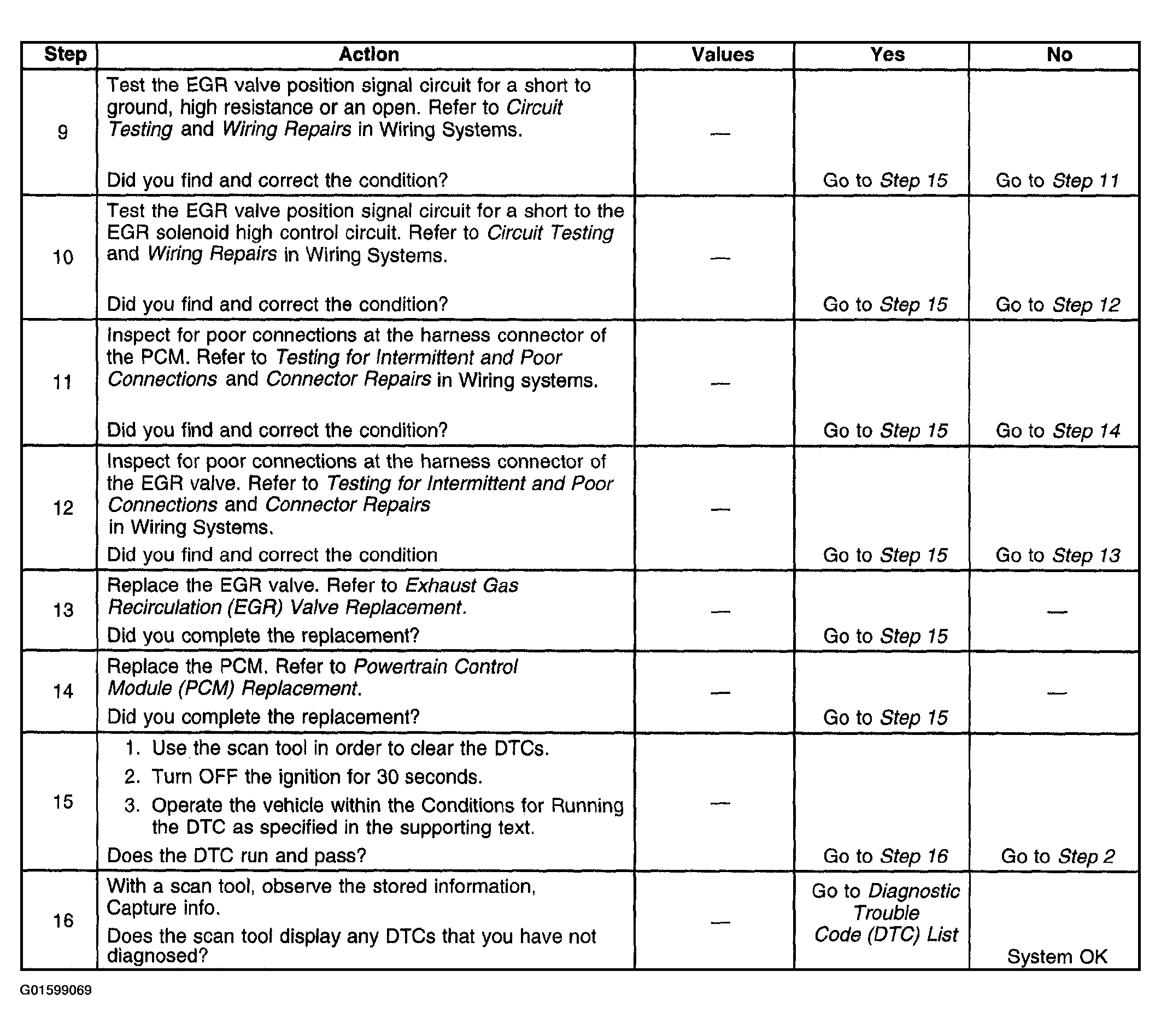

Fig 1: DTC P0405 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 2: DTC P0405 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
