Test Description

The numbers below refer to the step numbers on the diagnostic table.

1. 2. This step verifies that the malfunction is present.
2. 3. This step tests for electromagnetic interference (EMI) on the CKP sensor circuits.

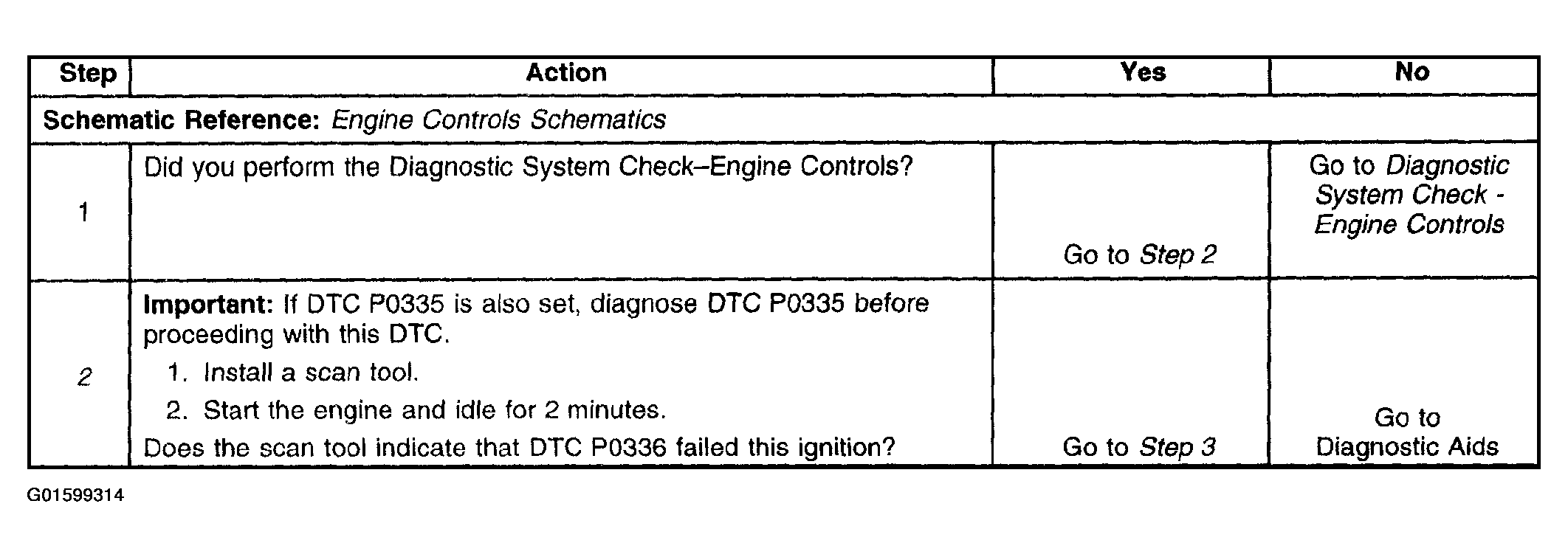

Fig 1: DTC P0336 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

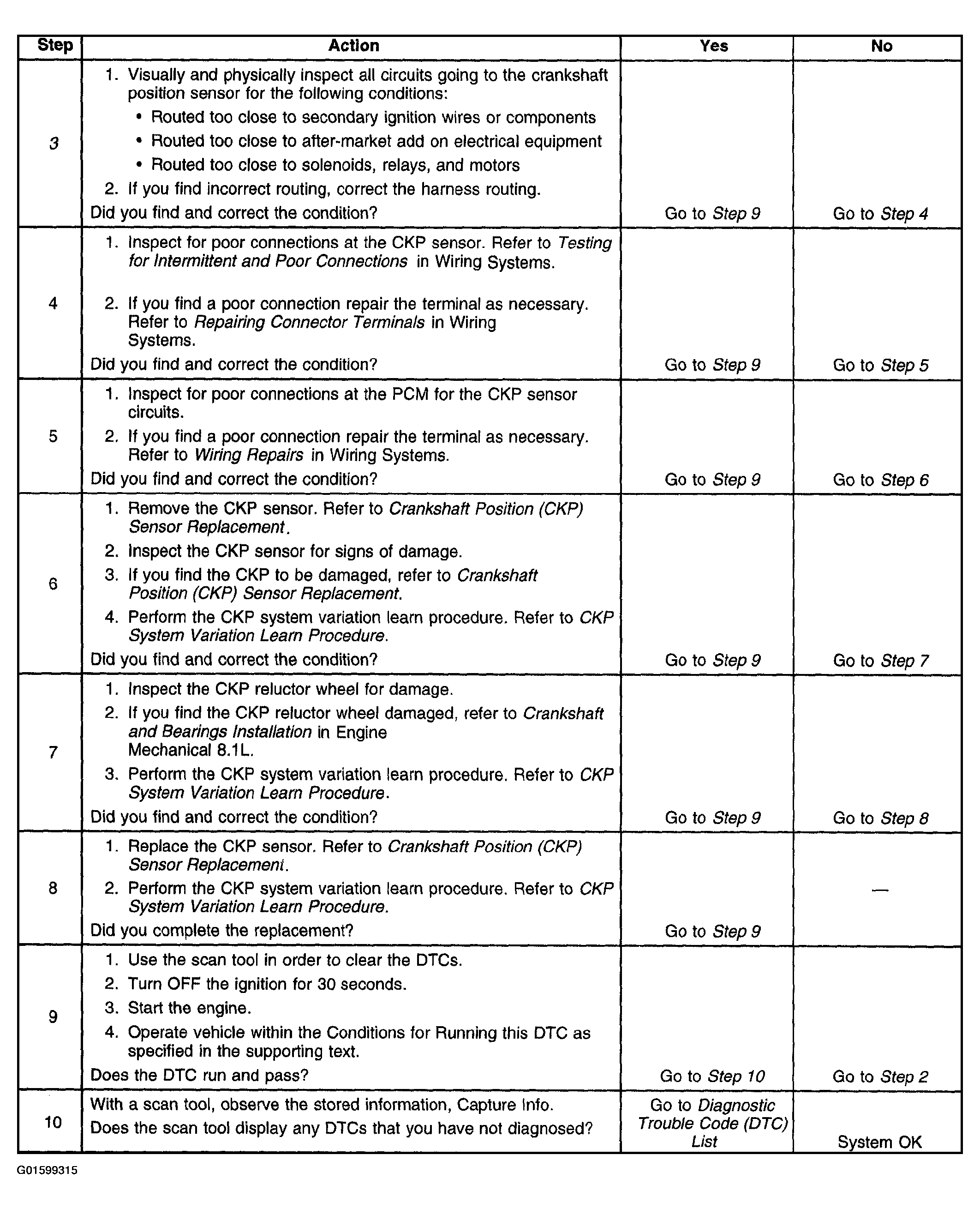

Fig 2: DTC P0336 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
