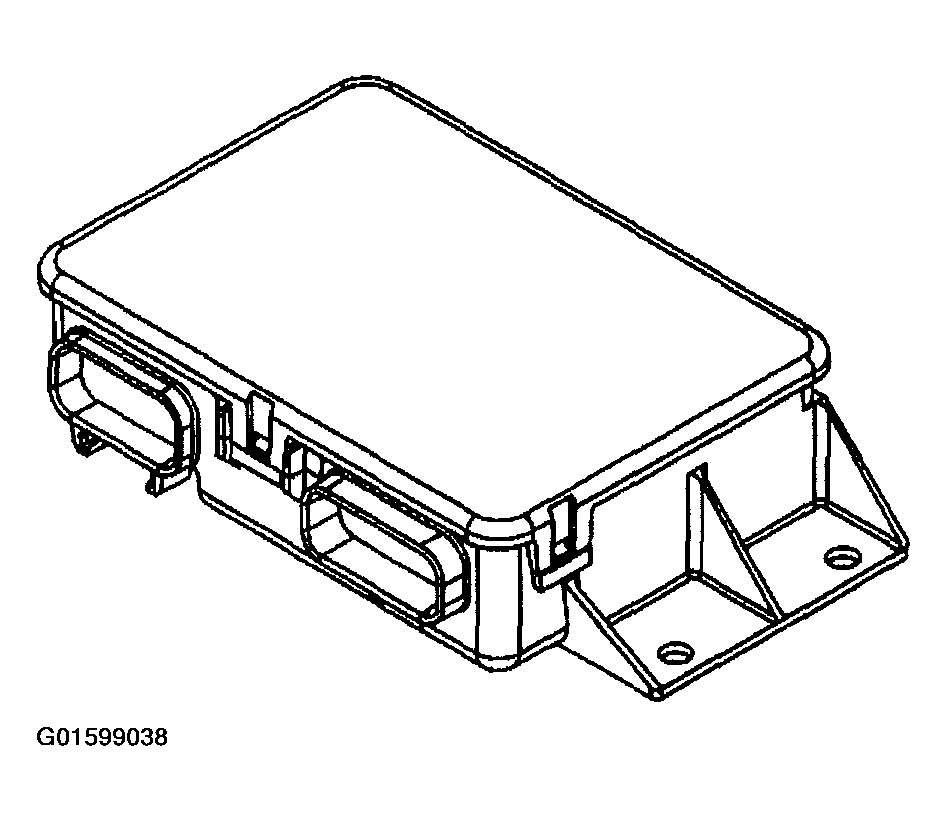

Throttle Actuator Control (TAC) Module
The TAC module is the control center for the electronic throttle system. The TAC module and the PCM communicate via a dedicated redundant serial data circuit. The TAC module and the PCM monitor the commanded TP and compare the commanded position to the actual TP. This is accomplished by monitoring the APP and the TP sensor. These 2 values must be within a calibrated value of each other. The TAC module also monitors each individual circuit of the TP sensor and the APP to verify proper operation.
