Installation Procedure

Install the connecting rod in the adjuster sleeve.
Install the connecting rod to the pitman arm. Make sure the seal is on the stud.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Use the J 29193 in order to seat the tapers.
Tighten

Tighten the J 29193 to 62 N.m (48 lb ft).

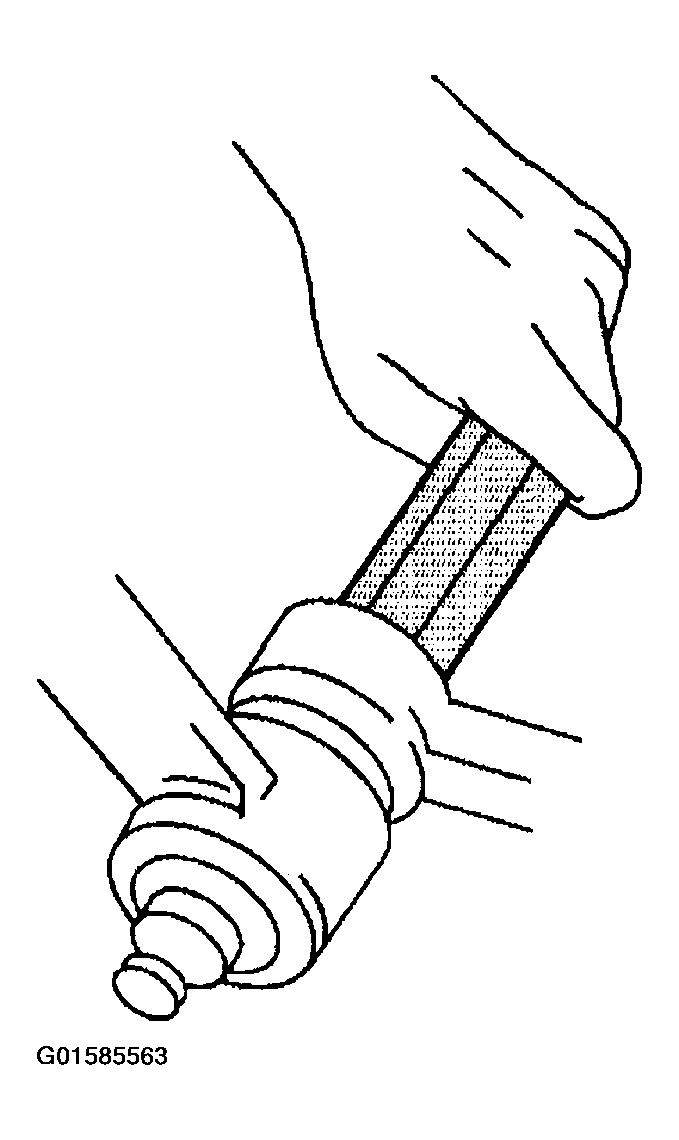

Fig 1: Seating Tapers Using J 29193
Courtesy of GENERAL MOTORS CORP.
Install the nut (8) retaining the connecting rod to the pitman arm.
Tighten

Tighten the connecting rod retaining nut to 50 N.m (37 lb ft).

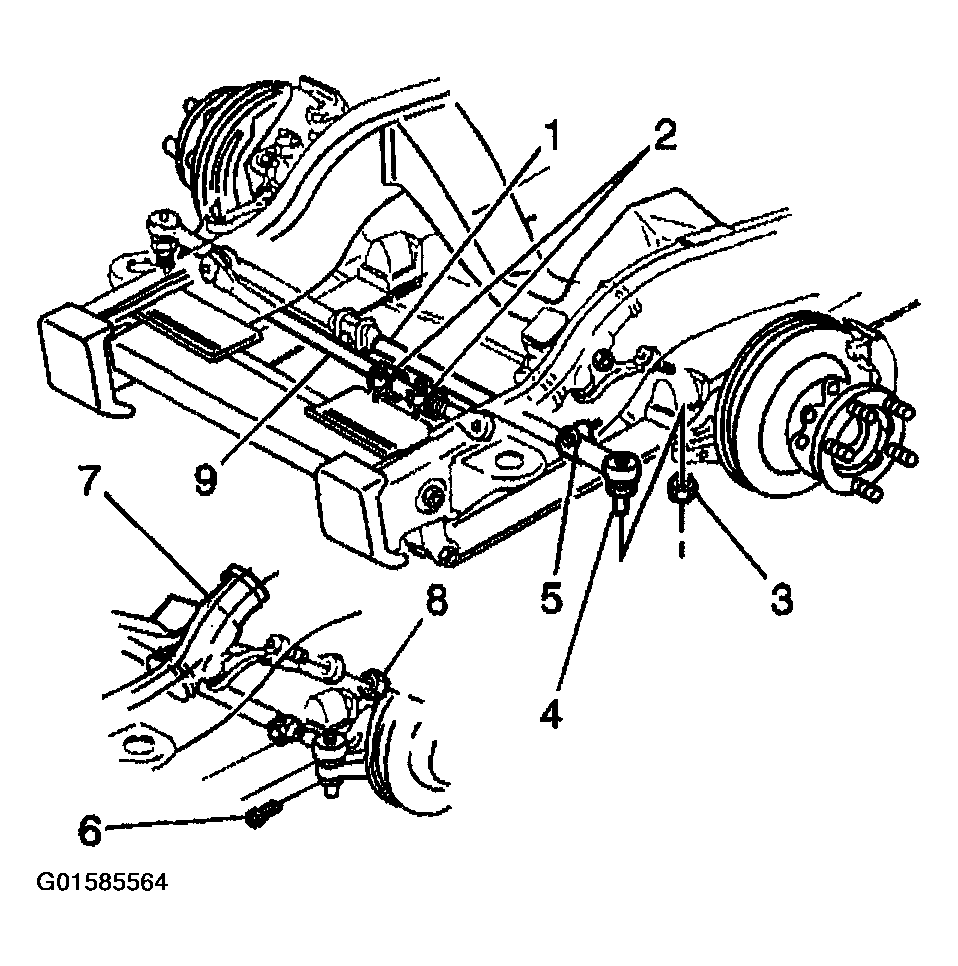

Fig 2: Connecting Rod-To-Pitman Arm Nut
Courtesy of GENERAL MOTORS CORP.
Tighten the adjuster sleeve retaining bolts. Make sure the slot in the sleeve (1) is not positioned within the clamp opening.
Tighten

Tighten the adjuster sleeve retaining bolts to 104 N.m (77 lb ft).
Lower the vehicle.
Align the vehicle. Refer to MEASURING WHEEL ALIGNMENT .

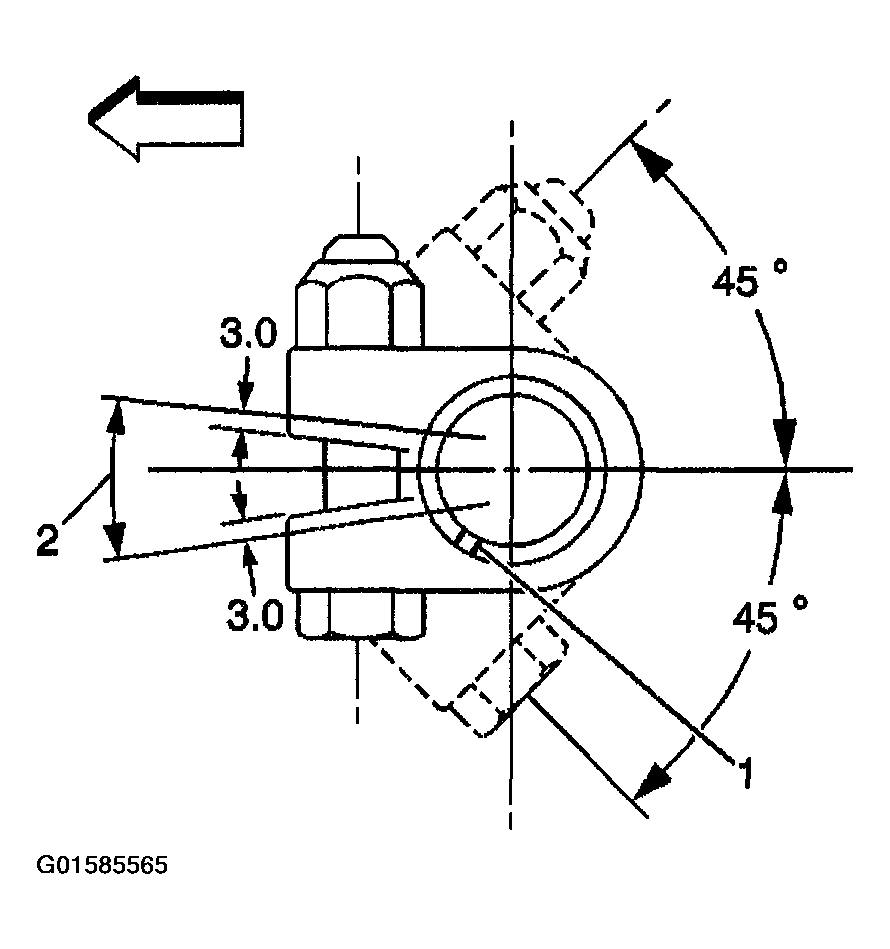

Fig 3: Adjuster Sleeve Installation Position
