Installation Procedure

CAUTION: In order to ensure the intended function of the steering column in a vehicle during a crash and in order to avoid personal injury to the driver, perform the following:
  • Tighten the steering column lower fasteners before you tighten the steering column upper fasteners. Failure to do this can damage the steering column.
  • Tighten the steering column fasteners to the specified torque. Overtightening the upper steering column fasteners could affect the steering column collapse.

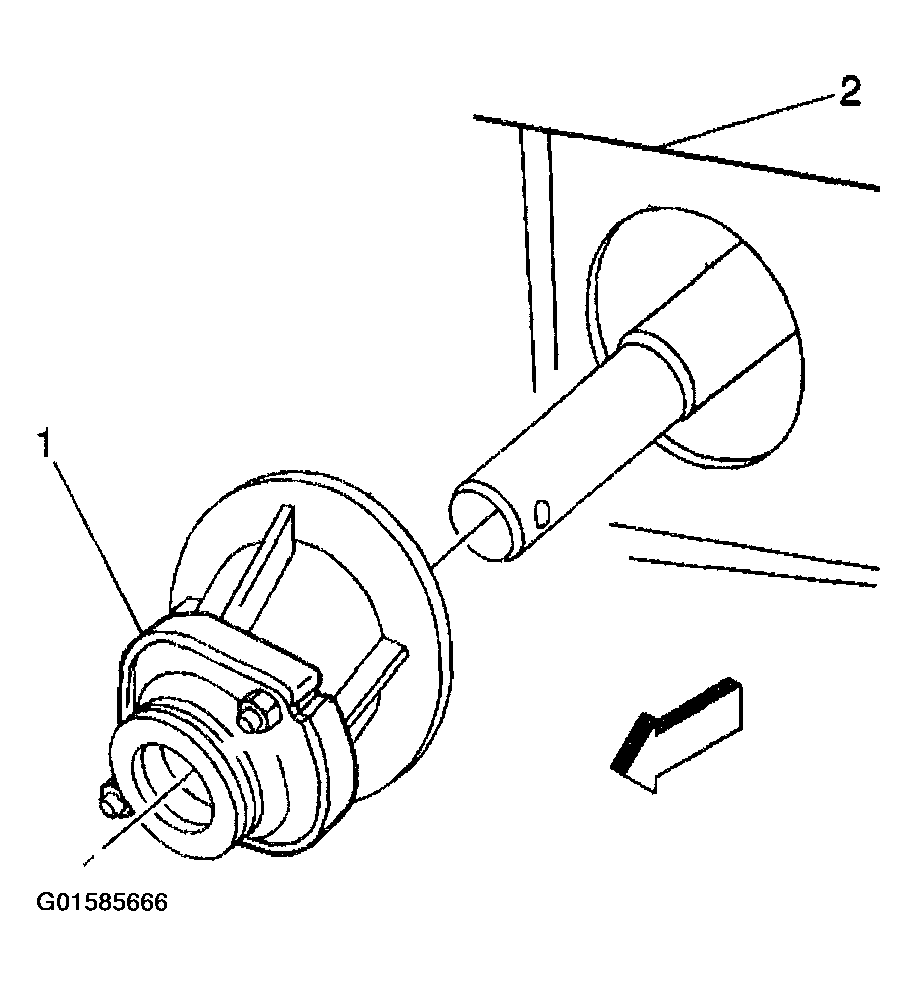

Fig 1: Seal & Dash Panel
G01585666Courtesy of GENERAL MOTORS CORP.
CAUTION: If steering column to cowl panel seal is torn or otherwise damaged, it must be replaced. Confirm that the seal and inner race are properly located. Failure to do so may allow carbon monoxide into the vehicle, which may result in serious personal injury or death.
  1. Lower the end of the steering column through the dash panel (2) opening and the steering column seal (1).
  2. Connect the harness to the connectors on the steering column.
  3. Raise the steering column into place.
  4. Rotate the column up over the two upper studs. Loosely assembly the two nuts.
  5. Install the lower column nuts.
    NOTE: Refer to in Cautions and Notices.
  6. Install the upper column nuts.

    Tighten

    Tighten the lower and upper column nuts to 30 N.m (22 lb ft).

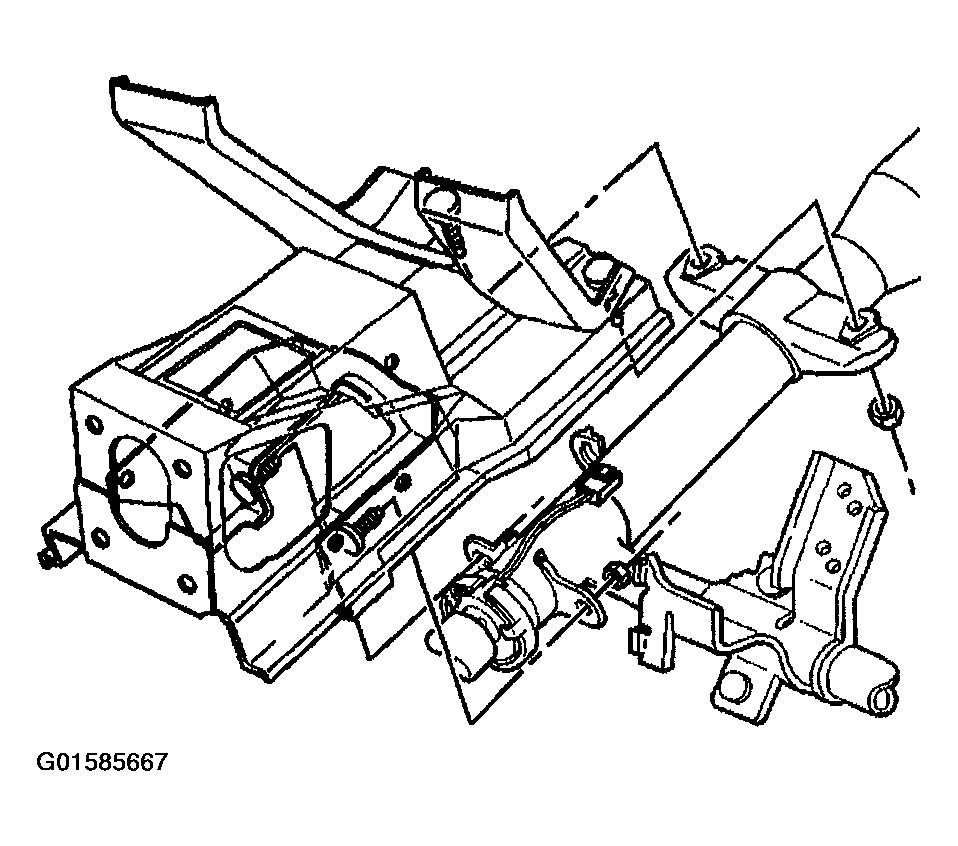

    Fig 2: Lower Steering Column & Support Brackets
    G01585667Courtesy of GENERAL MOTORS CORP.
  7. Install the bolt and the nut to the upper end of the shaft.

    Tighten

    Tighten the nut to 62 N.m (46 lb ft).

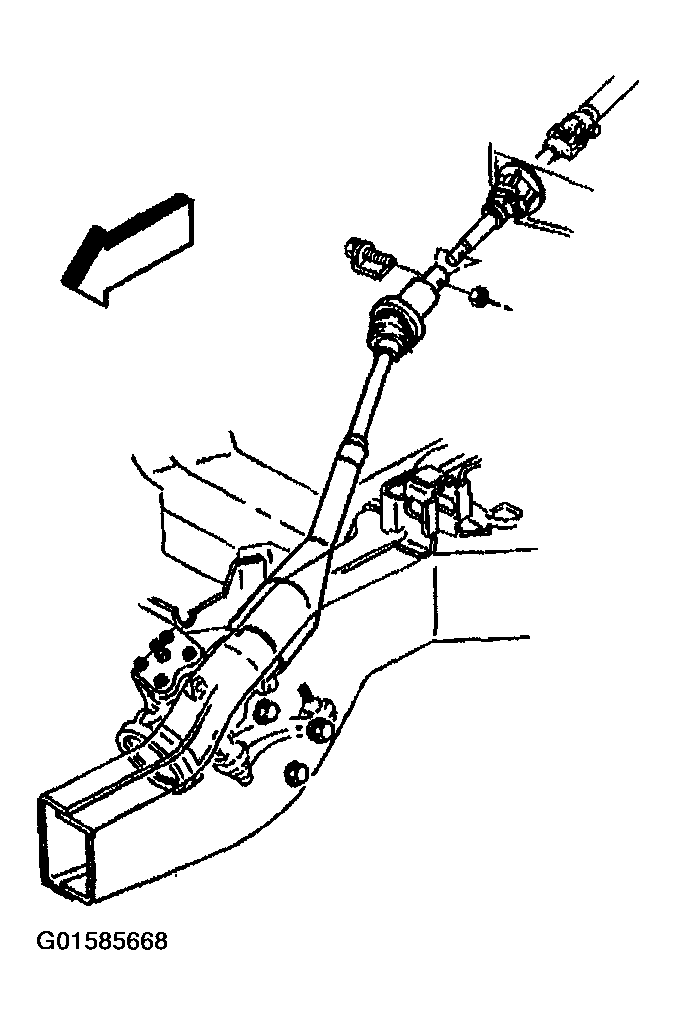

    Fig 3: Upper-To-Lower Shaft Connection Nuts & Bolts
    G01585668Courtesy of GENERAL MOTORS CORP.
  8. Remove the J 42640  from the lower steering column shroud access hole.

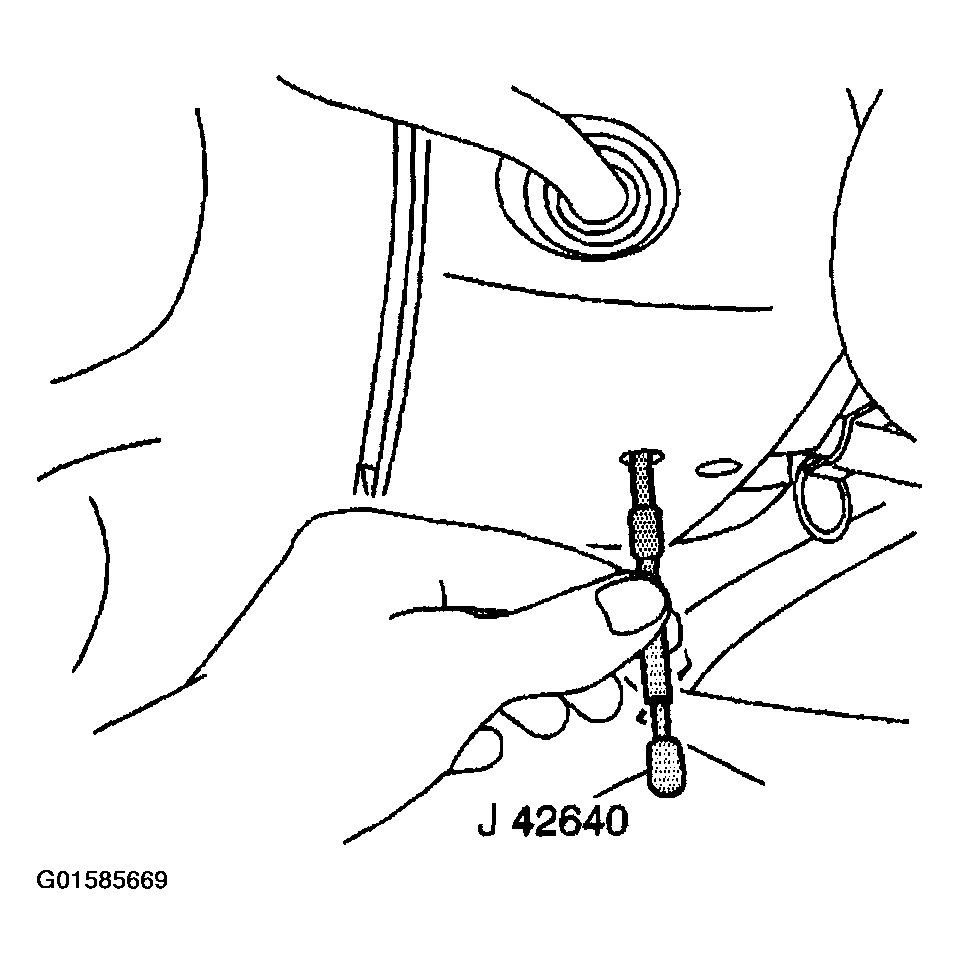

    Fig 4: Unlocking Steering Column Using J 42640
    G01585669Courtesy of GENERAL MOTORS CORP.
  9. Connect the transmission control shift cable (1) to the steering column.

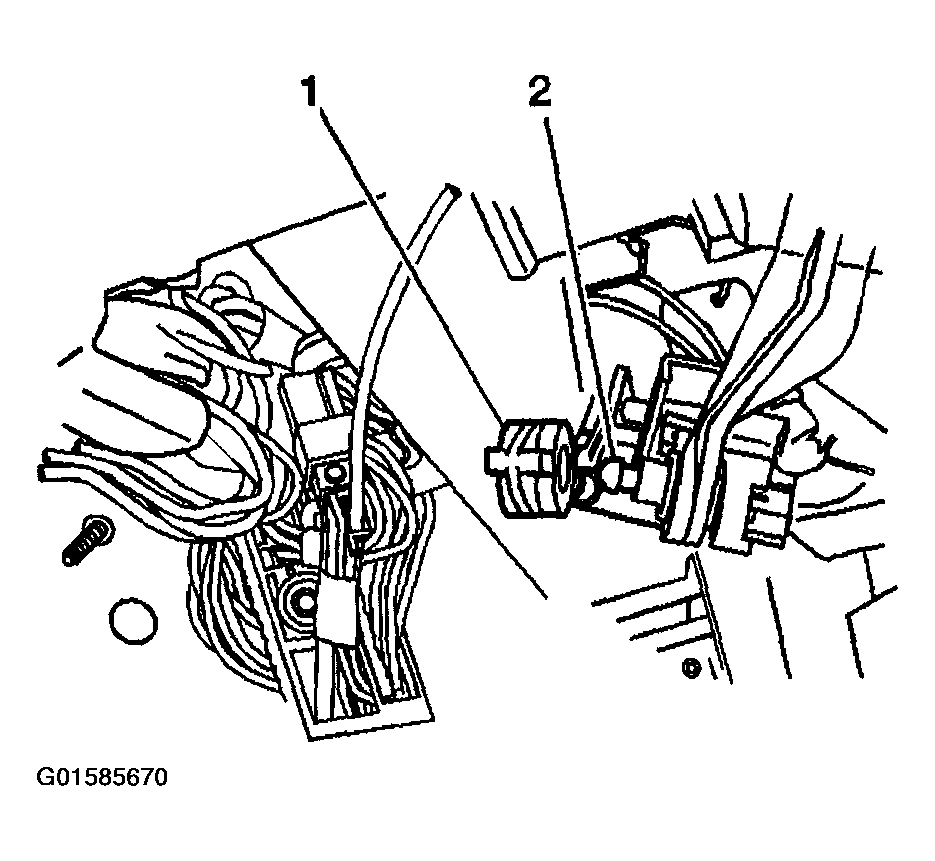

    Fig 5: Transmission Control Shift Cable
    G01585670Courtesy of GENERAL MOTORS CORP.
  10. Connect the electrical connectors to the steering column.
  11. Install the steering column trim panel.

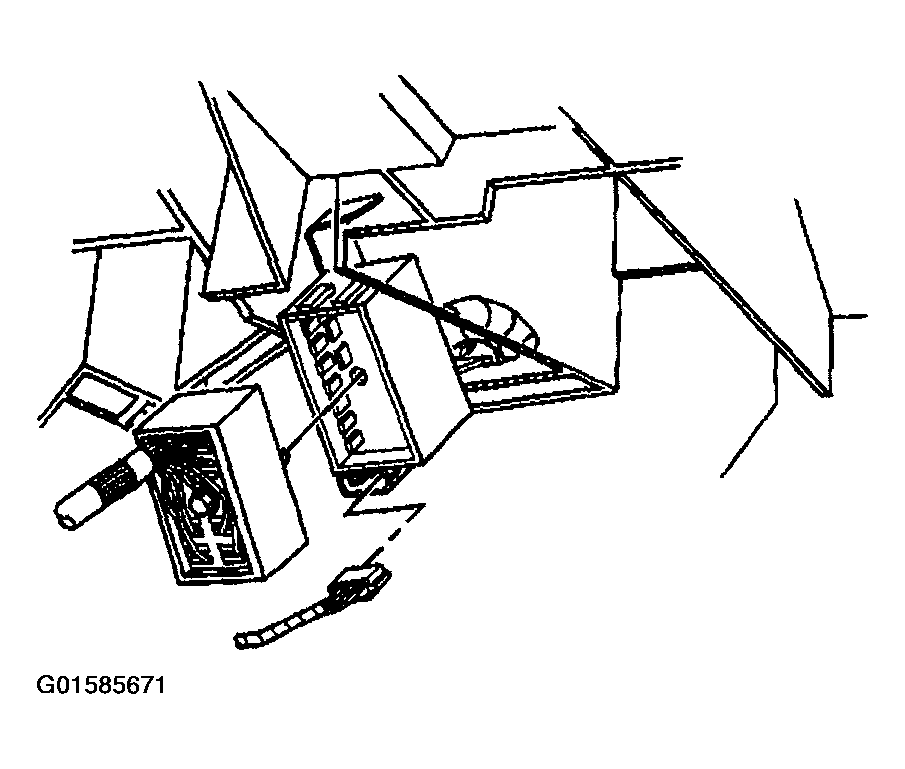

    Fig 6: Steering Column Electrical Connectors
    G01585671Courtesy of GENERAL MOTORS CORP.
