Power Steering Pump Disassembled View (Regular)

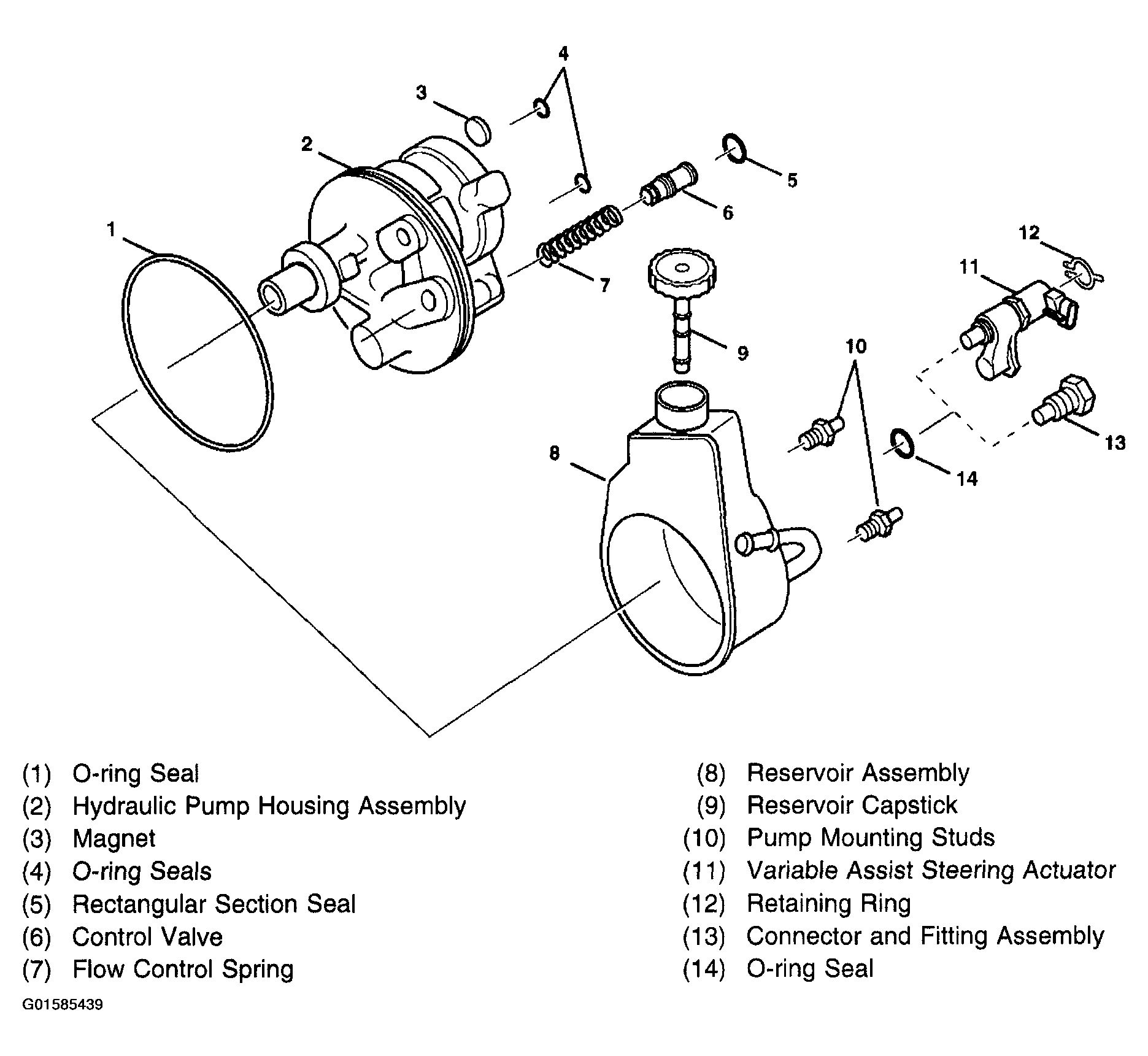

Fig 1: CK Truck Power Steering Pump

G01585439

Courtesy of GENERAL MOTORS CORP.
