Coolant Level Module Connector End View - L65

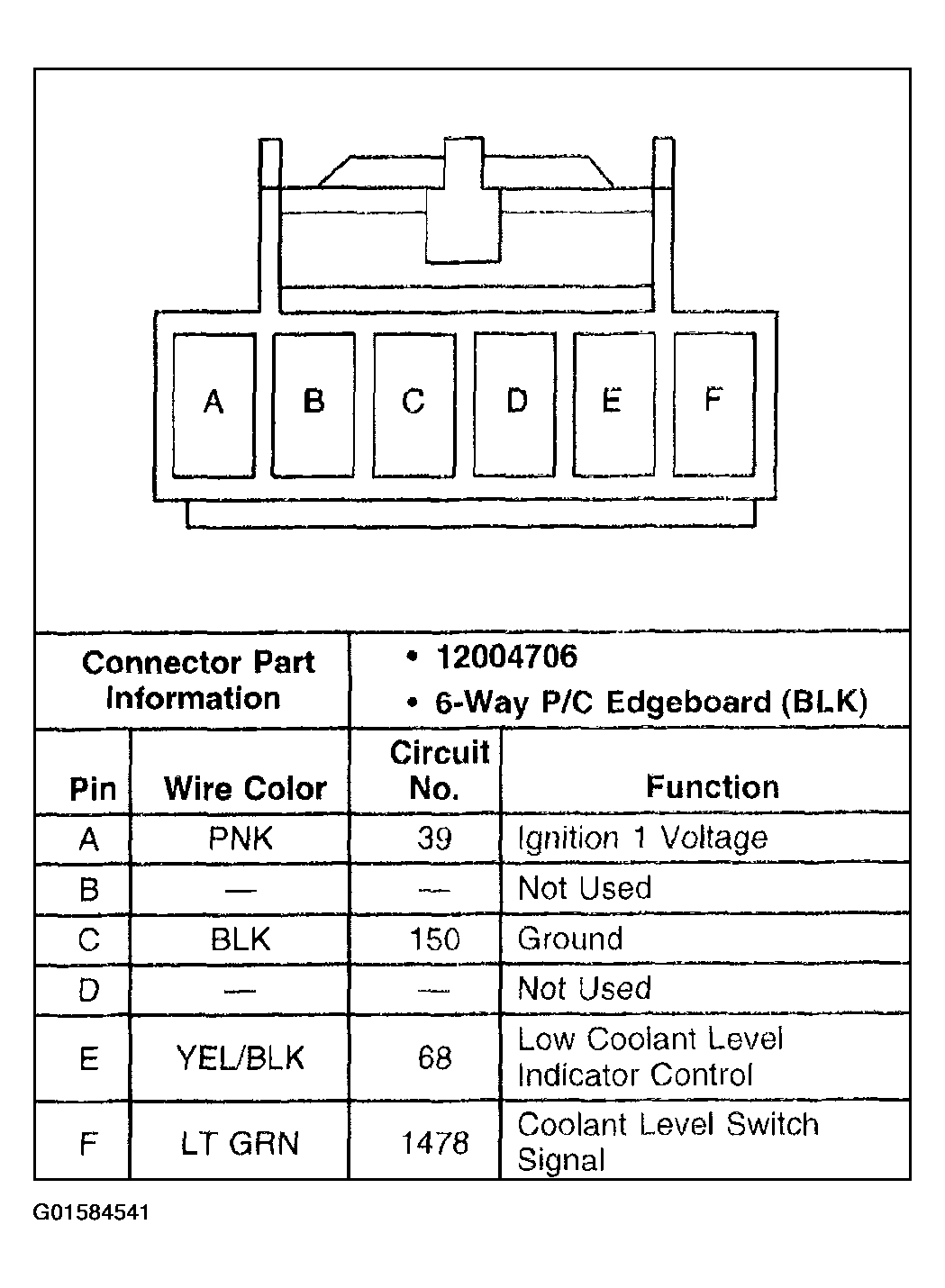

Fig 1: Coolant Level Module Connector End View - L65

G01584541

Courtesy of GENERAL MOTORS CORP.
