Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  1. Remove the negative battery cables.
  2. Remove the electrical connector.

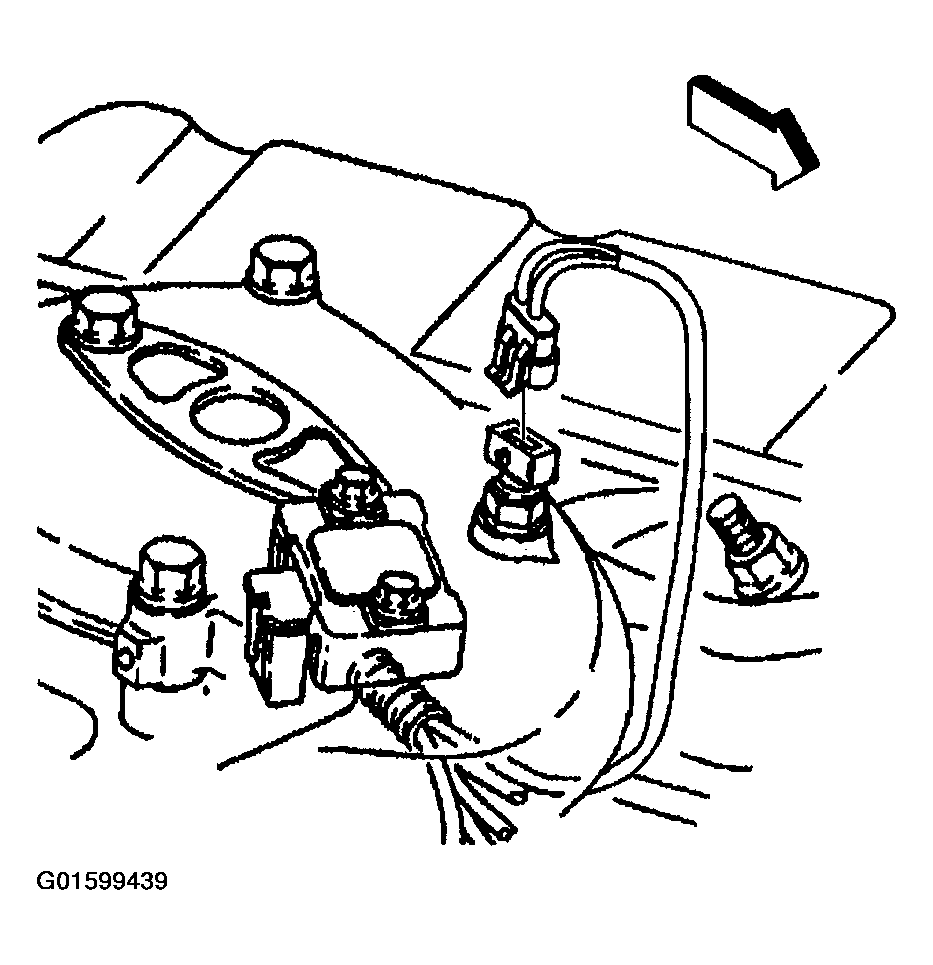

    Fig 1: IAT Electrical Connector
    G01599439Courtesy of GENERAL MOTORS CORP.
  3. Remove the IAT sensor.

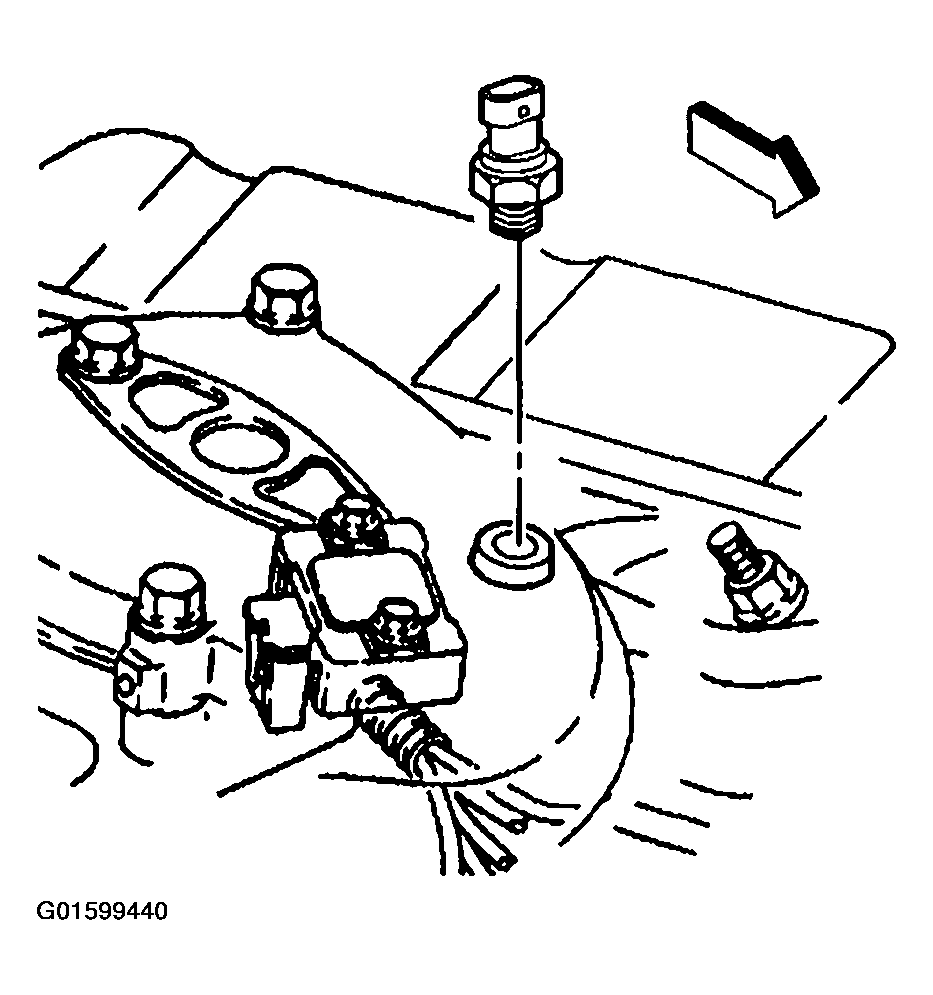

    Fig 2: IAT Sensor
    G01599440Courtesy of GENERAL MOTORS CORP.
