Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  1. Remove the negative battery cables.
  2. Remove the sensor electrical connector.
  3. Remove power steering pump. Refer to POWER STEERING PUMP REPLACEMENT (6.5L DIESEL) or POWER STEERING PUMP REPLACEMENT (8.1L) .

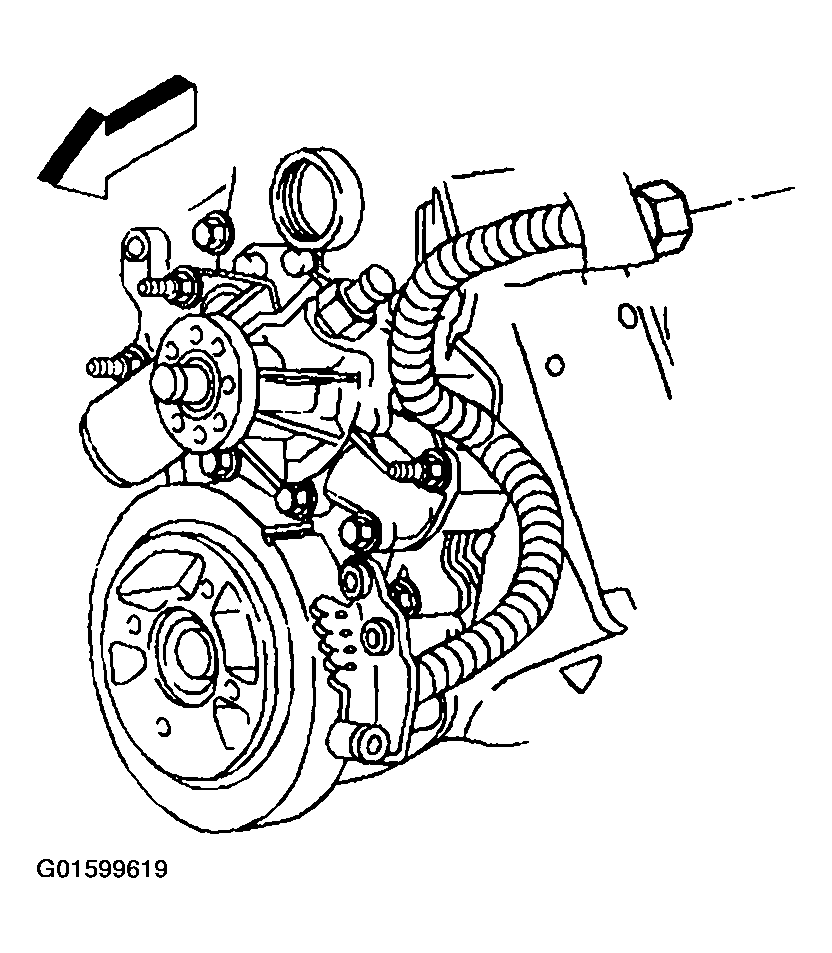

    Fig 1: CKP Sensor Electrical Connector
    G01599619Courtesy of GENERAL MOTORS CORP.
  4. Remove the sensor mounting bolt.

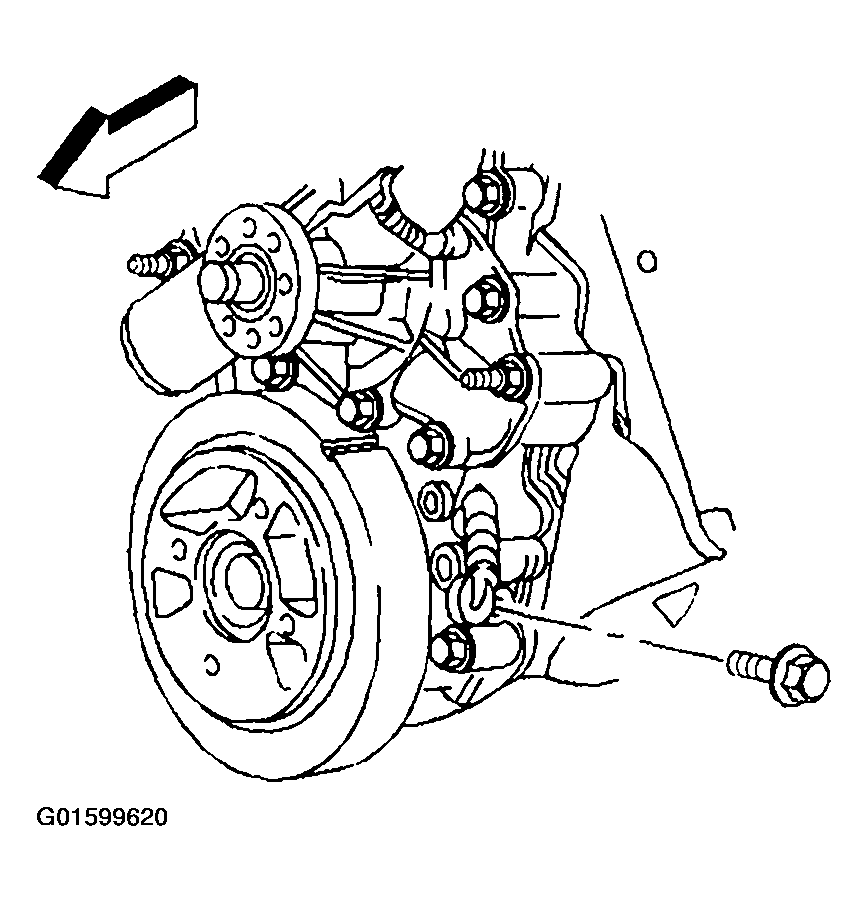

    Fig 2: CKP Sensor Mounting Bolt
    G01599620Courtesy of GENERAL MOTORS CORP.
  5. Remove the sensor from engine.

    Important:  Care must be taken when handling the sensor.

  6. Inspect the sensor O-ring for wear, cracks or leakage and replace if necessary.

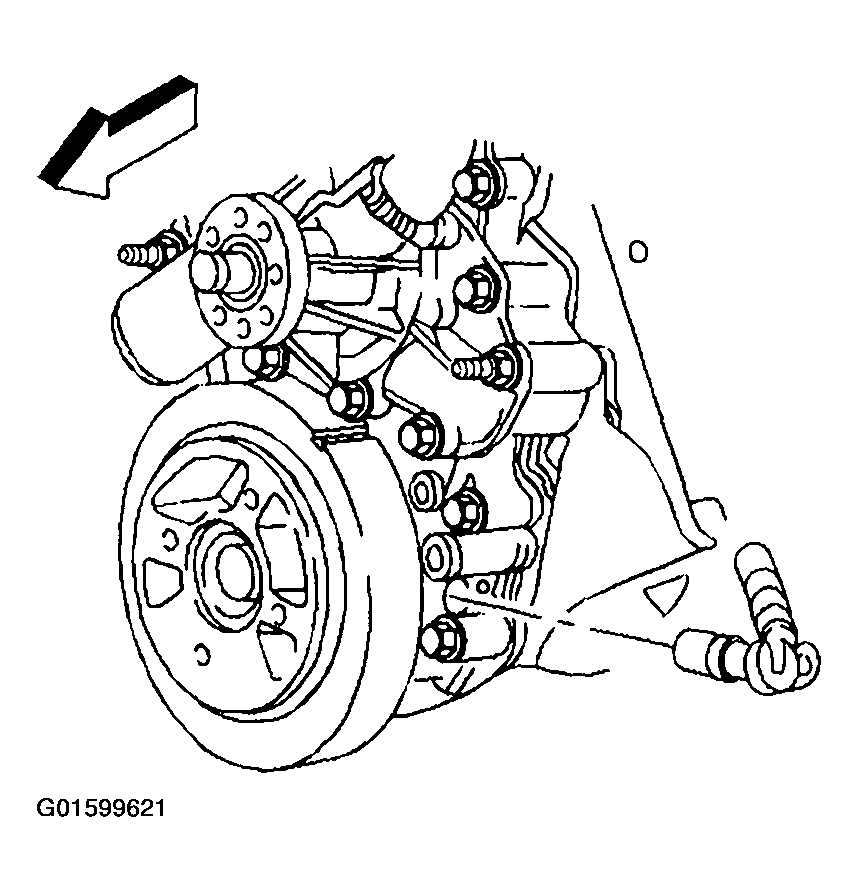

    Fig 3: CKP Sensor
    G01599621Courtesy of GENERAL MOTORS CORP.
