Home >> GMC >> 2002 >> C3500 HD 6.5 F, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - 6.5L >> Diagnostic Information and Procedures >> Surges/Chuggles

Diagnostic Information and Procedures: Surges/Chuggles

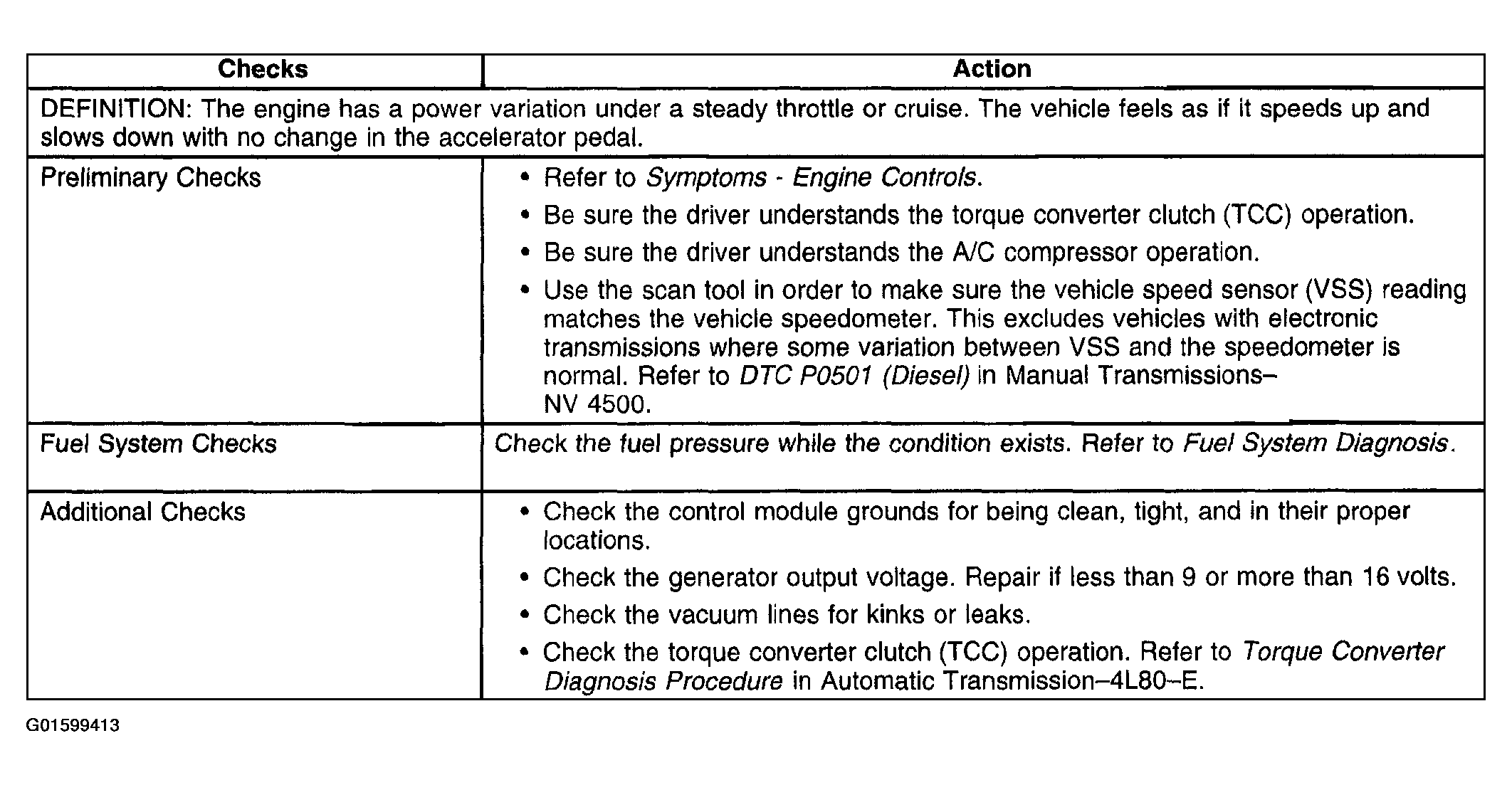

Fig 1: Surges/Chuggles

G01599413

Courtesy of GENERAL MOTORS CORP.
