Test Description

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. This step will help identify a suspected cylinder.
  2. 4. This step will identify an area with the most likely cause of failure.

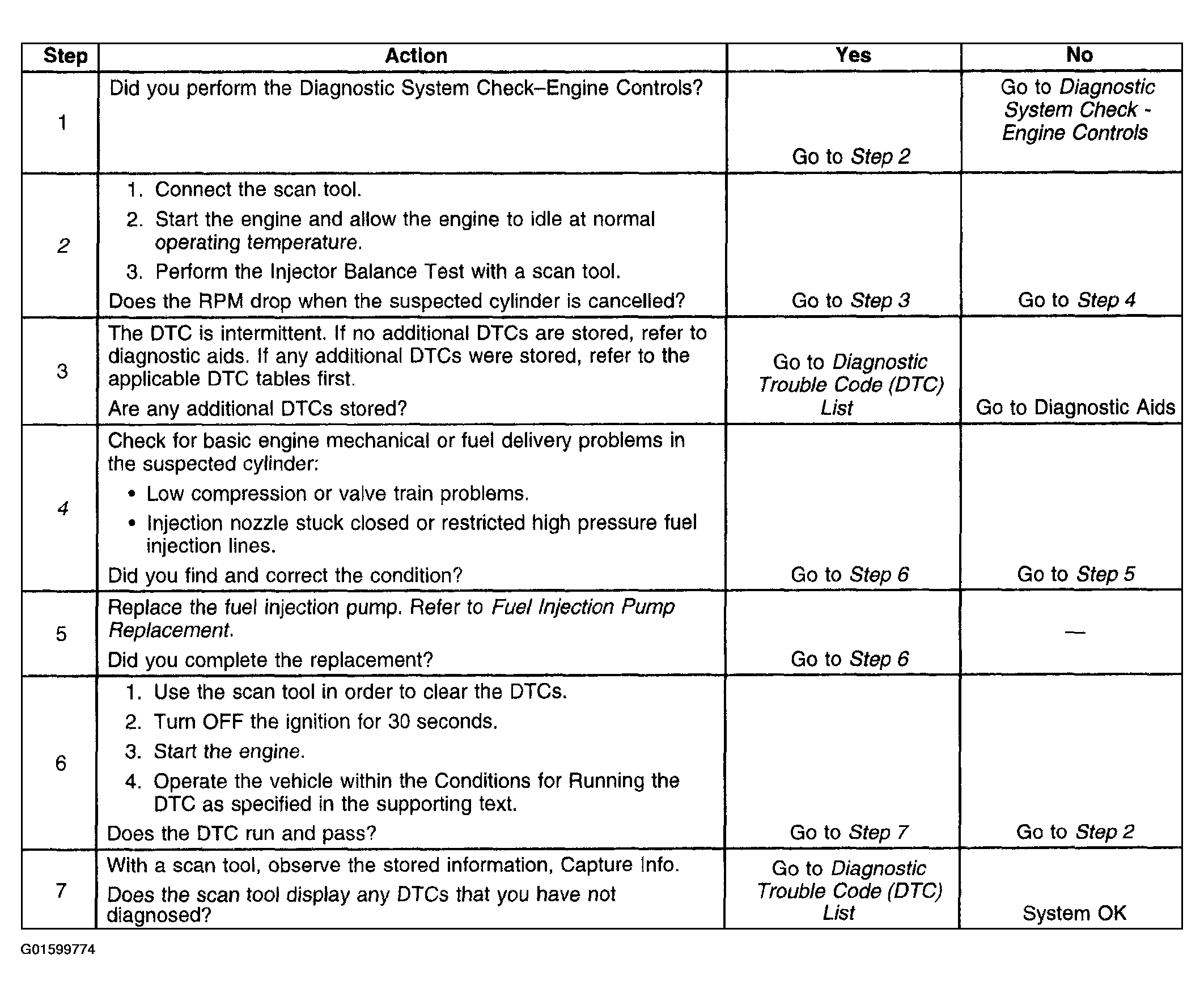

Fig 1: DTC P0300
G01599774Courtesy of GENERAL MOTORS CORP.
