Test Description

The number below refers to the step number on the diagnostic table.

1. 3. This step checks the fuel lift pump circuit.

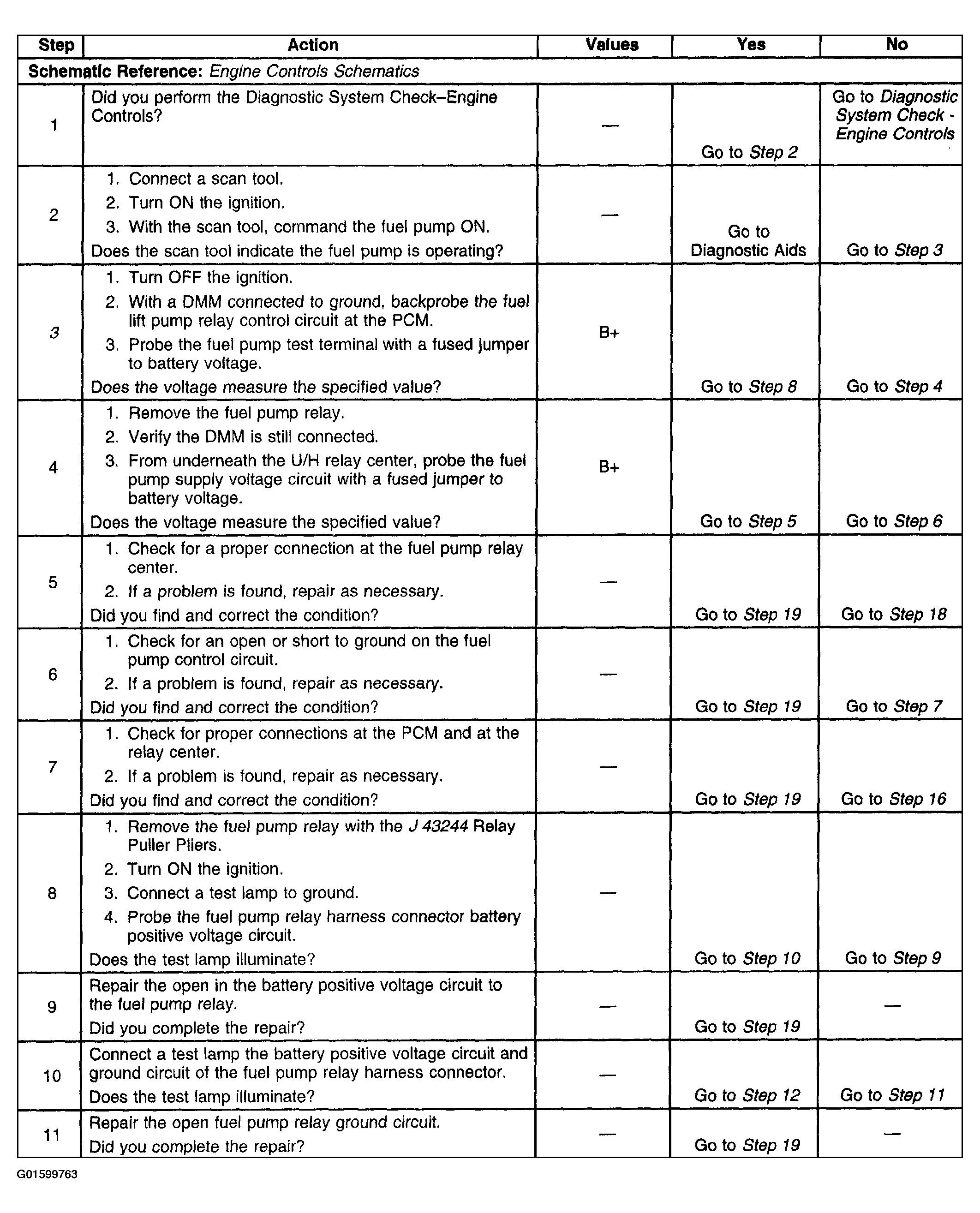

Fig 1: DTC P0231 (Steps 1-11)

Courtesy of GENERAL MOTORS CORP.

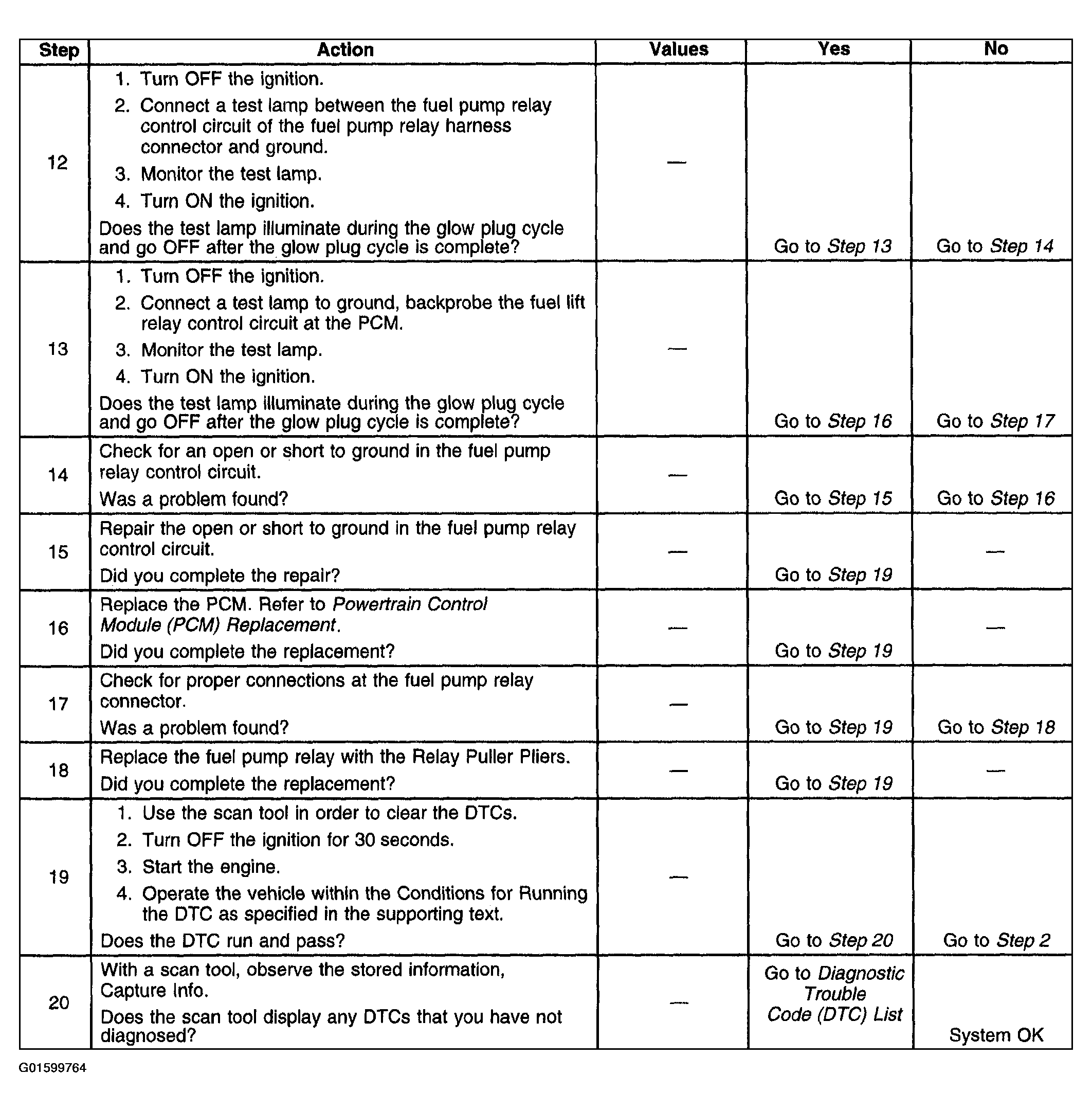

Fig 2: DTC P0231 (Steps 12-20)

Courtesy of GENERAL MOTORS CORP.
