Test Description

The number below refers to the step number on the diagnostic table.

  1. 2. This step will check all 5-volt reference circuits.

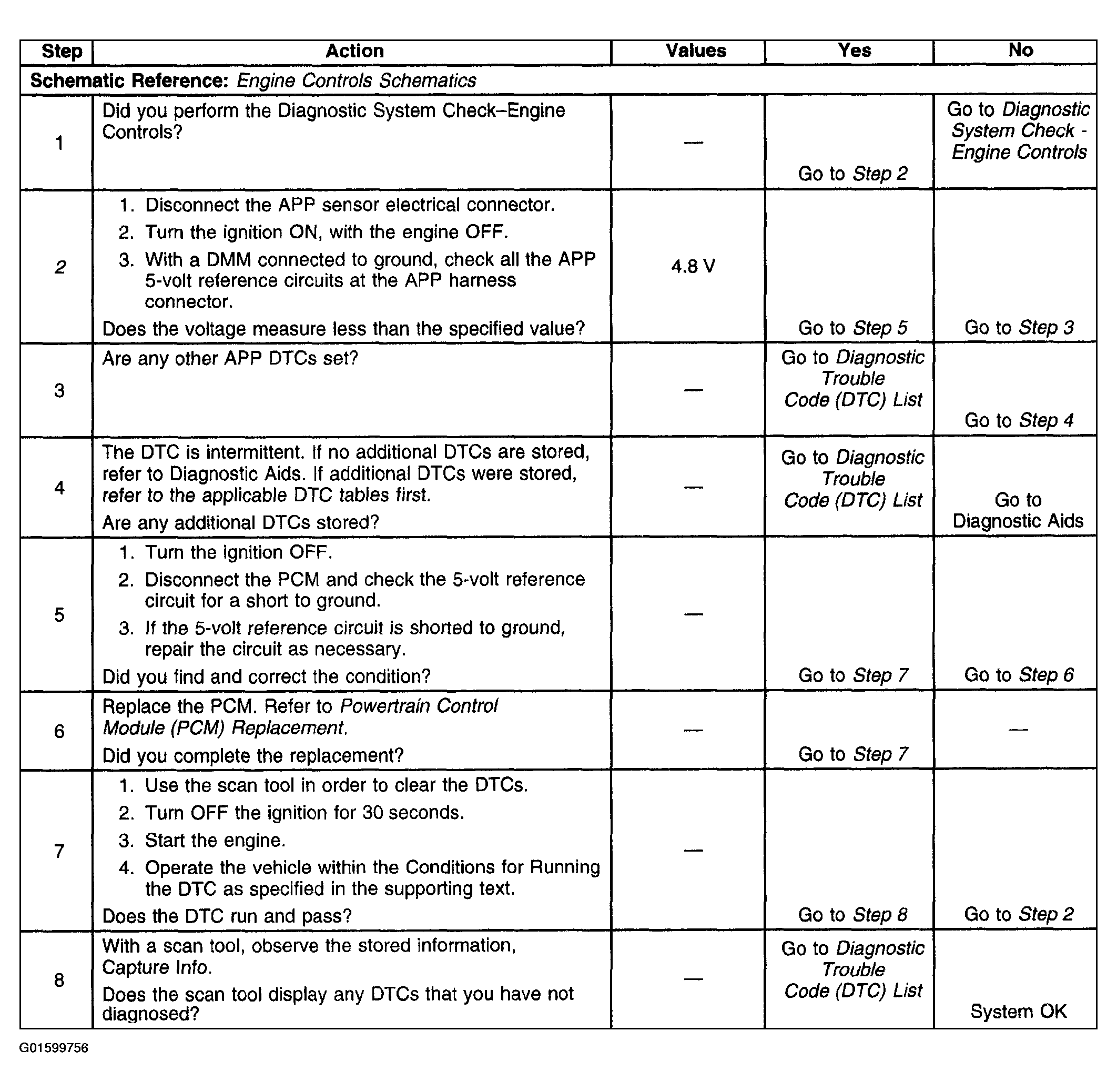

Fig 1: DTC P0225
G01599756Courtesy of GENERAL MOTORS CORP.
