Engine Controls - 6.5L
>>
Diagnostic Information and Procedures
>>
DTC P0220
>>
Test Description
Test Description
The number below refers to the step number on the diagnostic table.
2. This step will determine if there is a good voltage reference.

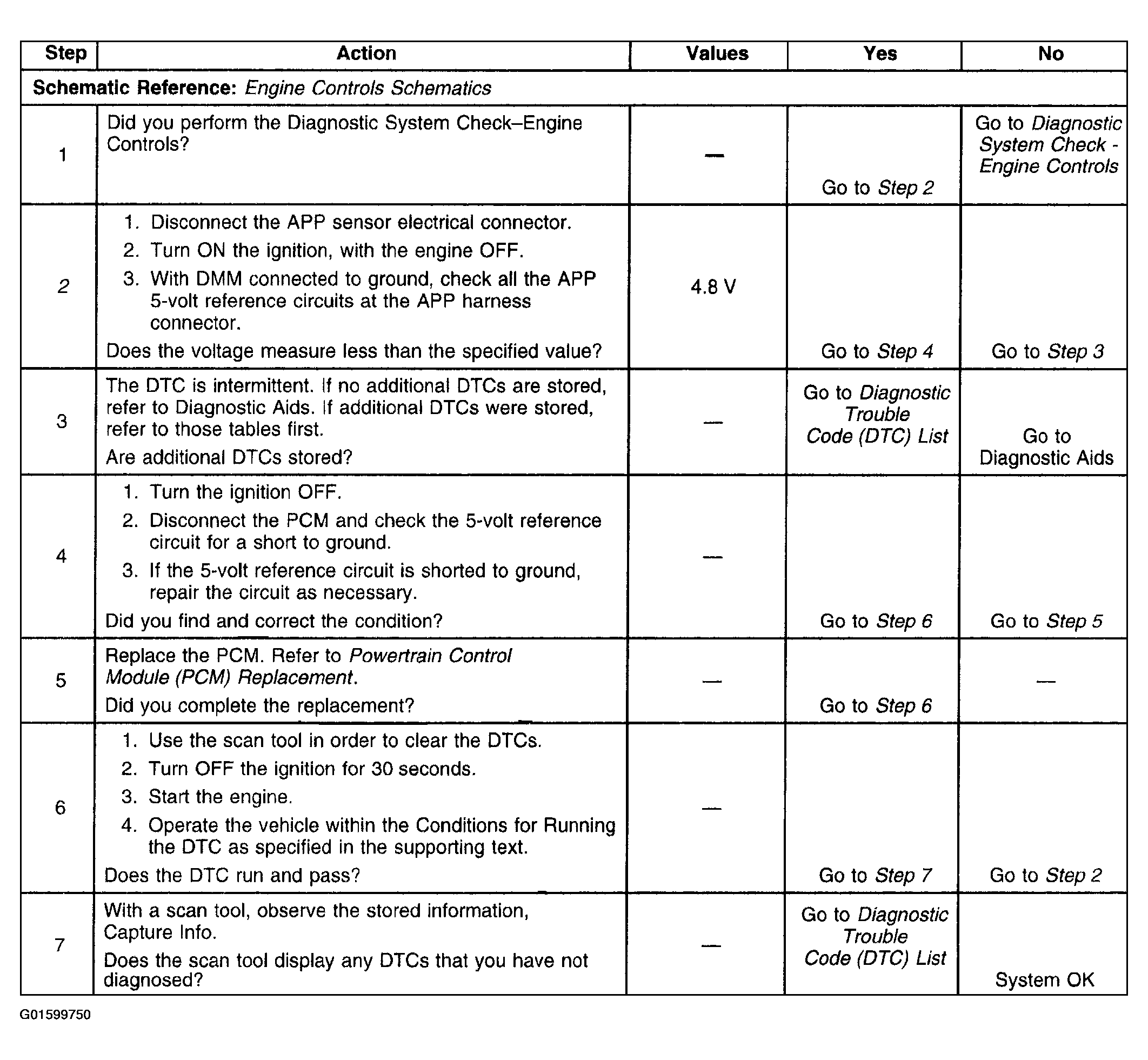

Fig 1: DTC P0220
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
