DTC P0219
>>
Test Description
Test Description
The number below refers to the step number on the diagnostic table.
2. The injection pump is being replaced in this step.

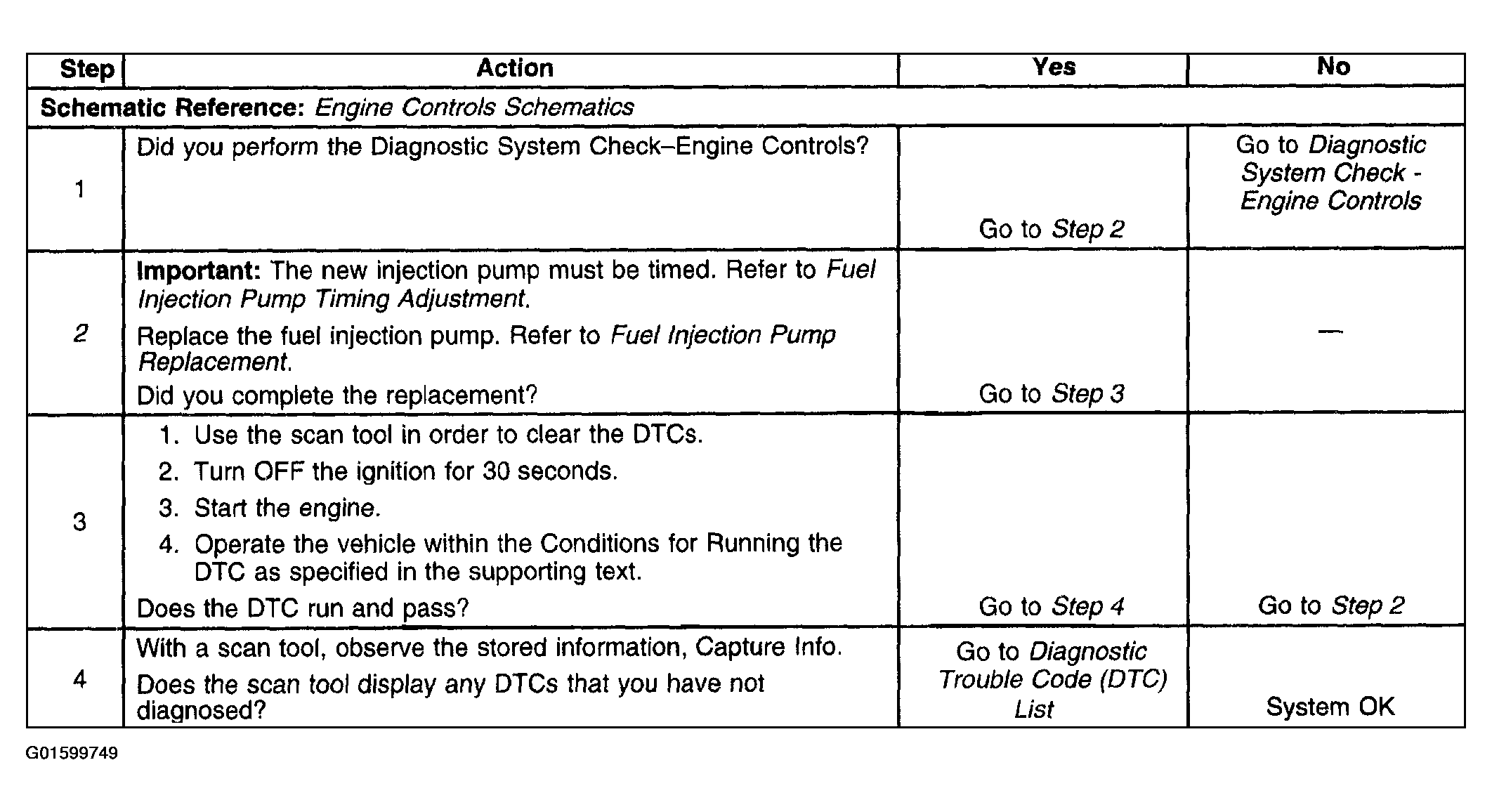

Fig 1: DTC P0219
Courtesy of GENERAL MOTORS CORP.
