Cooling System Component Views

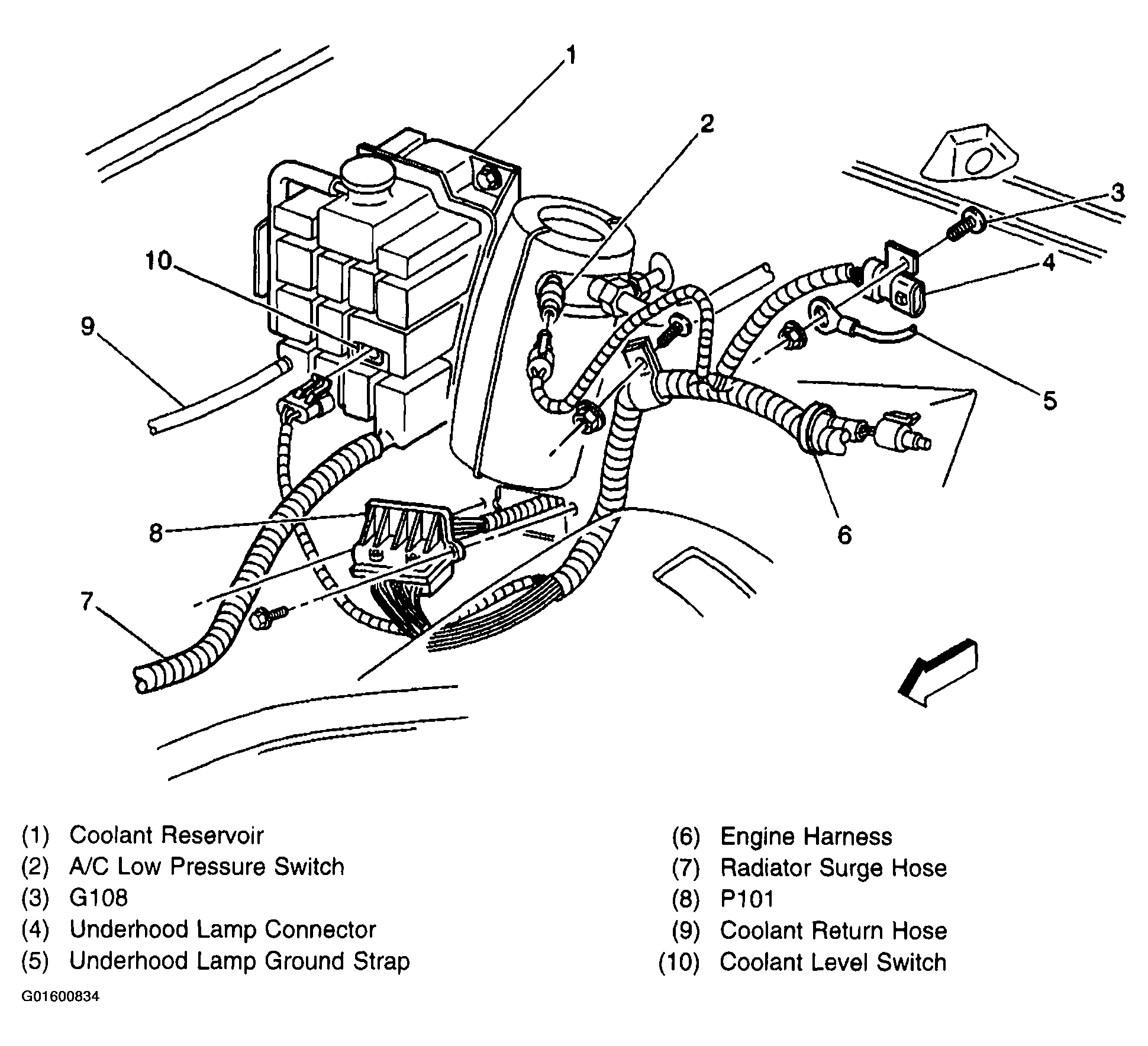

Fig 1: Coolant Level Switch, P101, G108 & A/C Low Pressure Switch

G01600834

Courtesy of GENERAL MOTORS CORP.

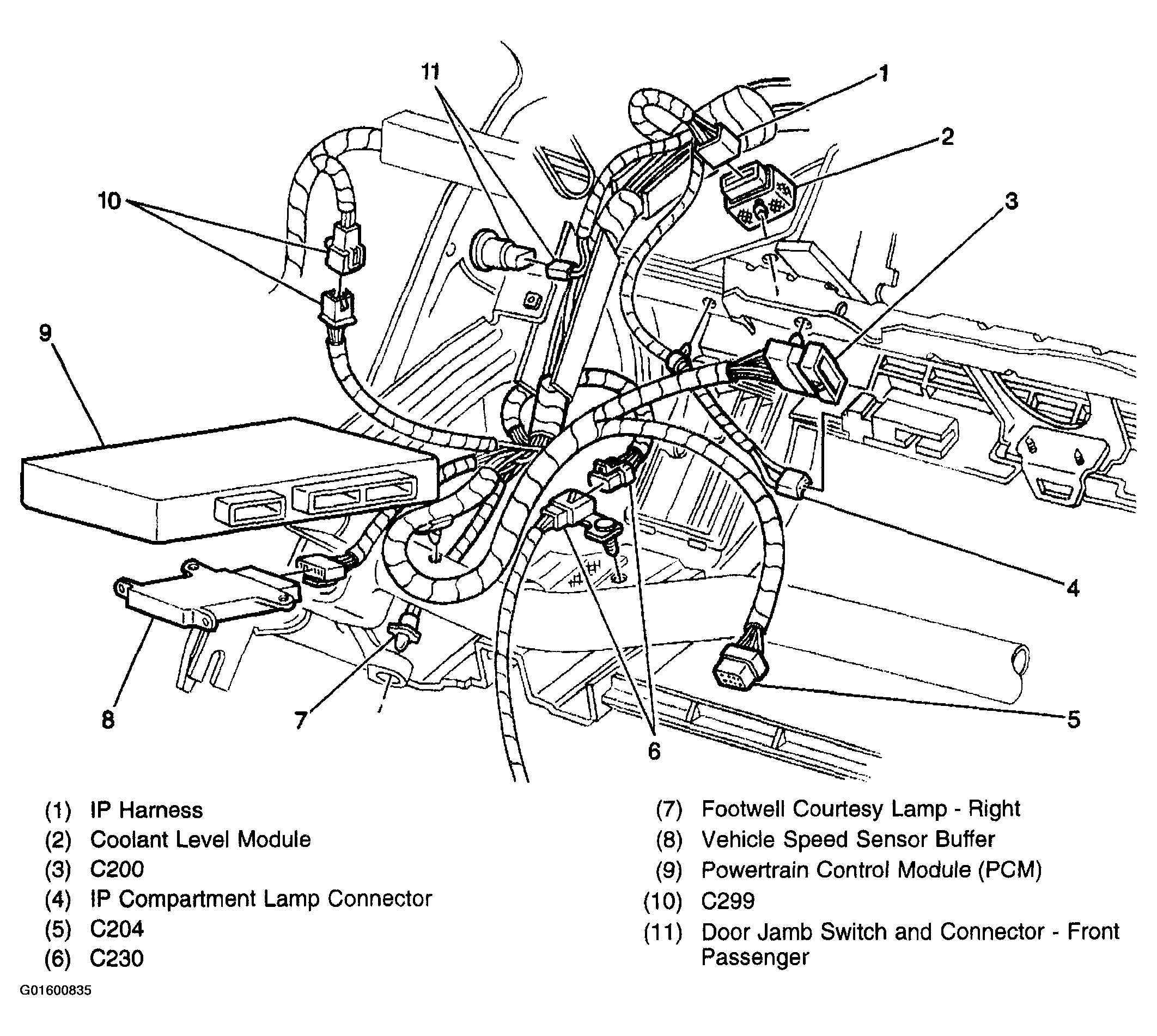

Fig 2: Coolant Level Module

G01600835

Courtesy of GENERAL MOTORS CORP.
