Engine Electrical Connector End Views

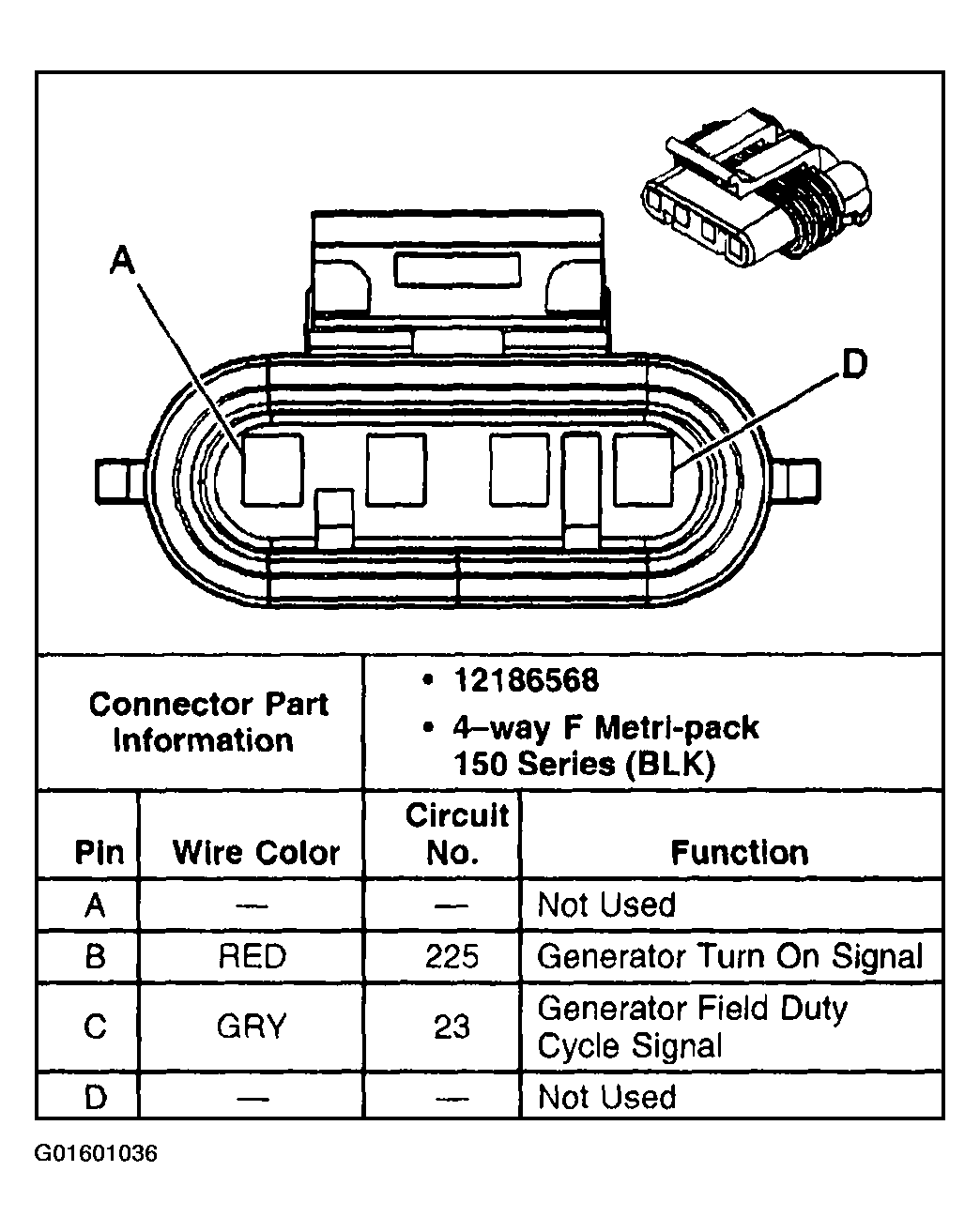

Fig 1: Generator - L18

Courtesy of GENERAL MOTORS CORP.

Fig 2: Generator - L65-Single Generator

Courtesy of GENERAL MOTORS CORP.

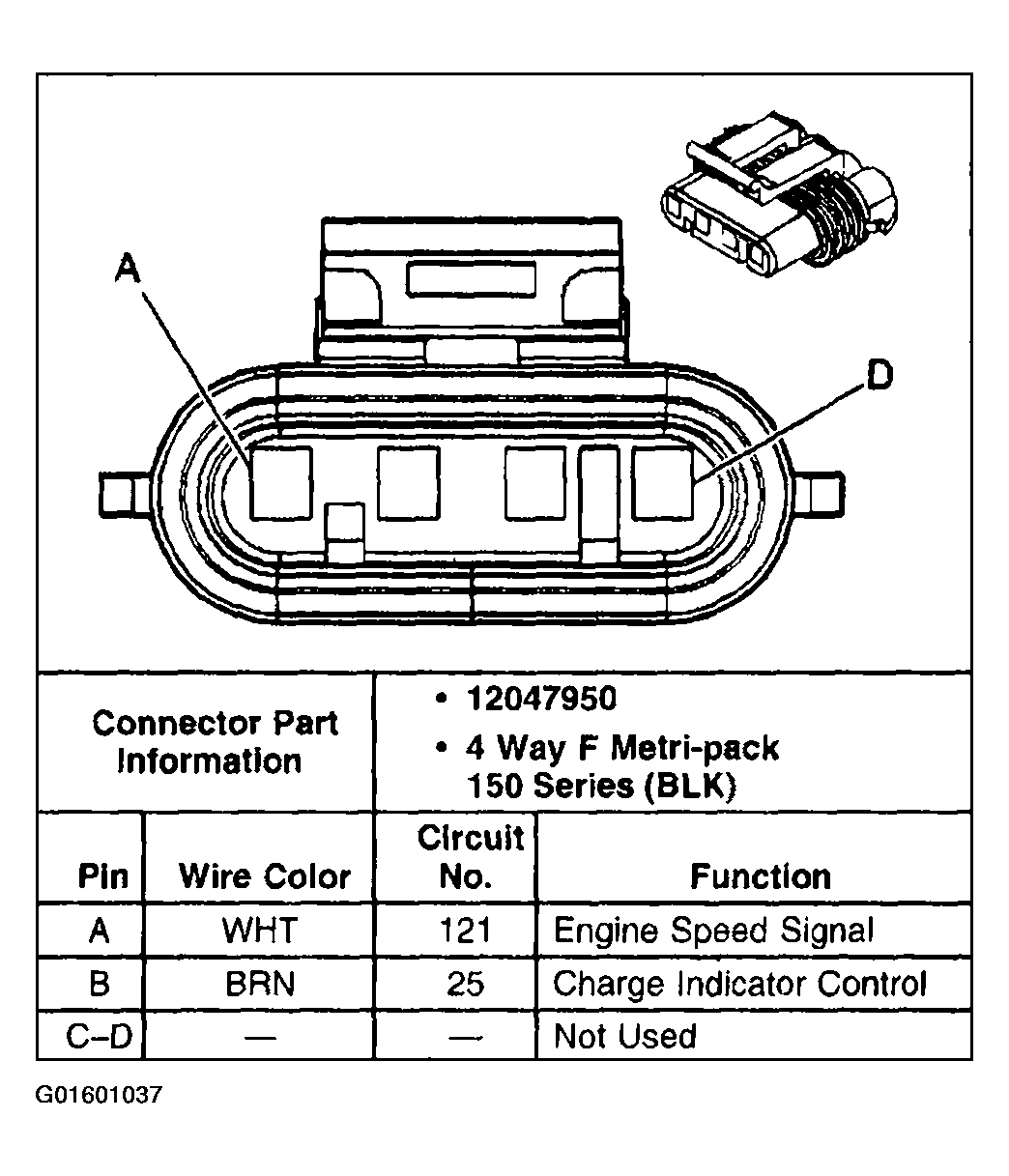

Fig 3: Generator - Right-L65 Dual Generators

Courtesy of GENERAL MOTORS CORP.

Fig 4: Generator - Left-L65 Dual Generators

Courtesy of GENERAL MOTORS CORP.

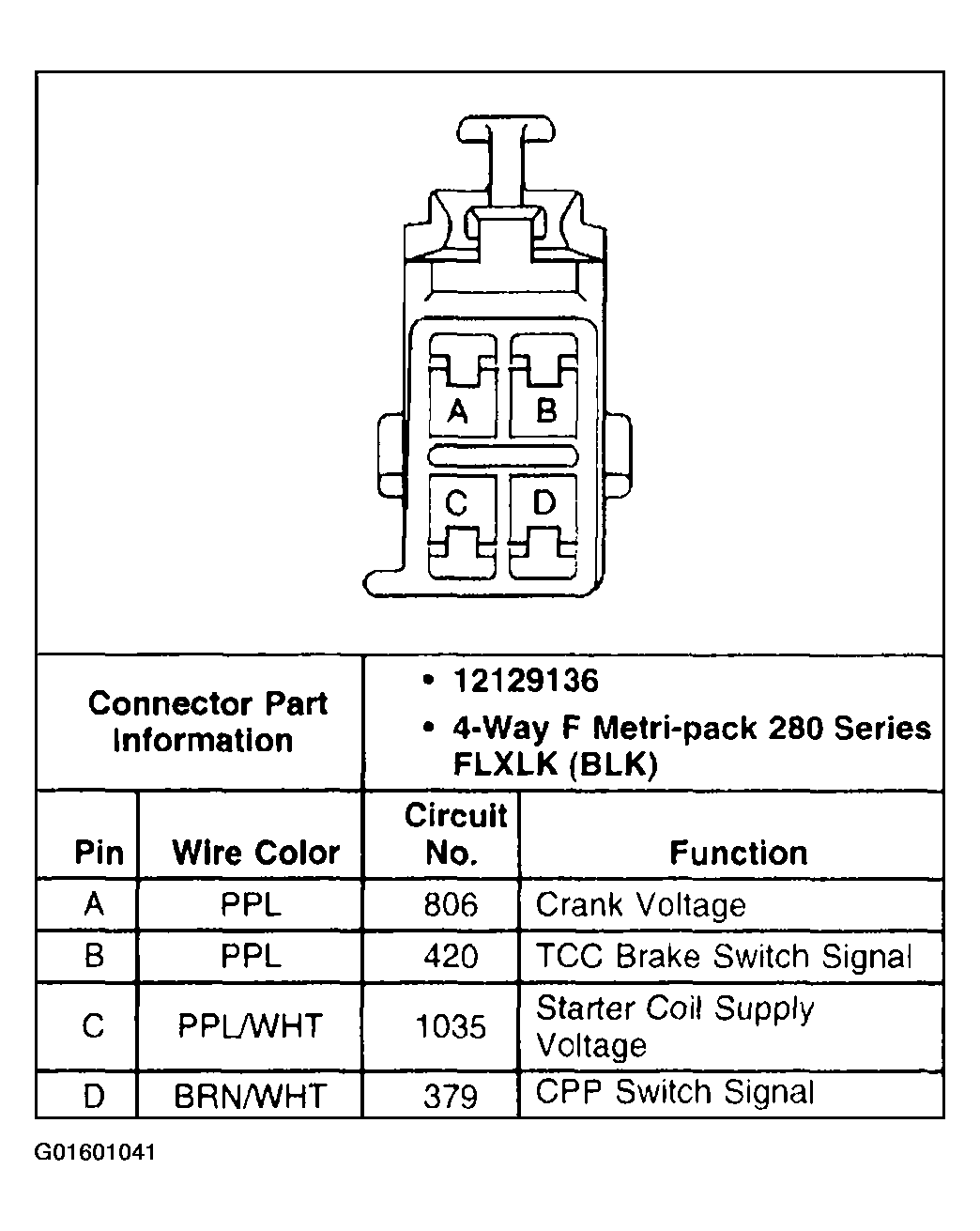

Fig 5: Clutch Pedal Position (CPP) Switch - L18

Courtesy of GENERAL MOTORS CORP.

Fig 6: Clutch Pedal Position (CPP) Switch - L65

Courtesy of GENERAL MOTORS CORP.

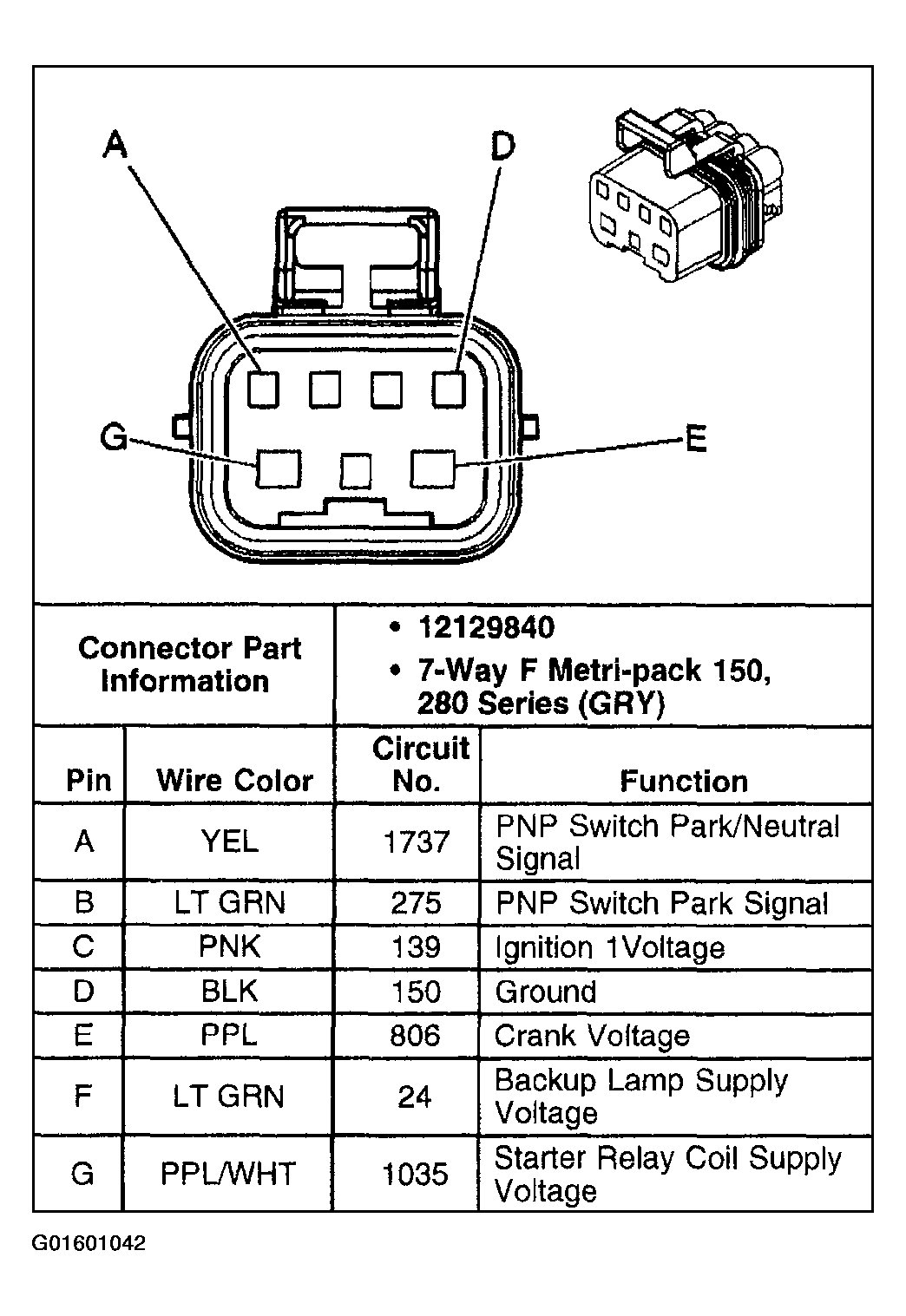

Fig 7: Park/Neutral Position (PNP) Switch - C1

Courtesy of GENERAL MOTORS CORP.

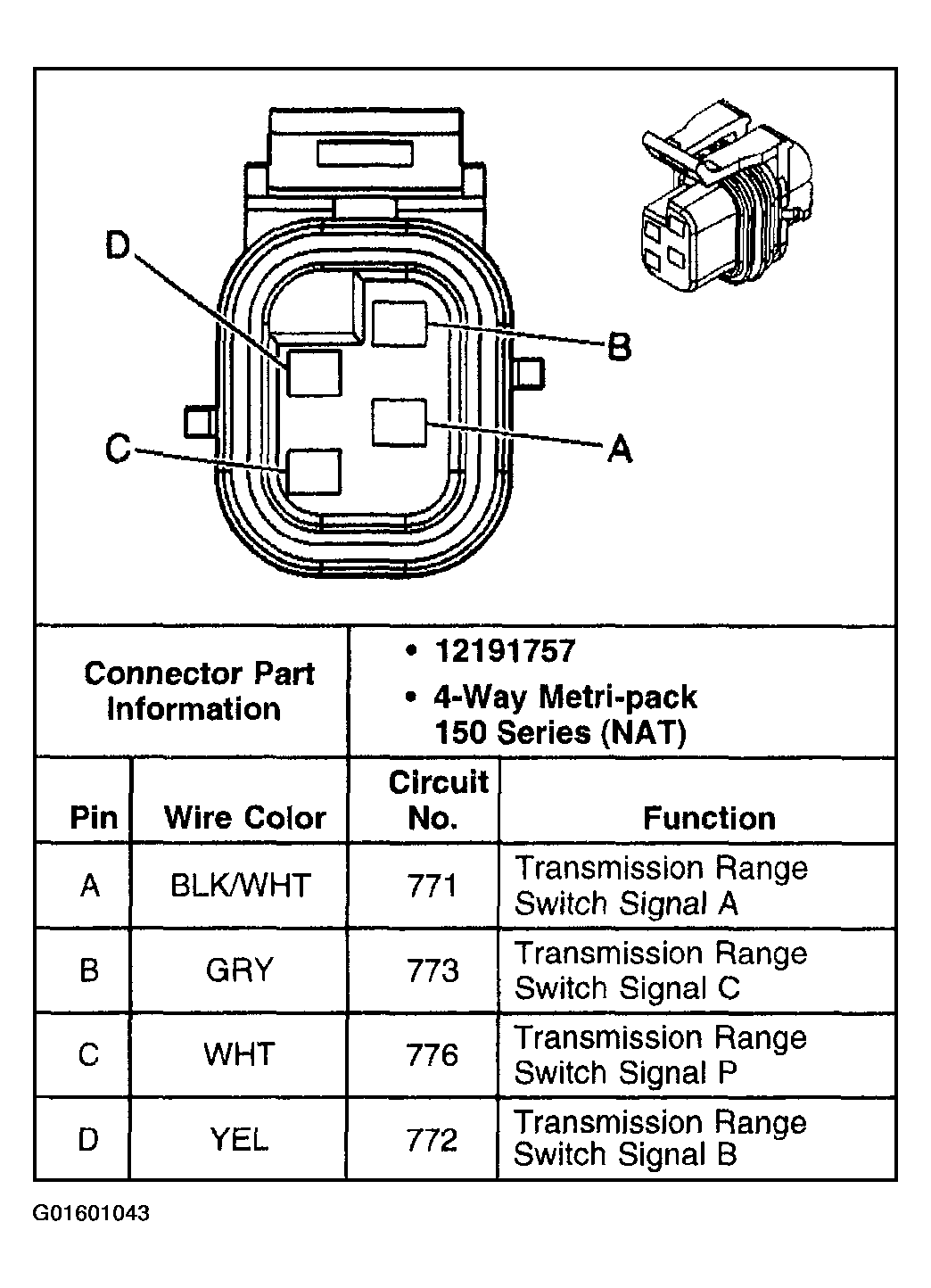

Fig 8: Park/Neutral Position (PNP) Switch - C2

Courtesy of GENERAL MOTORS CORP.
