Remote Control Door Lock Receiver Connector End View

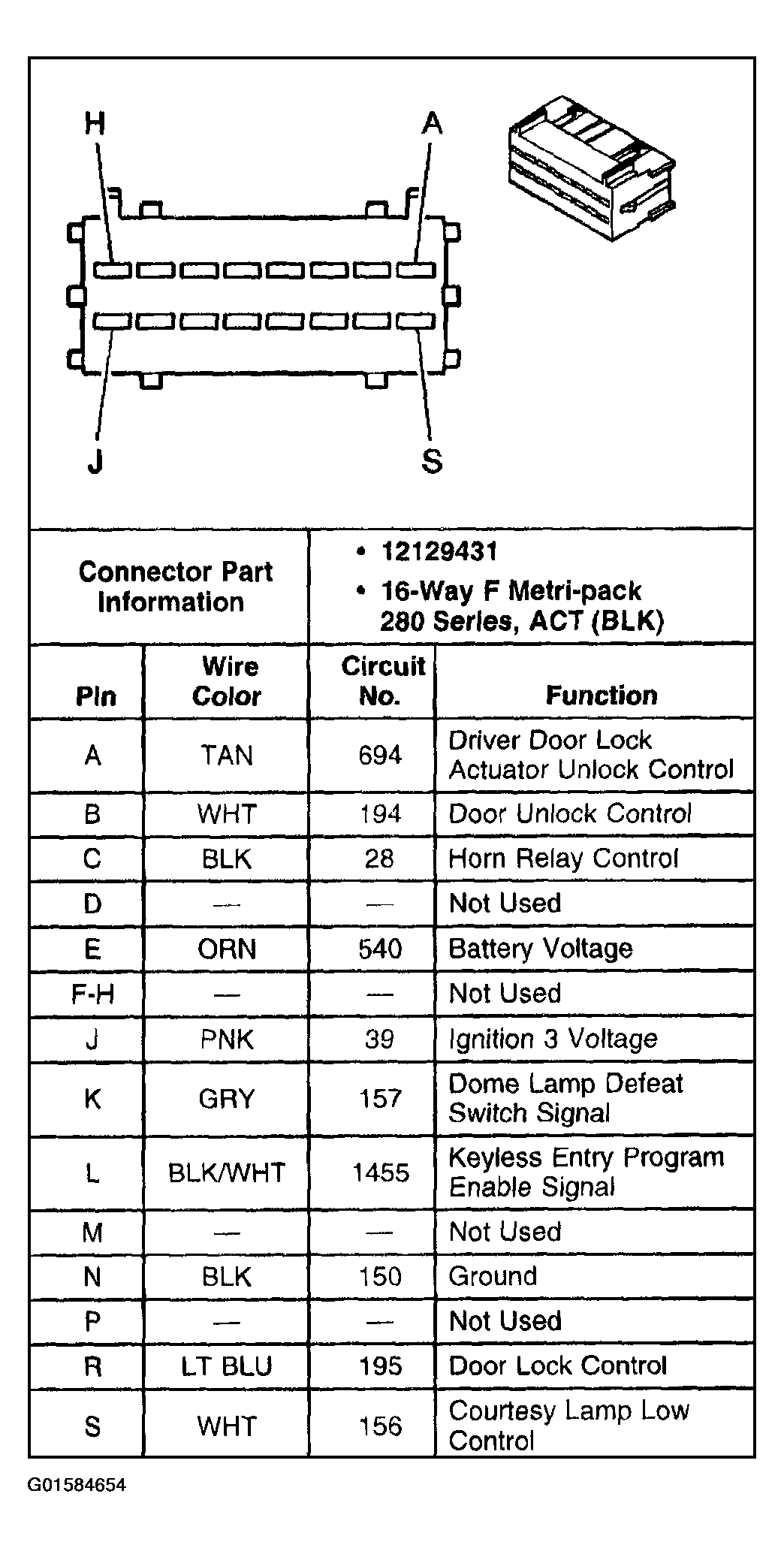

Fig 1: Remote Control Door Lock Receiver Connector End View

G01584654

Courtesy of GENERAL MOTORS CORP.
