GMC
>>
2002
>>
C3500 HD 6.5 F, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Connector End Views
>>
Connector End View
>>
PTO Relay Connector End View
PTO Relay Connector End View

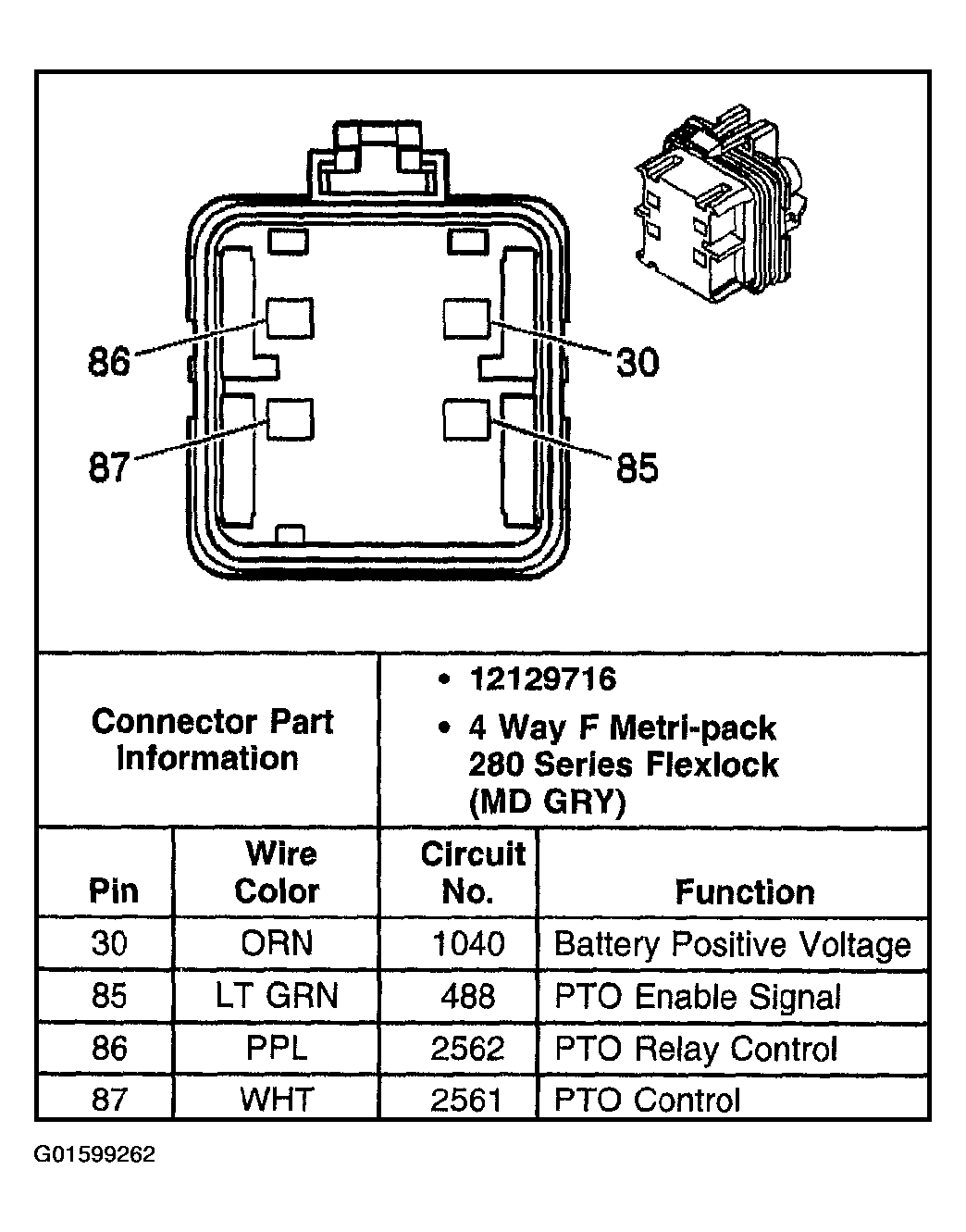

Fig 1: PTO Relay Connector End View
Courtesy of GENERAL MOTORS CORP.

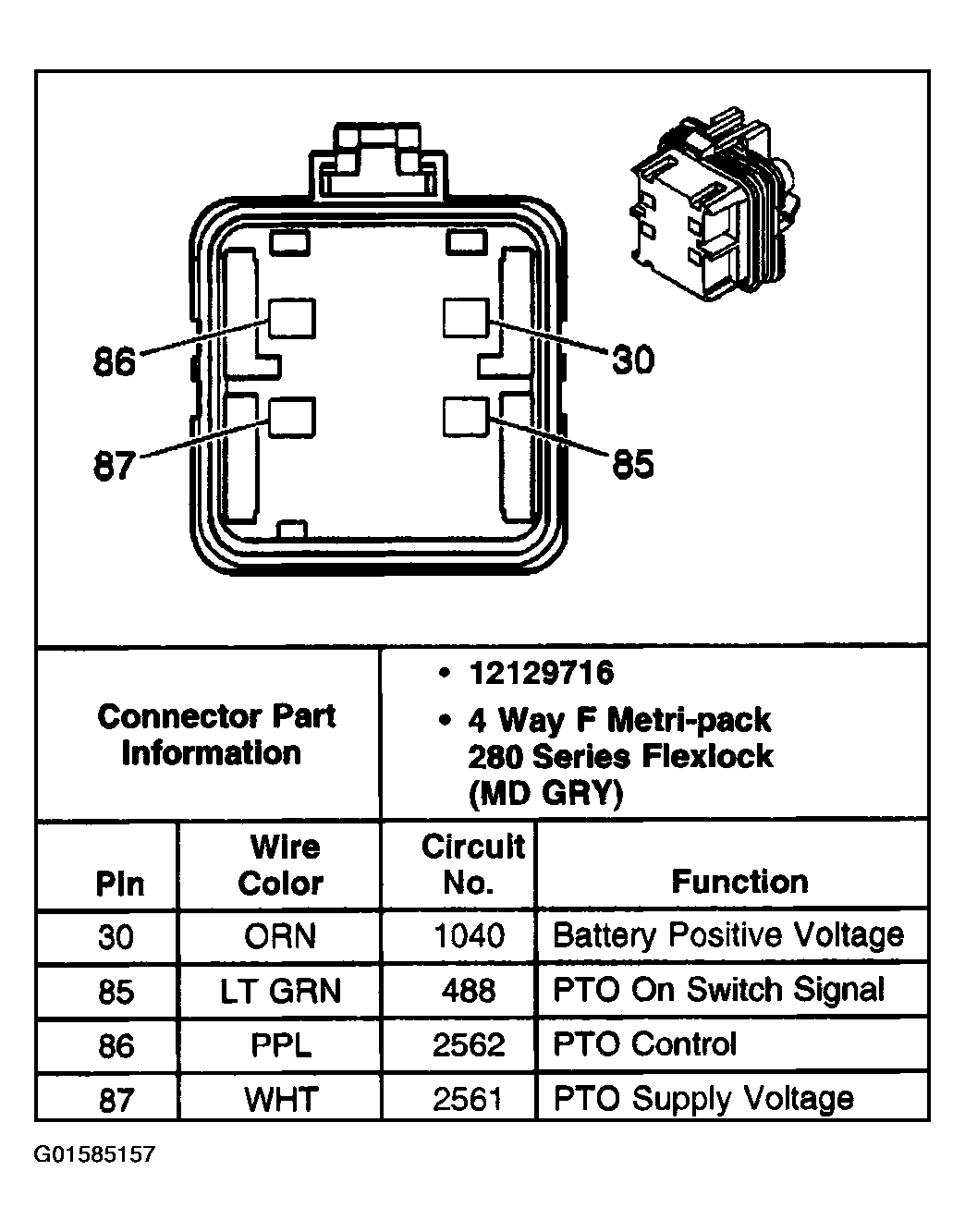

Fig 1: PTO Relay Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
