Coolant Level Switch Connector End View

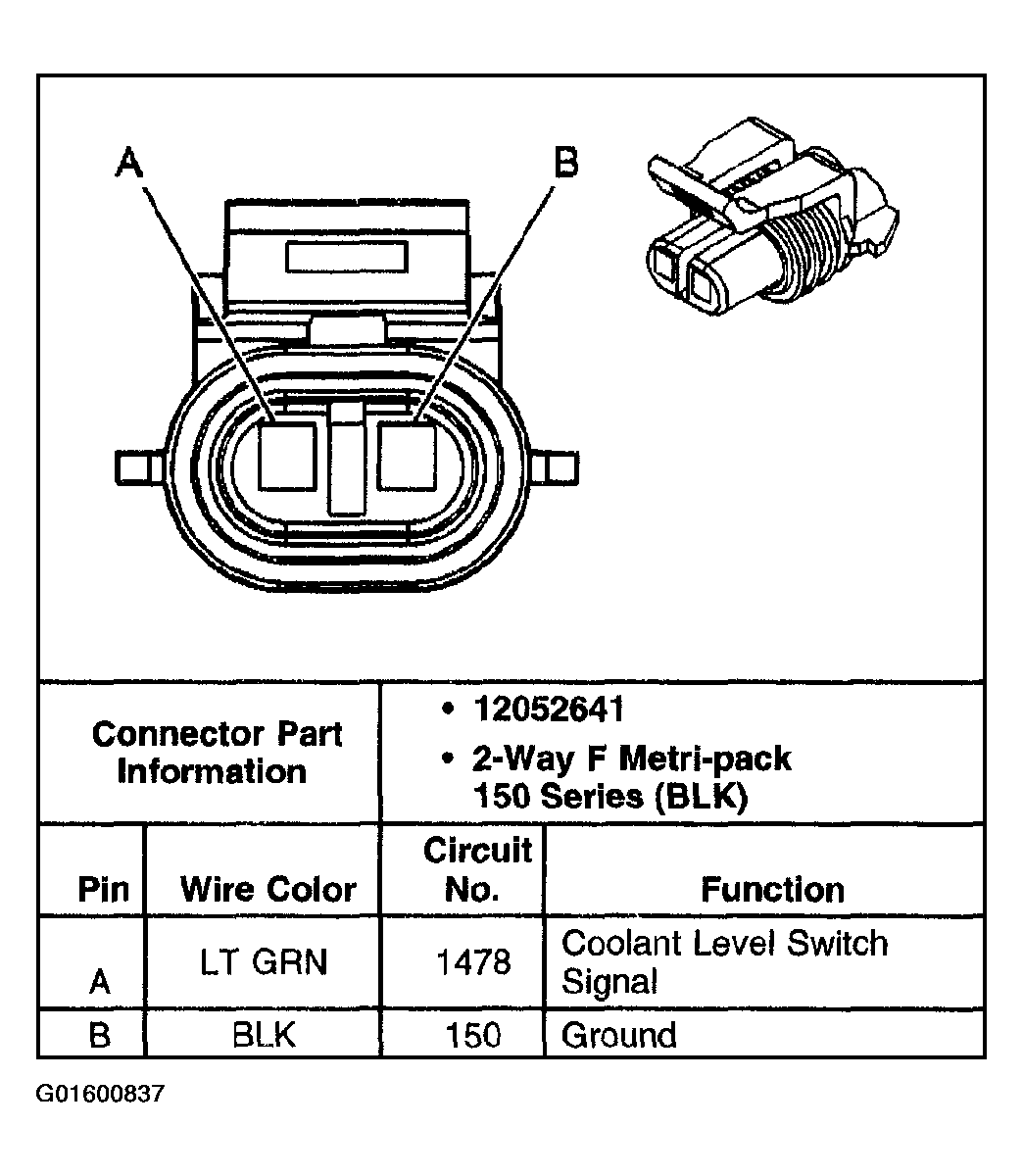

Fig 1: Coolant Level Switch Connector End View

G01600837

Courtesy of GENERAL MOTORS CORP.
