Removal Procedure

  1. Lower the window.
  2. Remove the trim panel. Refer to Trim Panel Replacement - Side Front Door .
  3. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
  4. Carefully pry out the retainer clips in order to remove the speaker, as necessary.
  5. Remove the inner panel bolts.

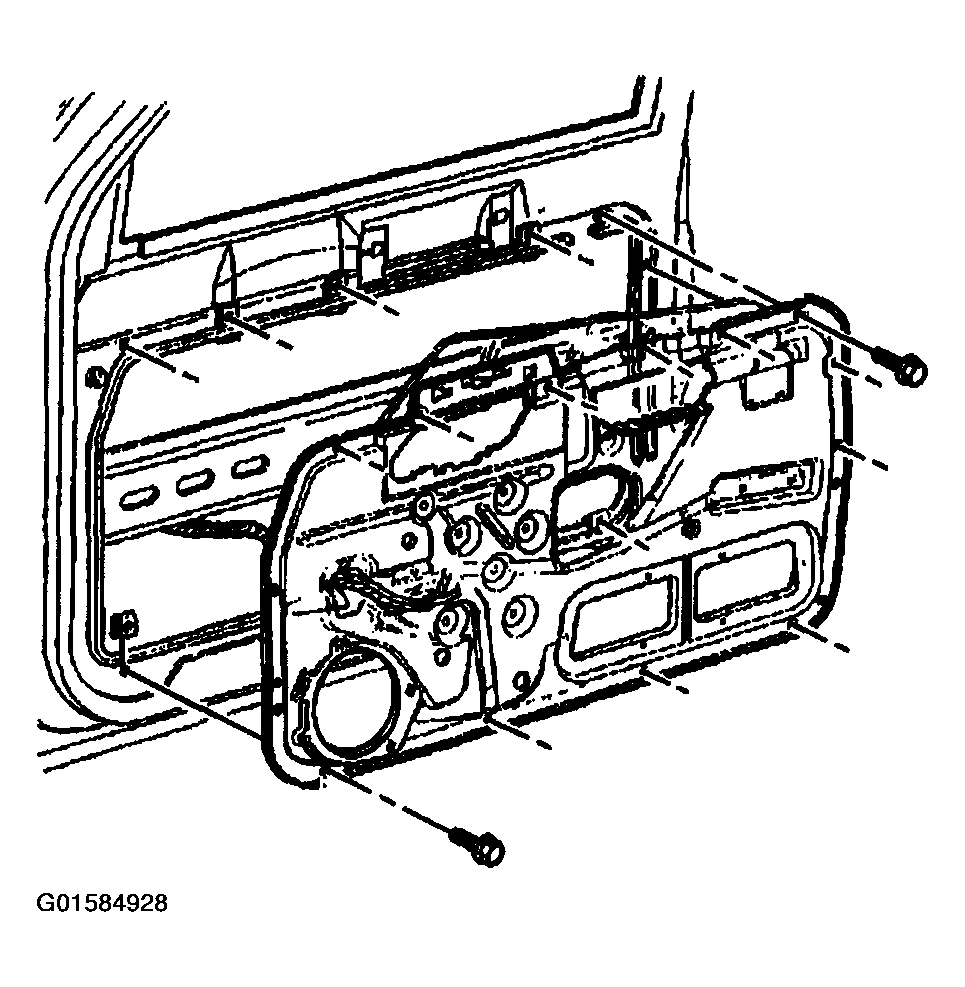

    Fig 1: Inner Panel & Bolts
    G01584928Courtesy of GENERAL MOTORS CORP.
  6. Remove the lock rods from the following components:
    • The lock handle
    • The lock lever
    • The lock rod guides
  7. Disconnect the wiring harness.
  8. Slide the inner mounting panel rearward in order to release the regulator roller from the window sash.

    Remove the inner mounting panel.

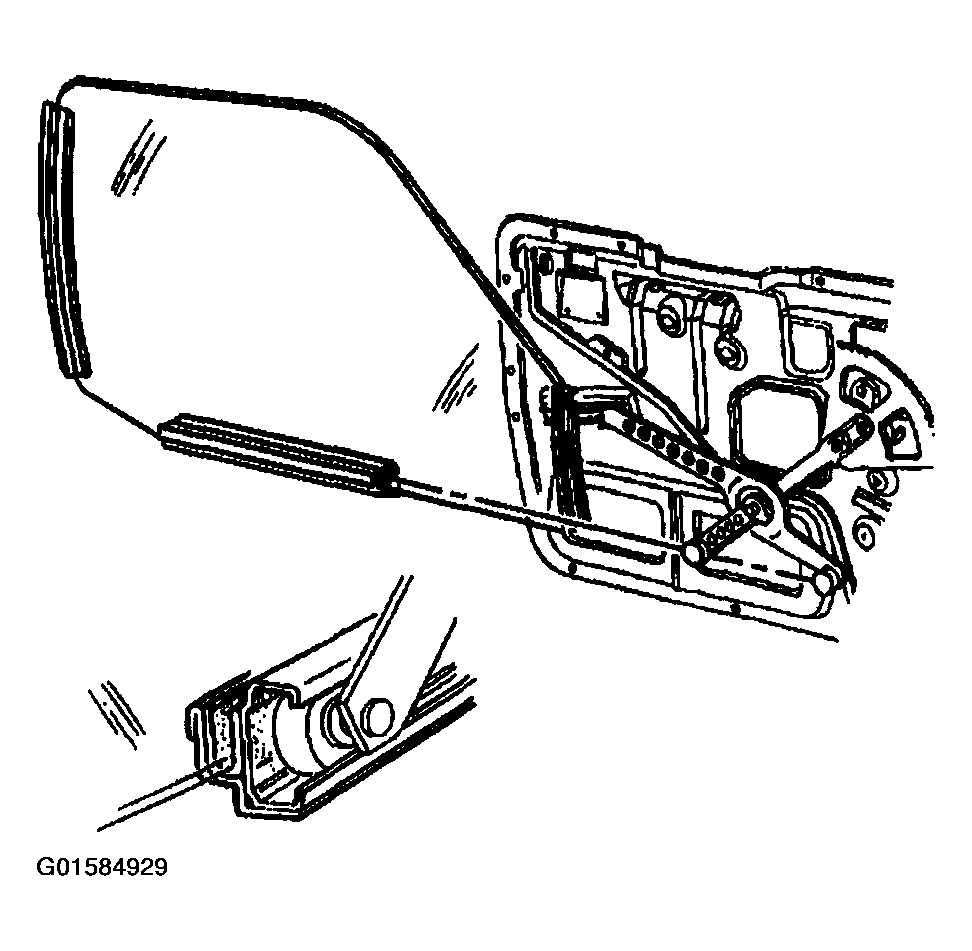

    Fig 2: Lock Handle, Lever, Wiring Harness & Rod Guides
    G01584929Courtesy of GENERAL MOTORS CORP.
