Installation Procedure

Important:  The flywheel spacer (if applicable) must be removed prior to pilot bearing installation.

1. Install a 5/8 inch washer (1) onto the J 38836  or equivalent.
2. Install a NEW clutch pilot bearing (2) onto the tool.
   Fig 1: Washer, Clutch Pilot Bearing & J 38836

   Courtesy of GENERAL MOTORS CORP.
3. Install the NEW clutch pilot bearing into the crankshaft using J 38836.

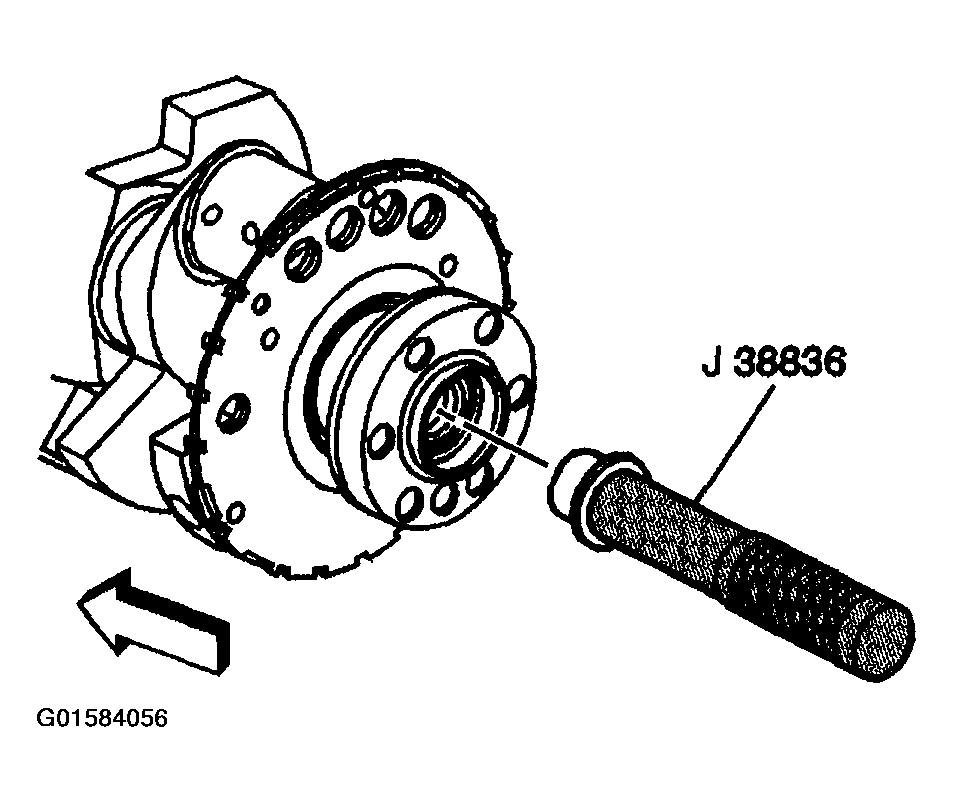

   Fig 2: Installing Clutch Pilot Bearing Using J 38836

   Courtesy of GENERAL MOTORS CORP.
4. Inspect the clutch pilot bearing for proper installation.
5. Install the clutch assembly. Refer to Clutch Assembly Replacement .

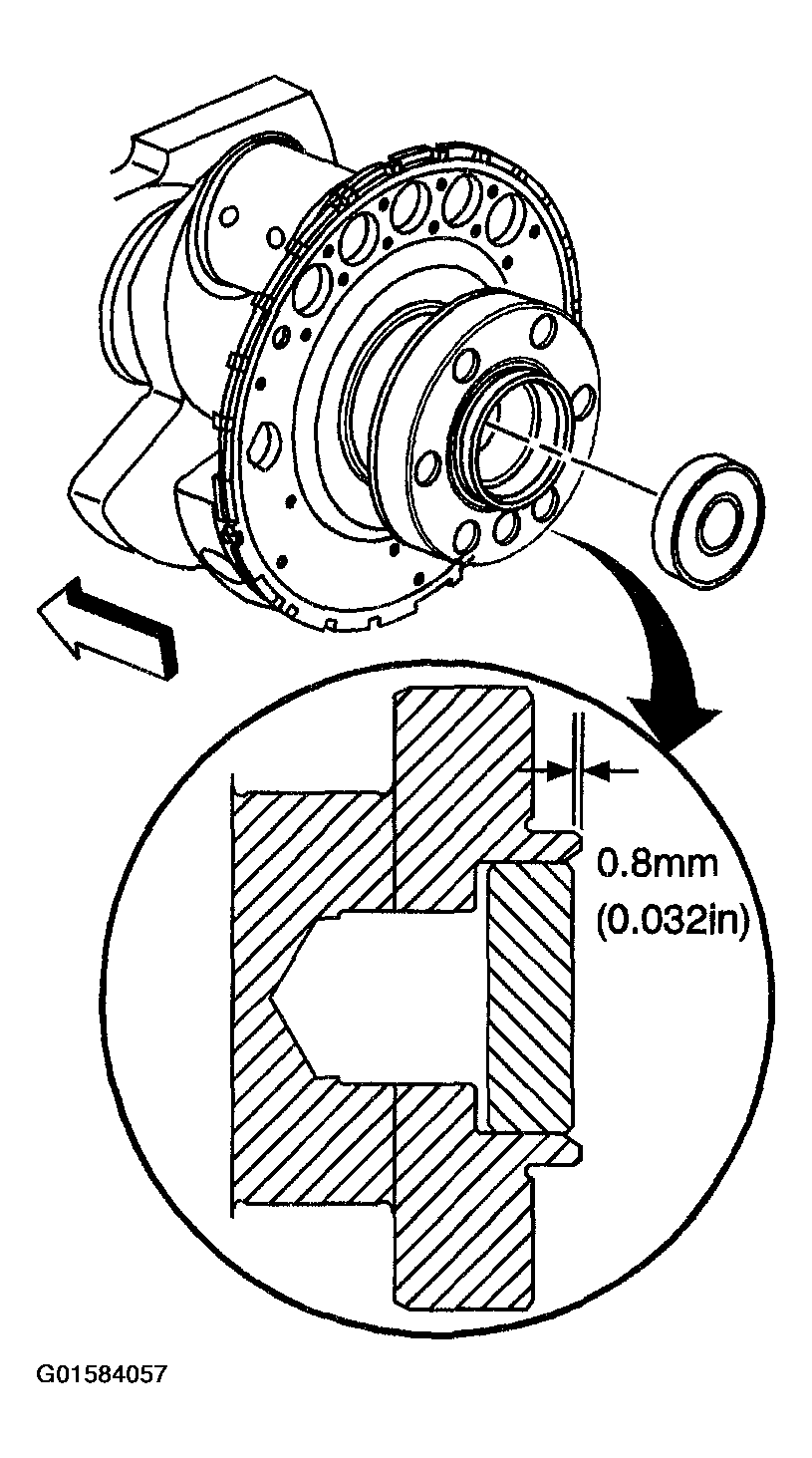

   Fig 3: Measurement For Proper Installation Of Clutch Pilot Bearing

   Courtesy of GENERAL MOTORS CORP.
