Installation Procedure

  1. Install the clutch actuator cylinder.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the clutch actuator cylinder bolts.

    Tighten

    Tighten the clutch actuator cylinder bolts to 8 N.m (71 lb in).

  3. Install the manual transmission. Refer to TRANSMISSION REPLACEMENT .

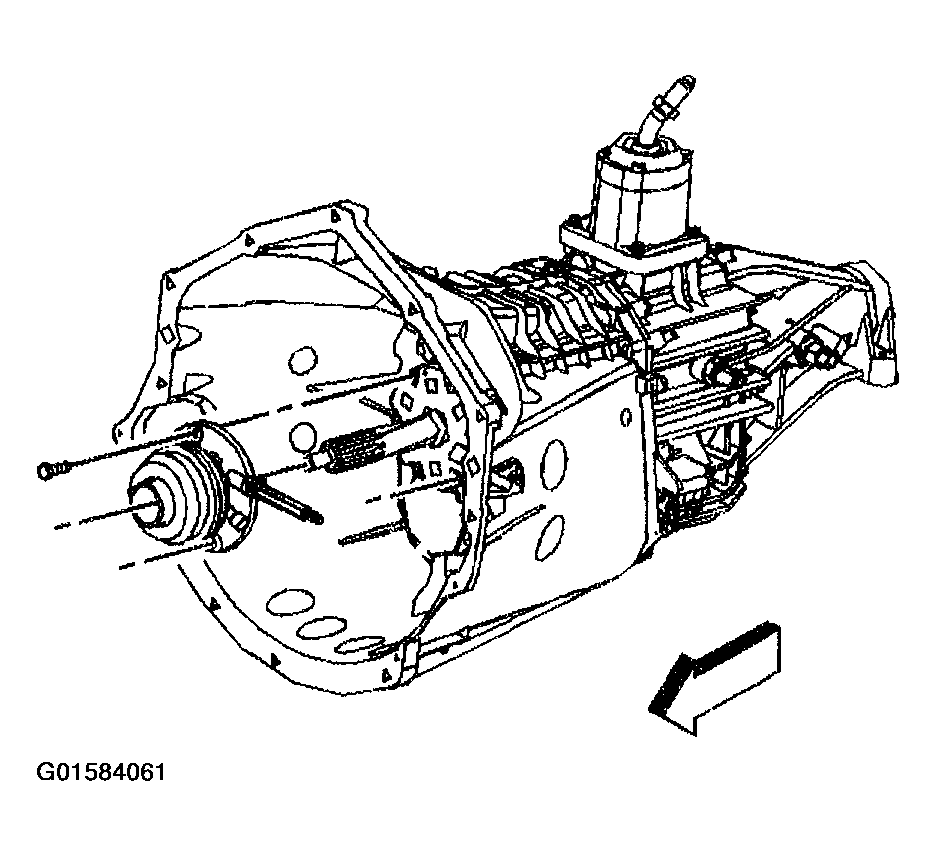

    Fig 1: Clutch Actuator Cylinder & Bolts
    G01584061Courtesy of GENERAL MOTORS CORP.
