Installation Procedure

  1. Install the clutch pedal position switch to the pushrod with the plastic tabs.
  2. Connect the clutch pedal position switch electrical connector (1).

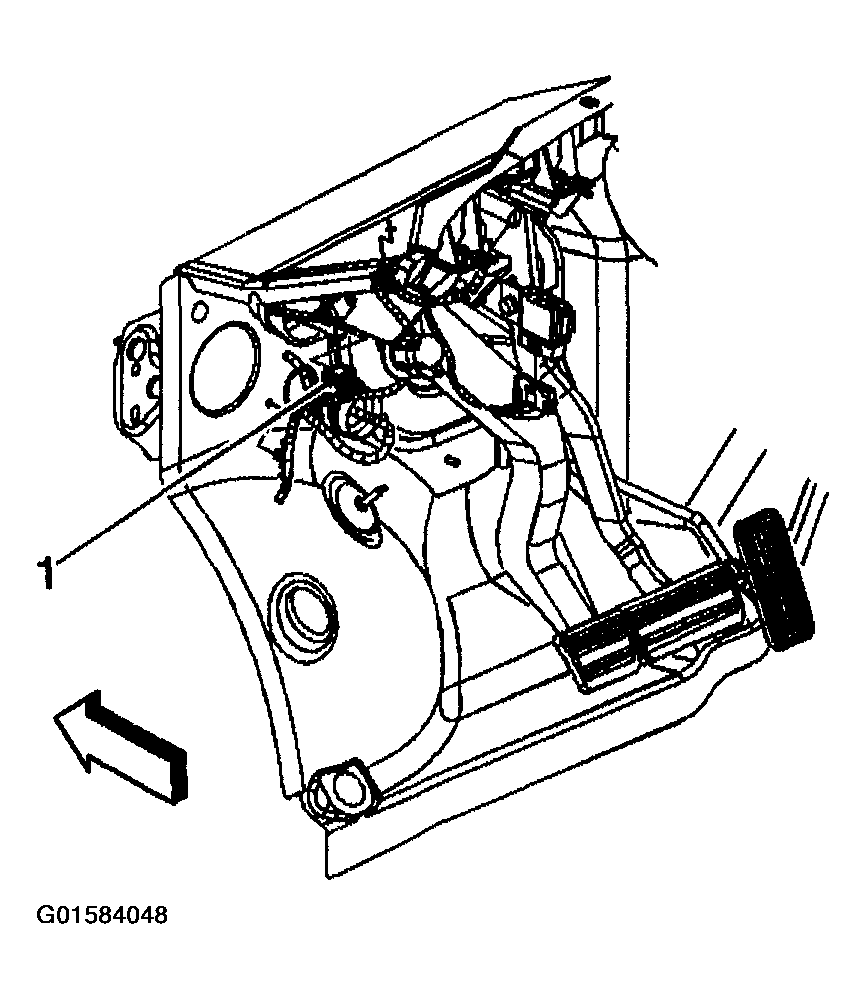

    Fig 1: Clutch Pedal Position Switch Electrical Connector
    G01584048Courtesy of GENERAL MOTORS CORP.
