Installation Procedure

  1. Install the pitman arm on the pitman arm shaft.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the pitman arm washer and the nut (8).

    Tighten

    Tighten the pitman arm nut to 250 N.m (184 lb ft).

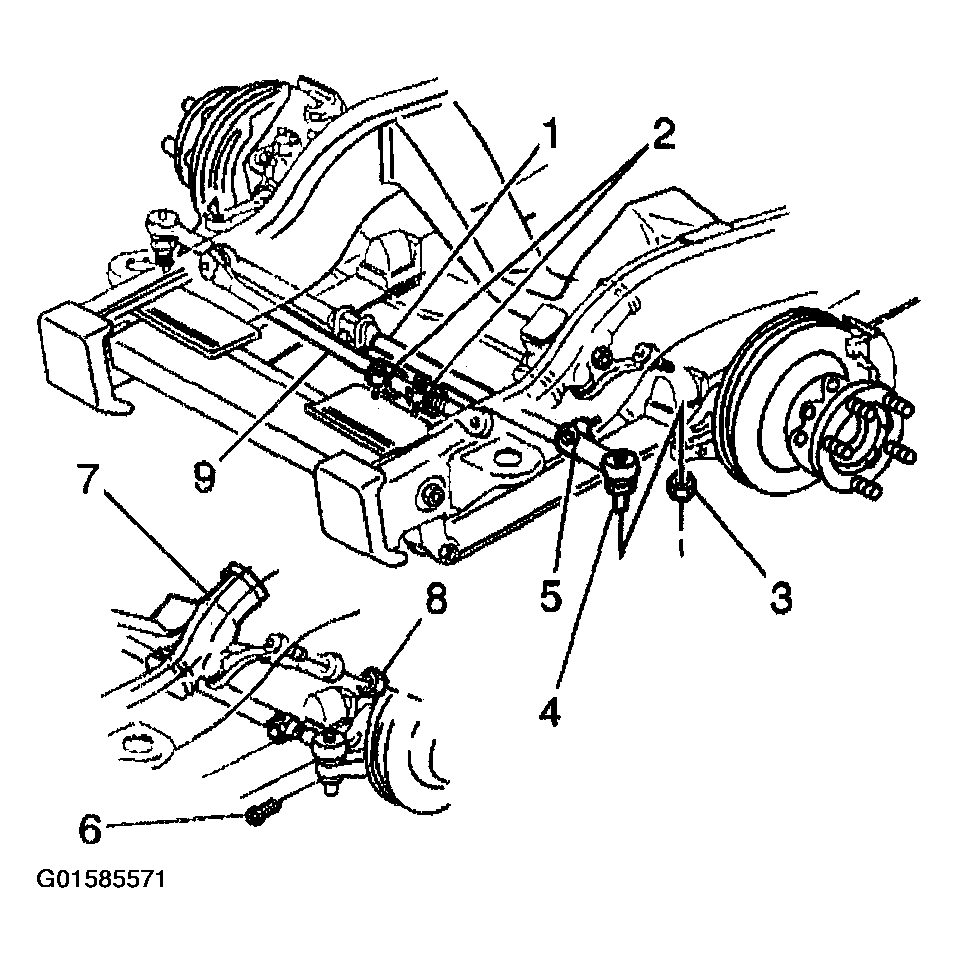

    Fig 1: Pitman Arm Washer & Nut
    G01585571Courtesy of GENERAL MOTORS CORP.
  3. Install the connecting rod to the pitman arm ball stud.

    Make sure the ball stud seal is on the ball stud.

  4. Install the J 29194  to the connecting rod.

    Tighten

    Tighten the J 29194  to 62 N.m (48 lb ft).

  5. Remove the J 29194  .
  6. Install the pitman arm nut to the pitman arm ball stud.

    Tighten

    Tighten the pitman arm nut to 50 N.m (37 lb ft).

  7. Lower the vehicle.

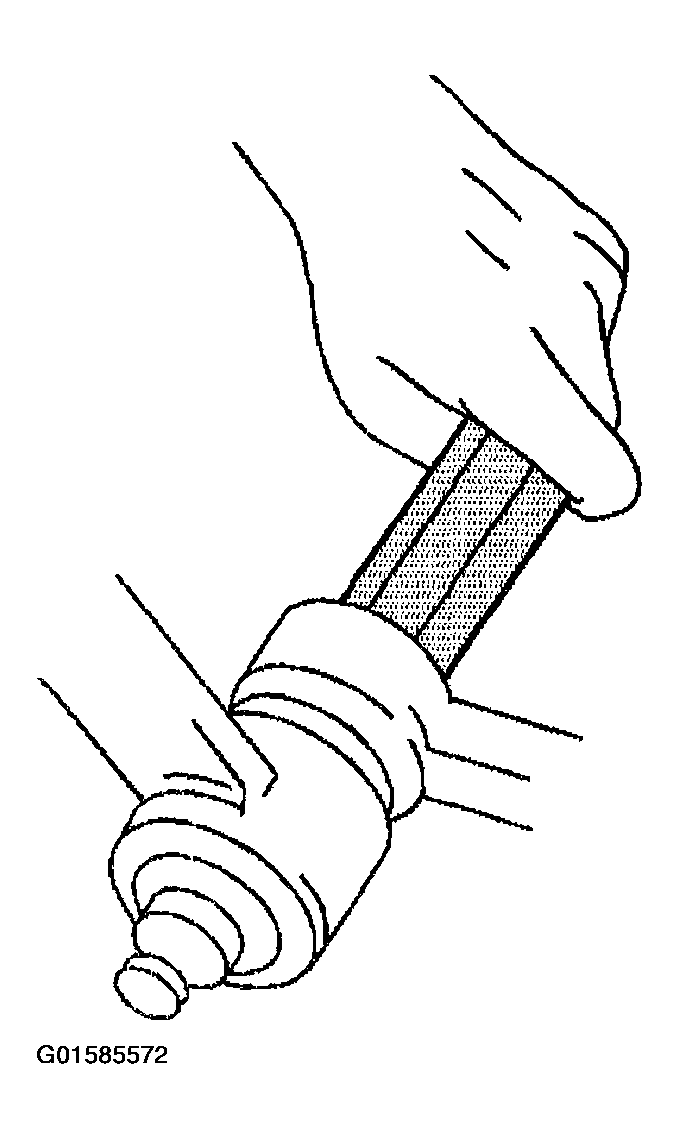

    Fig 2: Installing J 29194 To Connecting Rod
    G01585572Courtesy of GENERAL MOTORS CORP.
