Steering Column Disassembled View (Column Shift)

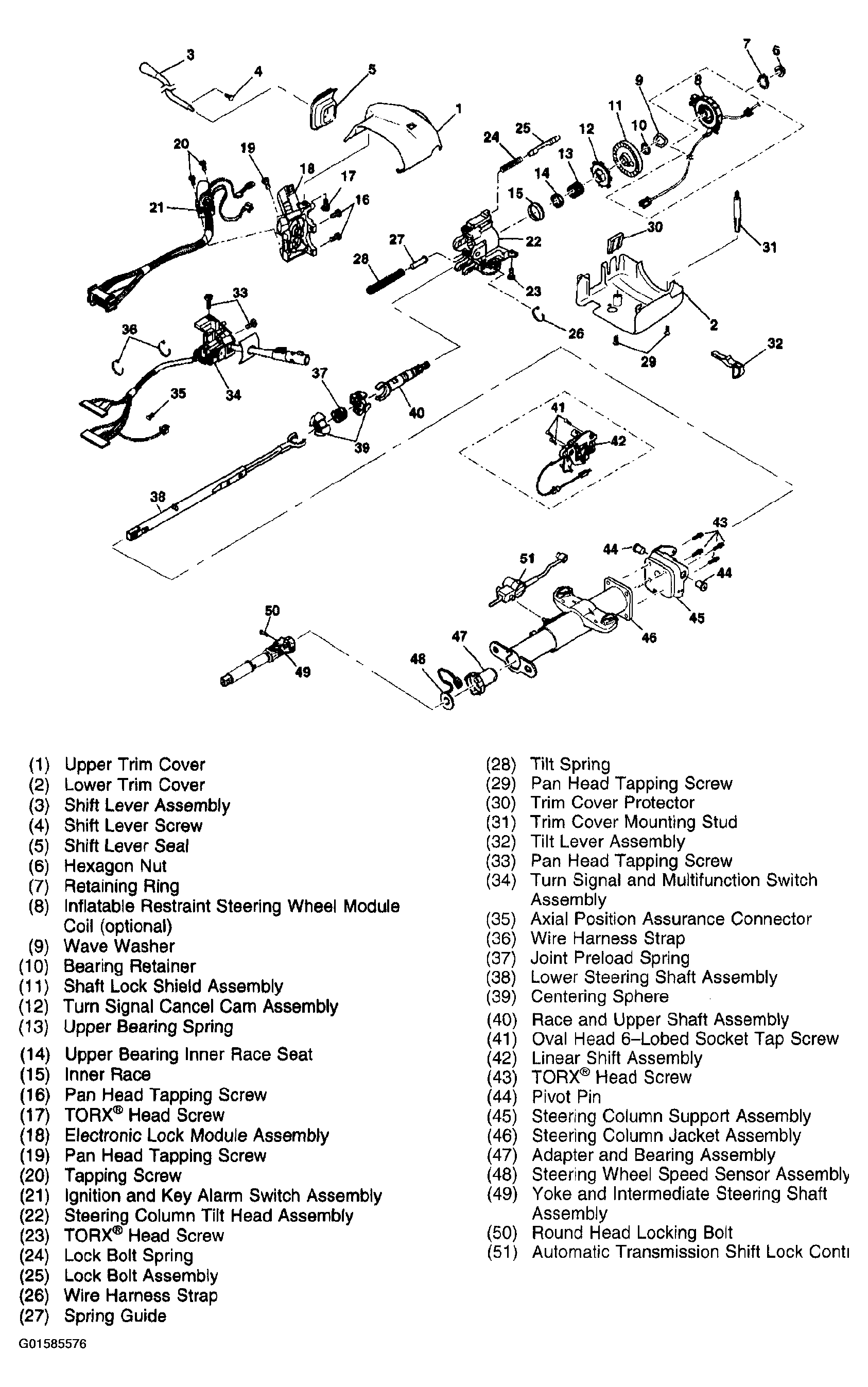

Fig 1: Column Shift

G01585576

Courtesy of GENERAL MOTORS CORP.
