Inline Harness Connector End Views

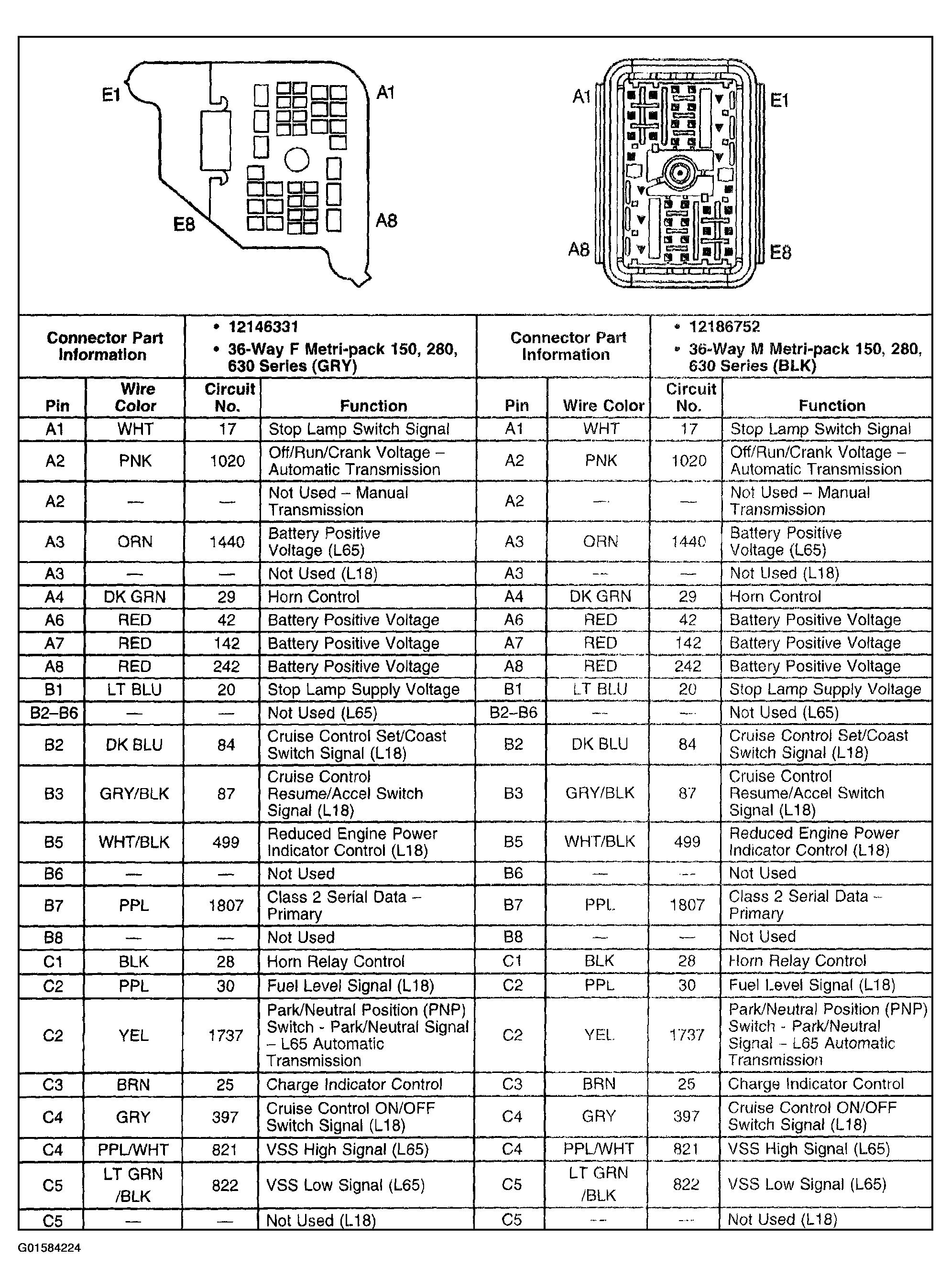

Fig 1: C100 - Engine Harness Inline To I/P Harness (1 Of 2)
G01584224Courtesy of GENERAL MOTORS CORP.

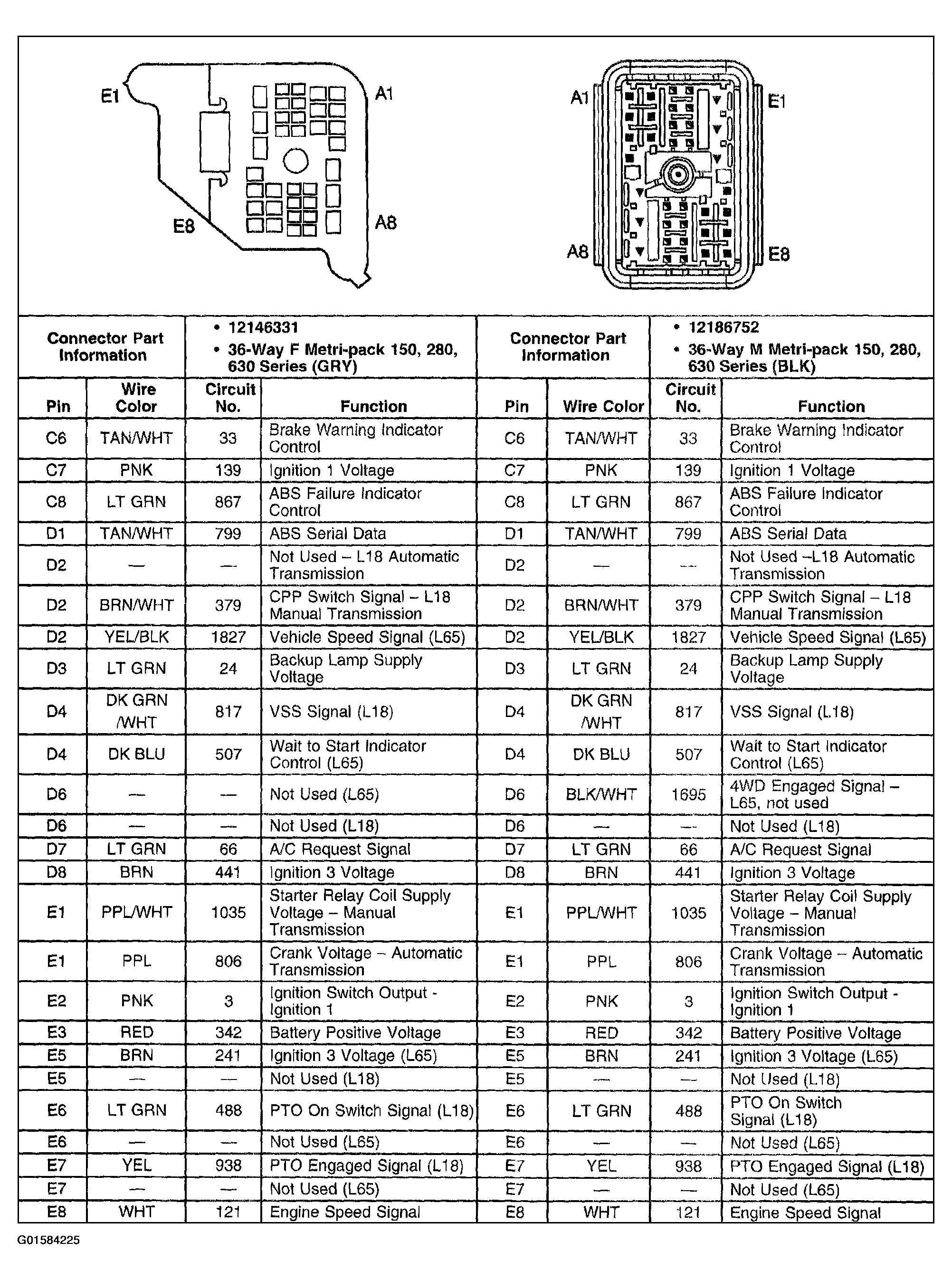

Fig 2: C100 - Engine Harness Inline To I/P Harness (2 Of 2)
G01584225Courtesy of GENERAL MOTORS CORP.

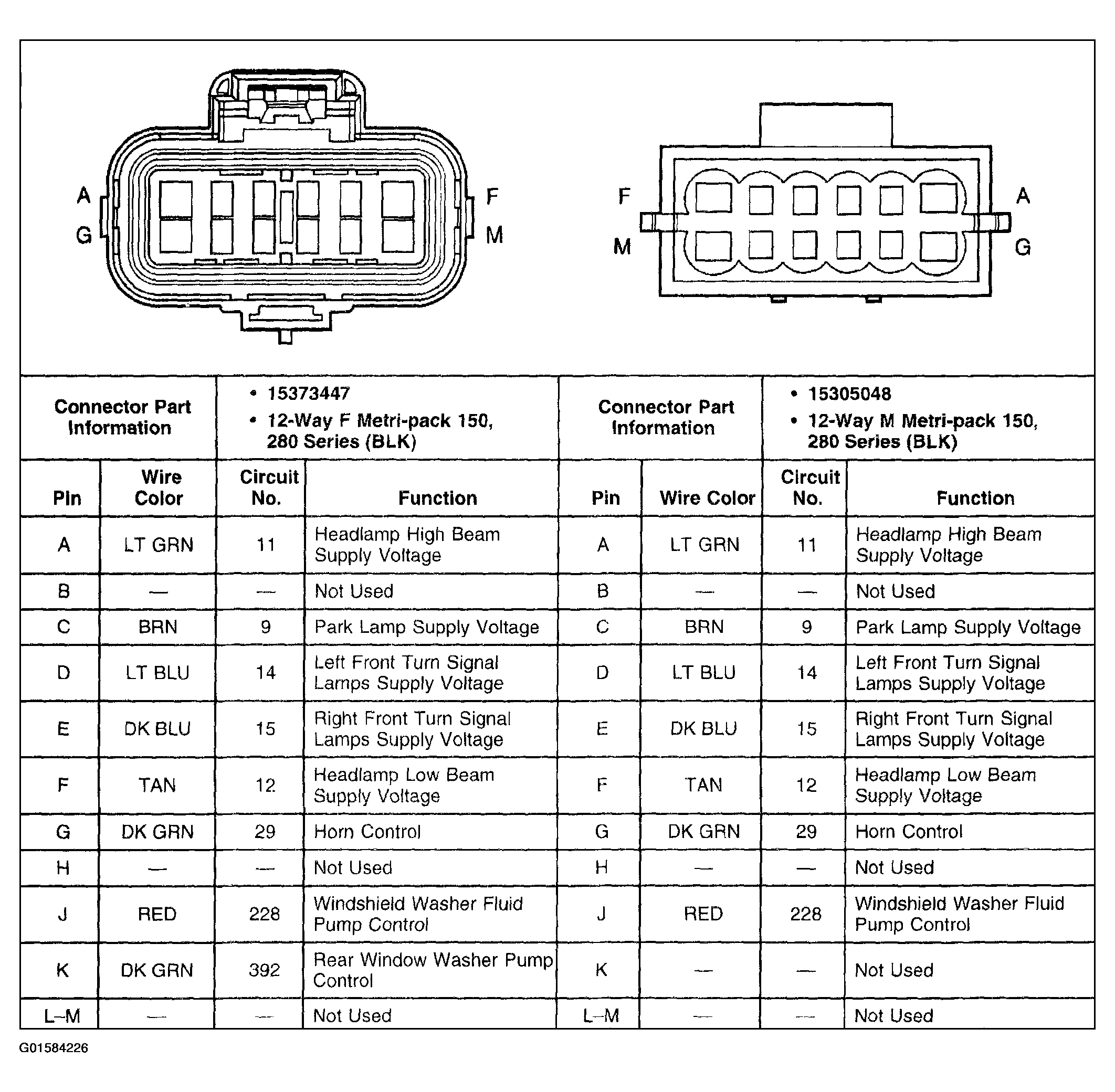

Fig 3: C102 - IP Harness Inline To Forward Lamp Harness
G01584226Courtesy of GENERAL MOTORS CORP.

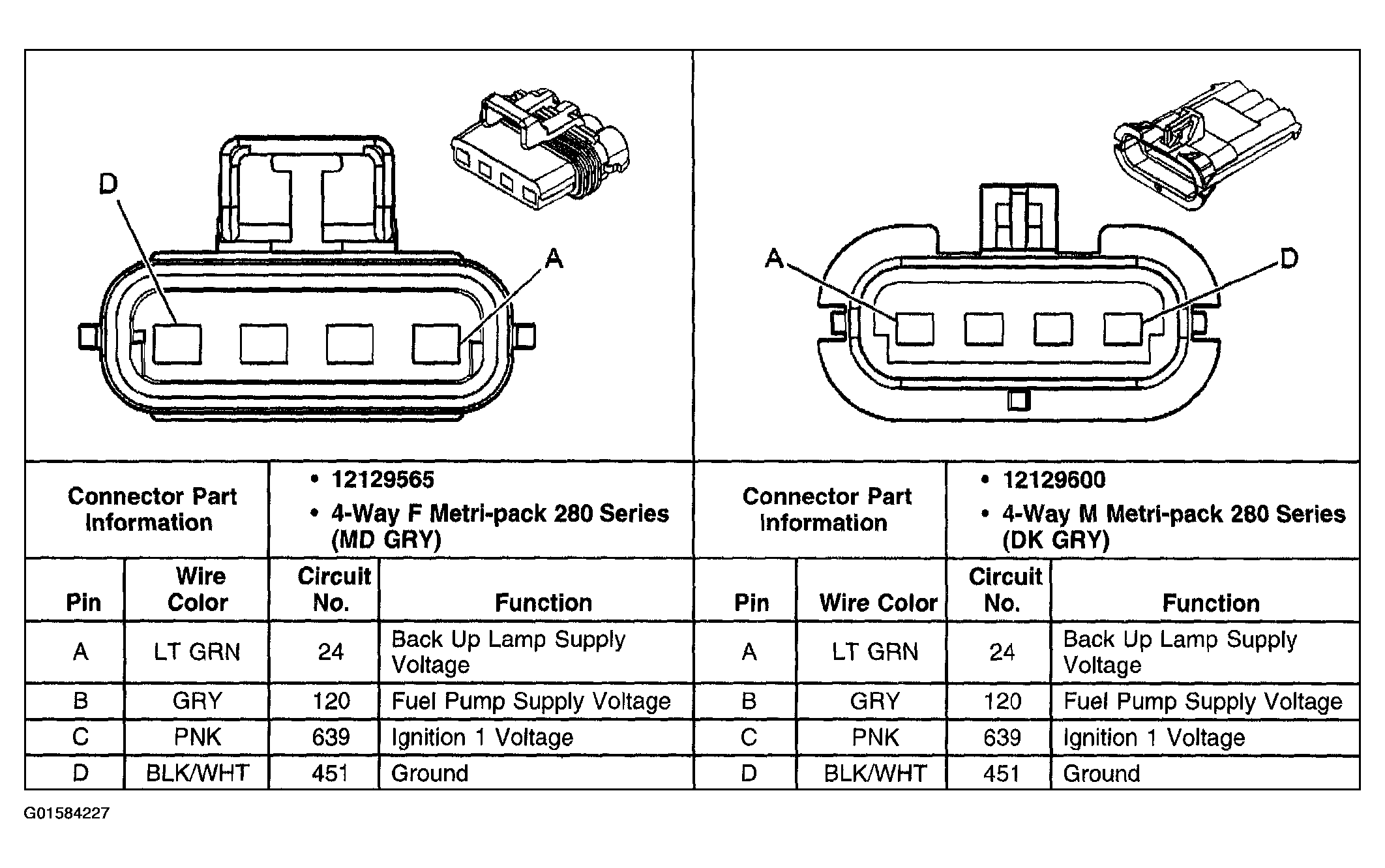

Fig 4: C103 - Engine Harness Inline To Rear Lamp Harness
G01584227Courtesy of GENERAL MOTORS CORP.

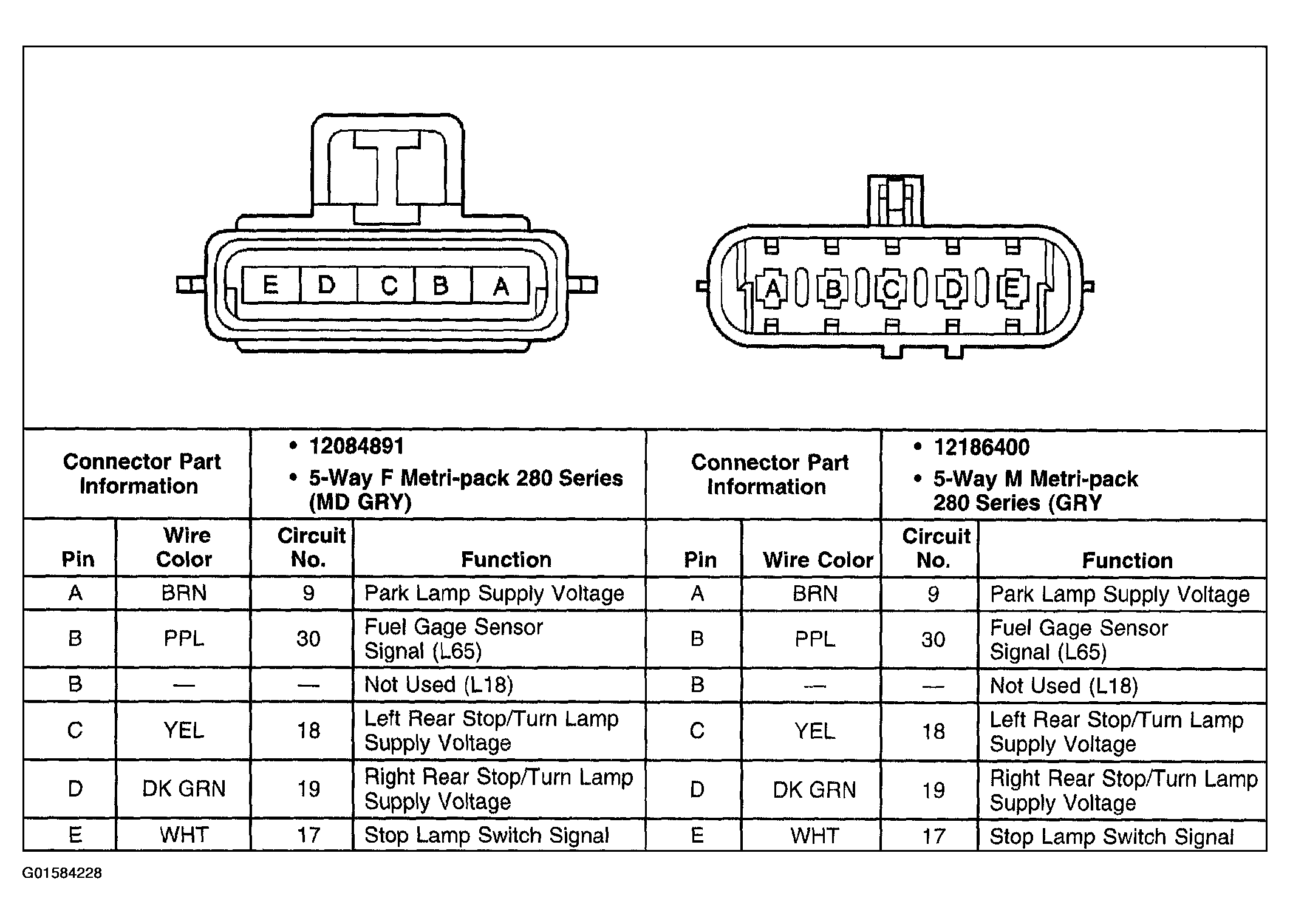

Fig 5: C104 - IP Harness Inline To Rear Lamp Harness
G01584228Courtesy of GENERAL MOTORS CORP.

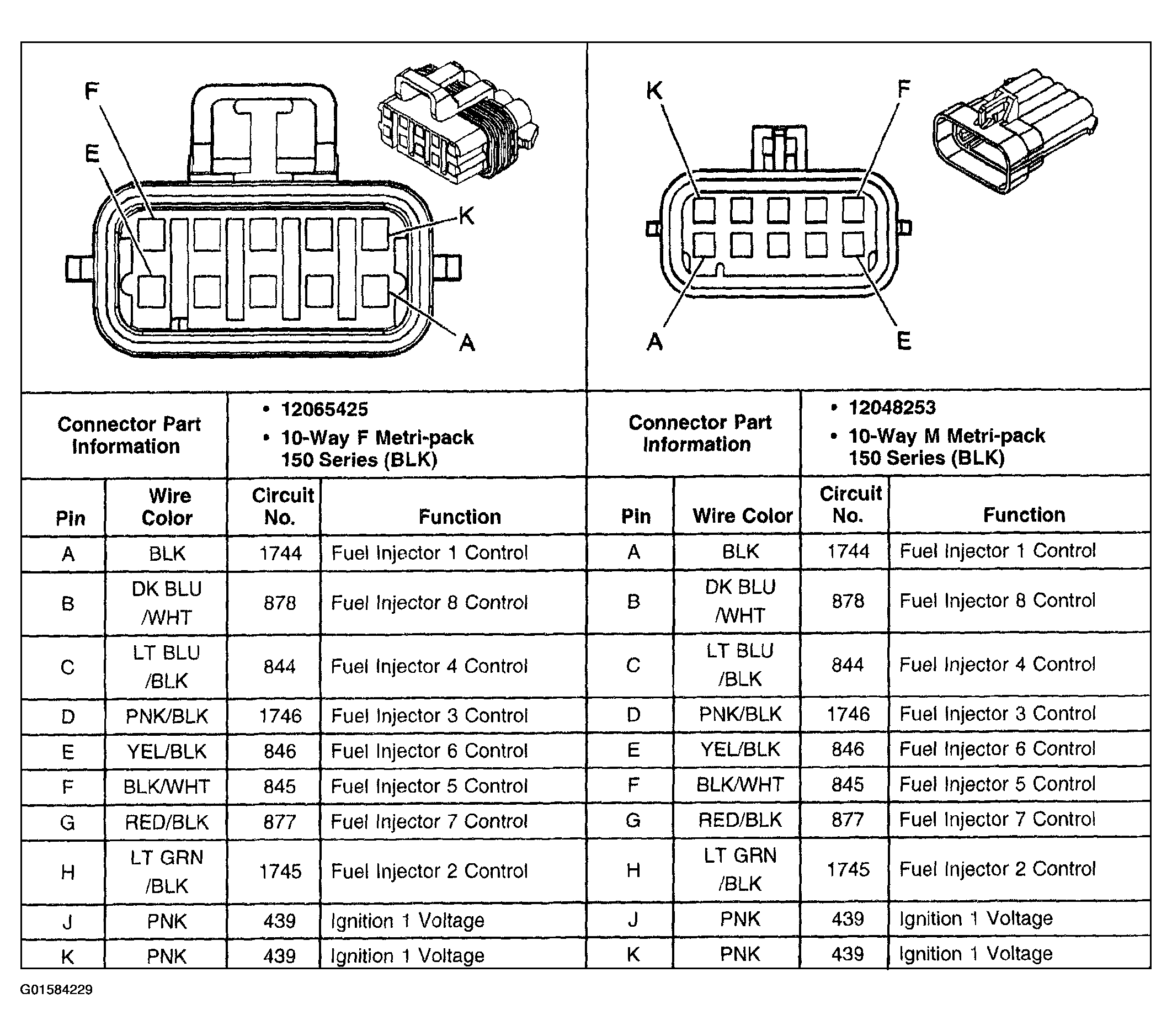

Fig 6: C105 - Engine Harness To Fuel Injector Harness - L18
G01584229Courtesy of GENERAL MOTORS CORP.

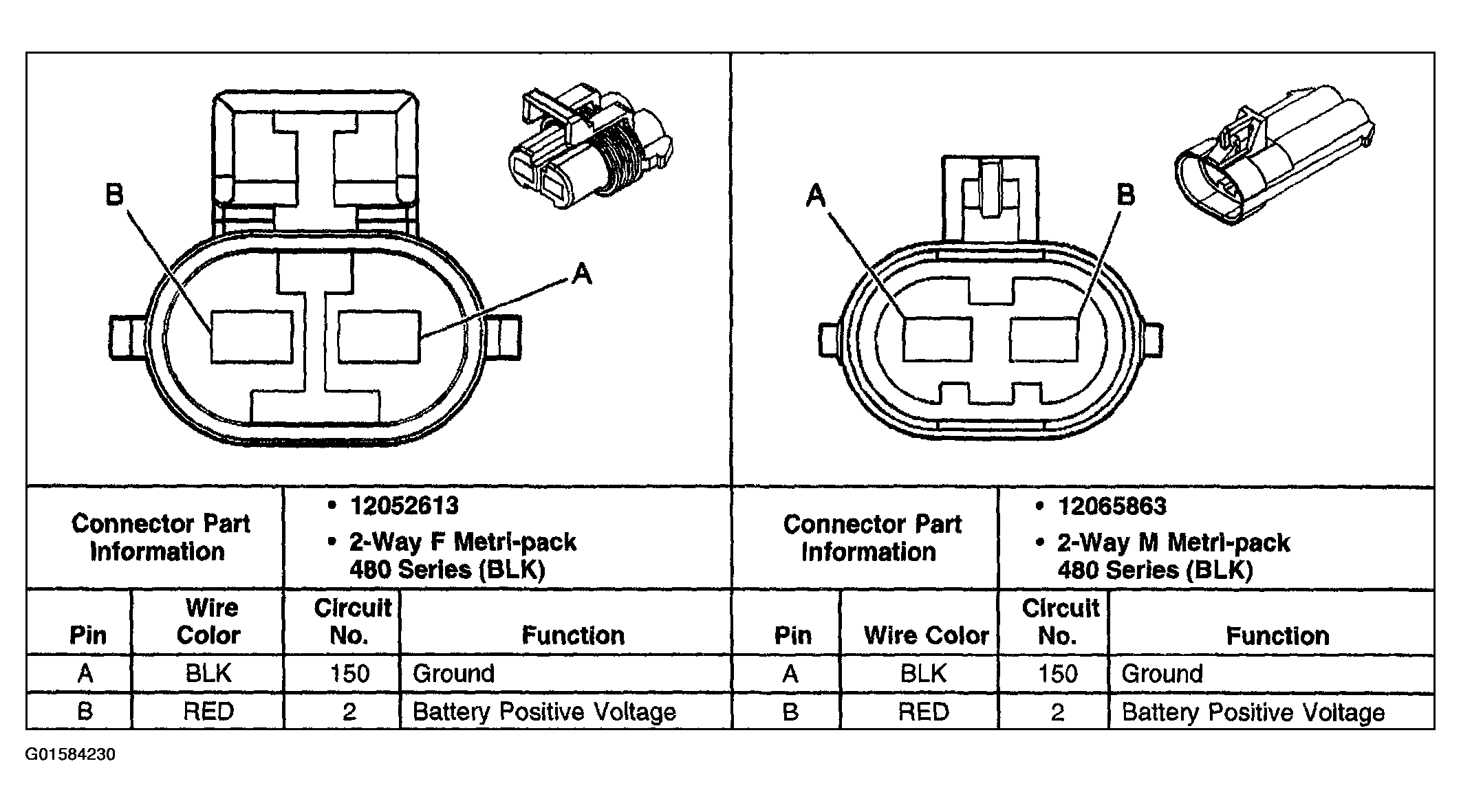

Fig 7: C109 - Battery Cable Harness Inline To Dash Harness - 9L4
G01584230Courtesy of GENERAL MOTORS CORP.

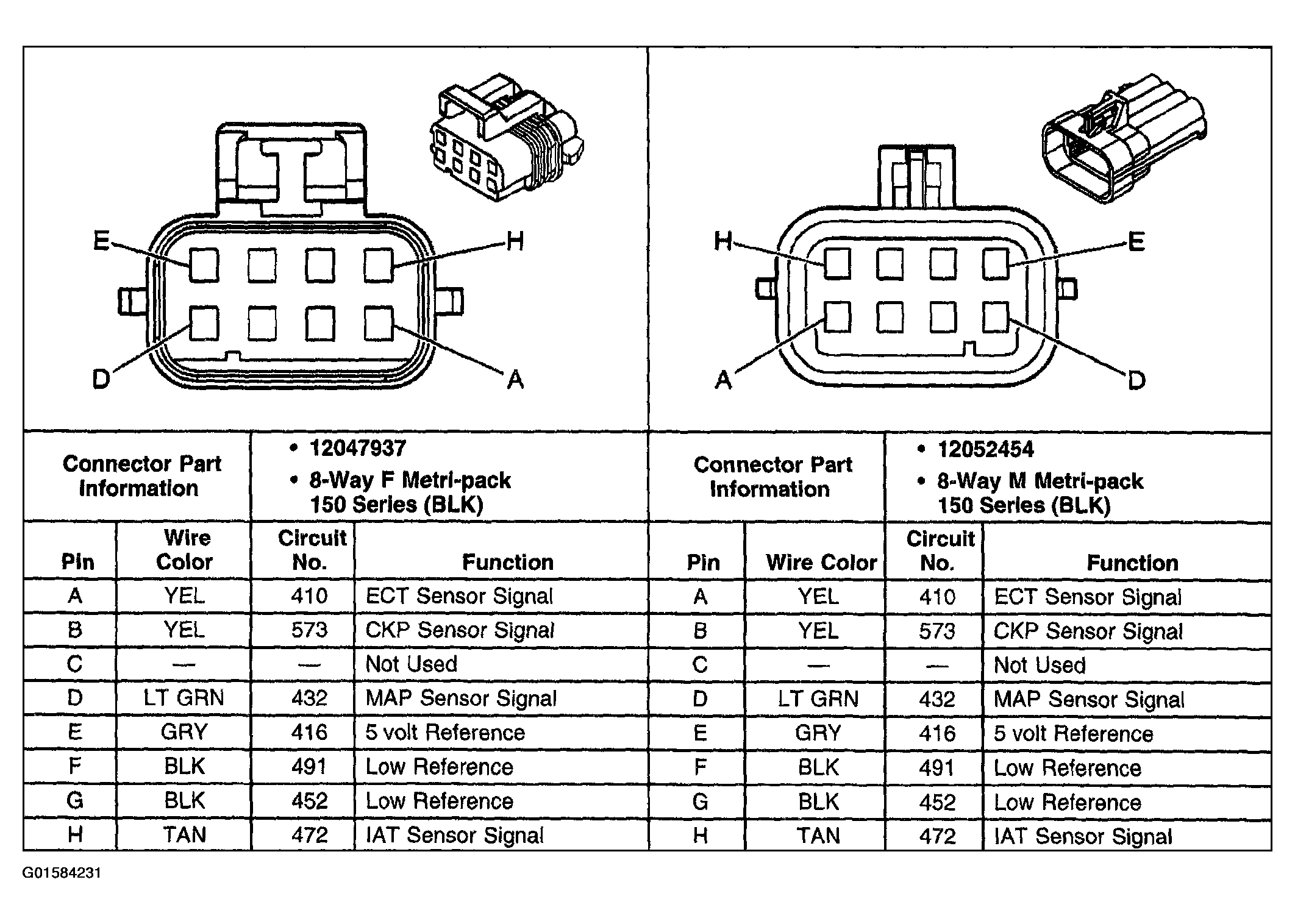

Fig 8: C112 - Engine Harness Inline To Engine Jumper Harness - L65
G01584231Courtesy of GENERAL MOTORS CORP.

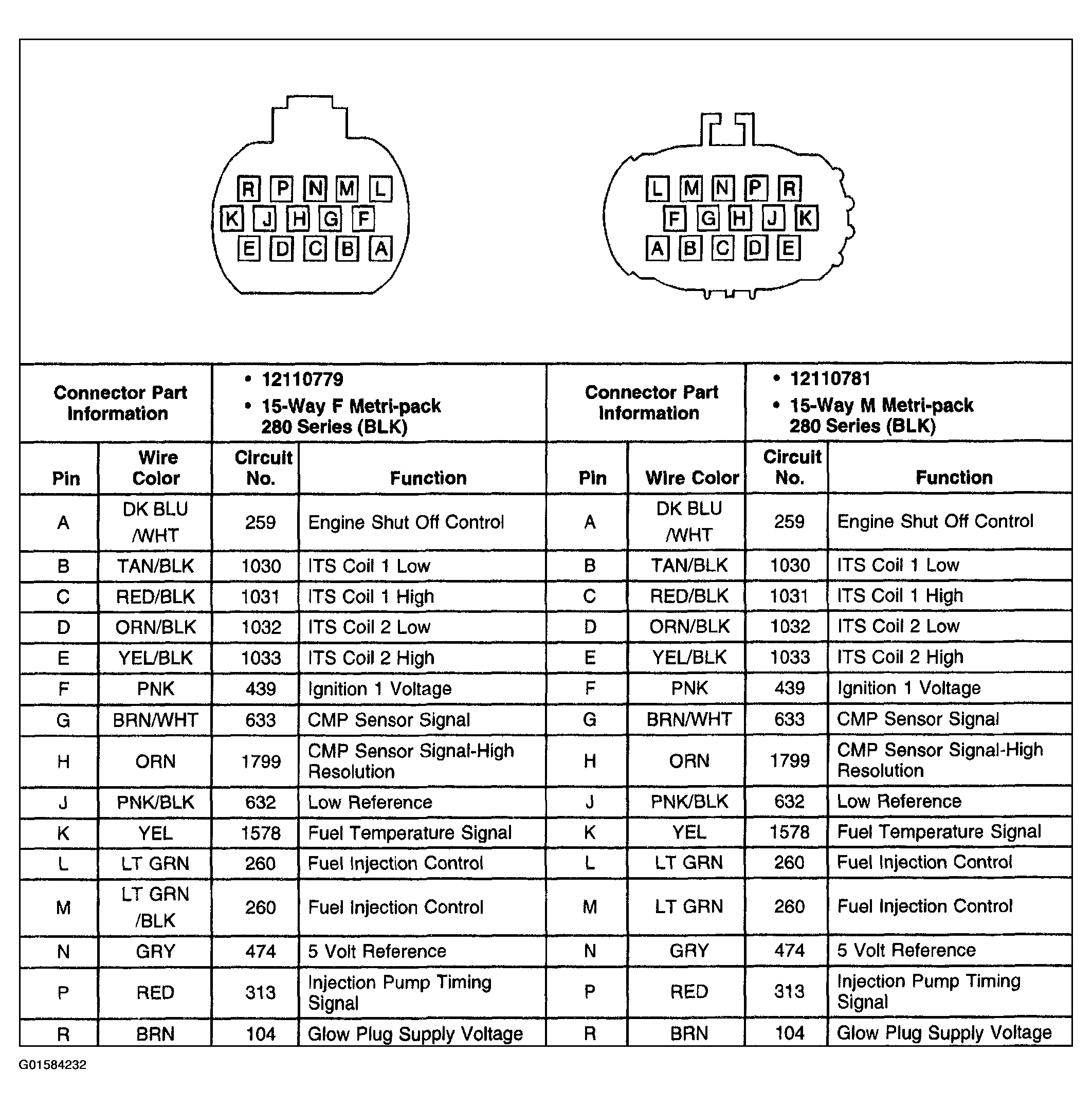

Fig 9: C113 - Engine Harness Inline To Engine Jumper Harness - L65
G01584232Courtesy of GENERAL MOTORS CORP.

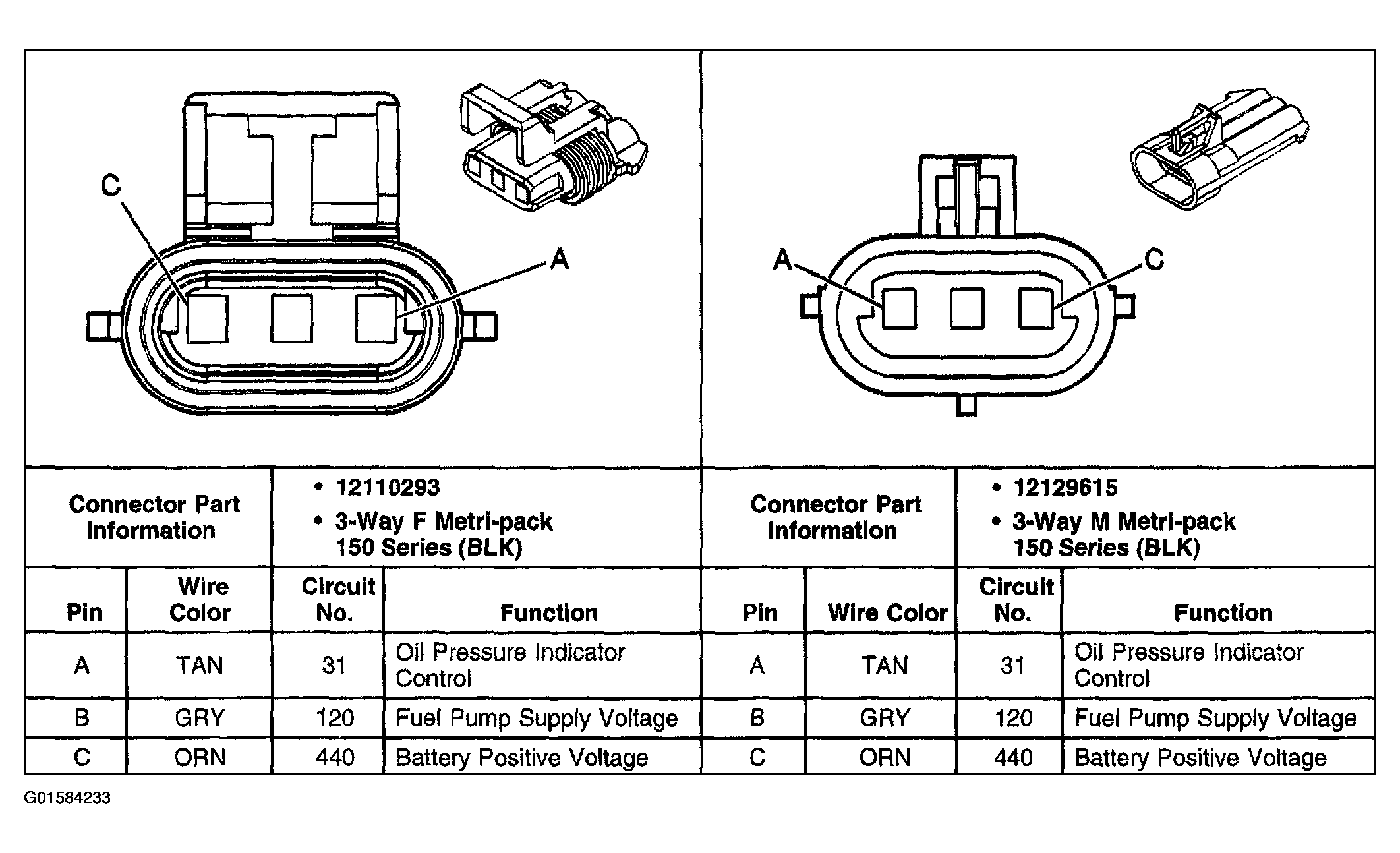

Fig 10: C114 - Engine Harness Inline To Engine Oil Pressure Sensor Jumper Harness - L65
G01584233Courtesy of GENERAL MOTORS CORP.

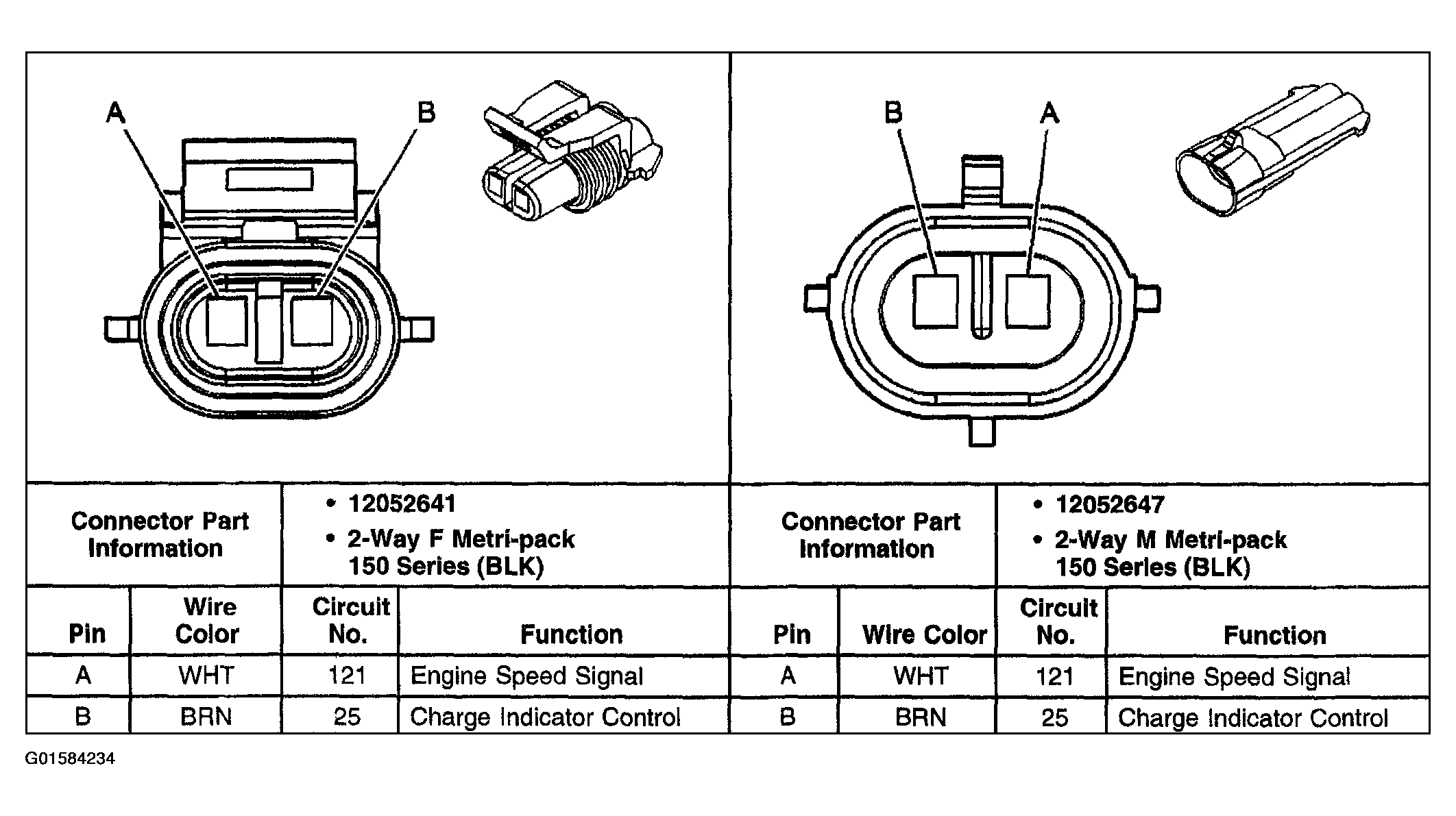

Fig 11: C115 - Engine Harness Inline To Generator Harness - L65
G01584234Courtesy of GENERAL MOTORS CORP.

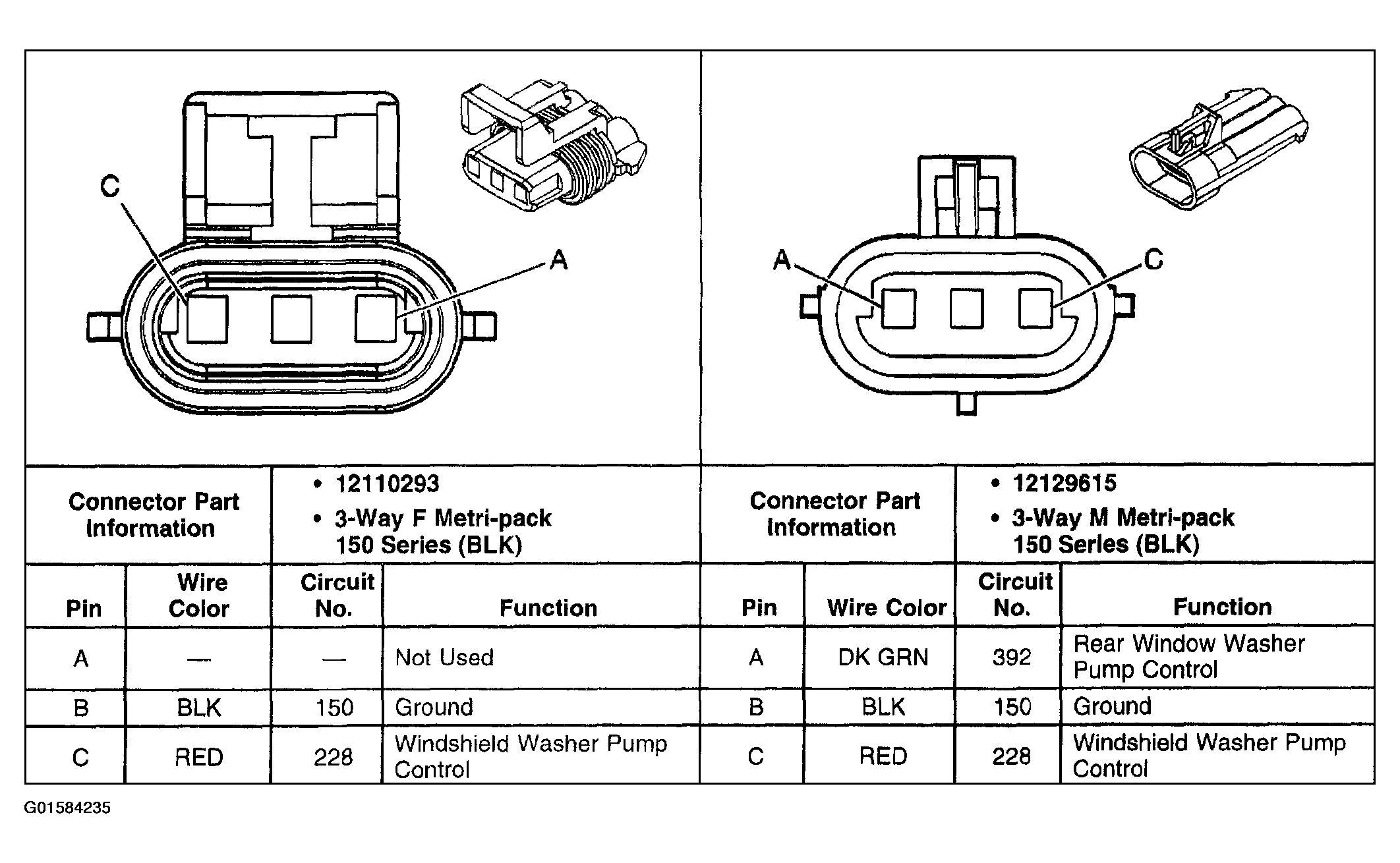

Fig 12: C116 - Forward Lamp Harness Inline To Windshield Washer Jumper Harness
G01584235Courtesy of GENERAL MOTORS CORP.

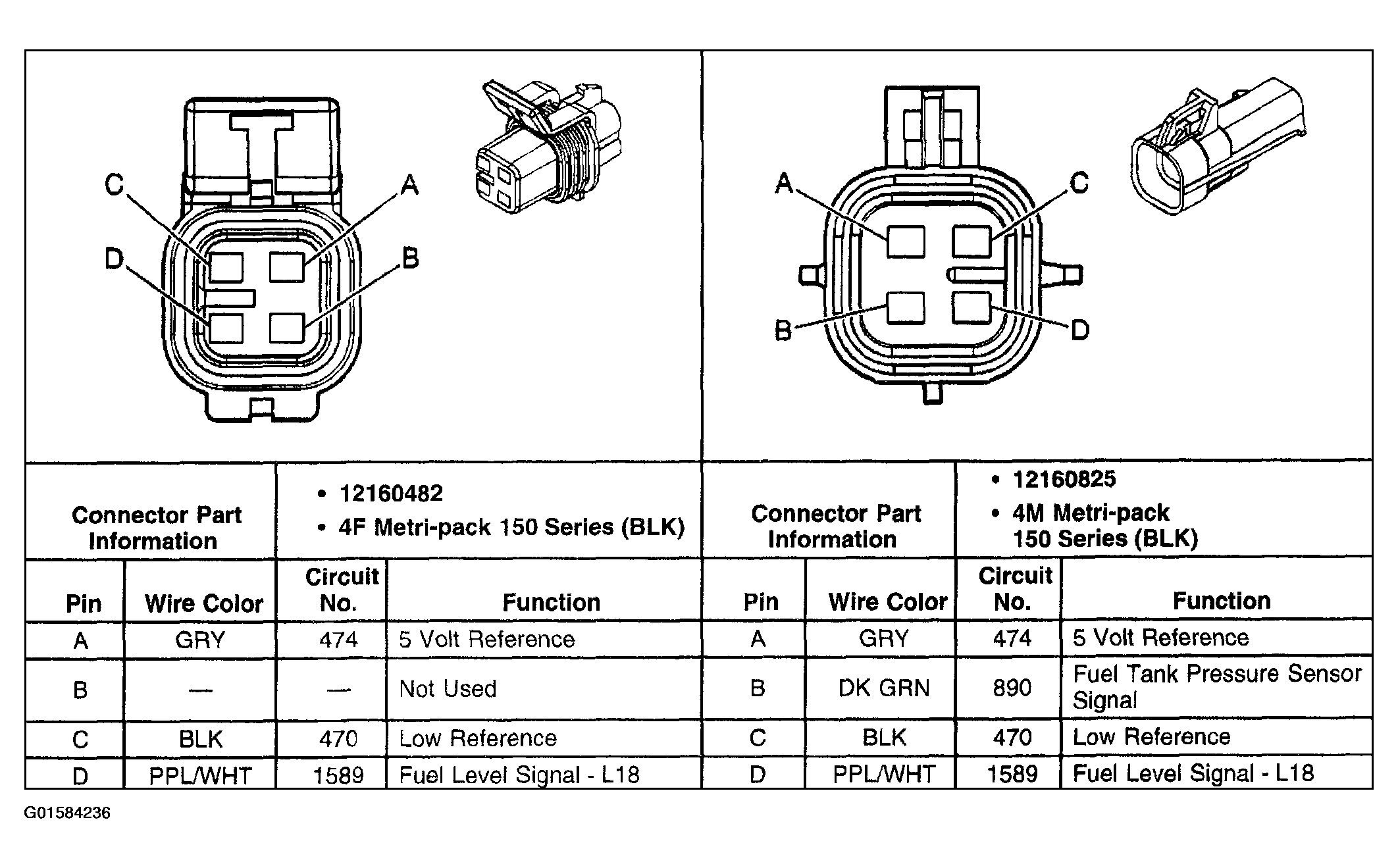

Fig 13: C130 - Engine Harness Inline To Tail & Stop Lamp Ext. Harness - L18
G01584236Courtesy of GENERAL MOTORS CORP.

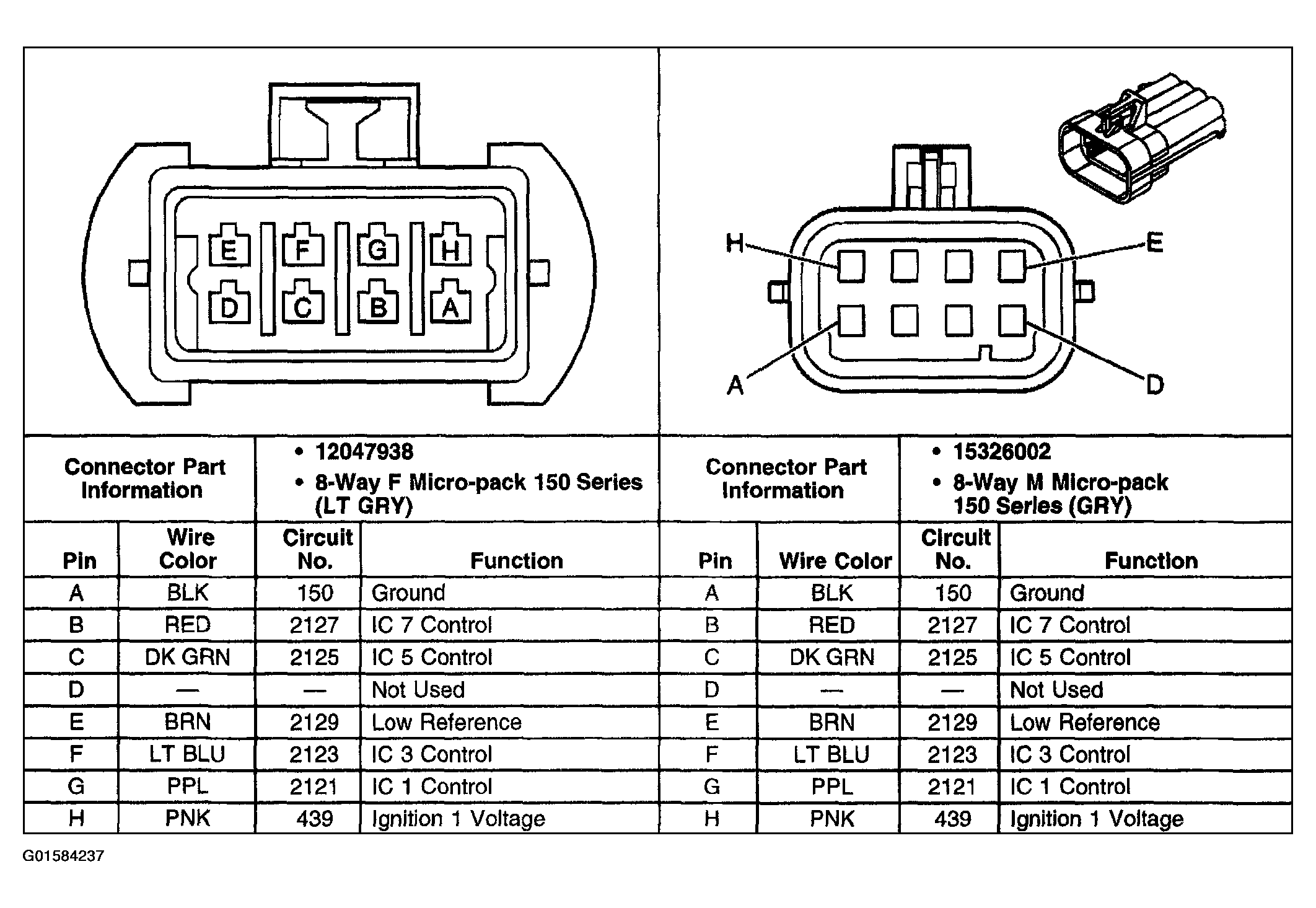

Fig 14: C148 - Engine Harness To Ignition Coil Harness - Left Side
G01584237Courtesy of GENERAL MOTORS CORP.

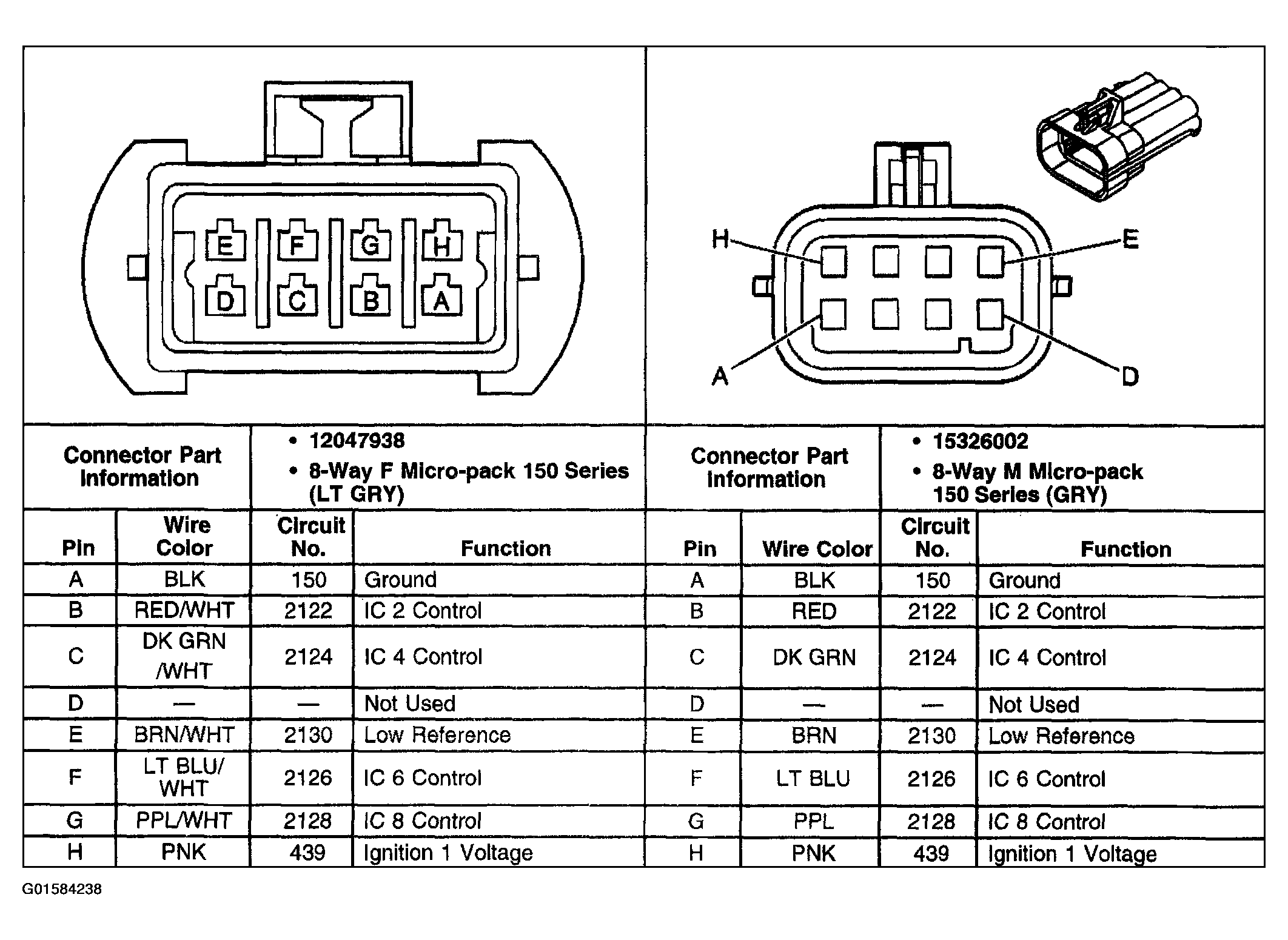

Fig 15: C149 - Engine Harness To Ignition Coil Harness - Right Side
G01584238Courtesy of GENERAL MOTORS CORP.

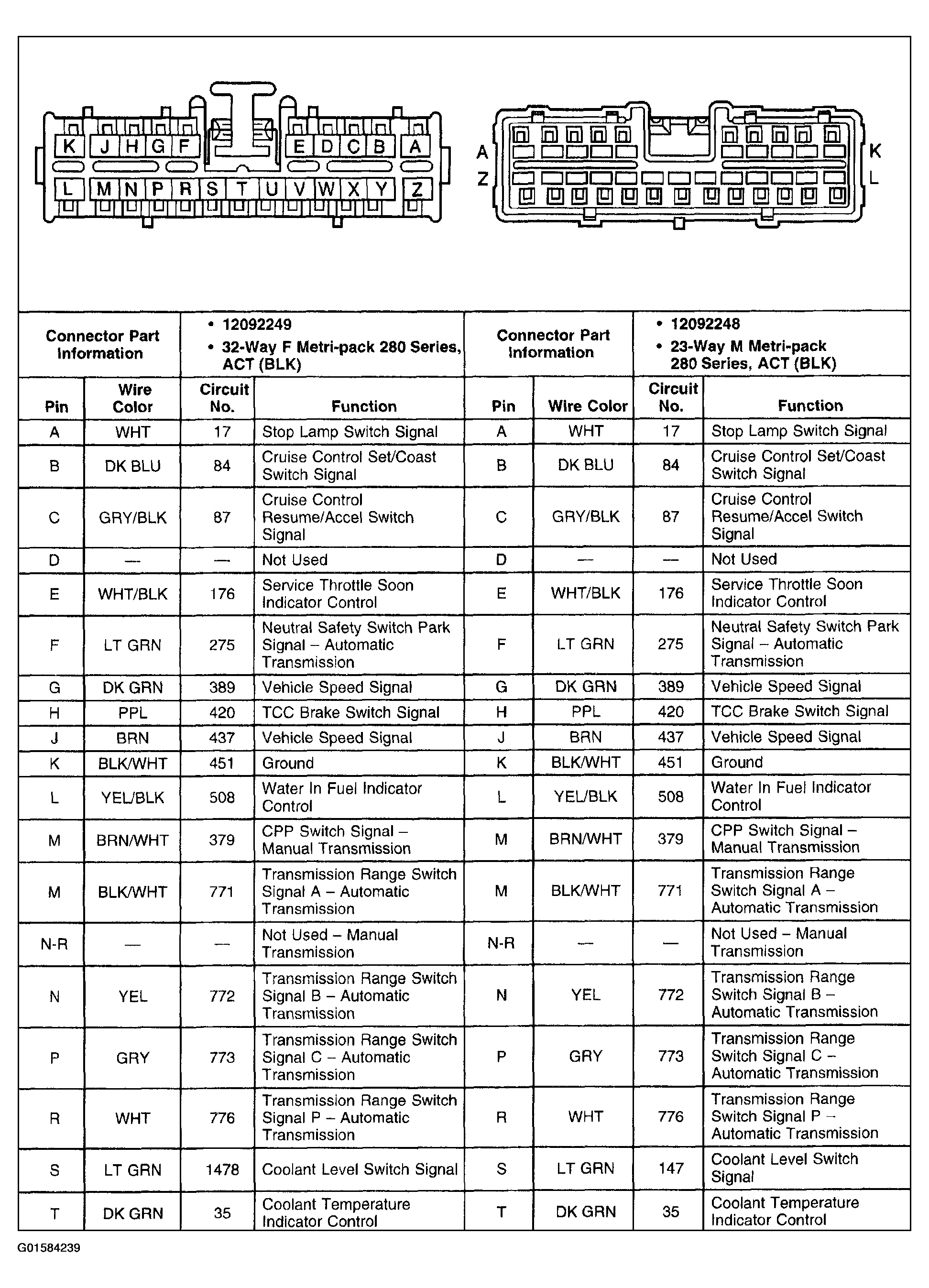

Fig 16: C200 - IP Harness Inline To Engine Harness - L65 (1 Of 2)
G01584239Courtesy of GENERAL MOTORS CORP.

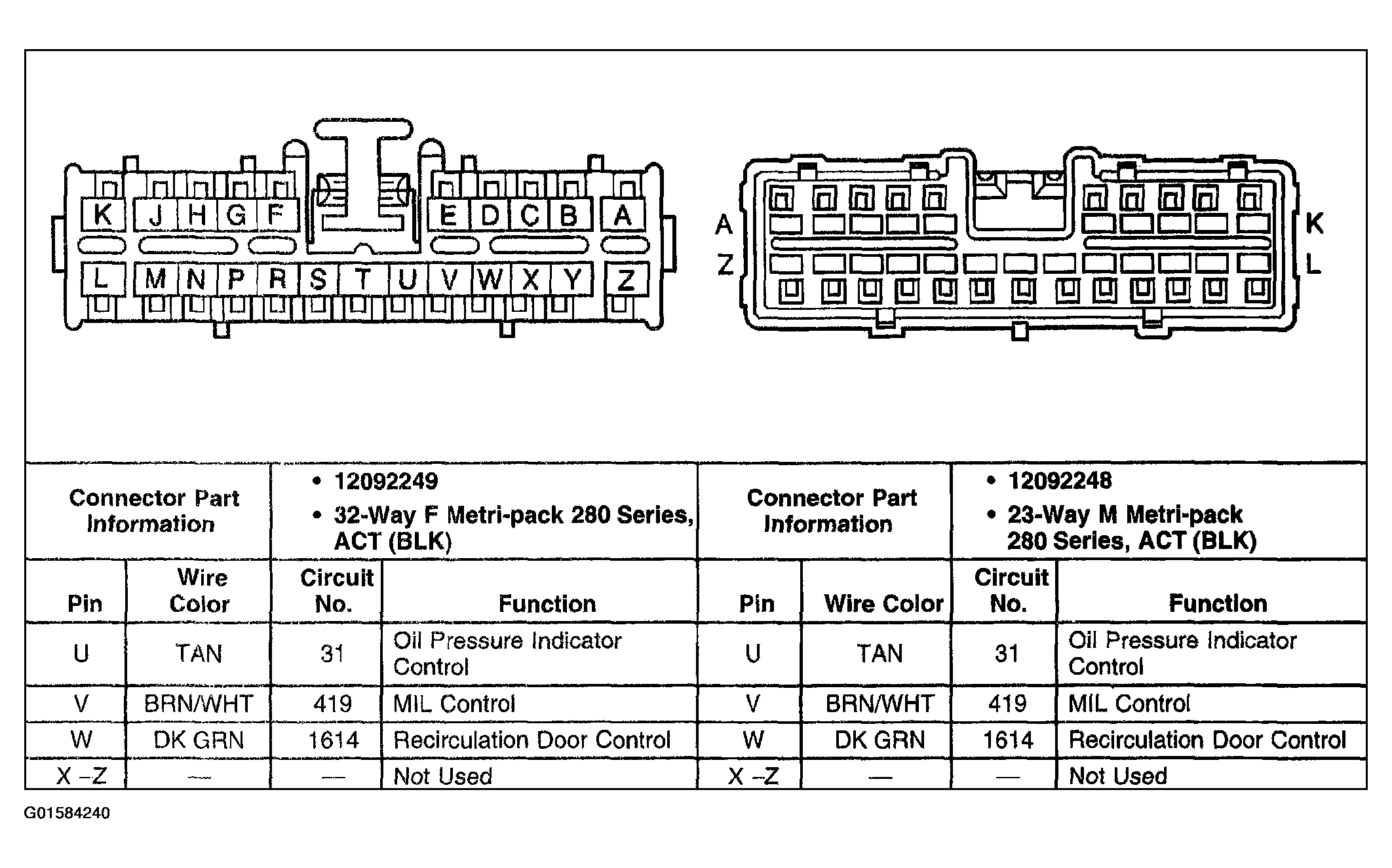

Fig 17: C200 - IP Harness Inline To Engine Harness - L65 (2 Of 2)
G01584240Courtesy of GENERAL MOTORS CORP.

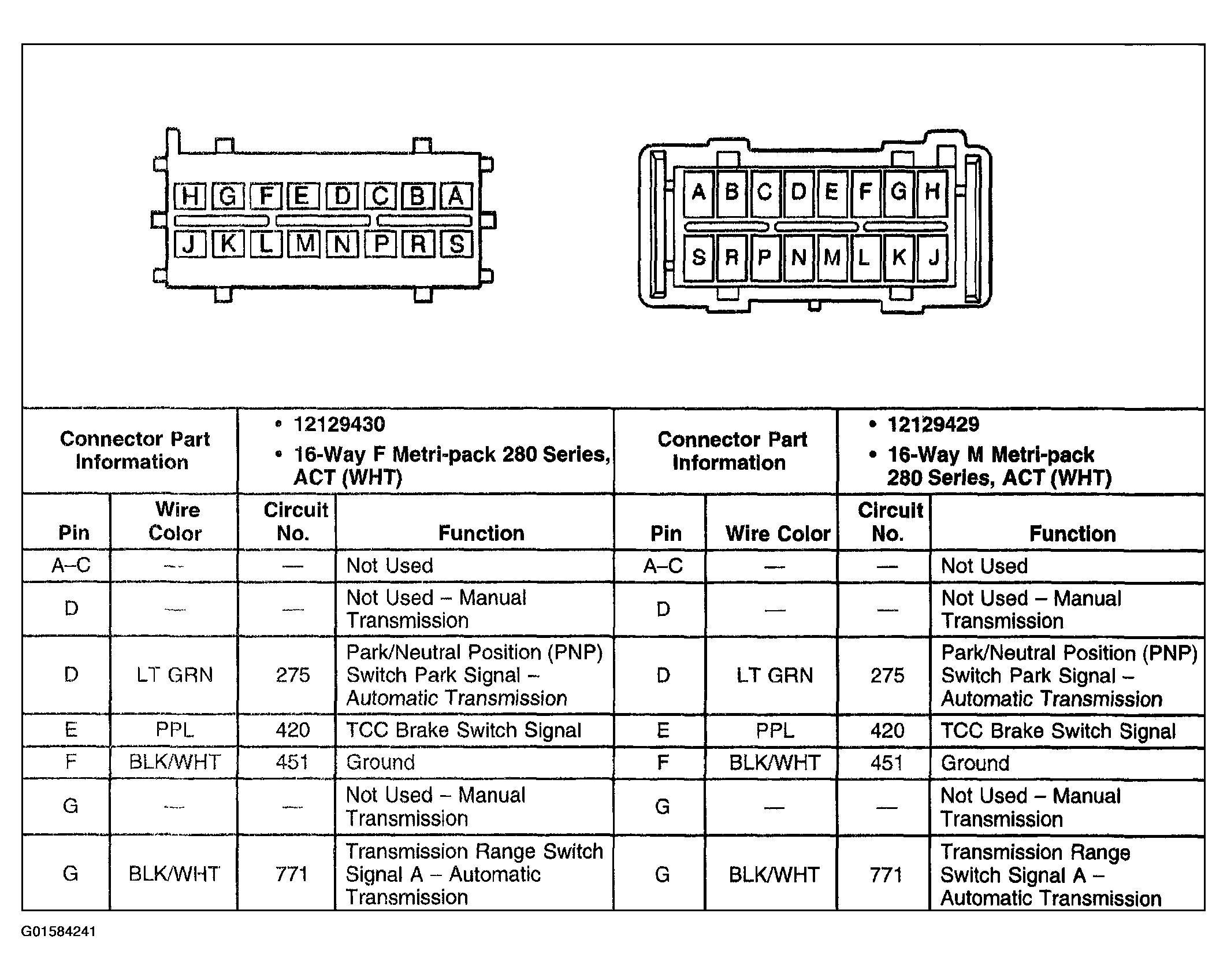

Fig 18: C200 - IP Harness Inline To Engine Harness - L18 (1 Of 2)
G01584241Courtesy of GENERAL MOTORS CORP.

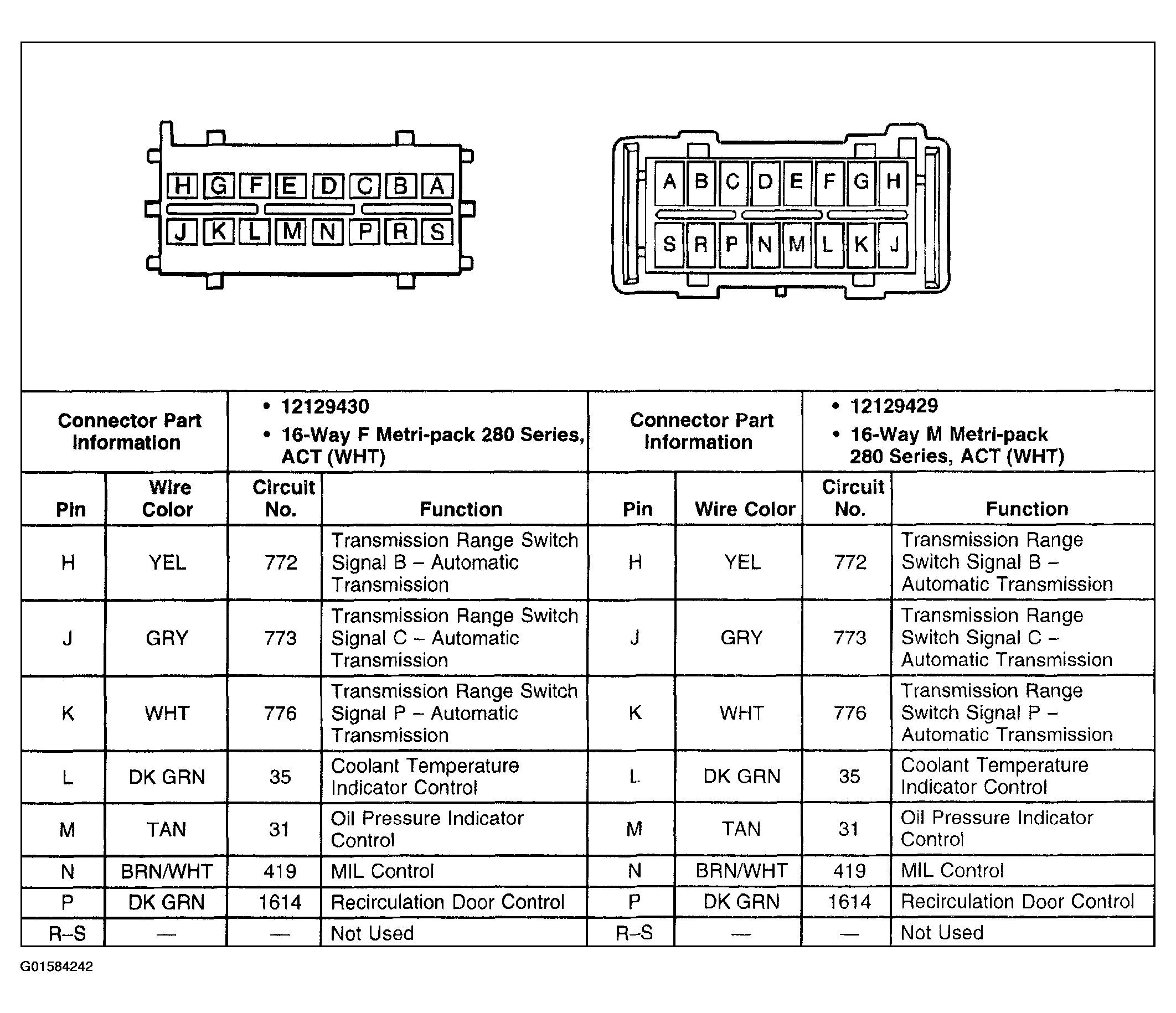

Fig 19: C200 - IP Harness Inline To Engine Harness - L18 (2 Of 2)
G01584242Courtesy of GENERAL MOTORS CORP.

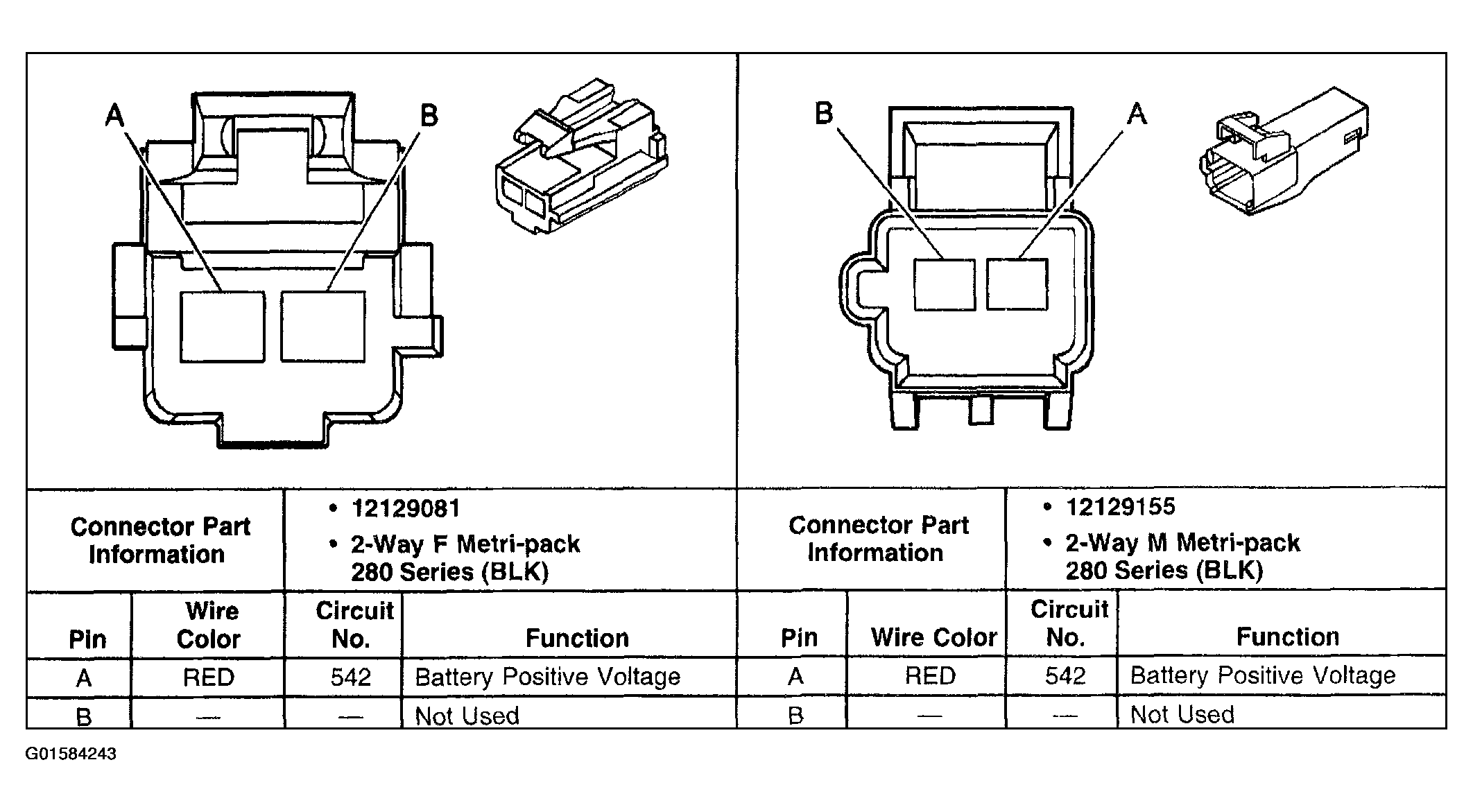

Fig 20: C203 - Engine Harness Inline To HVAC Harness
G01584243Courtesy of GENERAL MOTORS CORP.

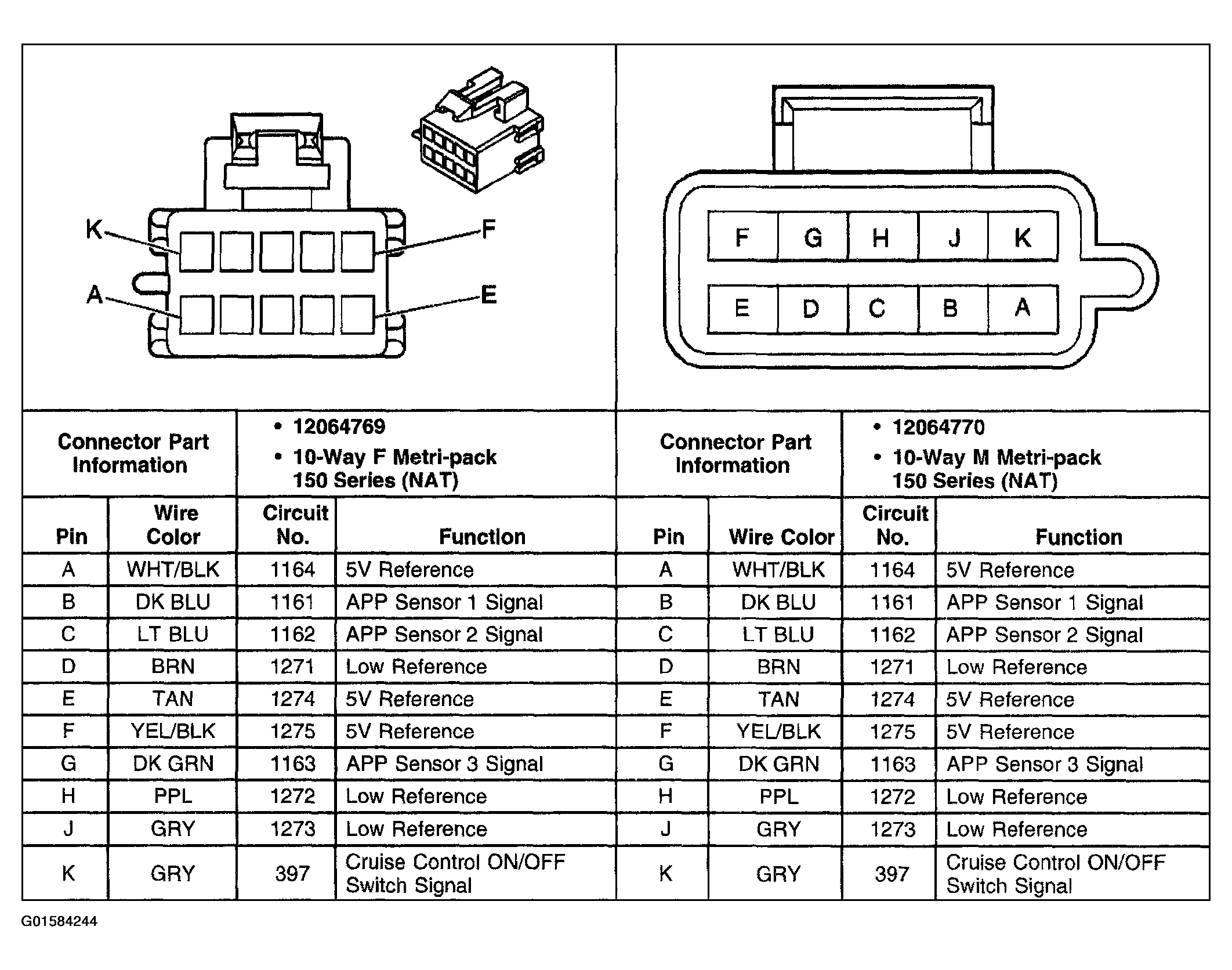

Fig 21: C204 - IP Harness Inline To Engine Harness - L65
G01584244Courtesy of GENERAL MOTORS CORP.

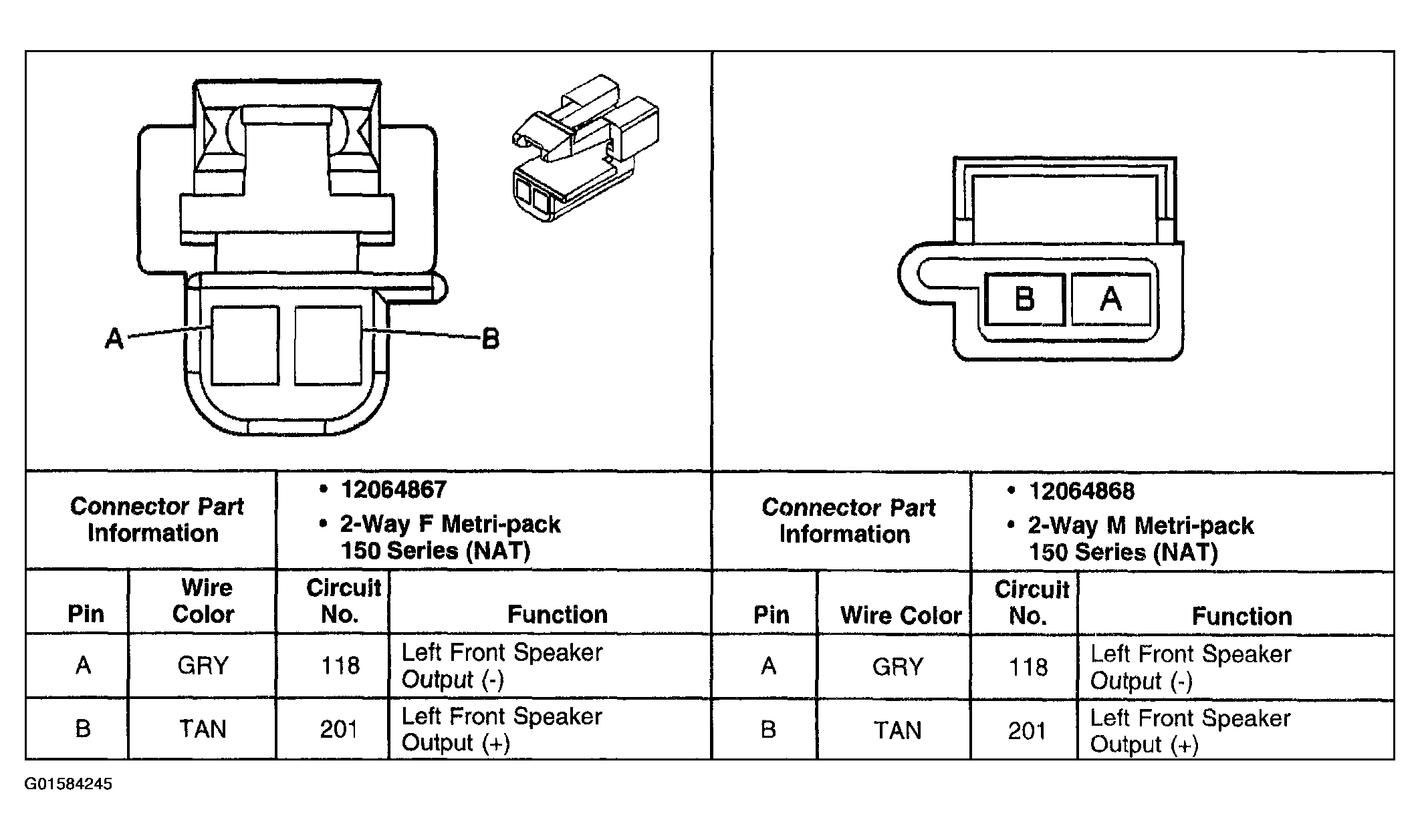

Fig 22: C206 - Crossbody Harness Inline To Left Door Harness - Base
G01584245Courtesy of GENERAL MOTORS CORP.

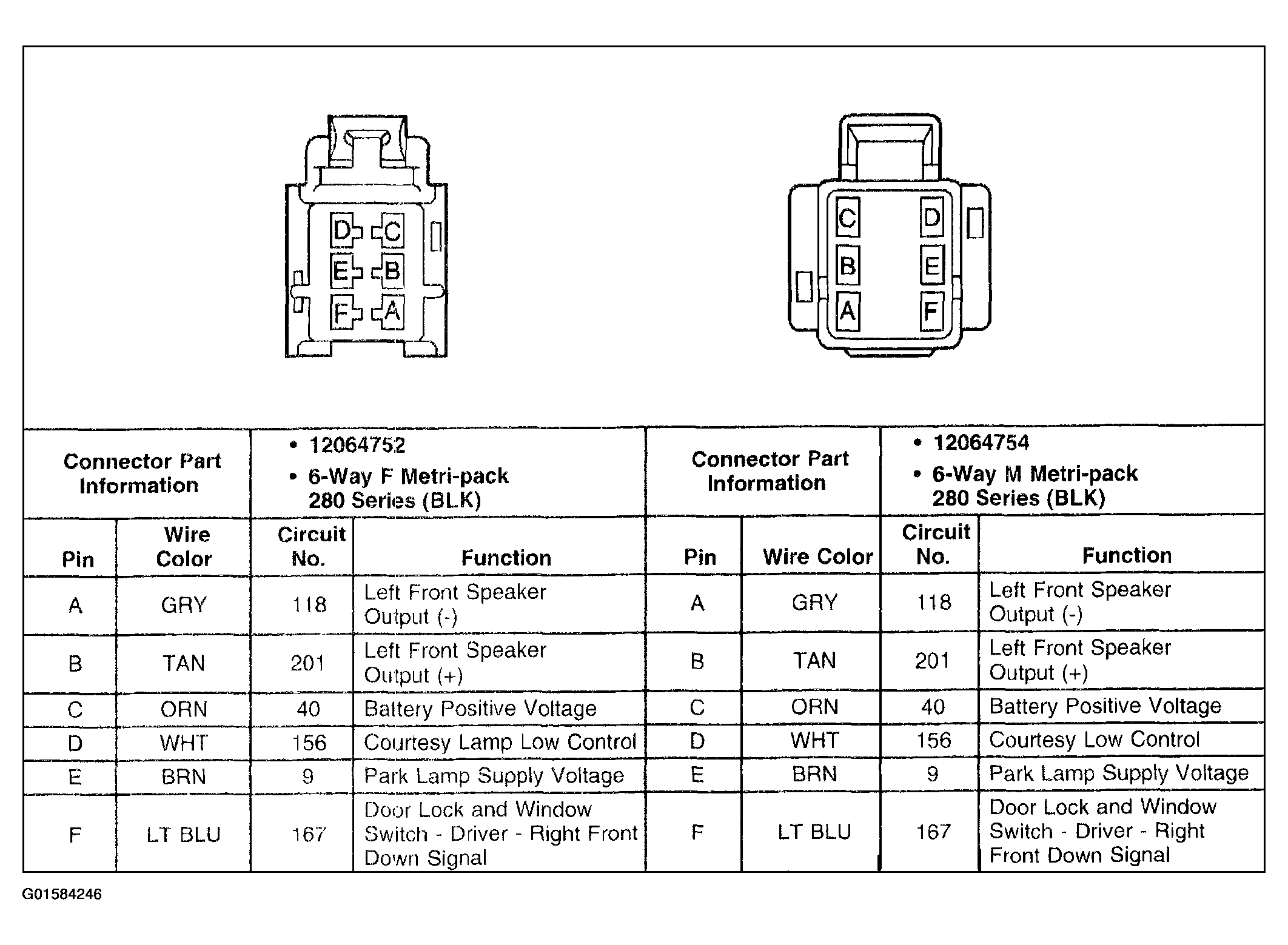

Fig 23: C206 - Crossbody Harness Inline To Left Door Harness - Except Base
G01584246Courtesy of GENERAL MOTORS CORP.

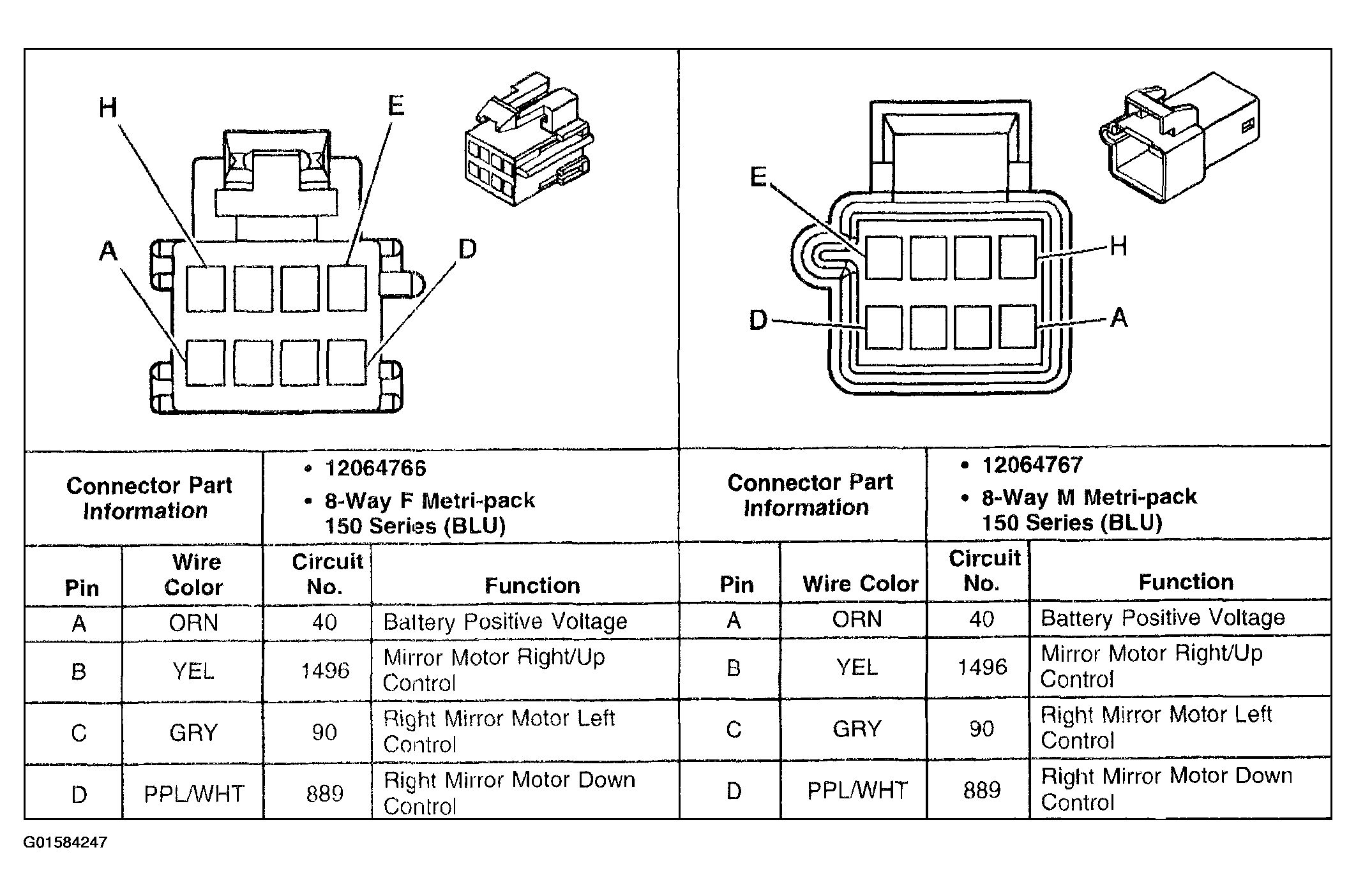

Fig 24: C207 - Crossbody Harness Inline To Left Door Harness (1 Of 2)
G01584247Courtesy of GENERAL MOTORS CORP.

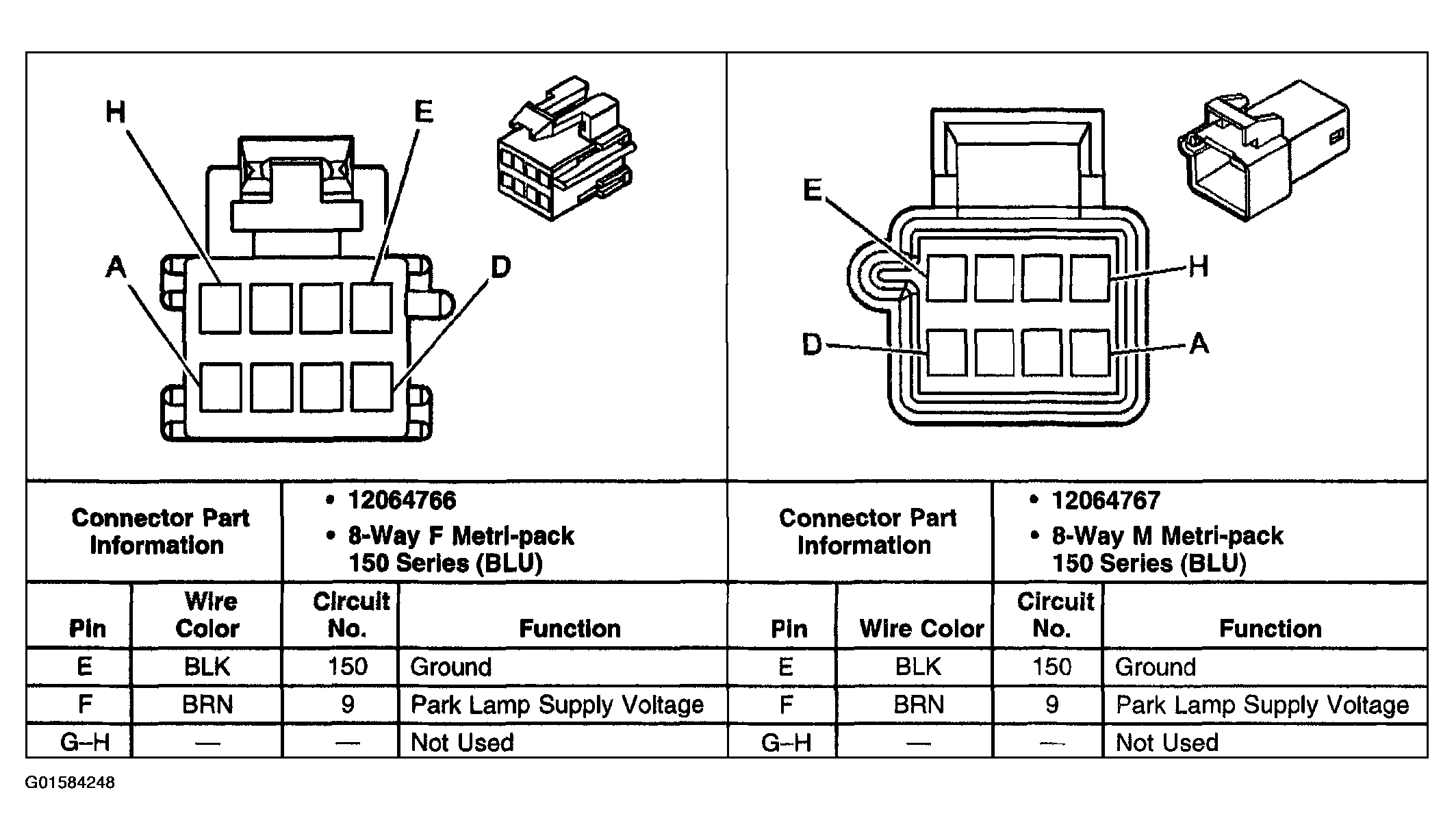

Fig 25: C207 - Crossbody Harness Inline To Left Door Harness (2 Of 2)
G01584248Courtesy of GENERAL MOTORS CORP.

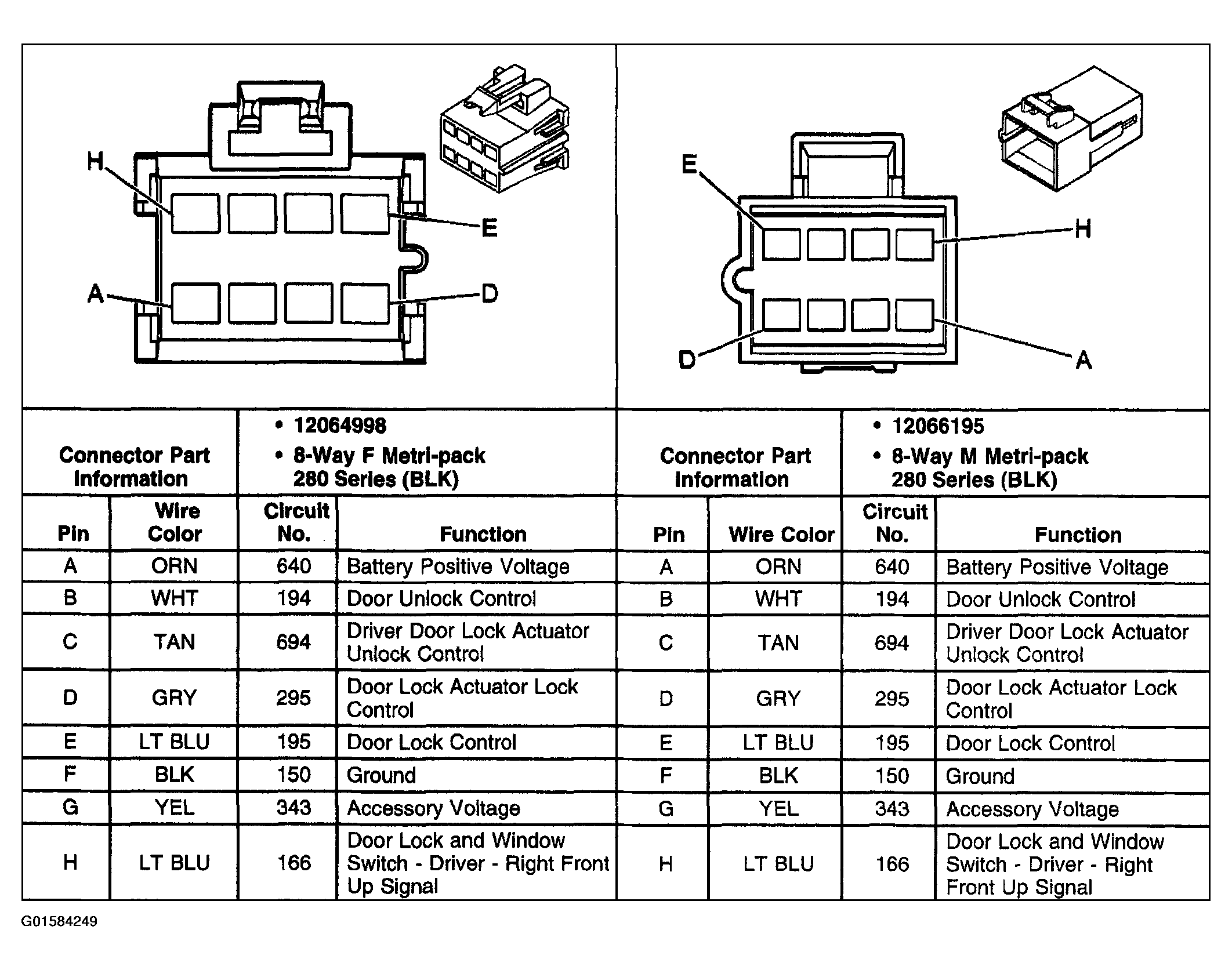

Fig 26: C209 - Crossbody Harness Inline To Left Door Harness
G01584249Courtesy of GENERAL MOTORS CORP.

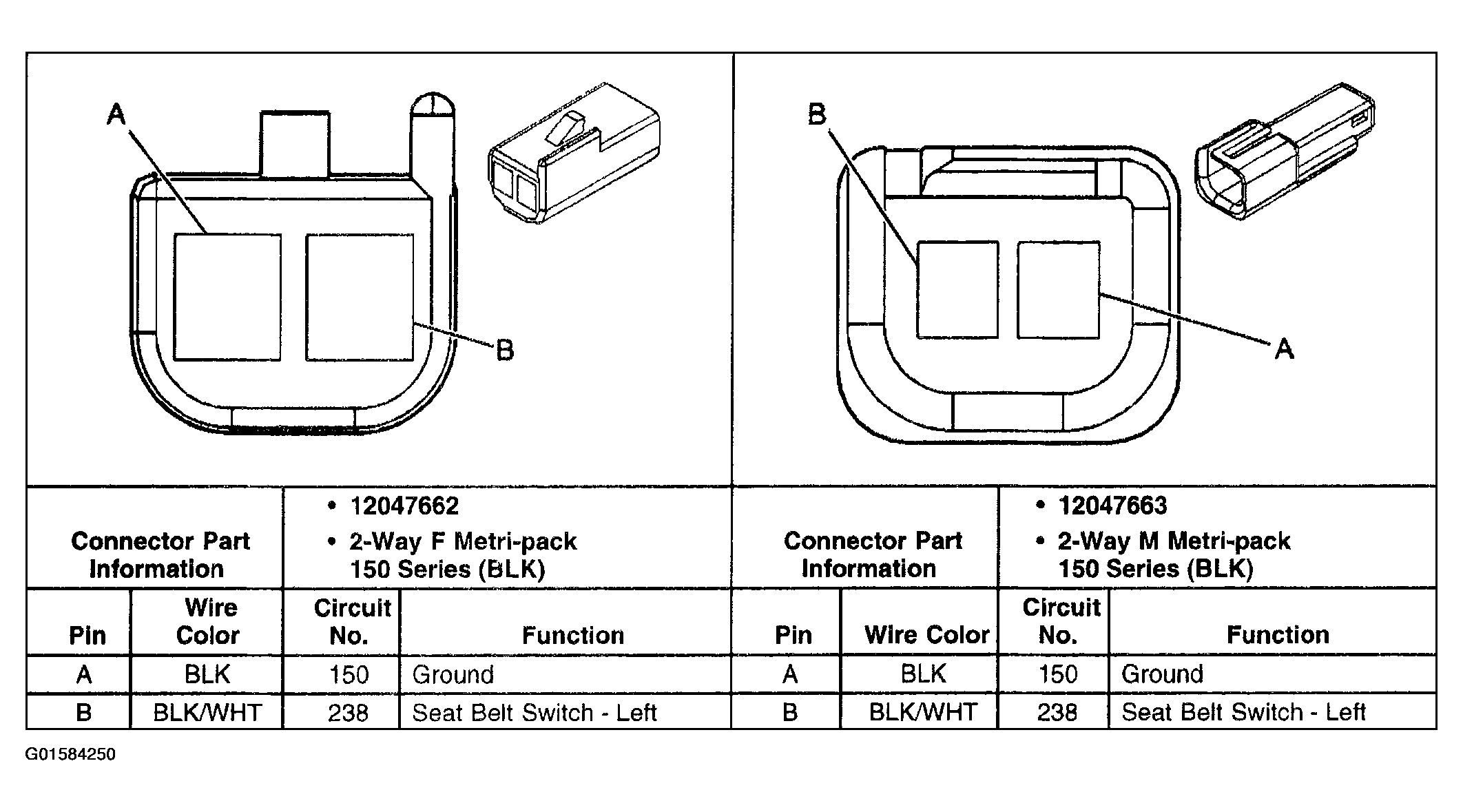

Fig 27: C211 - Crossbody Harness Inline To Left Seat Belt Switch Harness
G01584250Courtesy of GENERAL MOTORS CORP.

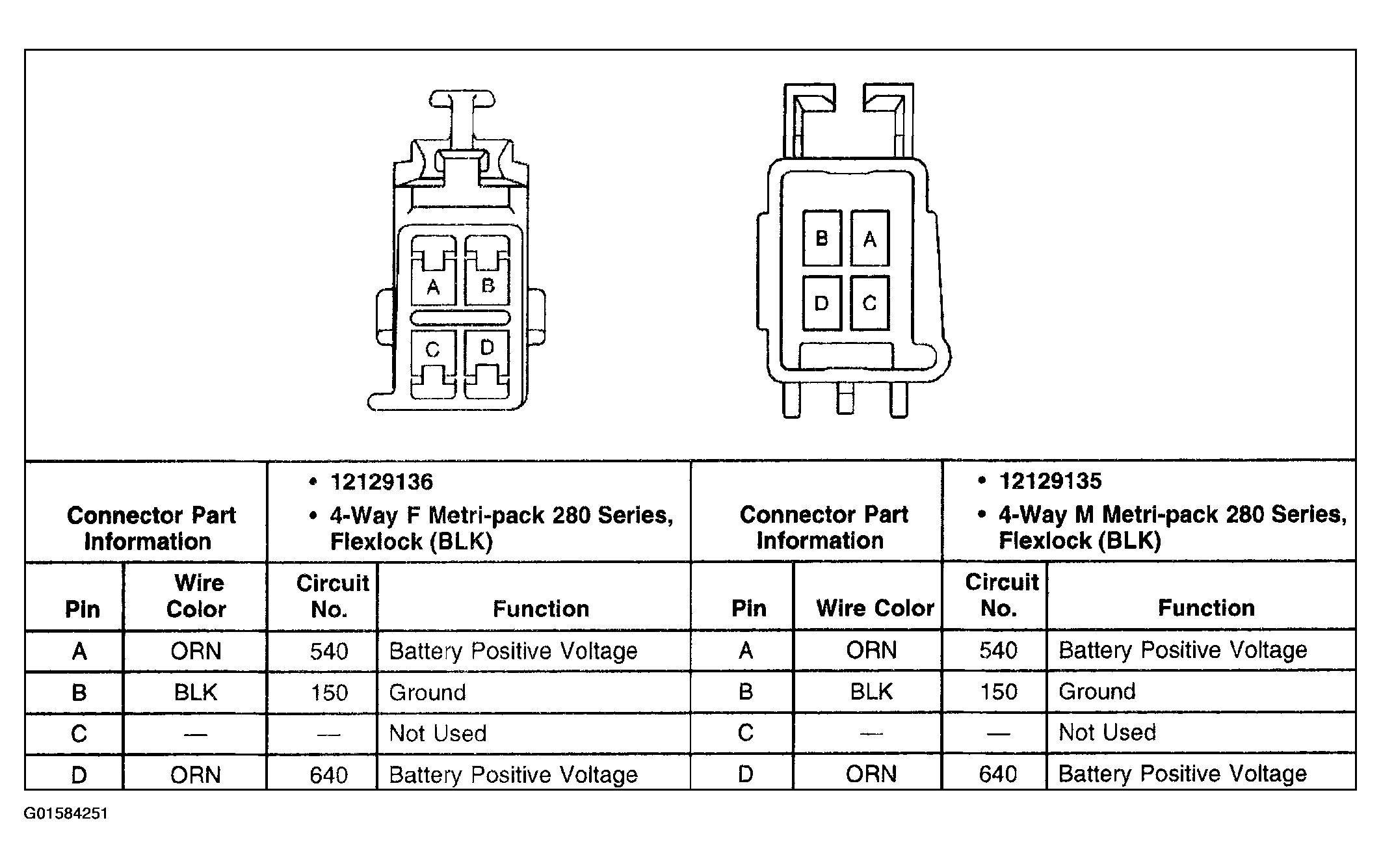

Fig 28: C212 - Crossbody Harness Inline To Left Power Seat
G01584251Courtesy of GENERAL MOTORS CORP.

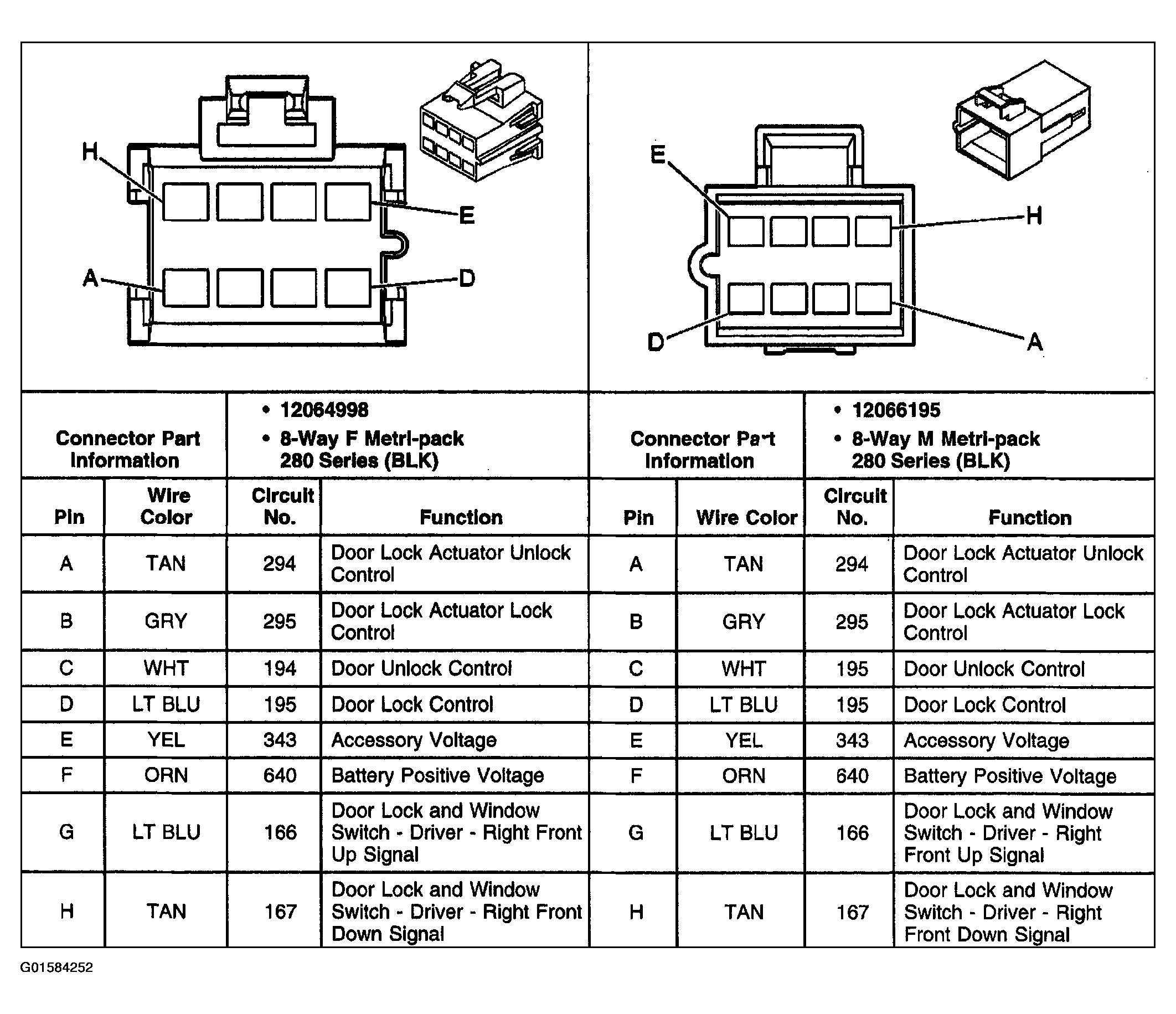

Fig 29: C213 - Crossbody Harness Inline To Right Door Harness
G01584252Courtesy of GENERAL MOTORS CORP.
Fig 30: C214 - Crossbody Harness Inline To Right Door Harness
G01584253Courtesy of GENERAL MOTORS CORP.

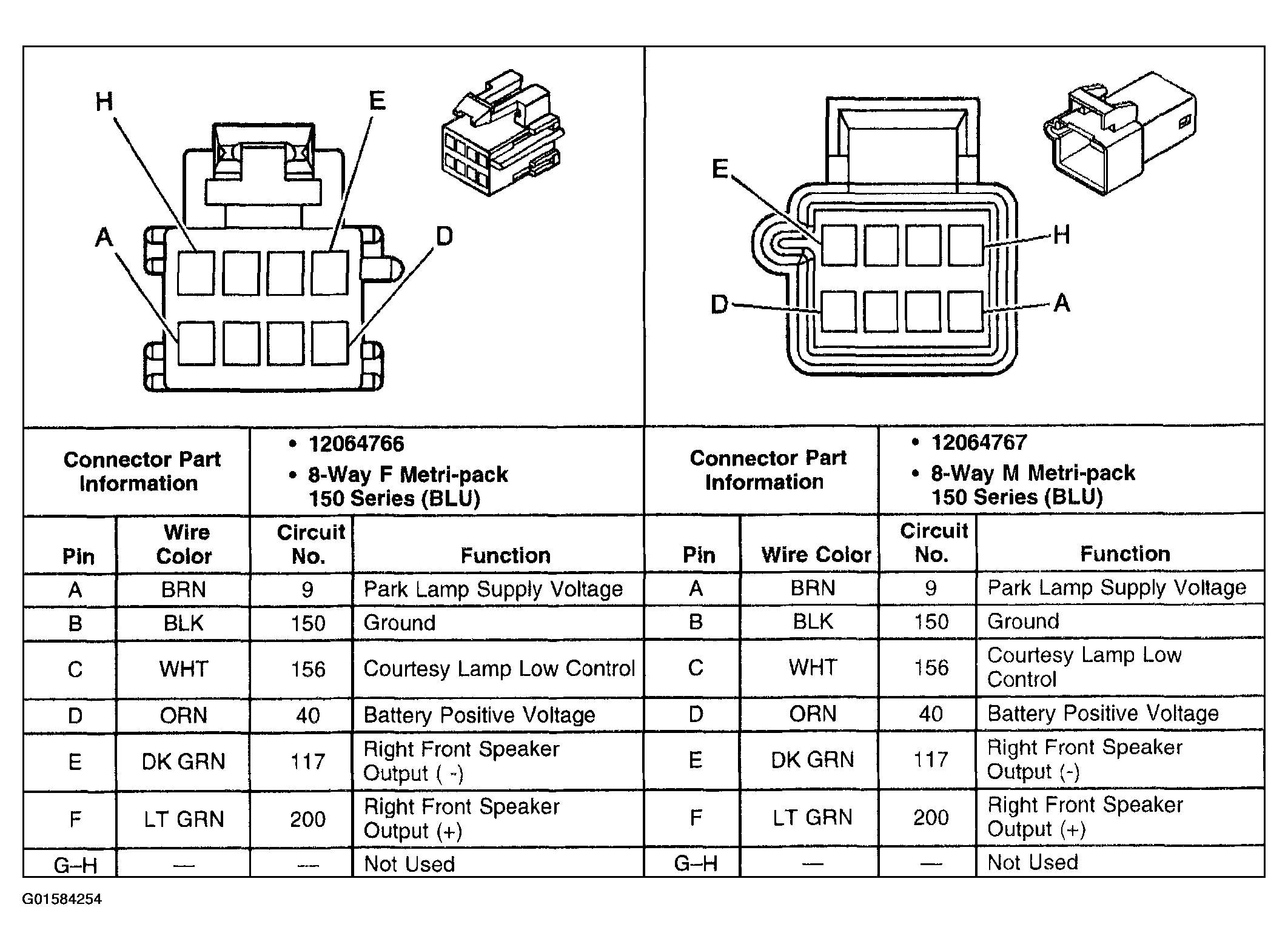

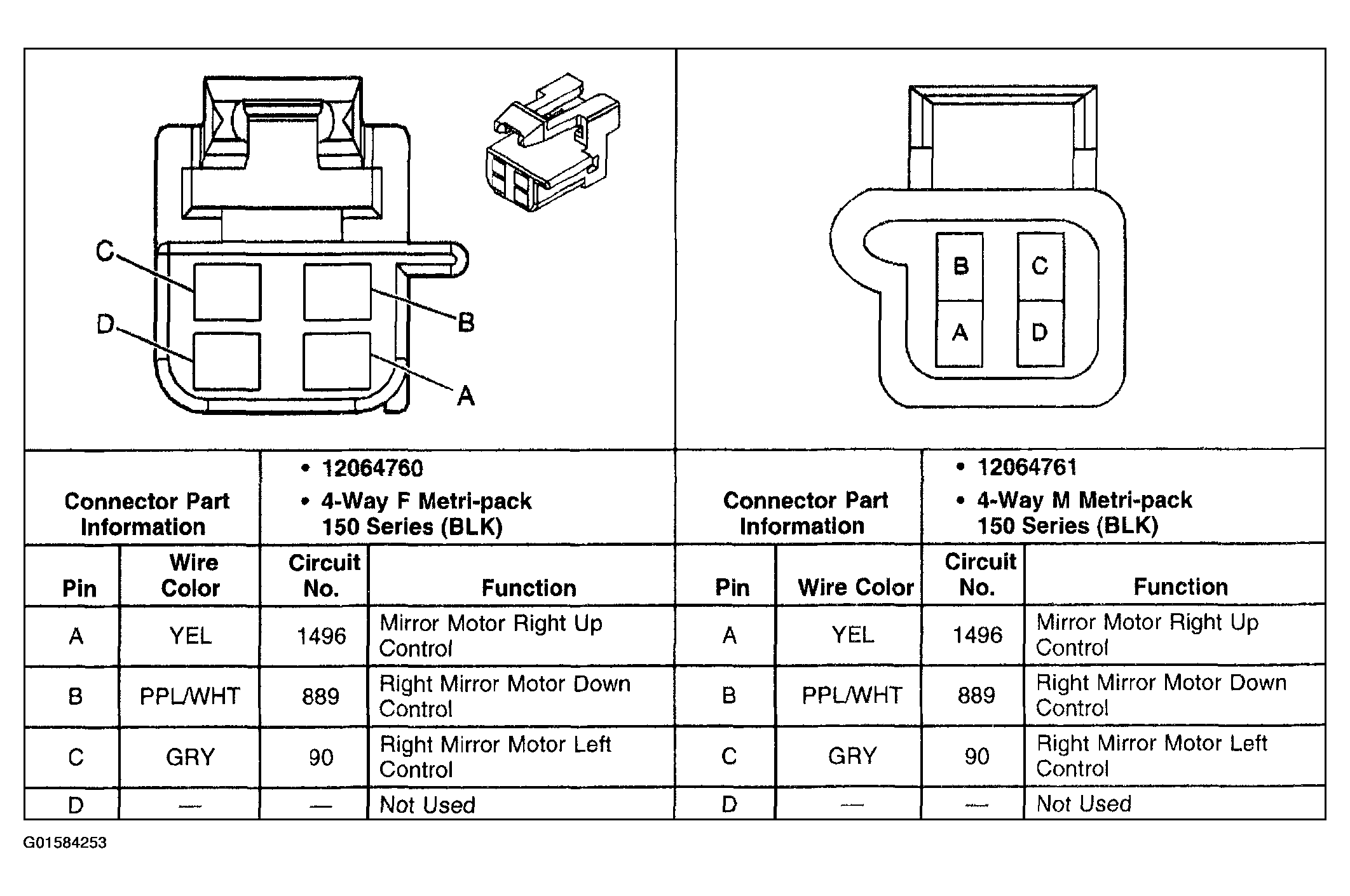

Fig 31: C215 - Crossbody Harness Inline To Right Door Harness - Except Base
G01584254Courtesy of GENERAL MOTORS CORP.

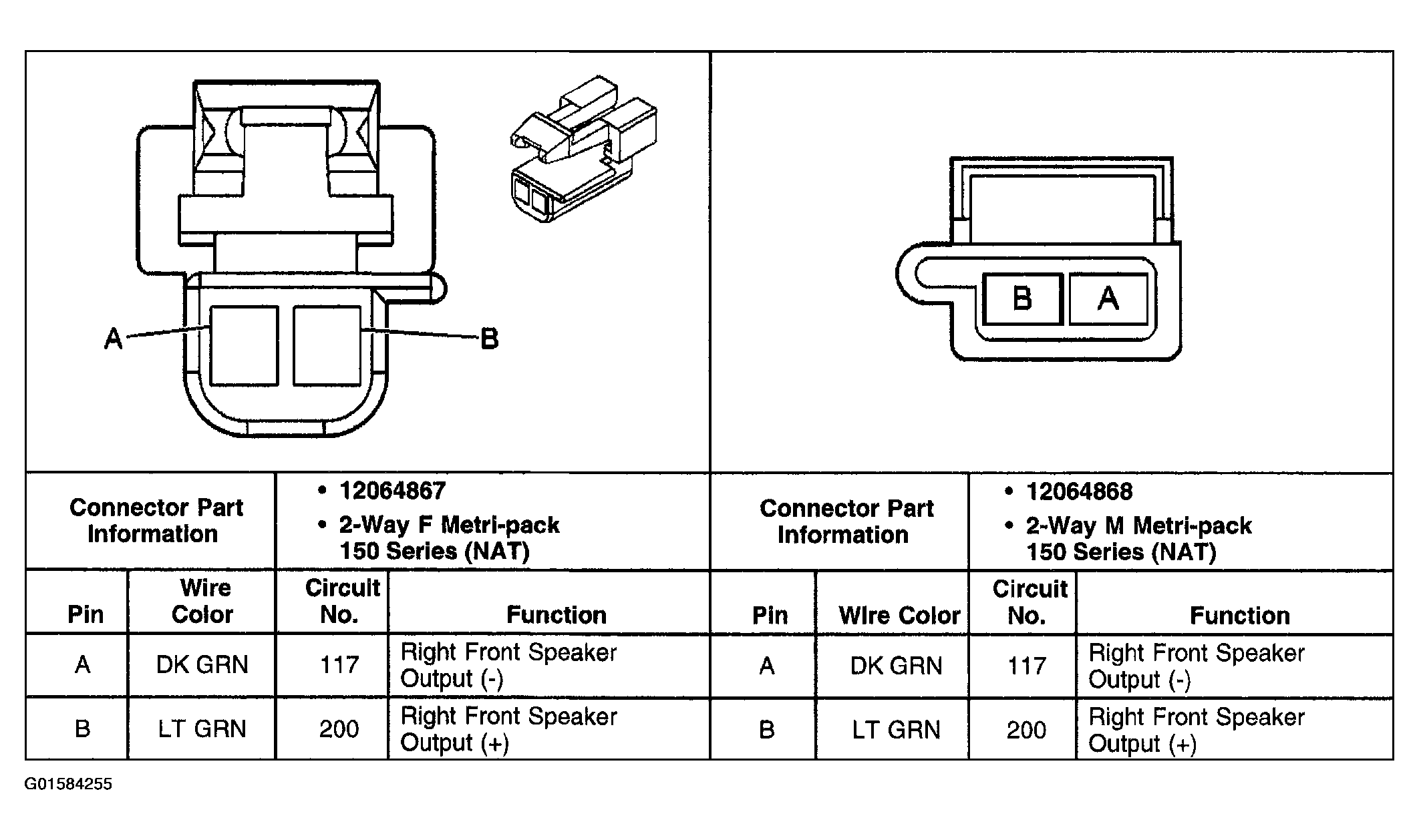

Fig 32: C215 - Crossbody Harness Inline To Right Door Harness - Base
G01584255Courtesy of GENERAL MOTORS CORP.

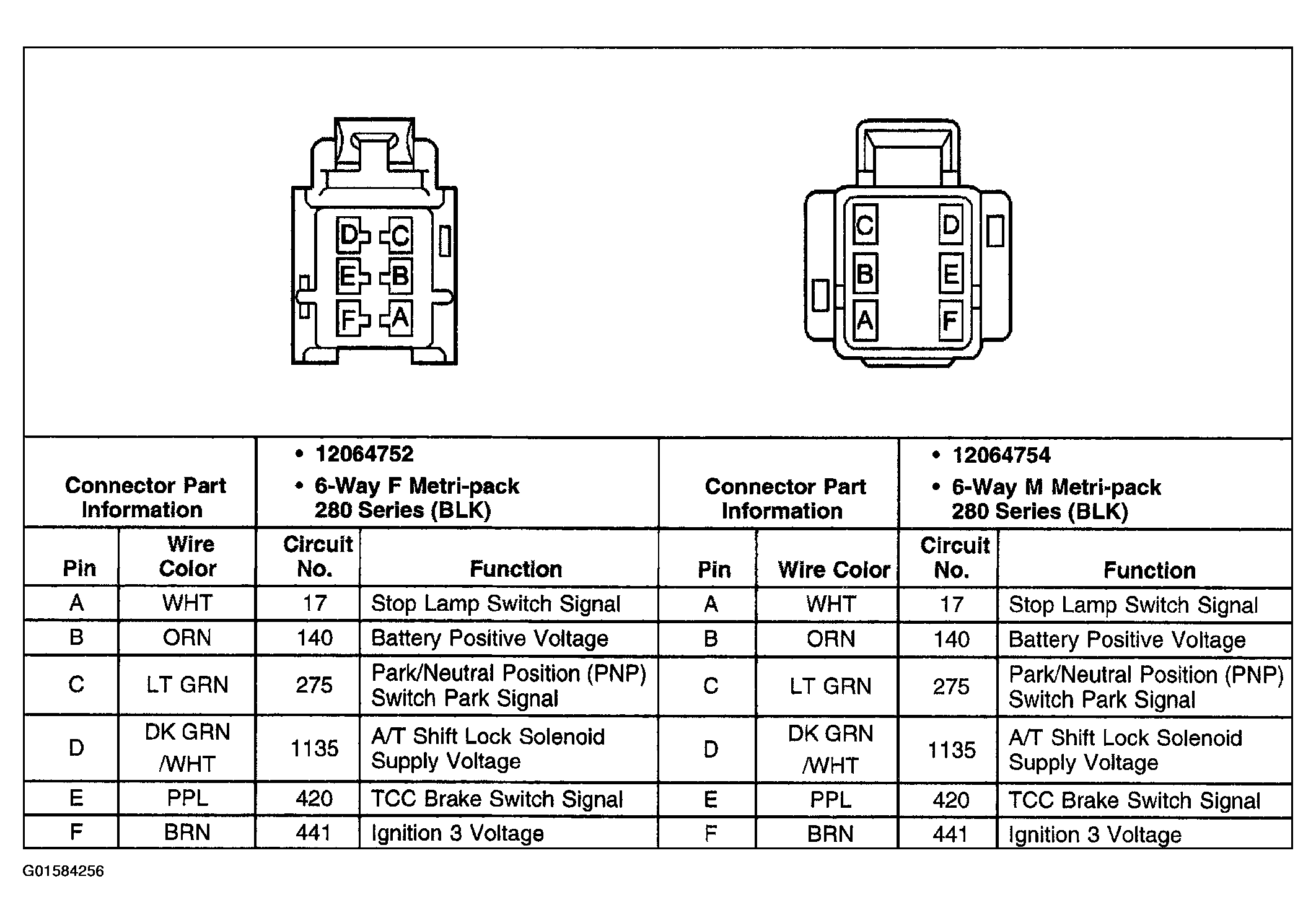

Fig 33: C227 - IP Harness Inline To Stop Lamp Switch Jumper
G01584256Courtesy of GENERAL MOTORS CORP.

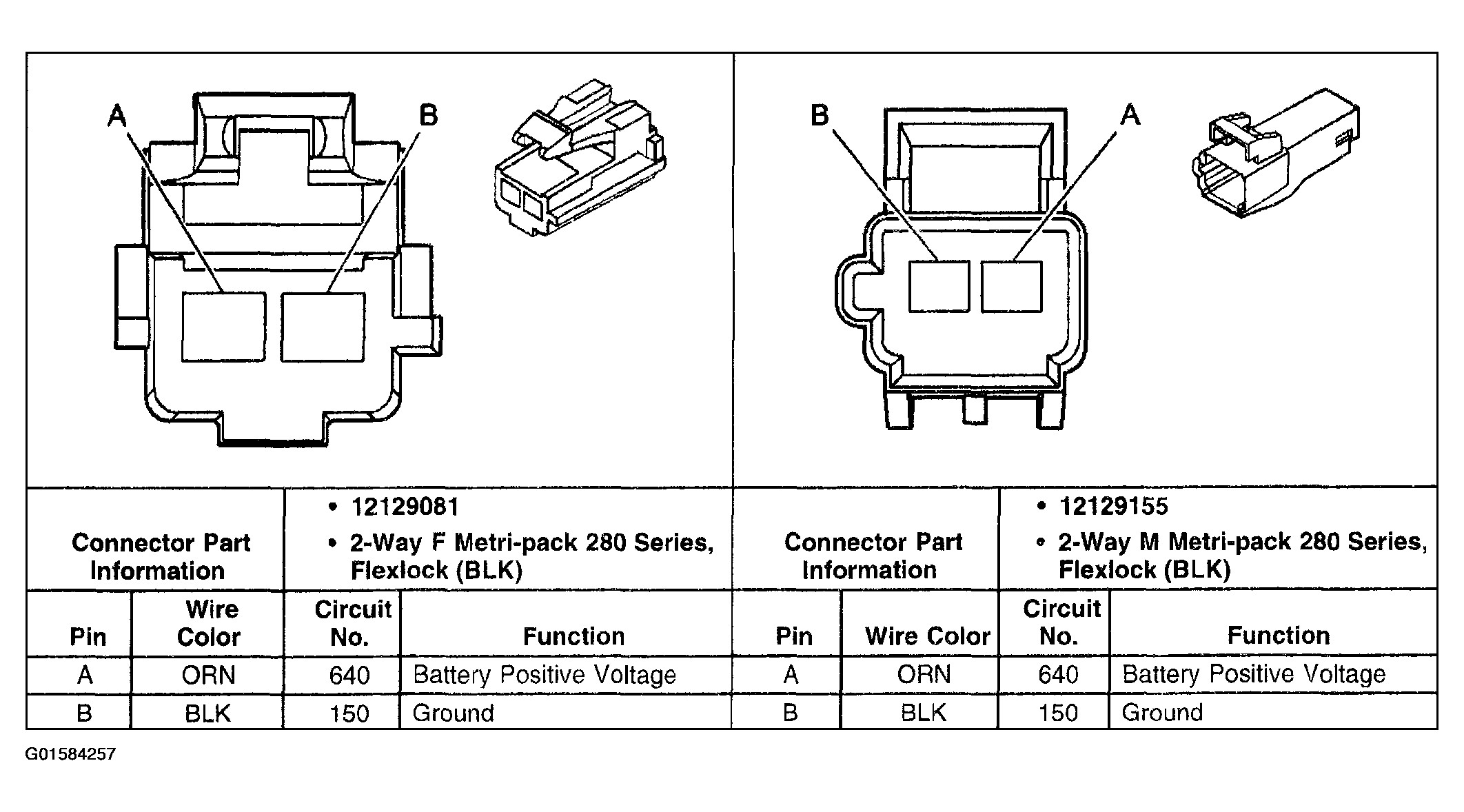

Fig 34: C229 - Crossbody Harness Inline To Right Power Seat
G01584257Courtesy of GENERAL MOTORS CORP.

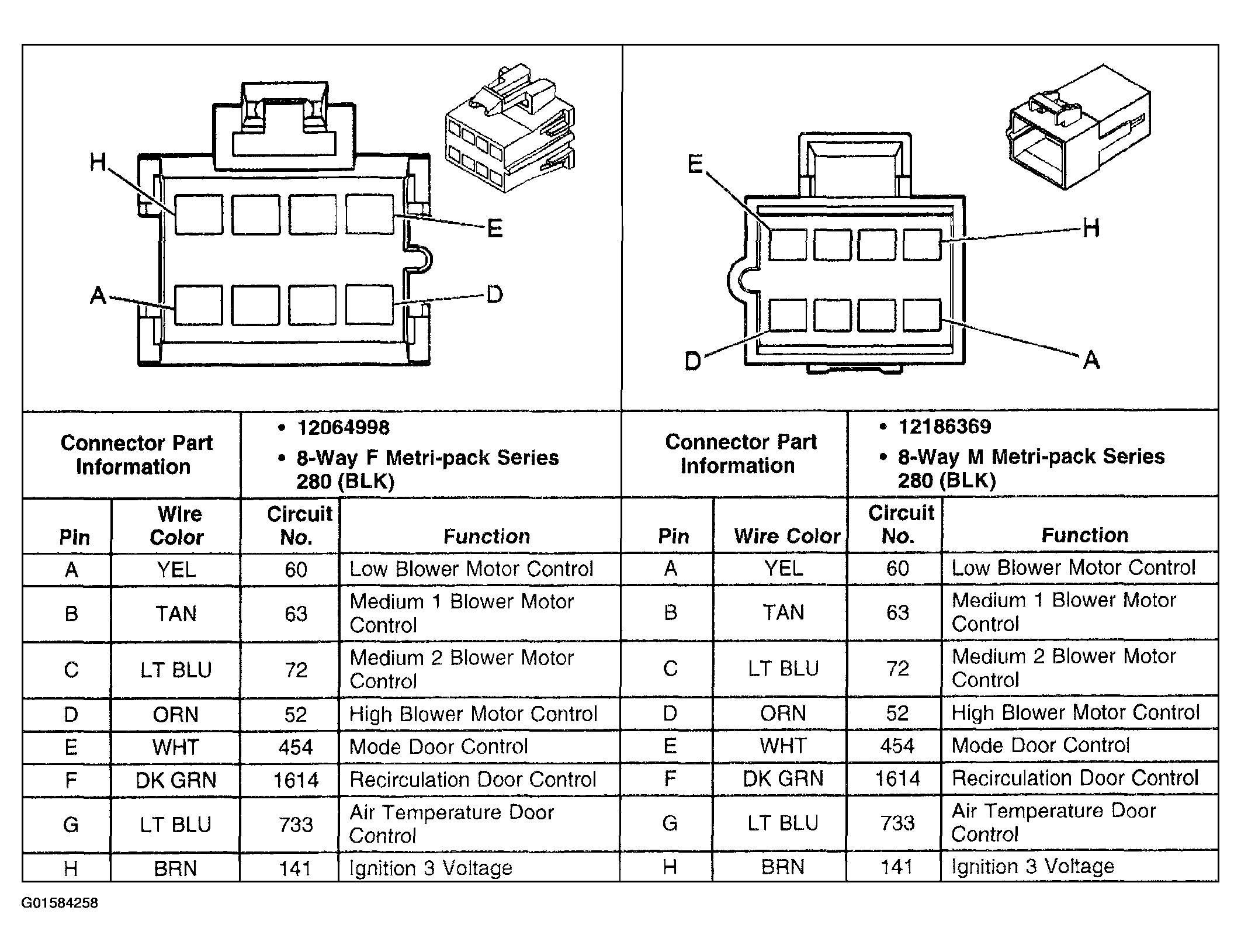

Fig 35: C230 - IP Harness Inline To HVAC Harness
G01584258Courtesy of GENERAL MOTORS CORP.

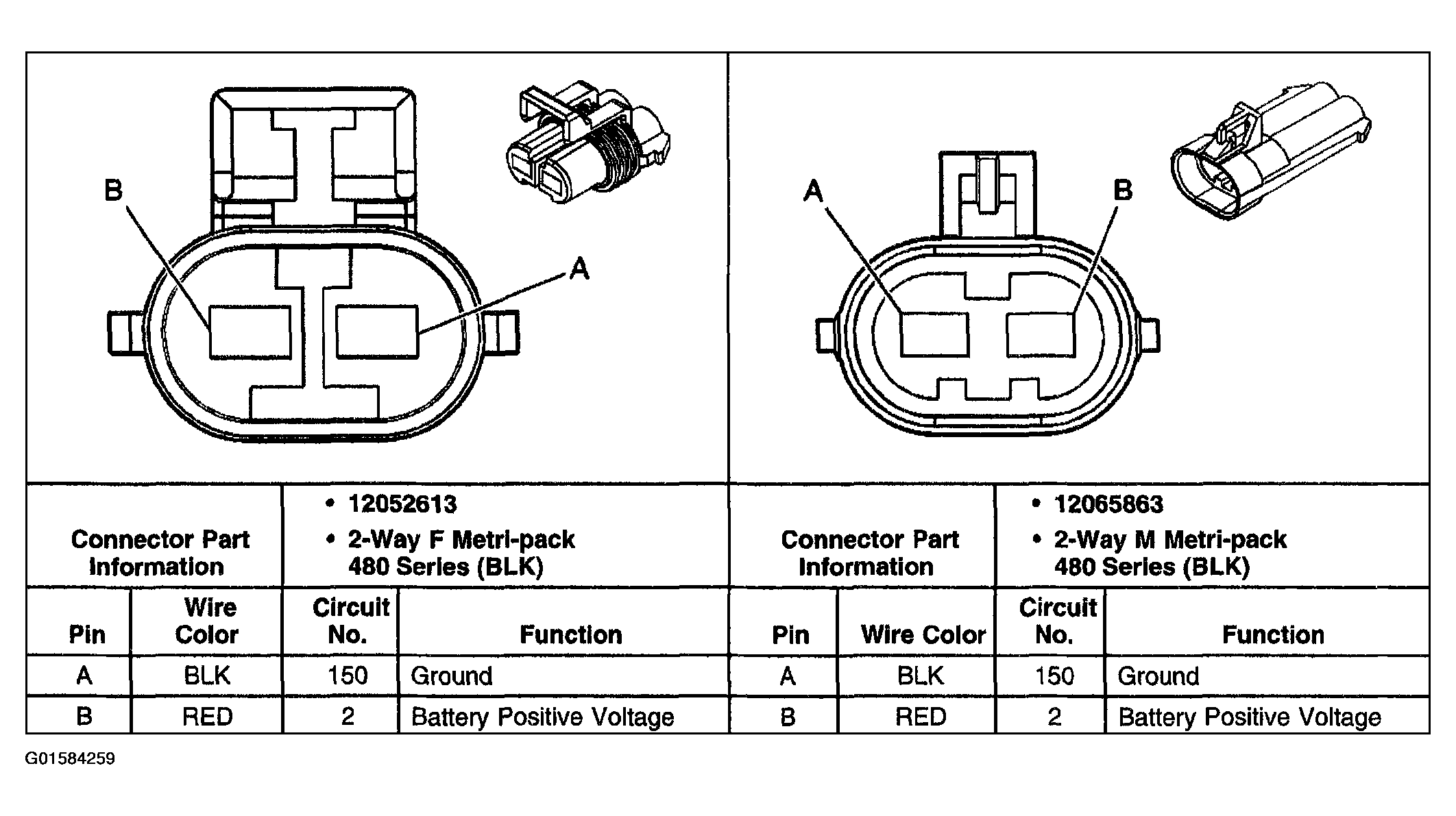

Fig 36: C235 - Dash Harness Inline To Auxiliary Fuse Panel Harness - 9L4
G01584259Courtesy of GENERAL MOTORS CORP.

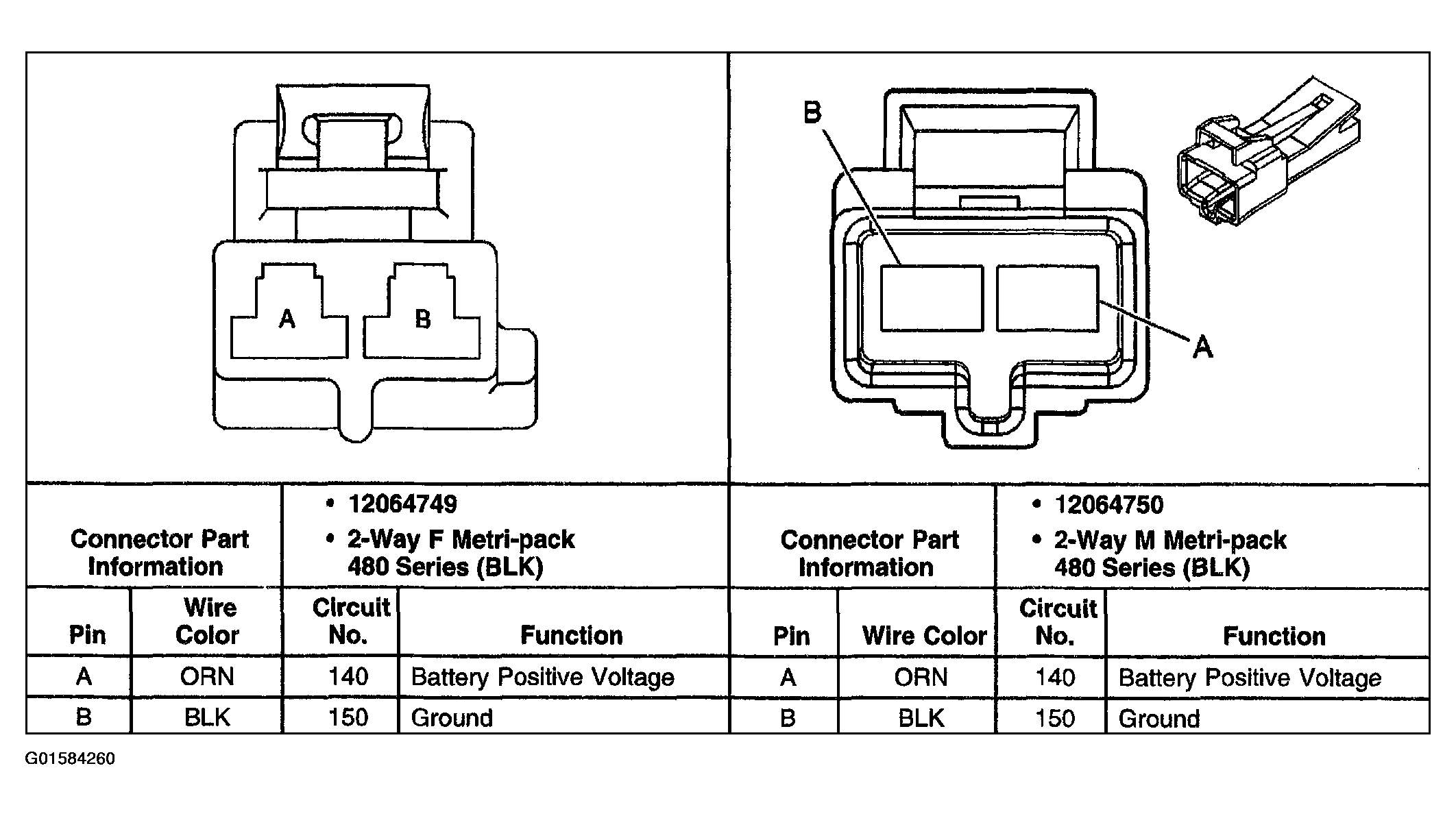

Fig 37: C238 - Aux Light Switch Harness Inline To Roof Harness - 5G4
G01584260Courtesy of GENERAL MOTORS CORP.

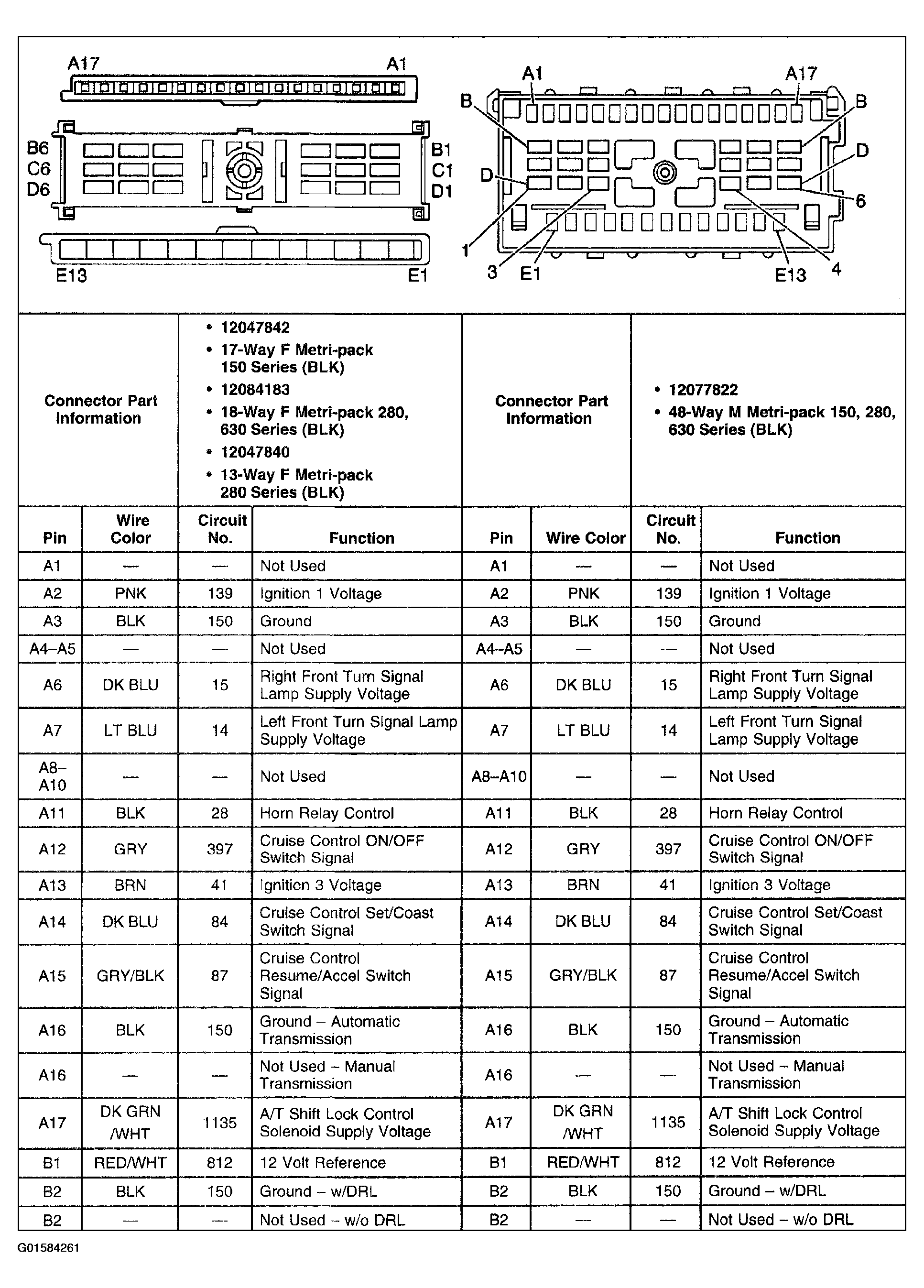

Fig 38: C266 - IP Harness Inline To Steering Column Harness (1 Of 3)
G01584261Courtesy of GENERAL MOTORS CORP.

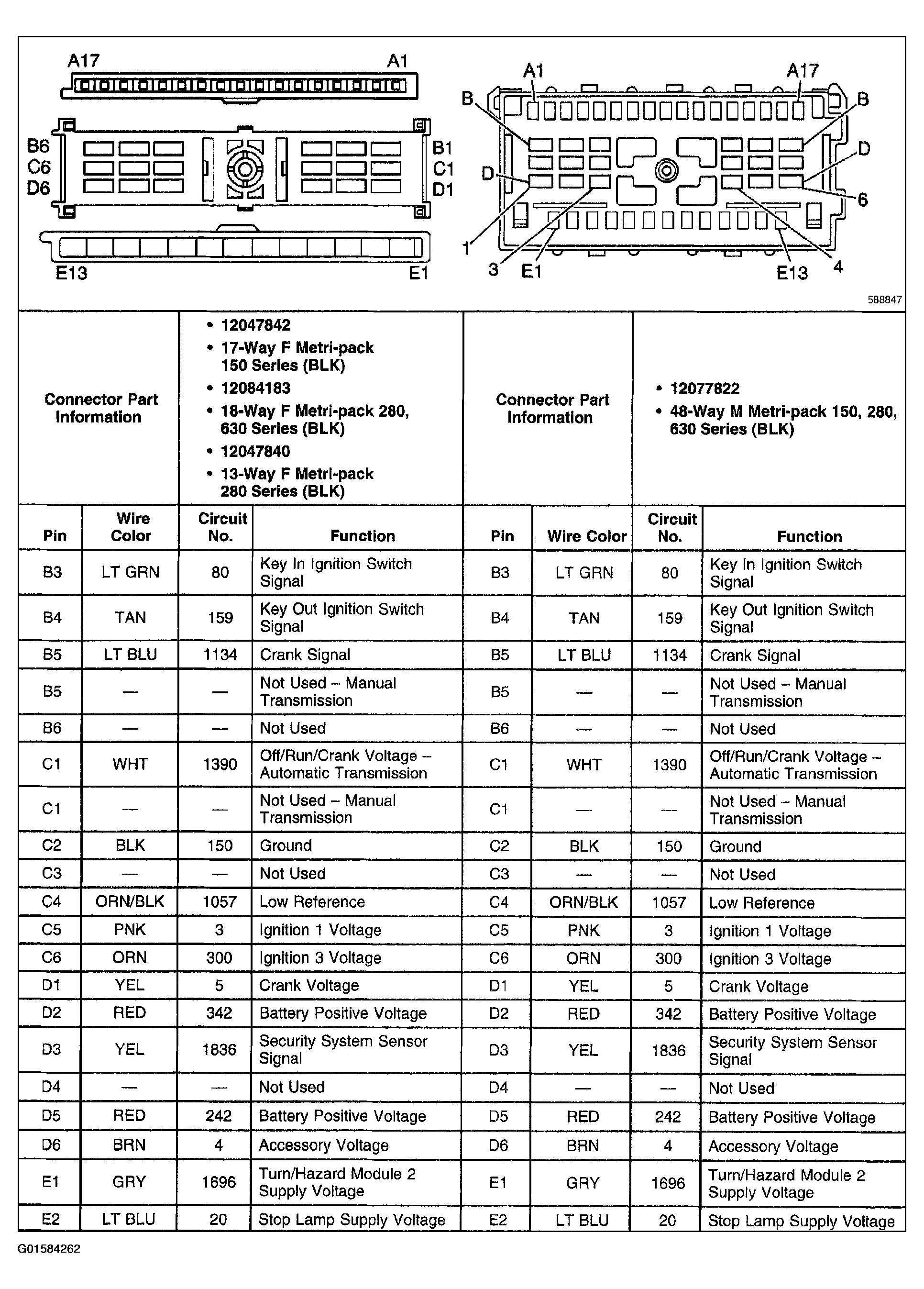

Fig 39: C266 - IP Harness Inline To Steering Column Harness (2 Of 3)
G01584262Courtesy of GENERAL MOTORS CORP.

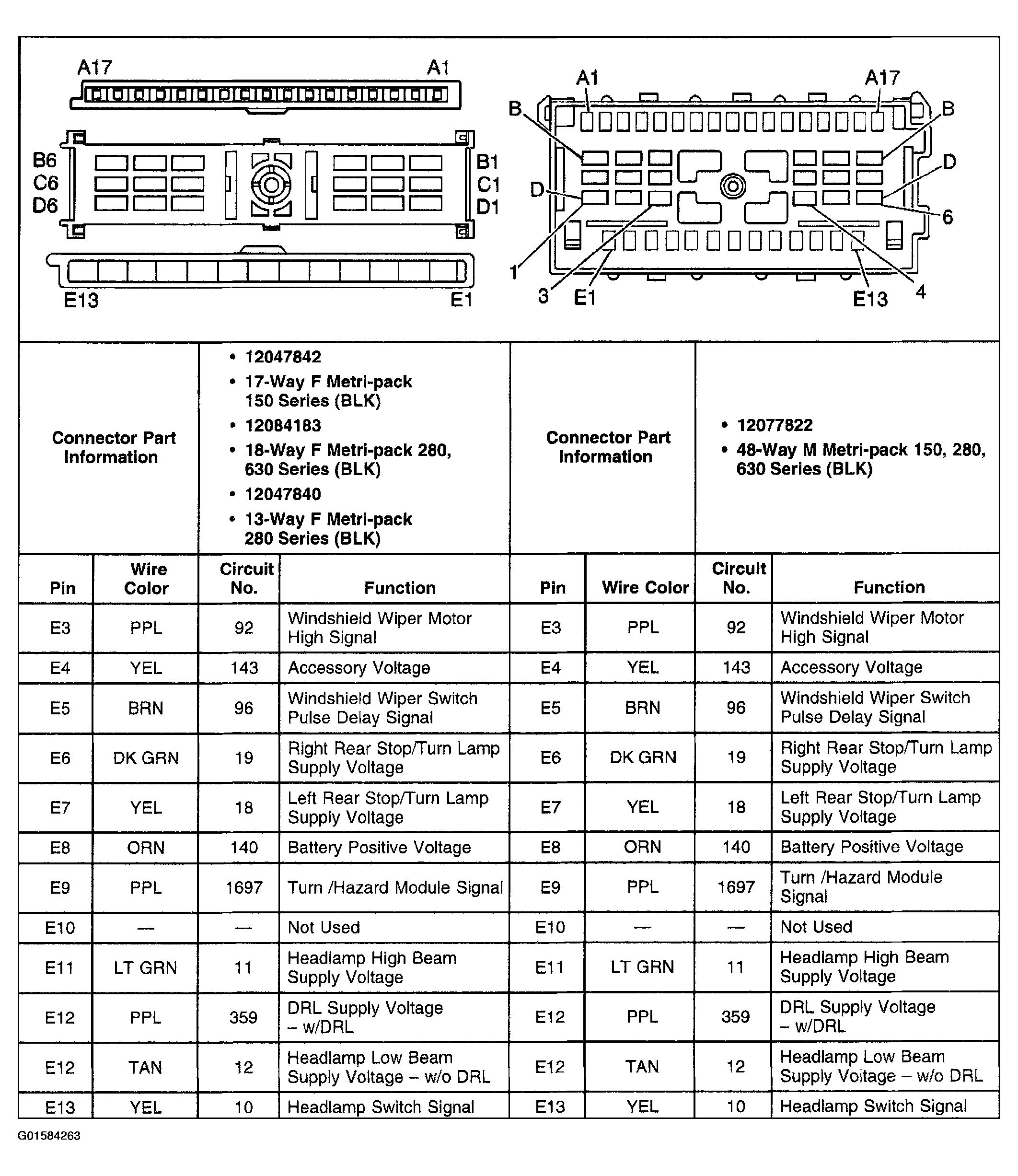

Fig 40: C266 - IP Harness Inline To Steering Column Harness (3 Of 3)
G01584263Courtesy of GENERAL MOTORS CORP.

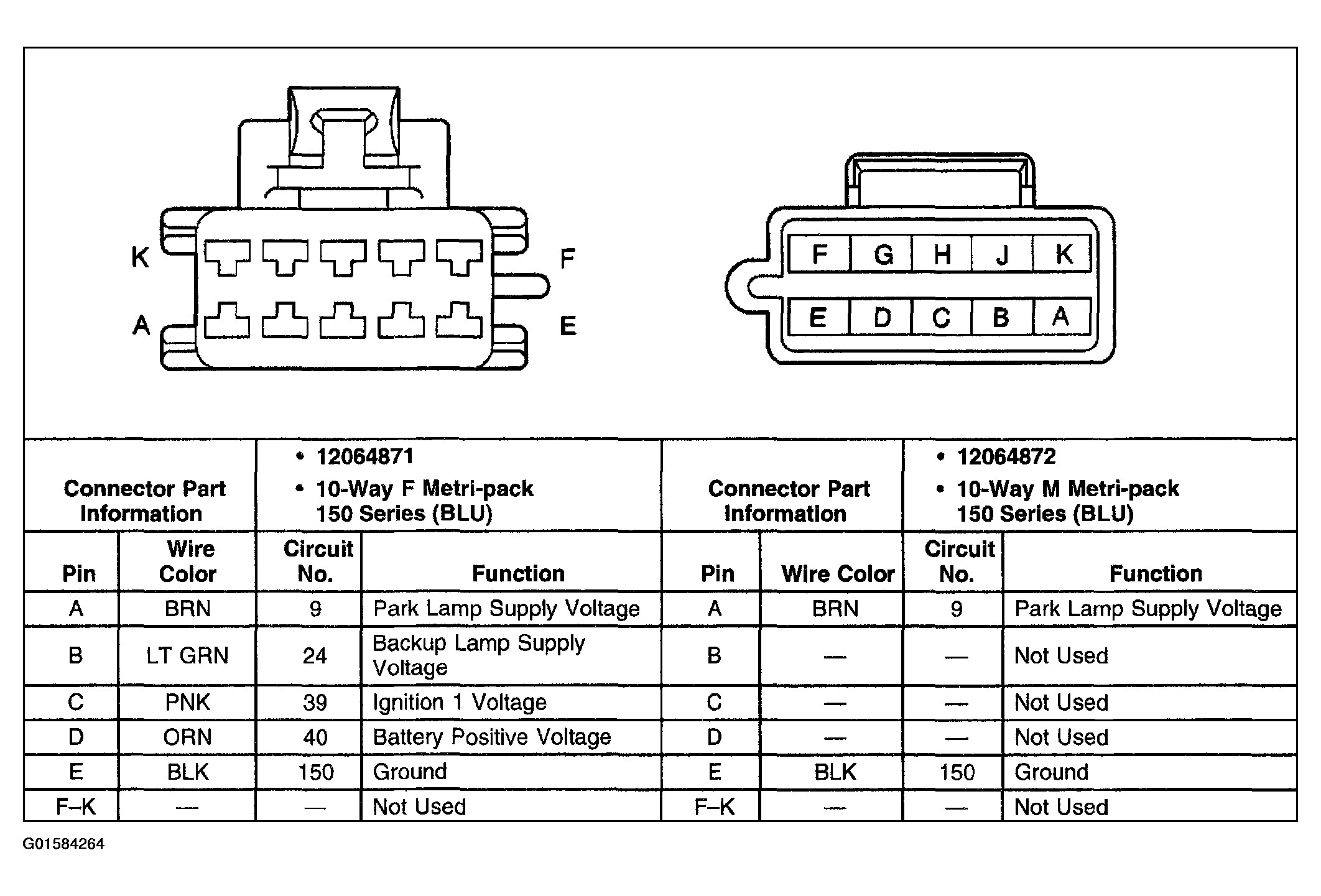

Fig 41: C271 - IP Harness Inline To A Pillar Harness
G01584264Courtesy of GENERAL MOTORS CORP.

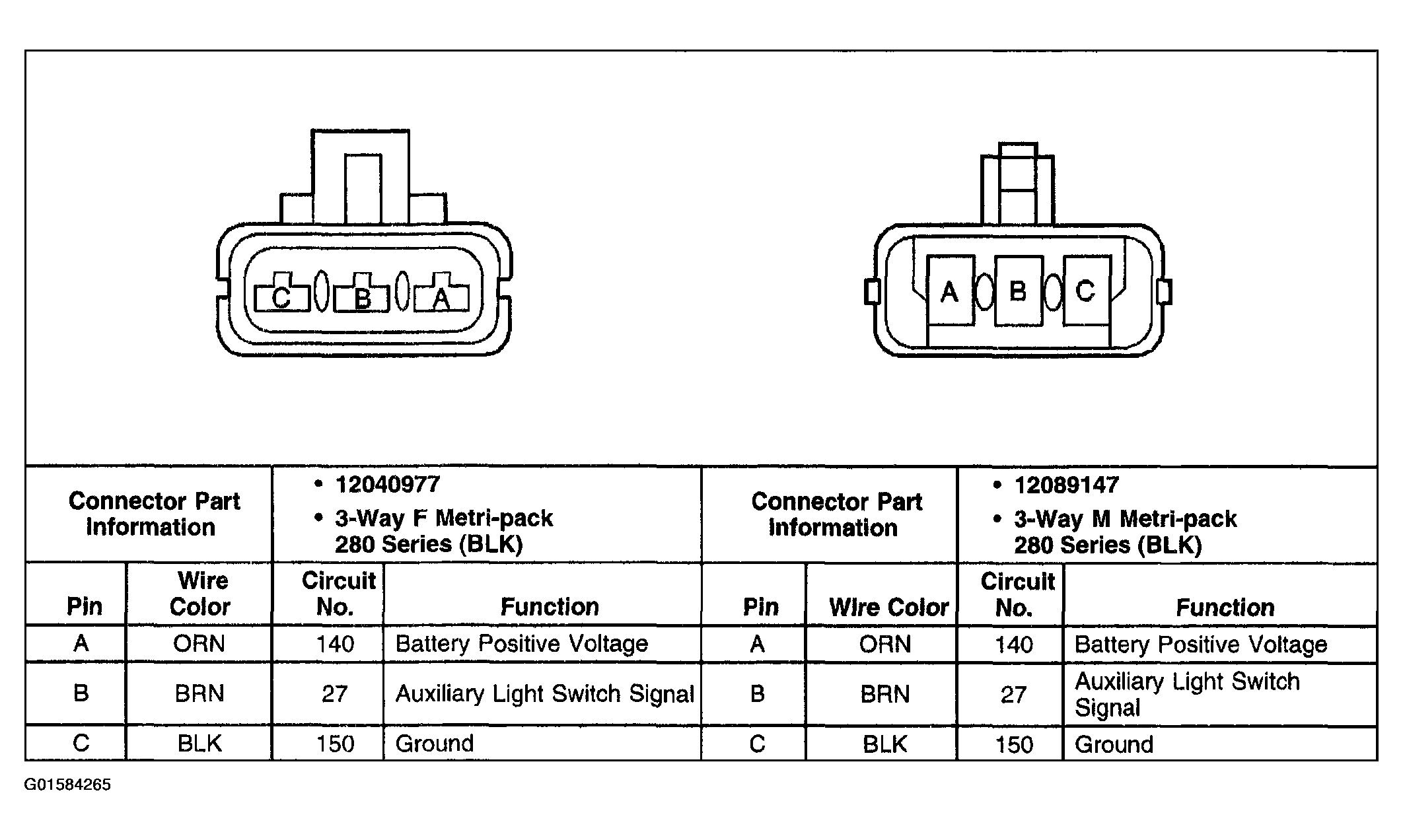

Fig 42: C290 - Switch Harness Inline To Dash Harness - 5G4
G01584265Courtesy of GENERAL MOTORS CORP.

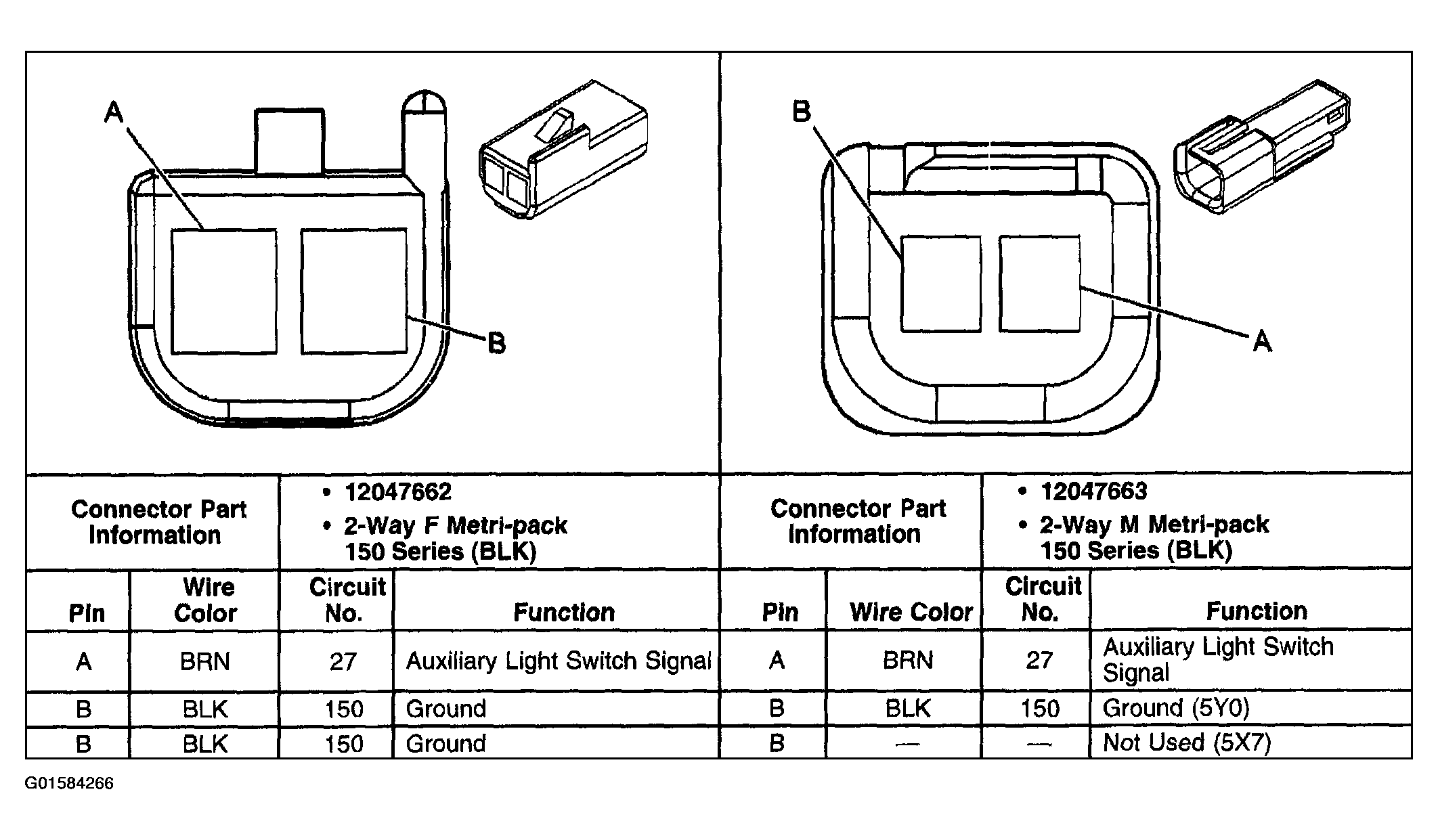

Fig 43: C291 - Switch Harness Inline To Dash Harness - 5Y0 & 5X7
G01584266Courtesy of GENERAL MOTORS CORP.

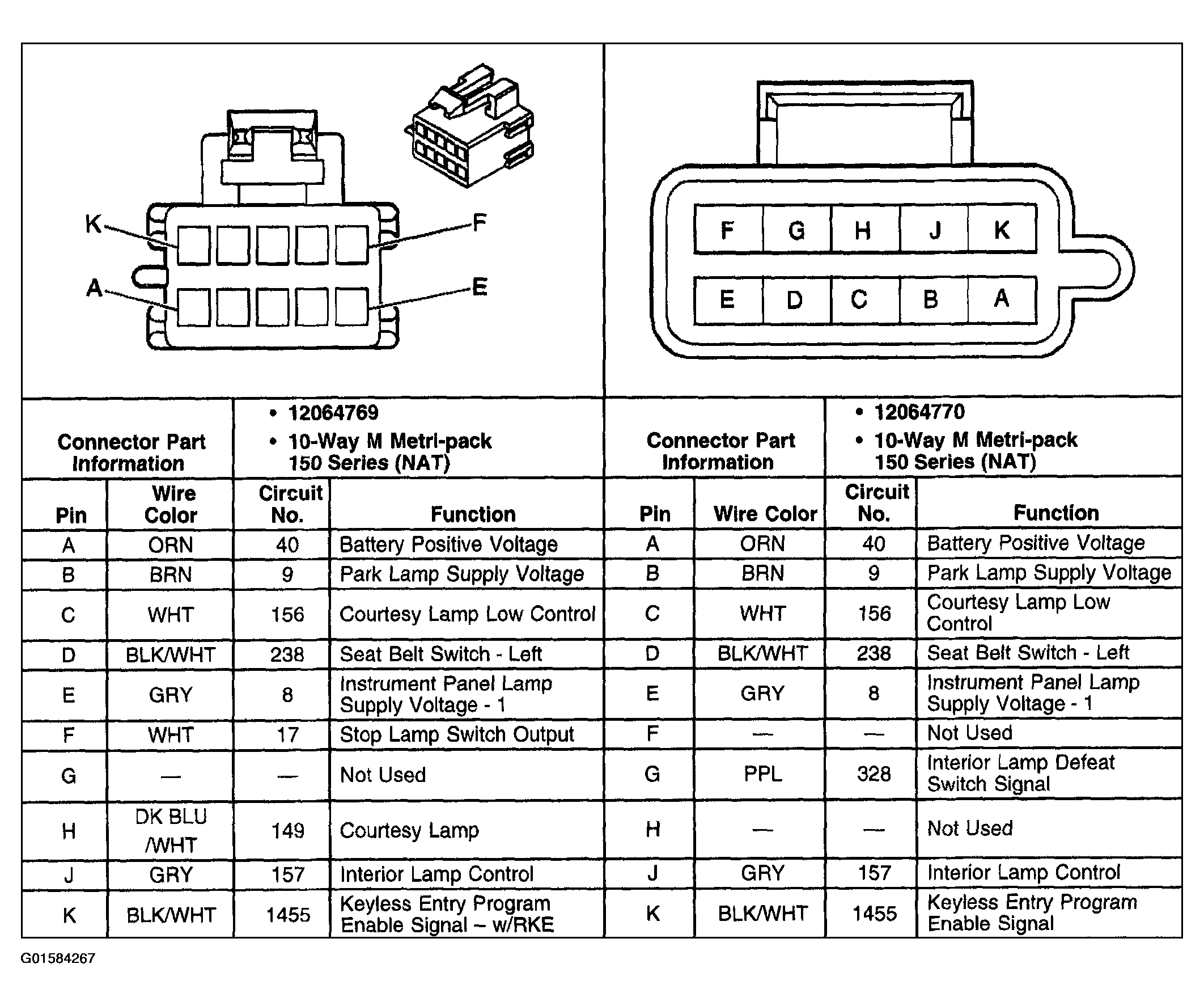

Fig 44: C298 - IP Harness Inline To Crossbody Harness
G01584267Courtesy of GENERAL MOTORS CORP.

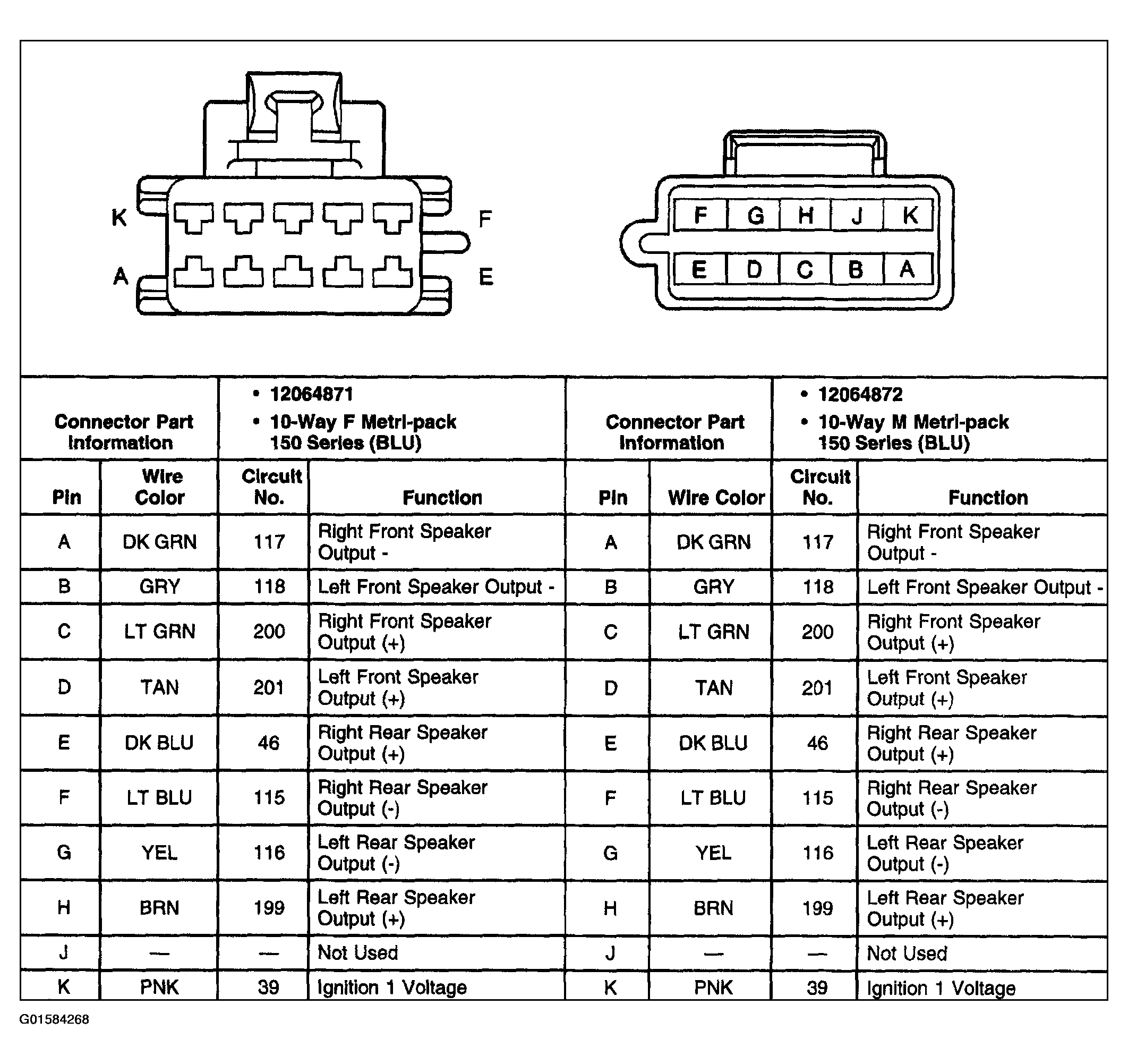

Fig 45: C299 - I/P Harness Inline To Crossbody Harness
G01584268Courtesy of GENERAL MOTORS CORP.

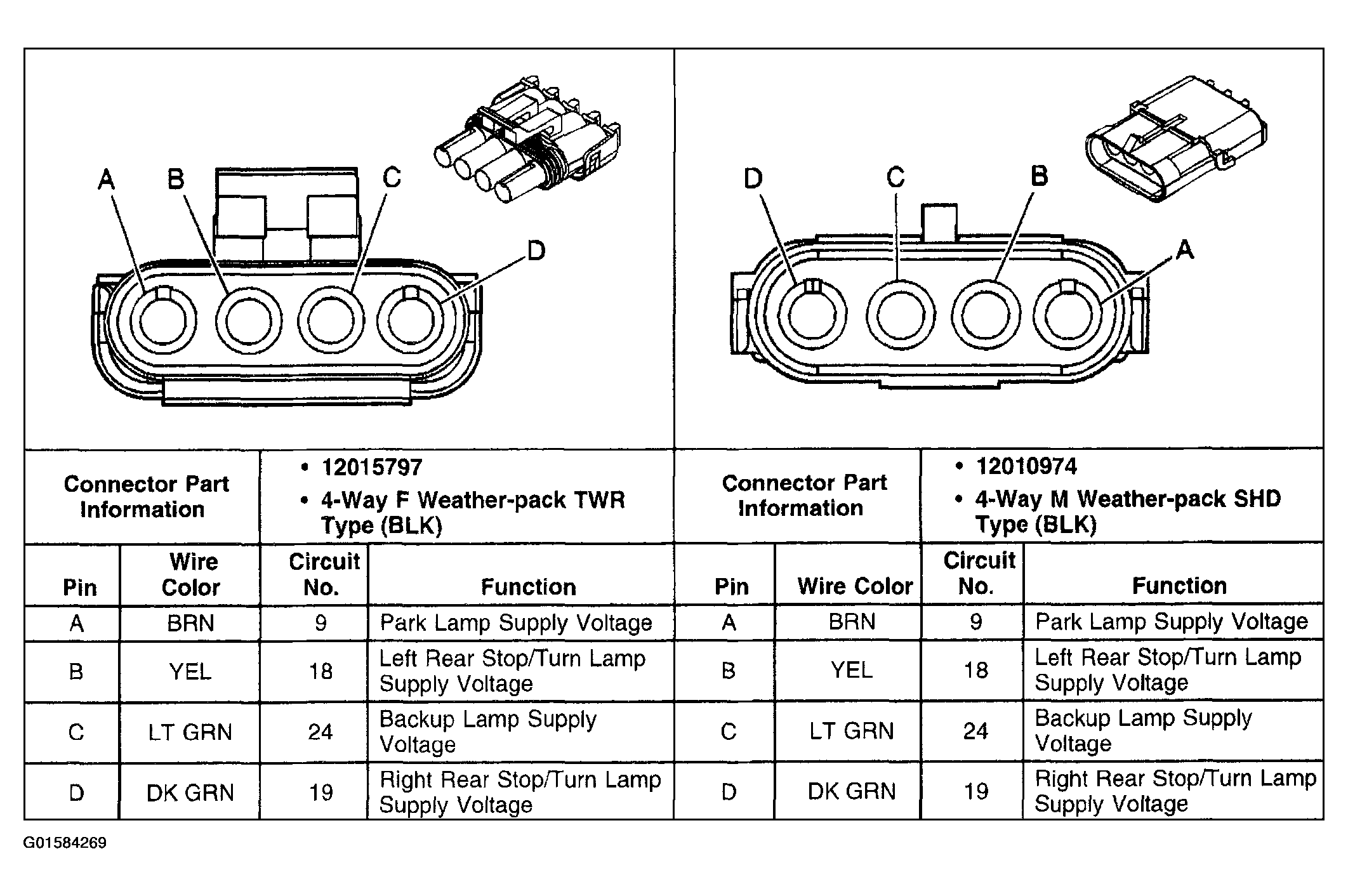

Fig 46: C409 - Tail Lamp Extension Harness Inline To Tail Lamp Harness
G01584269Courtesy of GENERAL MOTORS CORP.

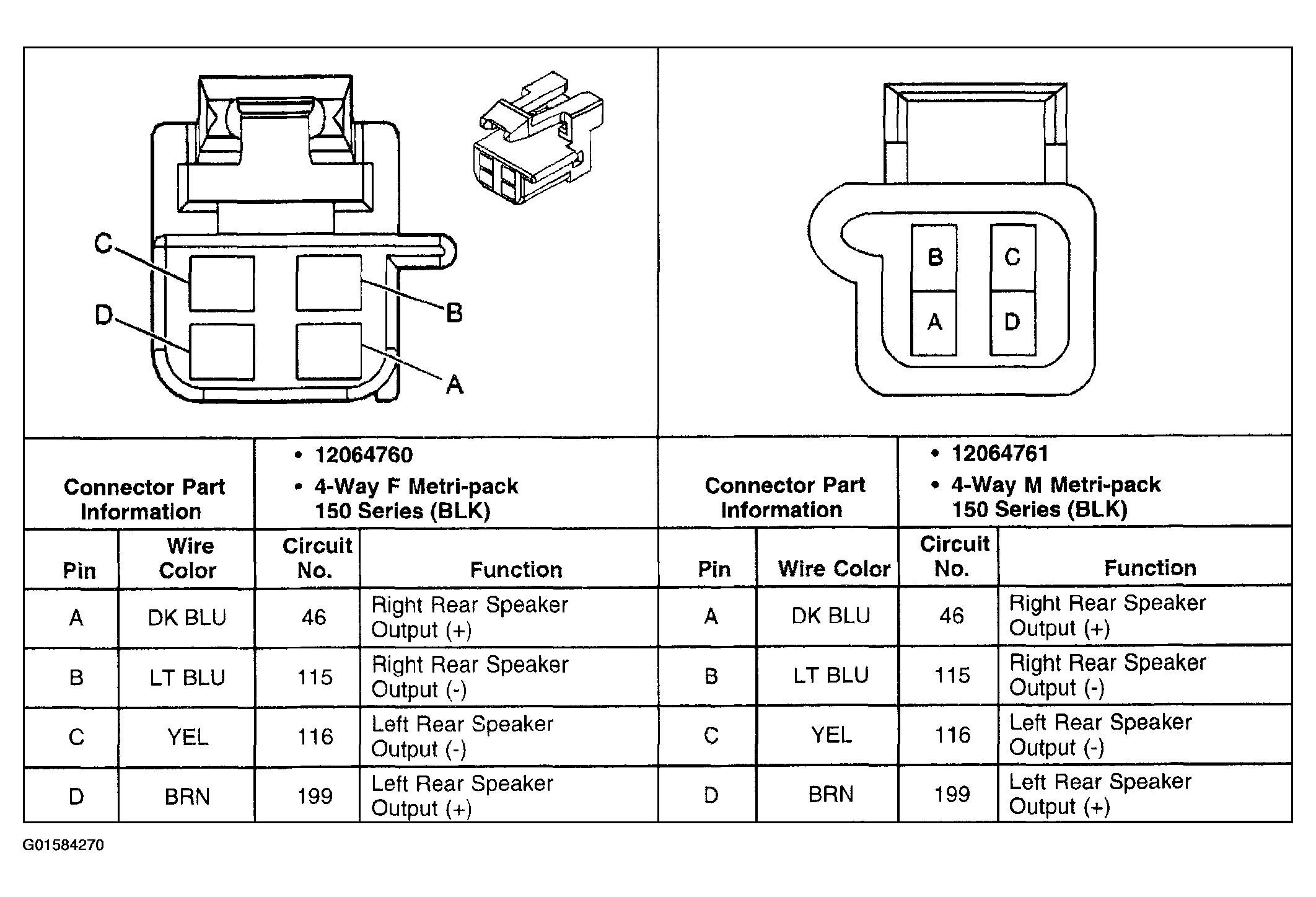

Fig 47: C410 - Crossbody Harness Inline To Rear Radio Speaker Harness
G01584270Courtesy of GENERAL MOTORS CORP.

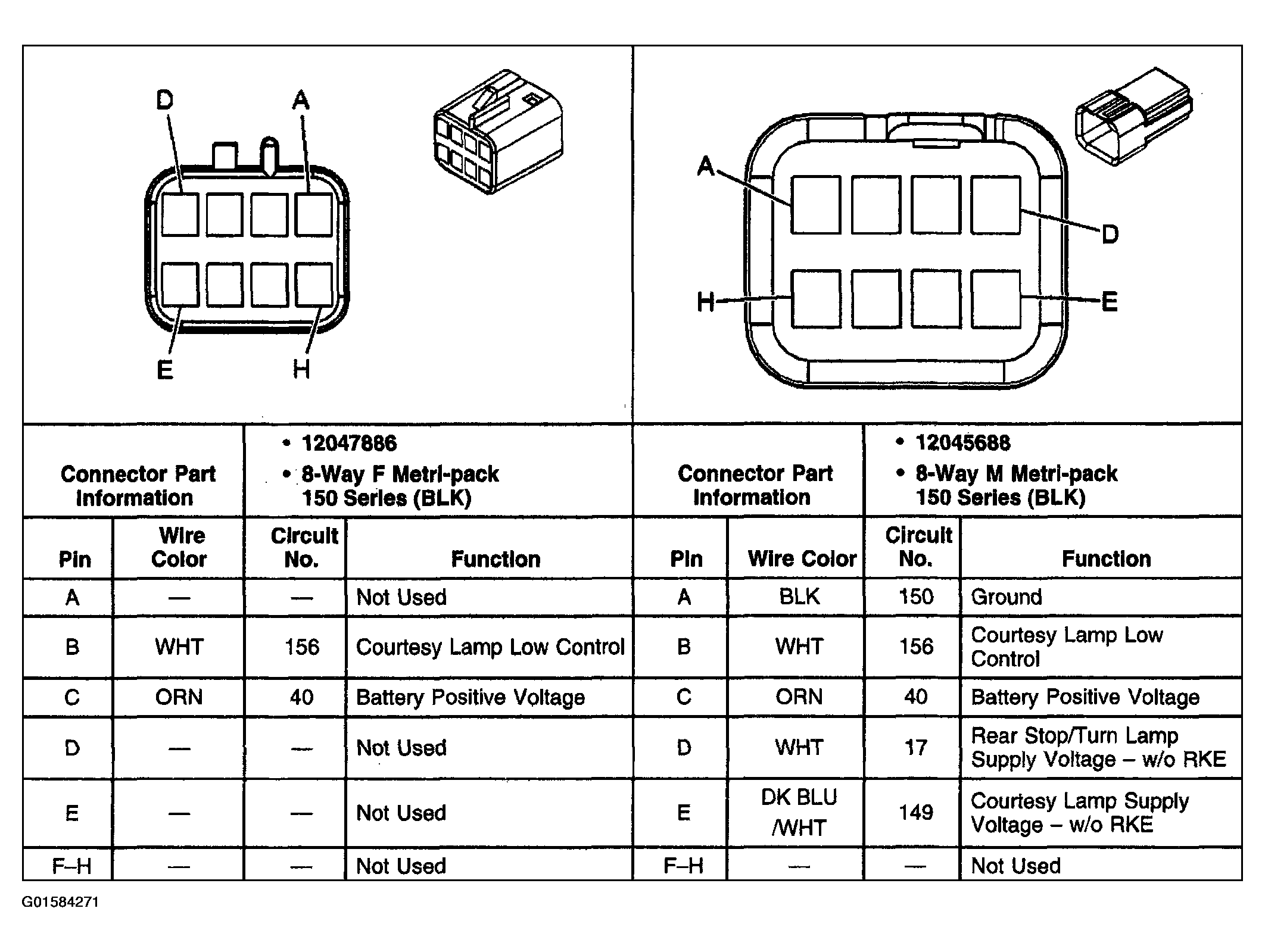

Fig 48: C411 - Crossbody Harness Inline To Dome Lamp Harness
G01584271Courtesy of GENERAL MOTORS CORP.
