Recirculation Door Motor Connector End View

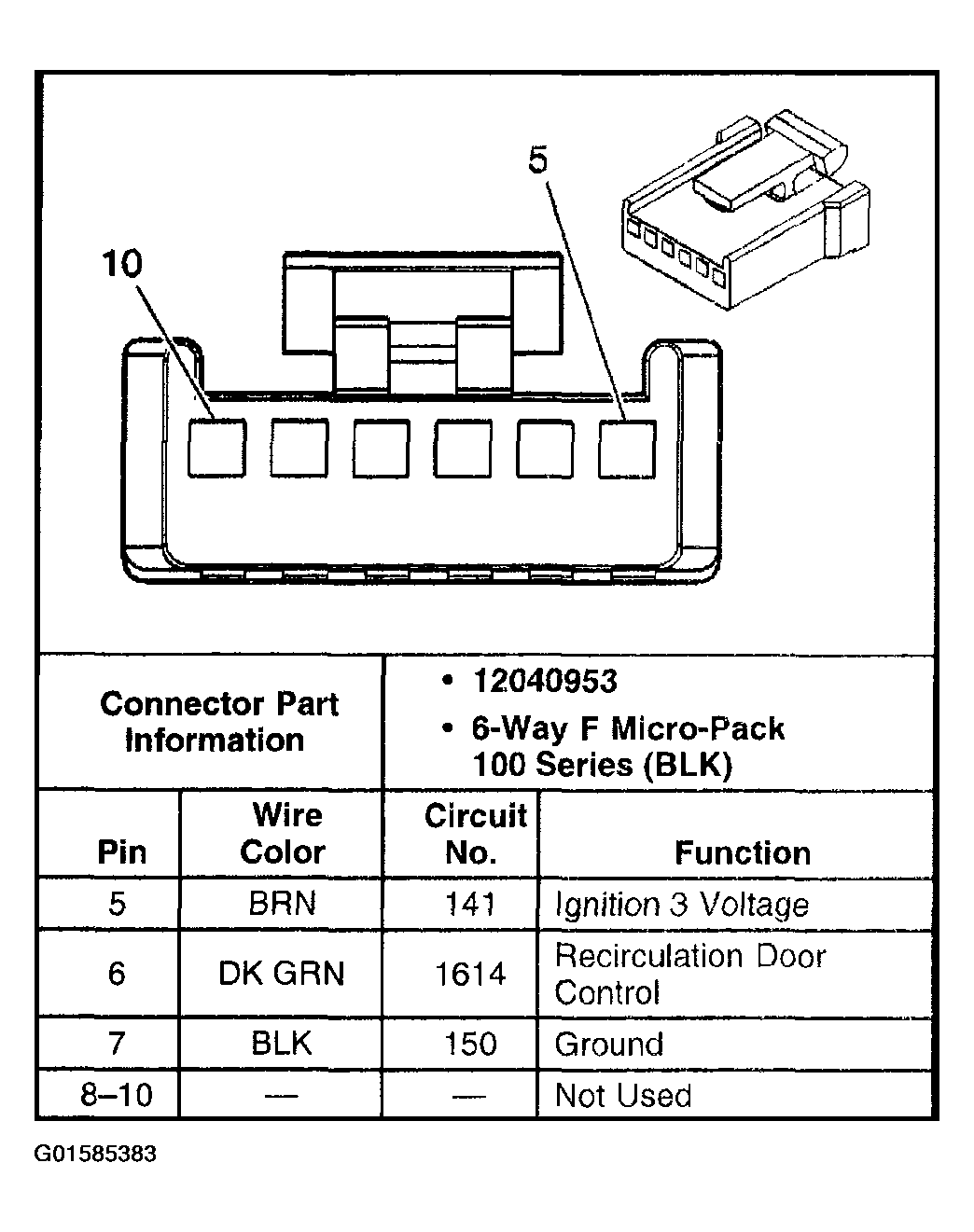

Fig 1: Recirculation Door Motor Connector End View

G01585383

Courtesy of GENERAL MOTORS CORP.
