Schematic and Routing Diagrams

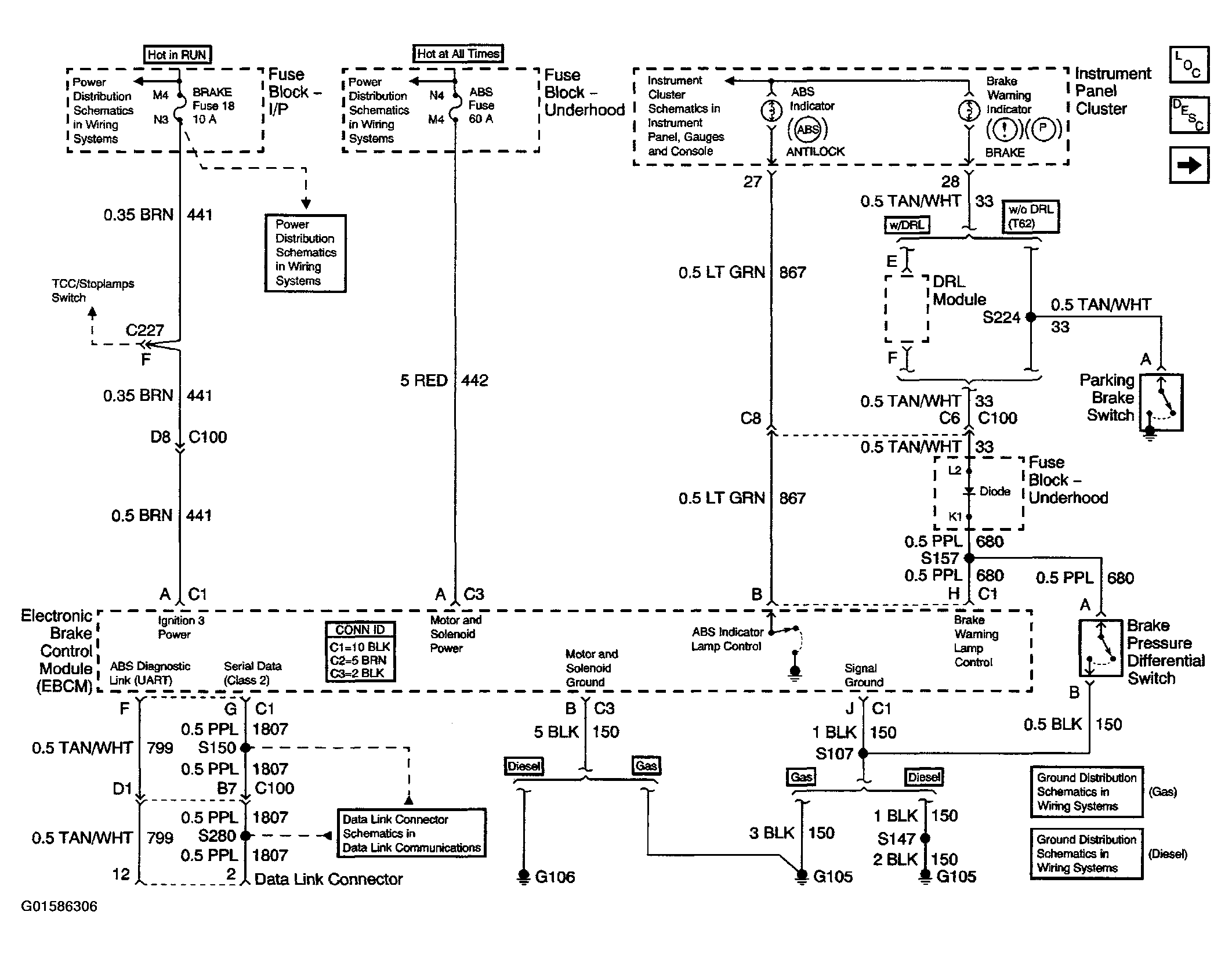

Fig 1: ABS Schematics (EBCM Power, Grounding, DLC, & Indicator Lamps)
G01586306Courtesy of GENERAL MOTORS CORP.

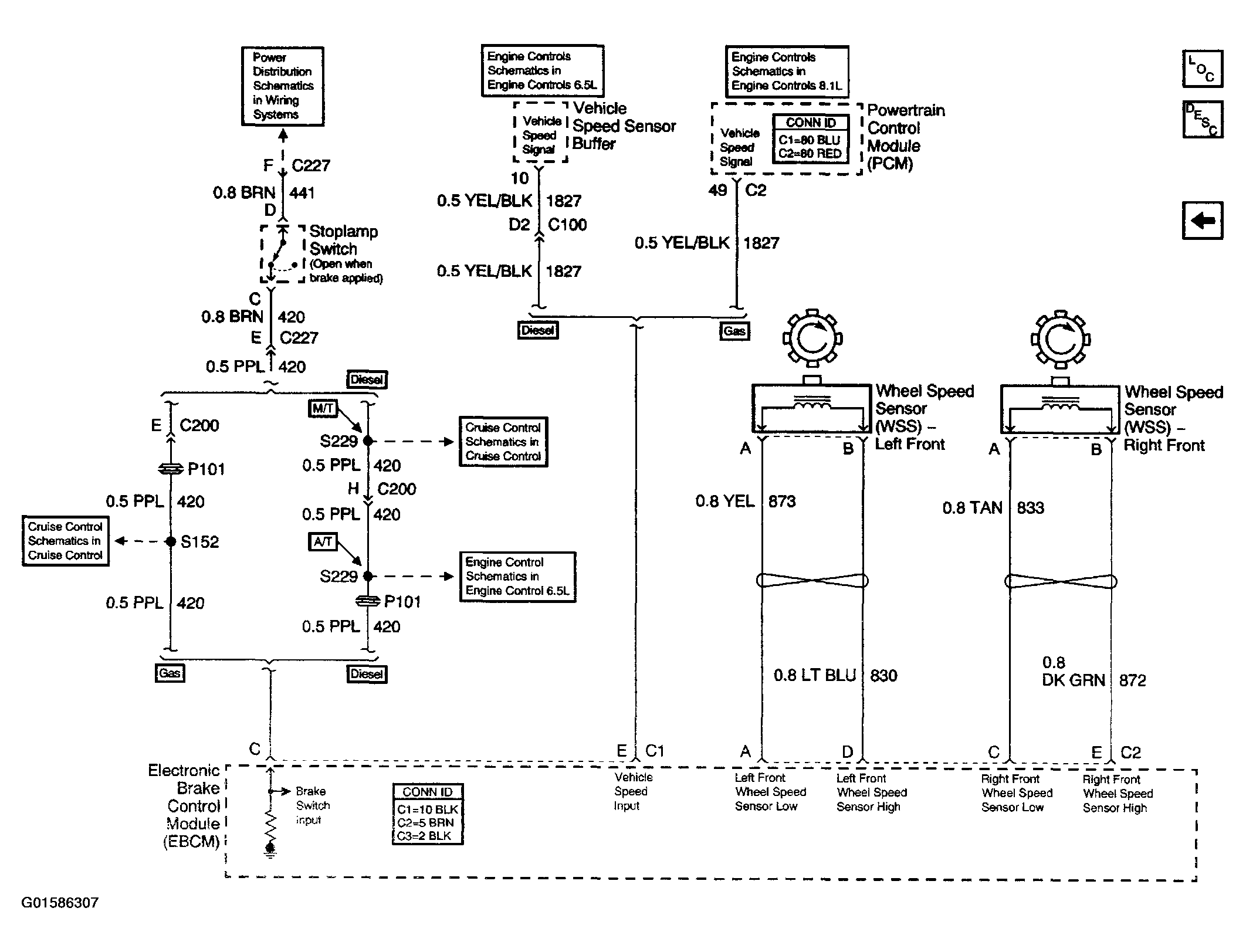

Fig 2: ABS Schematics (EBCM Stop Lamp Switch & Wheel Speed Inputs)
G01586307Courtesy of GENERAL MOTORS CORP.
